Installing additional cores

Starting from the Arduino Software (IDE) version 1.6.2, all Arduino AVR boards are installed by default. Some Arduino boards require an additional core to be installed, therefore we have implemented the Boards Manager as the preferred tool to add cores to your Arduino Software (IDE).

Cores are necessary to make new microcontrollers compatible with your Arduino Software (IDE) and, possibly, the existing sketches and libraries. We develop the cores for the new microcontrollers used in our new generation boards, but anyone may develop a core for their own boards following the rules and requirements we have issued.

How to install an Arduino core

Our board cores are already available in the Boards Manager and are updated on every new Arduino Software (IDE) release.

Click on Tools menu and then Board > Boards Manager.

Boards manager will open and you will see a list of installed and available boards; the download of the index file could take some time and the list appears at the end of this process; please be patient.

Click on the Arduino SAM Boards core, choose the version in the drop-down menu and click on Install.

Core SamD

The download time will depend on your connection speed.

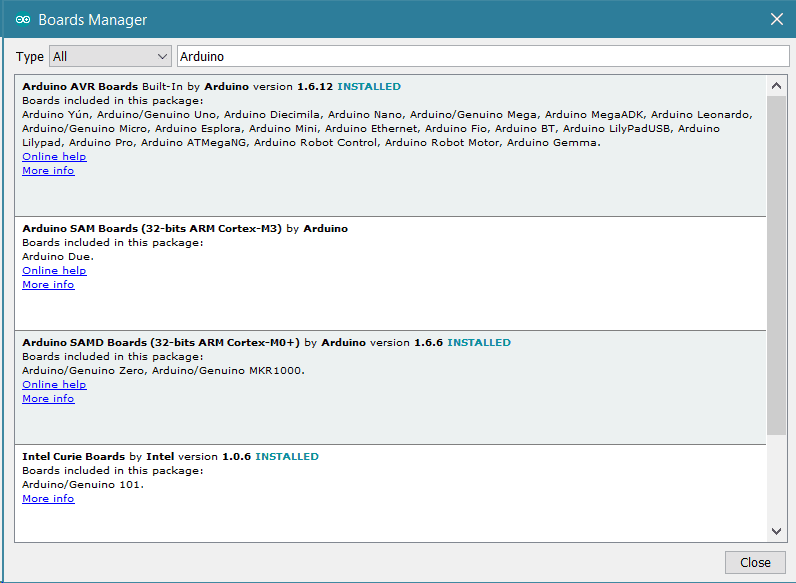

After installation is complete an Installed tag appears next to the core name. You can close the Board Manager.

Board MGR all

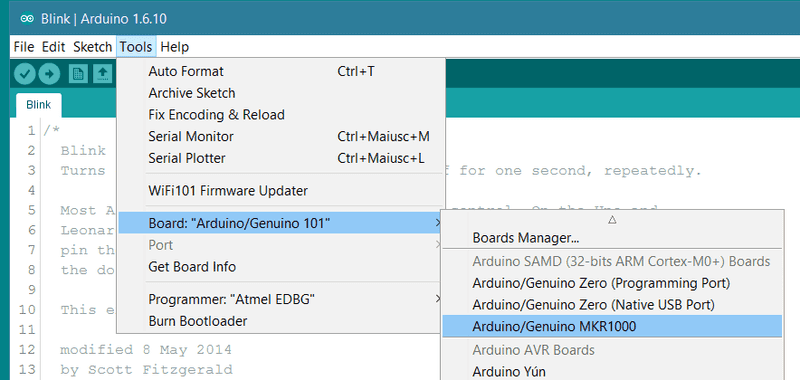

Now you can find the new board in the Tools > Board menu.

Core Samd Board

How to install a third party core

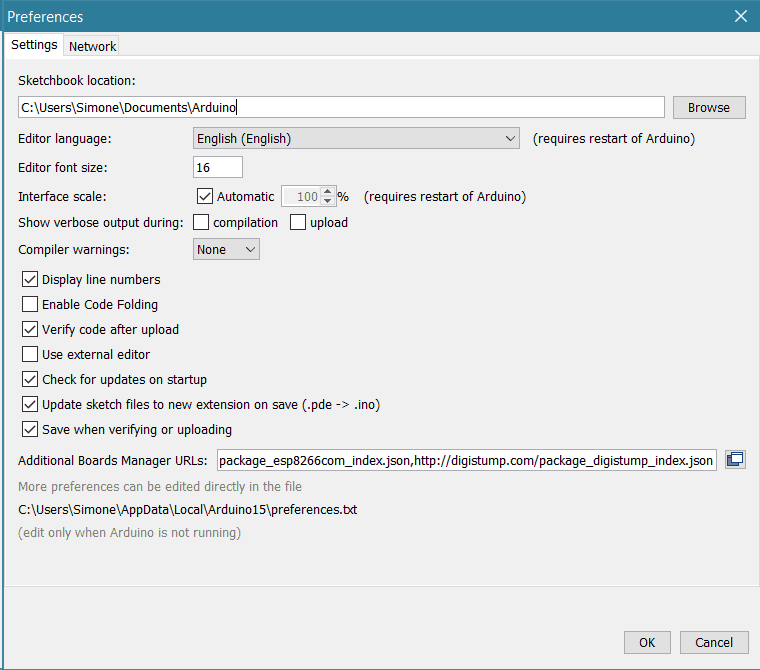

We have provided a solution for the easy installation of a core developed by a third party. This requires a specific file, written in JSON format, that must be put in the dedicated field Additional Board Manager URLs inside Arduino Software (IDE) Preferences.

Prefs Core

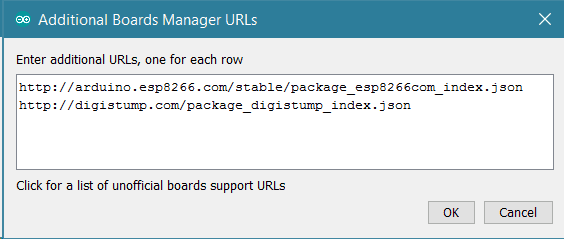

If you have more JSON files to add, click on the little icon on the right of the field and open a specific window where you may input more URLs, one line at a time.

Core MoreJsons

After this procedure, the new cores will be available for install in the Boards Manager. Please refer to the information provided by the third party core author to get more specific instructions.
