Specificaions
1.OLED display, no need backlight, self-illumination
2.The display performance is better than the traditional LCD display, also lower consumption.
3.Driver IC: SSD1306
4.Size: 0.96 inch OLED
5.Resolution: 128 x 64
6.IIC interface
7.Display Color: white
Pin Description
GND: Power Ground
VCC: Power + (DC 3.3 ~5v)
SCL: Clock Line
SDA: Data Line
Download link
download.haljia.com/download/Display/OLED/OLED_Module.rar
Packing List

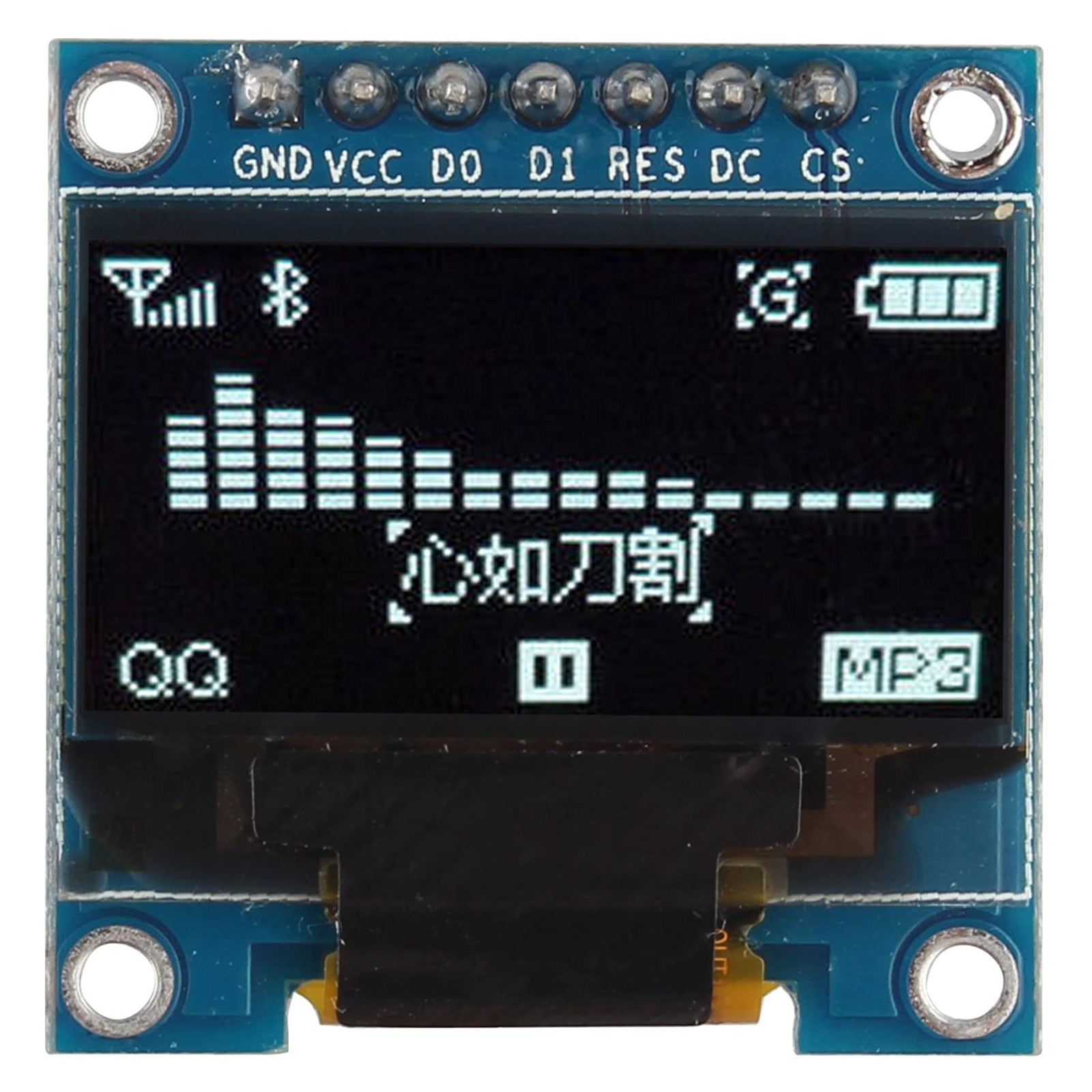

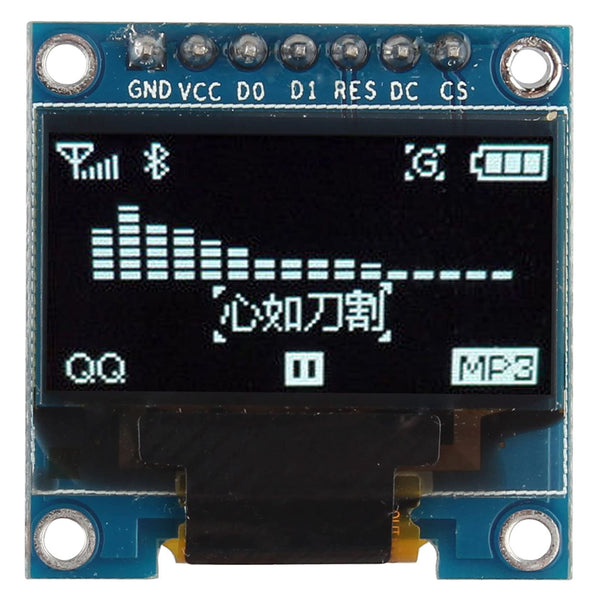

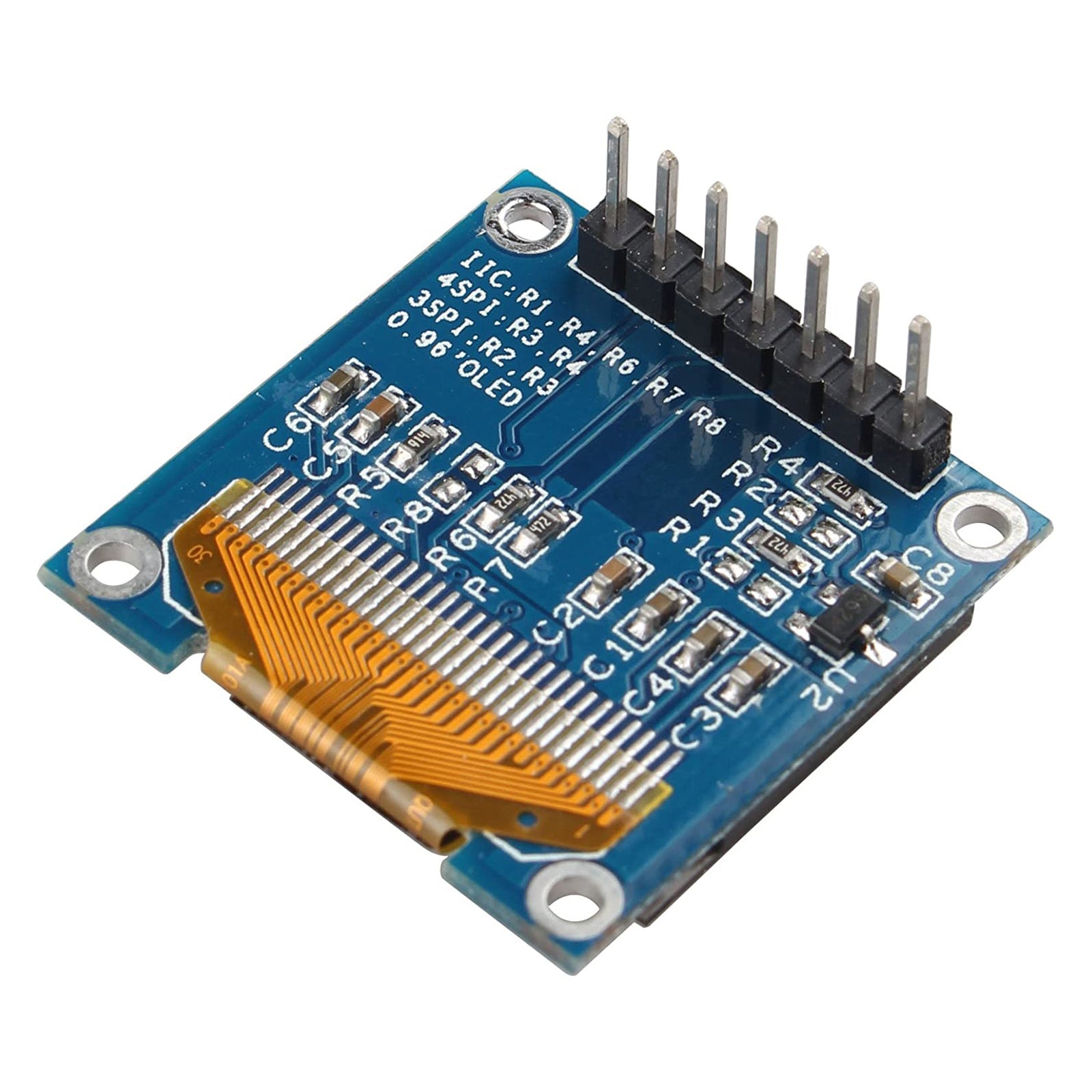

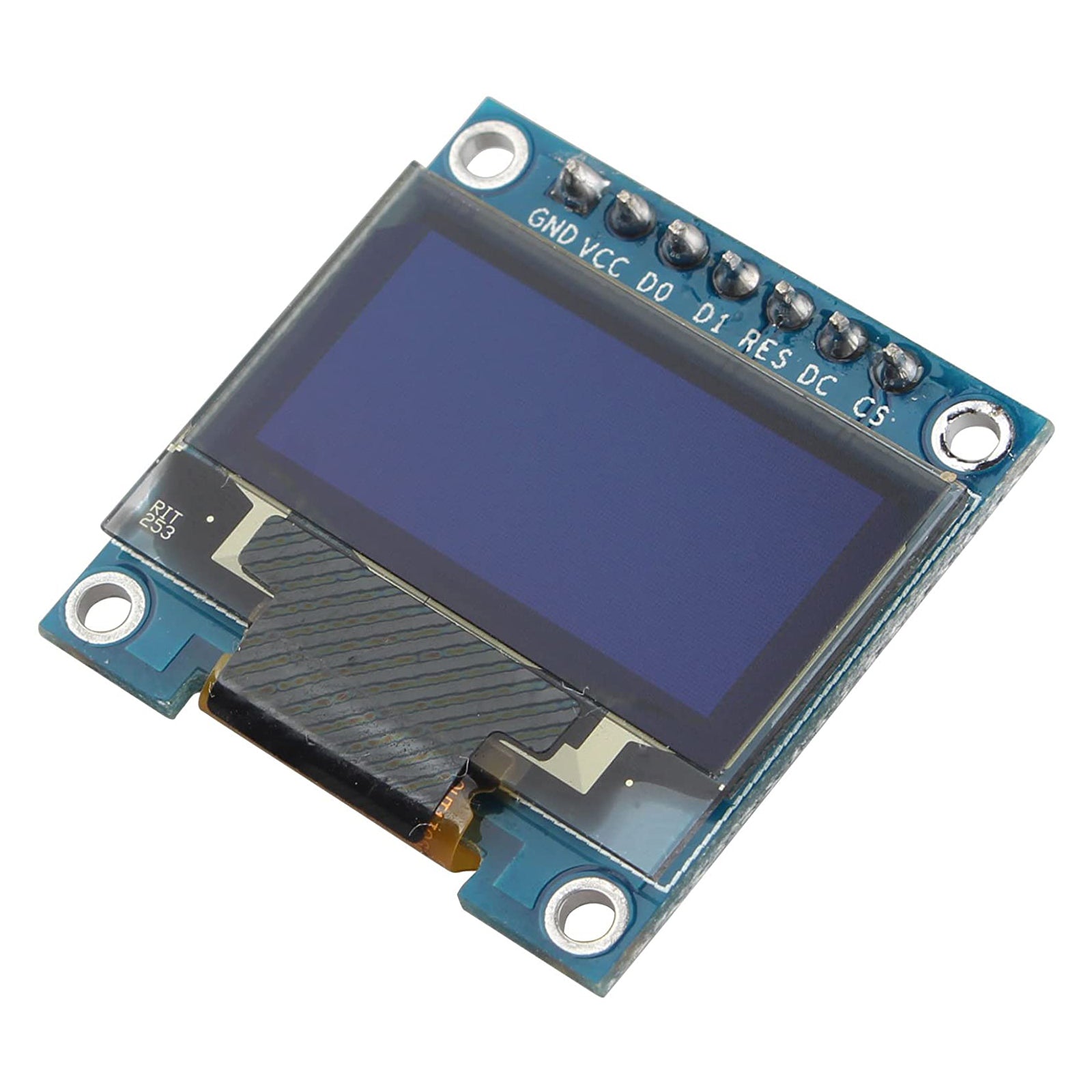

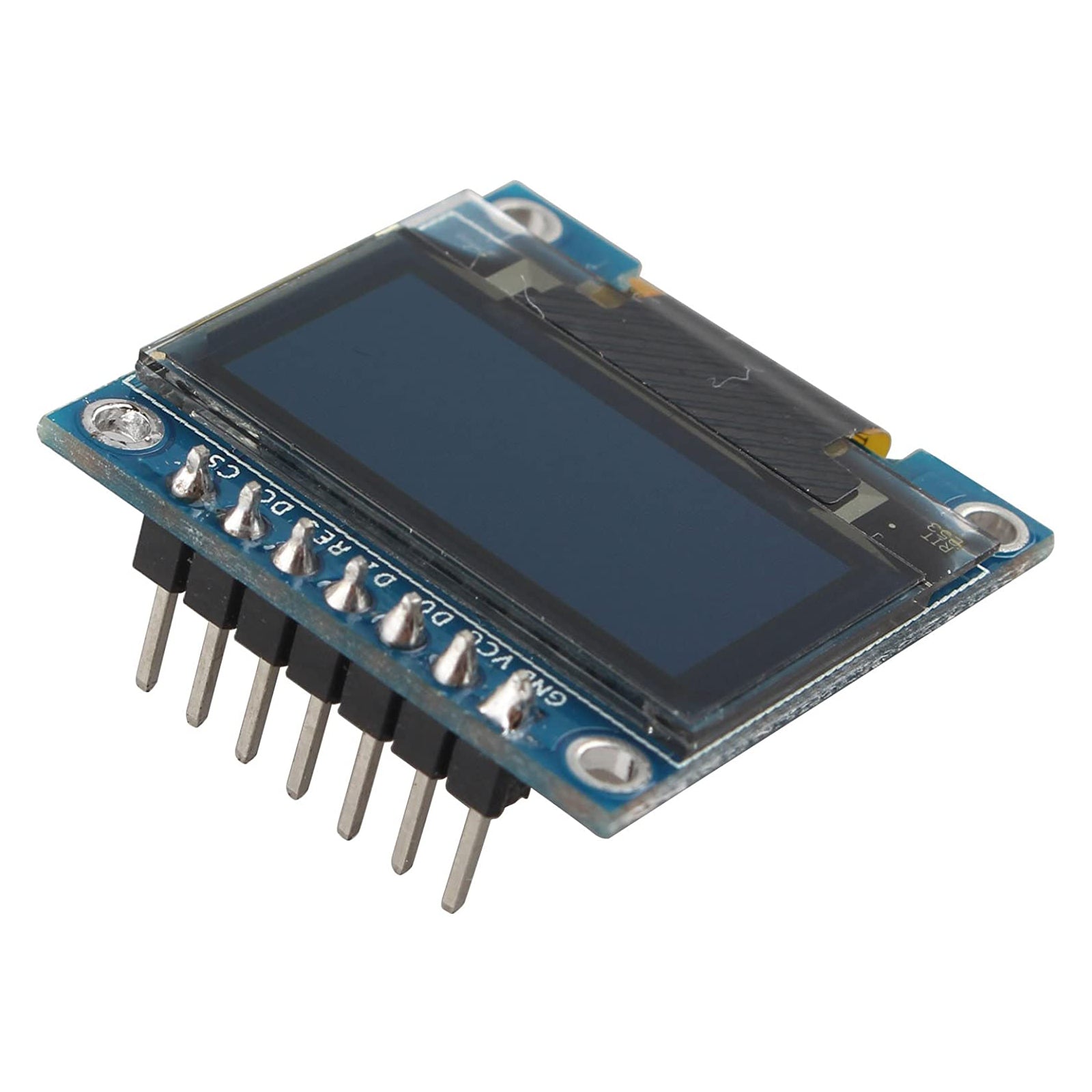

1 x HALJIA 0.96 SPI IIC I2C White OLED LCD Display Module
