Features

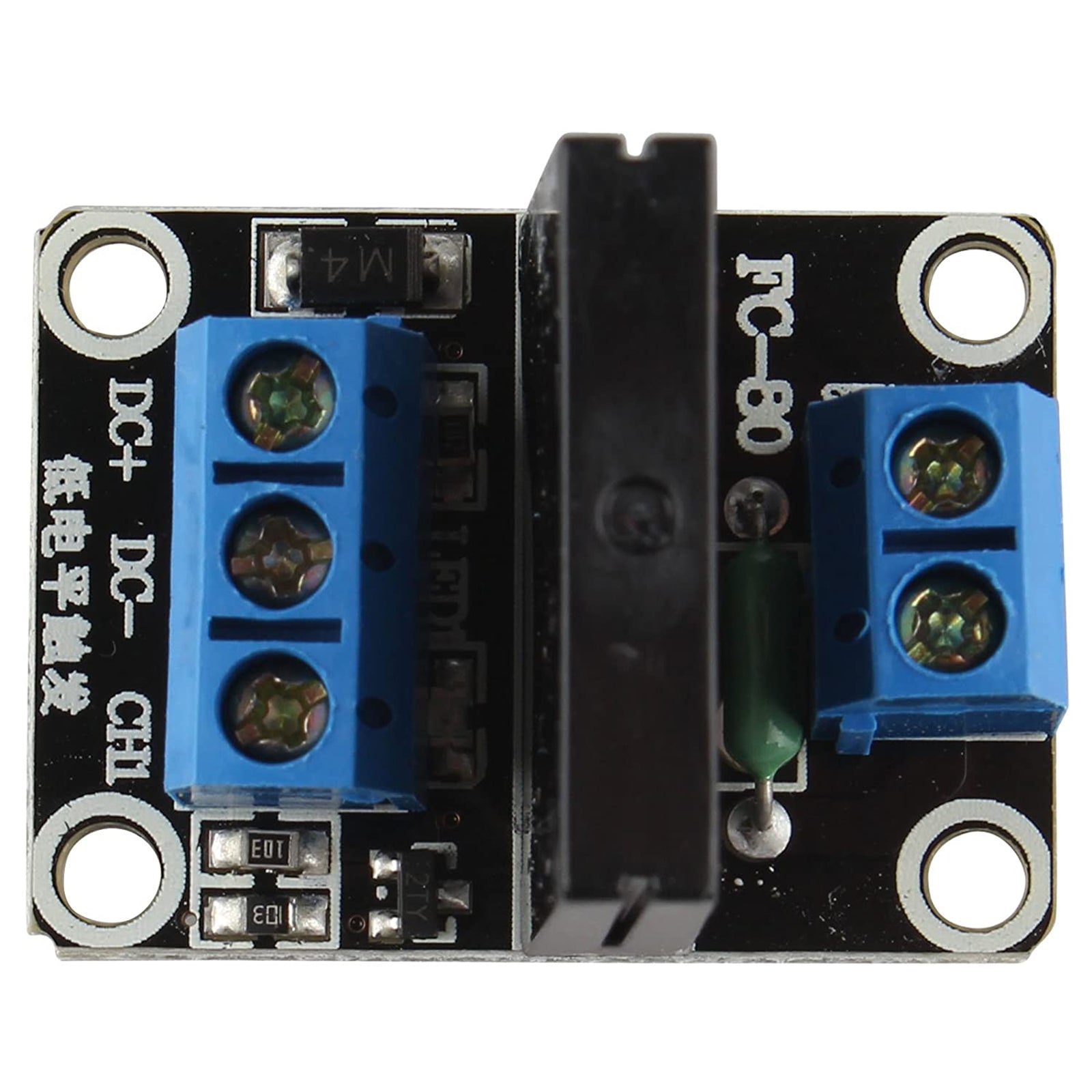

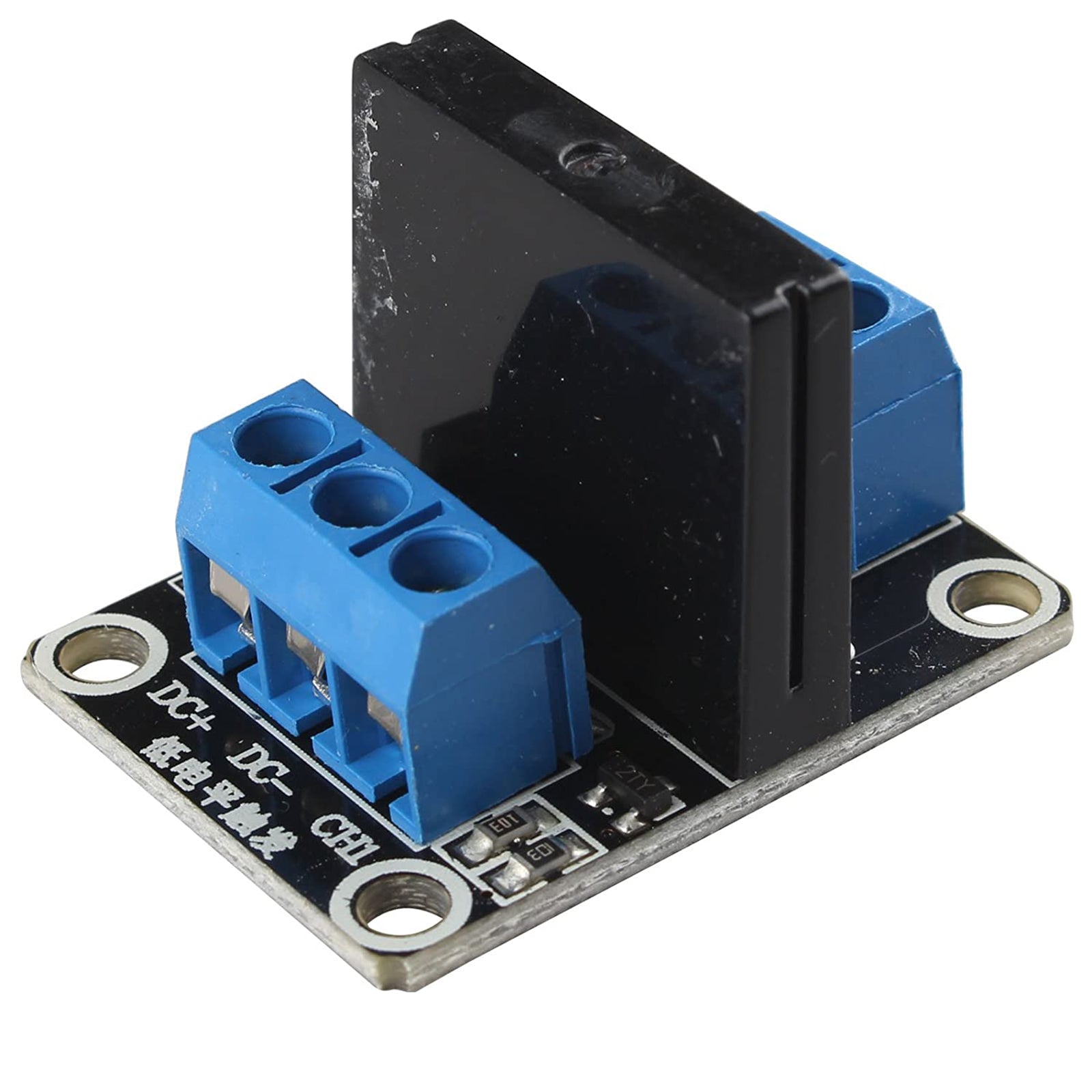

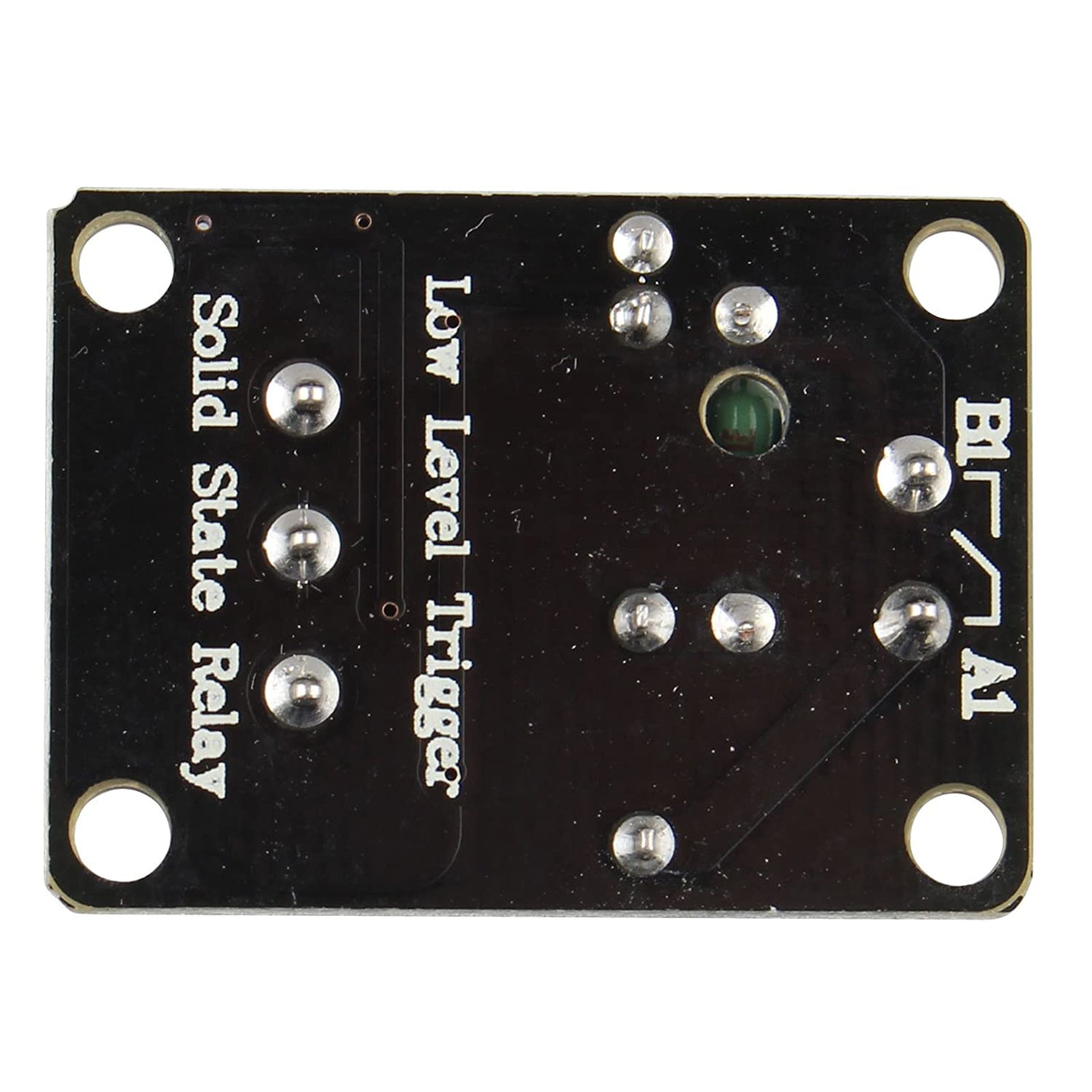

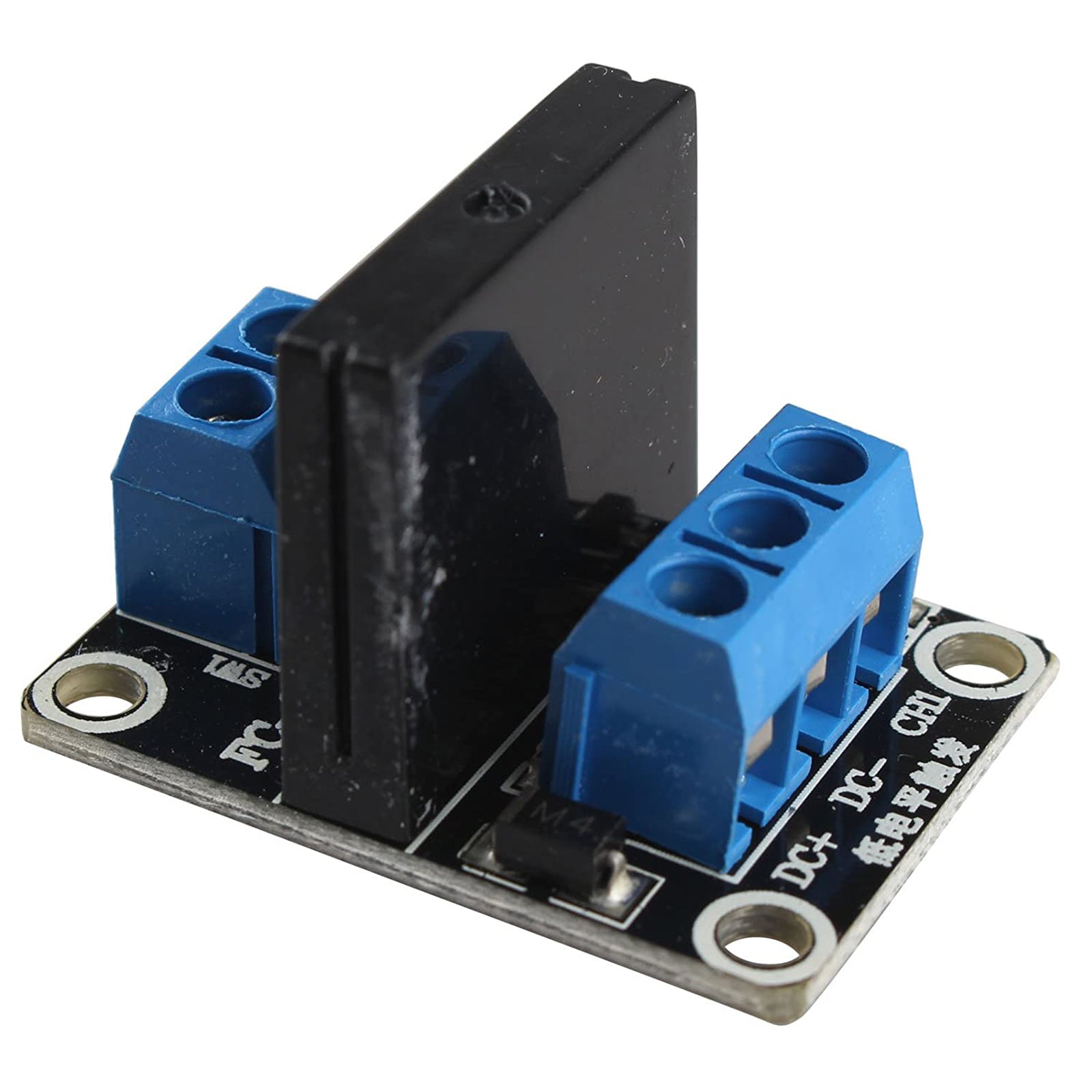

1 channel 5V solid state relay module with resistive fuse compatible with Arduino Uno Duemilanove MEGA2560 MEGA1280 Raspberry Pi ARM DSP PIC.
5V solid state relay 240V 2A, output with resistive fuse 240V 2A.
Input voltage: 5 V DC (160 mA).
Input control signal voltage:(0–2.5 V State Low Relay OFF); (3.3–5 V State High Relay ON).
Size: 24 x 32 x 21 mm
Module interface
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: negative power supply
CH: relay module signal to trigger the end (high level trigger effective)
Packing List
1 x 1-channel Solid State Relay Module
