Specifications

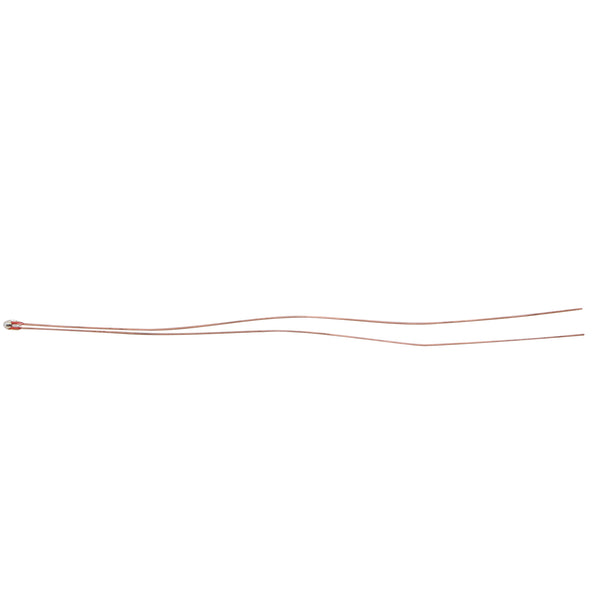

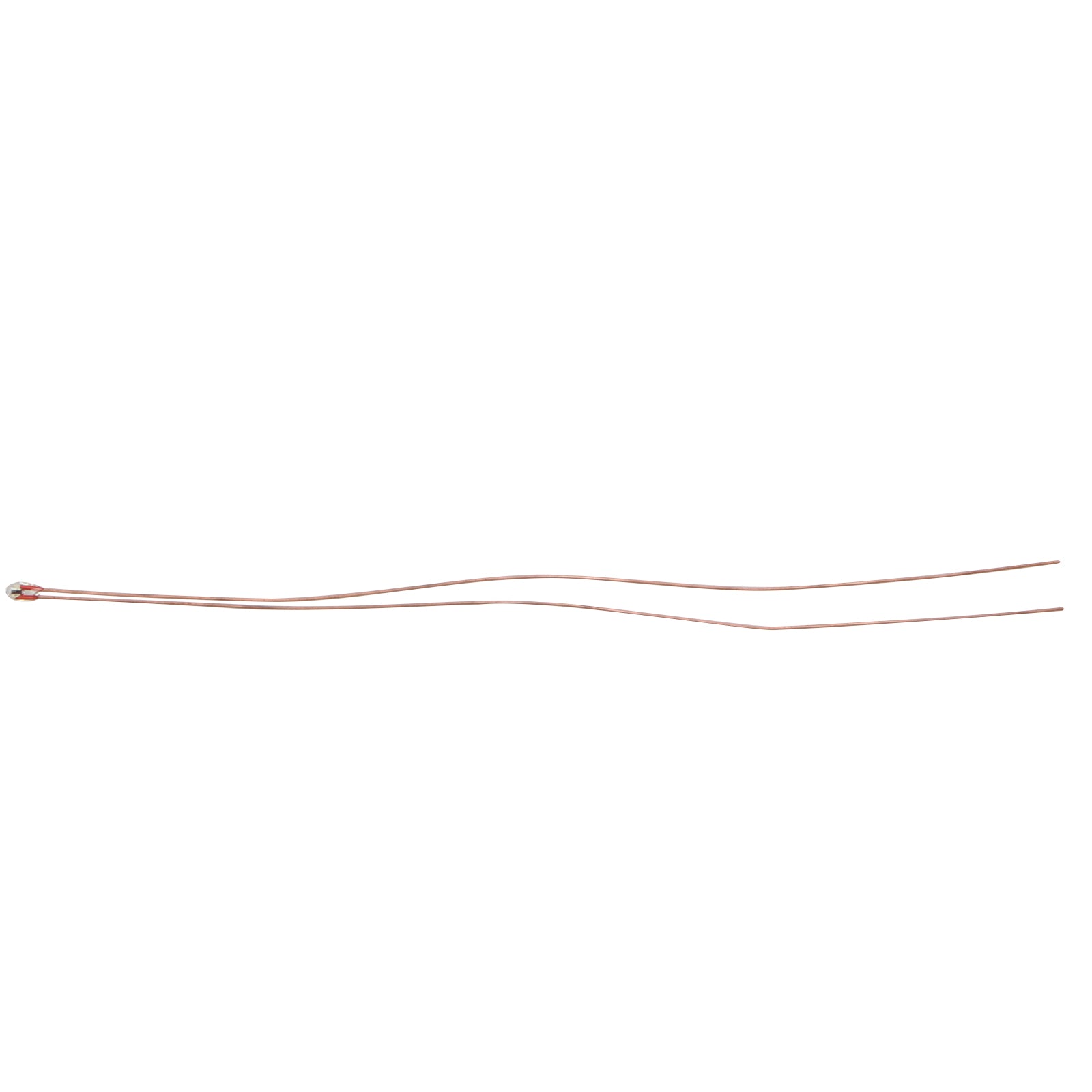

-Product name:NTC Thermistor/Temperture Sensor
-Product Type: AYN-MF59-104F-3950FB
-Resistance (R25 ℃): 100 KΩ
-Resistance (R25 ℃) Tolerance: ± 1%
-B value: 3950K
-B value allowable error: ± 1%
-Operating temperature range: -40 ℃ ~ 250 ℃
-Dissipation factor: ≥ 2mW / ℃ (in still air)
-With the time constant: ≤ 20S (in still air)
-Head 1.8mm single-ended glass seal,recommended hole size φ2mm
Applications
1. Induction cooker, electric pressure cooker, disinfection cabinet, drinking fountains, microwave ovens,
electric heaters and other household appliances temperature control and temperature detection.
2. Office automation equipment (copiers, printers, fax machines, 3D printers, programmable switches, etc.)
temperature detection and temperature compensation.
3. Industrial, medical, environmental protection, meteorology, food processing equipment, temperature control and testing.
4. Mobile phone battery packs and chargers and other communications products temperature protection.
5. Instrument coil, integrated circuit, quartz crystal oscillator and thermocouple temperature compensation.
Packing List

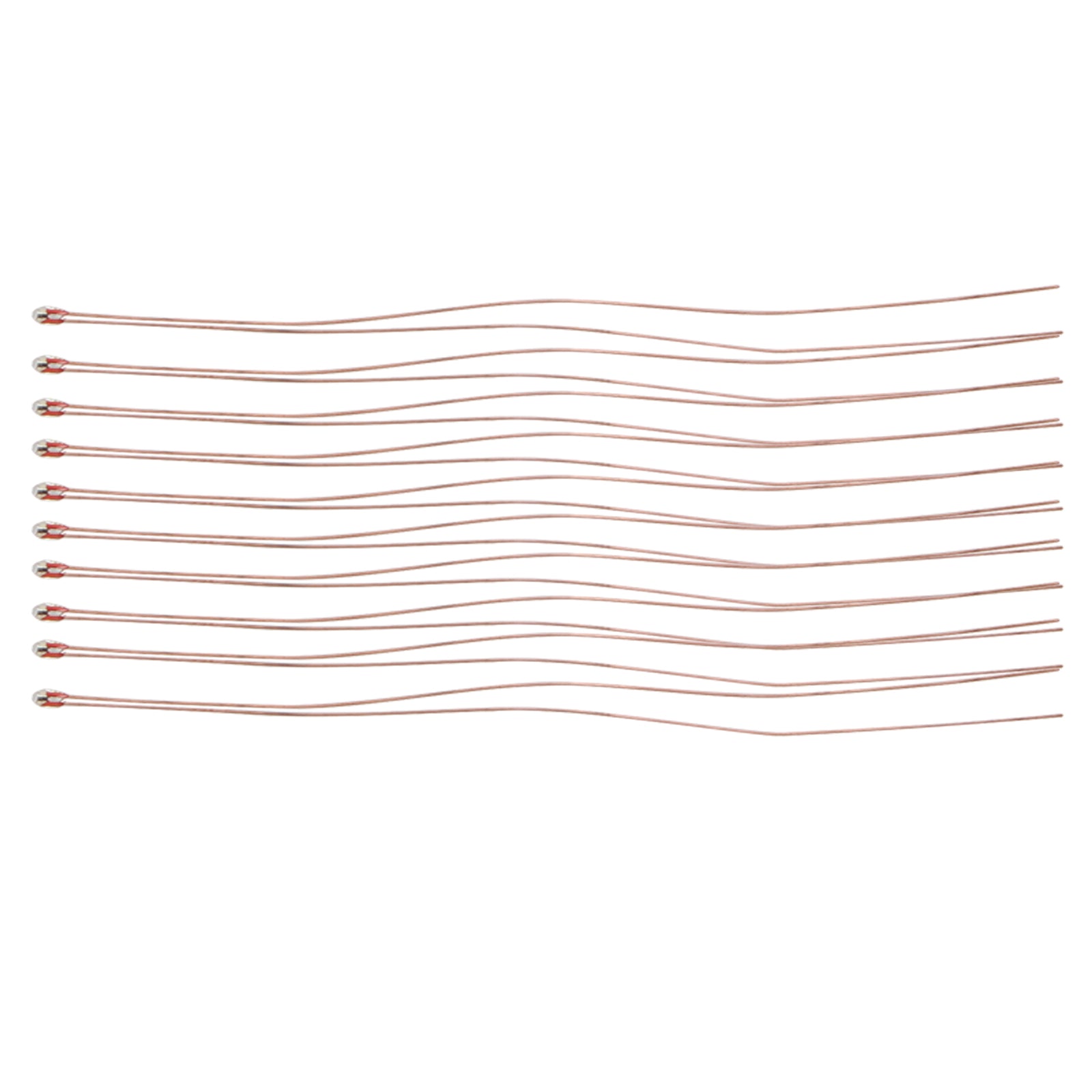

10 x 100K ohm NTC Thermistor Temperture Sensor
