Feature:

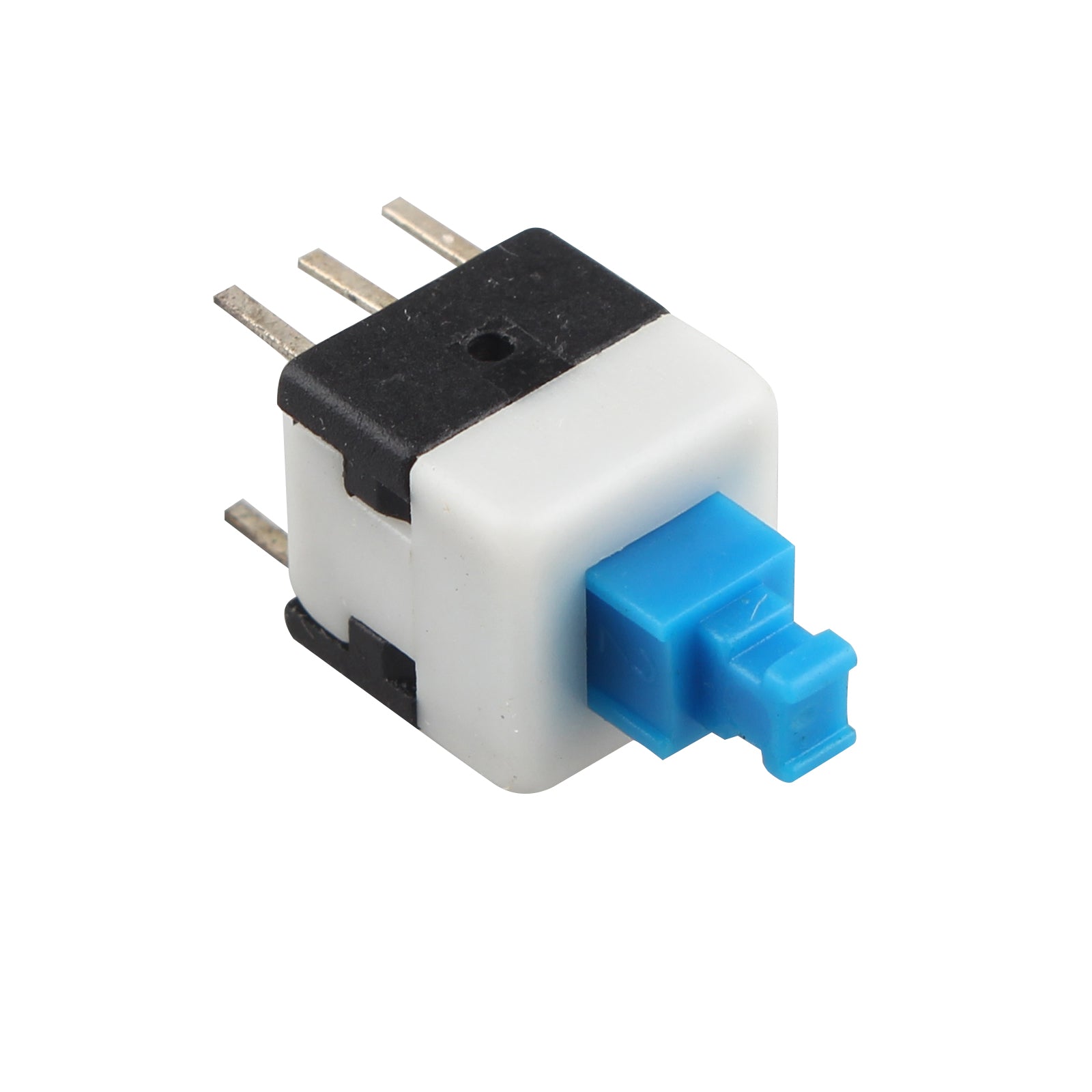

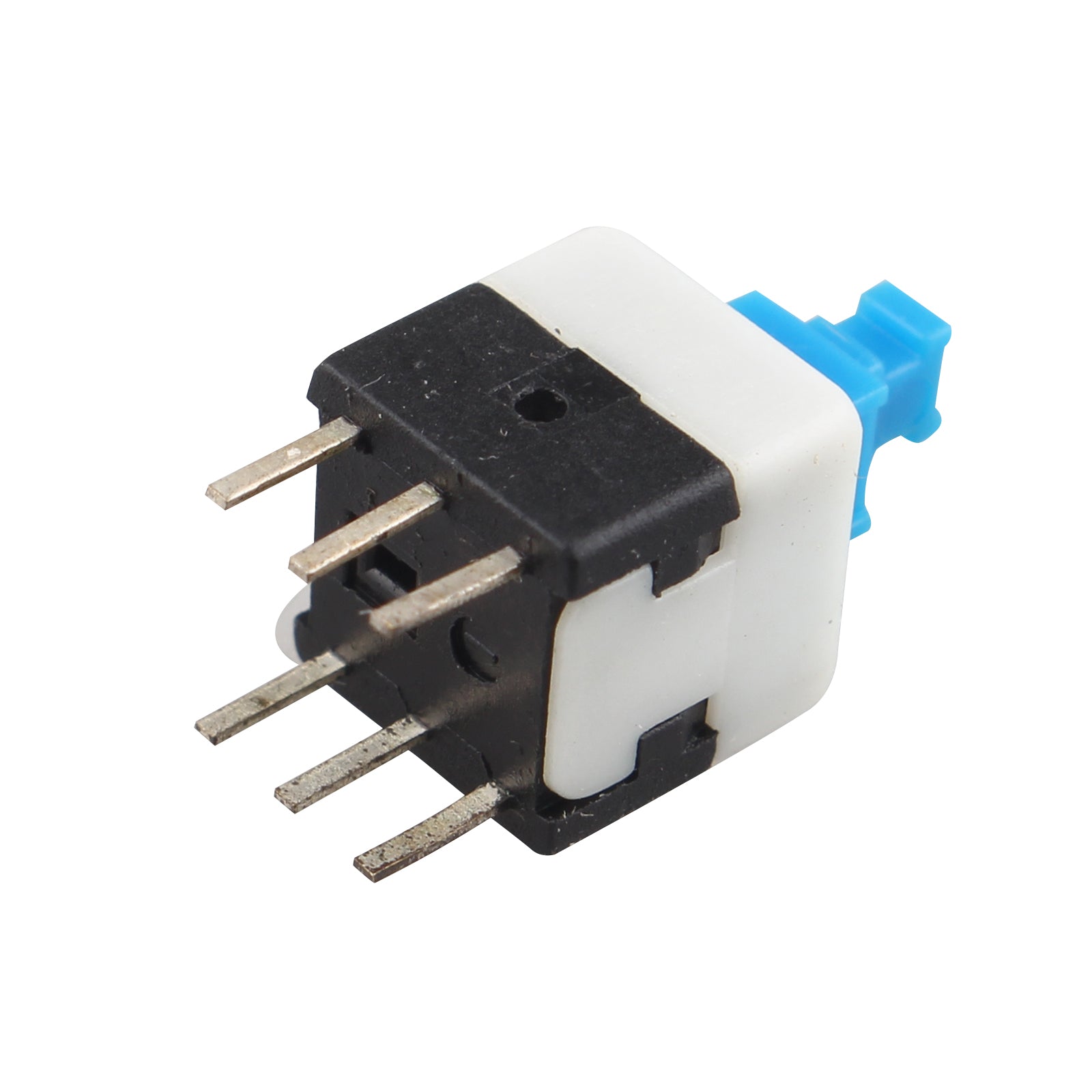

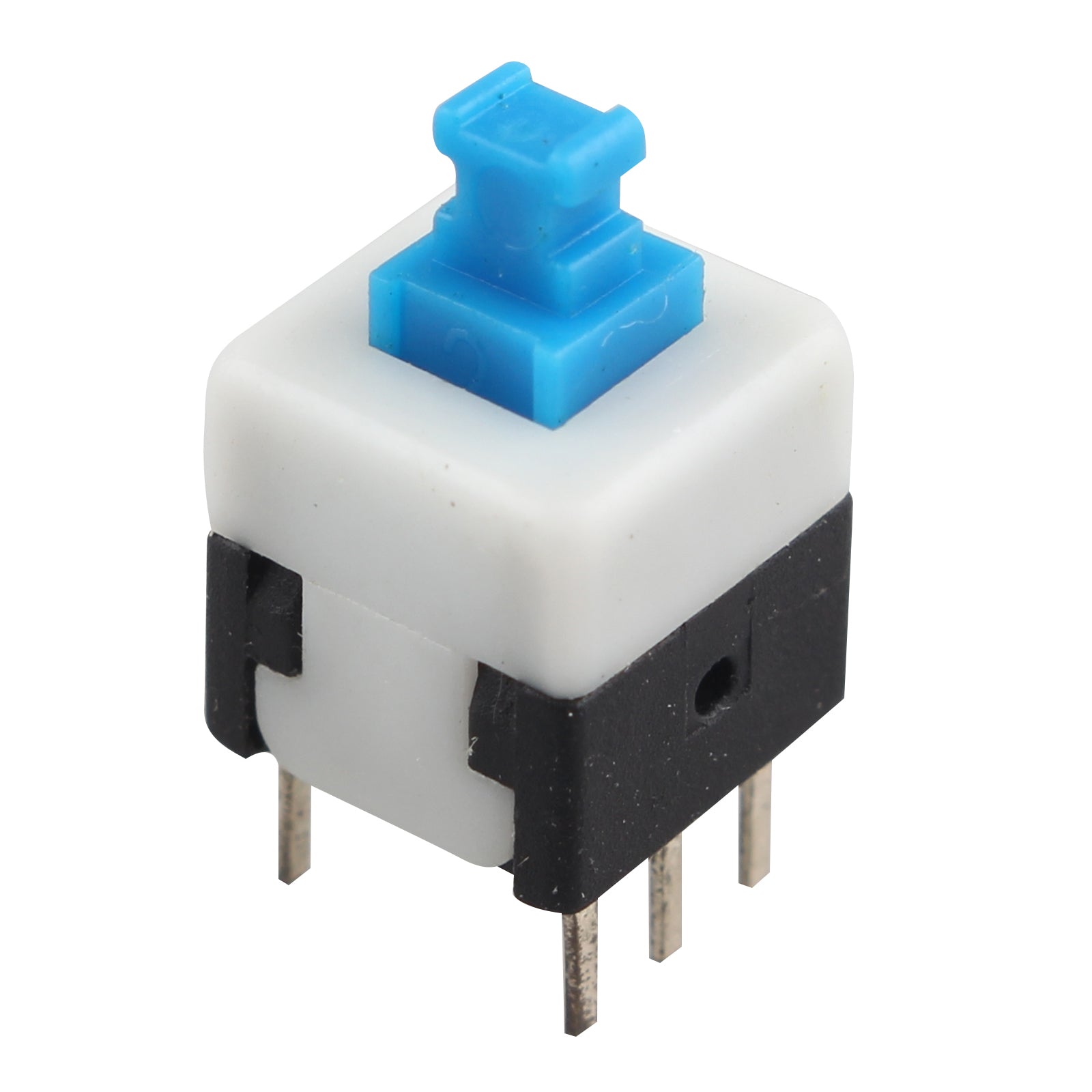

Product Name :Push Button Switch ;Contact Type : Latching
WIDELY APPLICATIONS:Multimeter,circuit board,electronics, computer mouse, instrument and meter, household appliances and more.
THE HIGH PRECISION mechanism design of this self-locking switch provides precise operation and LONG LIFETIME.
Dimension : 8 x 8mm / 0.31" x 0.31" (L*W);Overall Height : 18mm / 0.7''
Pin Number : 6 Pin Pitch : 5 x 2mm / 0.2" x 0.08'' (L*W);Pin Length : 4mm/0.16''
Material : Plastic, Metal, Electric Parts;
Color : Blue, White, Black, Silver Tone
Rated load: 10mA / 30V
Insulation resistance: ≥100mΩ
Contact resistance: ≤50mΩ
Electrical life: ≥ 100,000 times
Temperature range: -25 ~ 65 ℃
Withstand voltage: AC250V (50Hz) / 1min
Packing List:

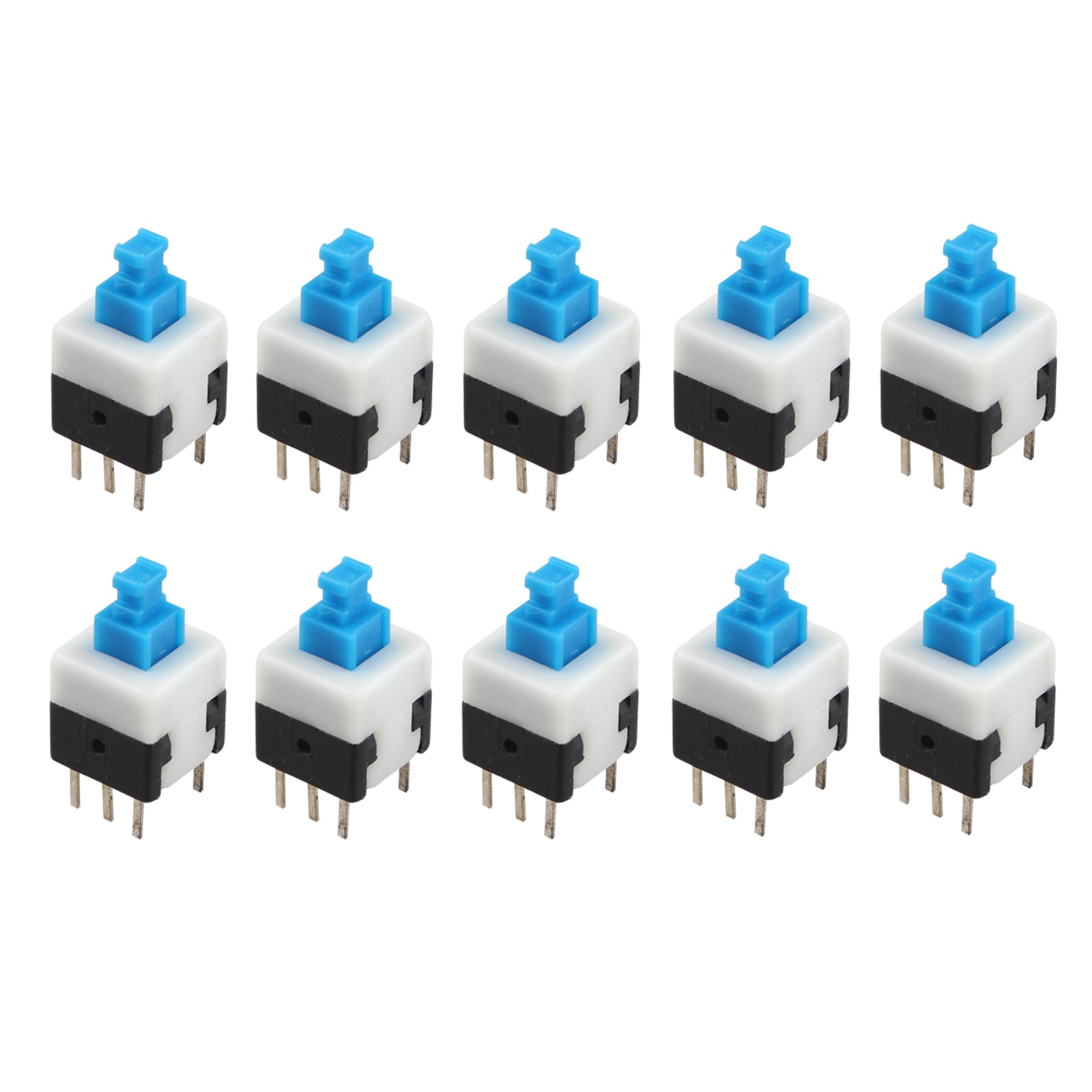

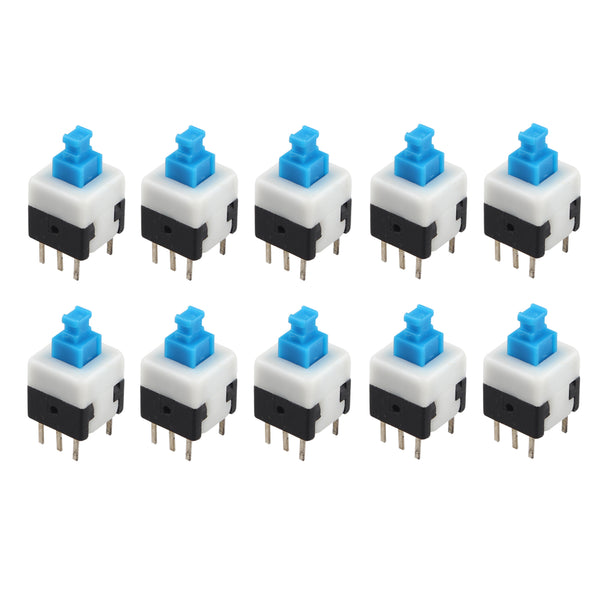

10*6 Pin Self-locking Switch
