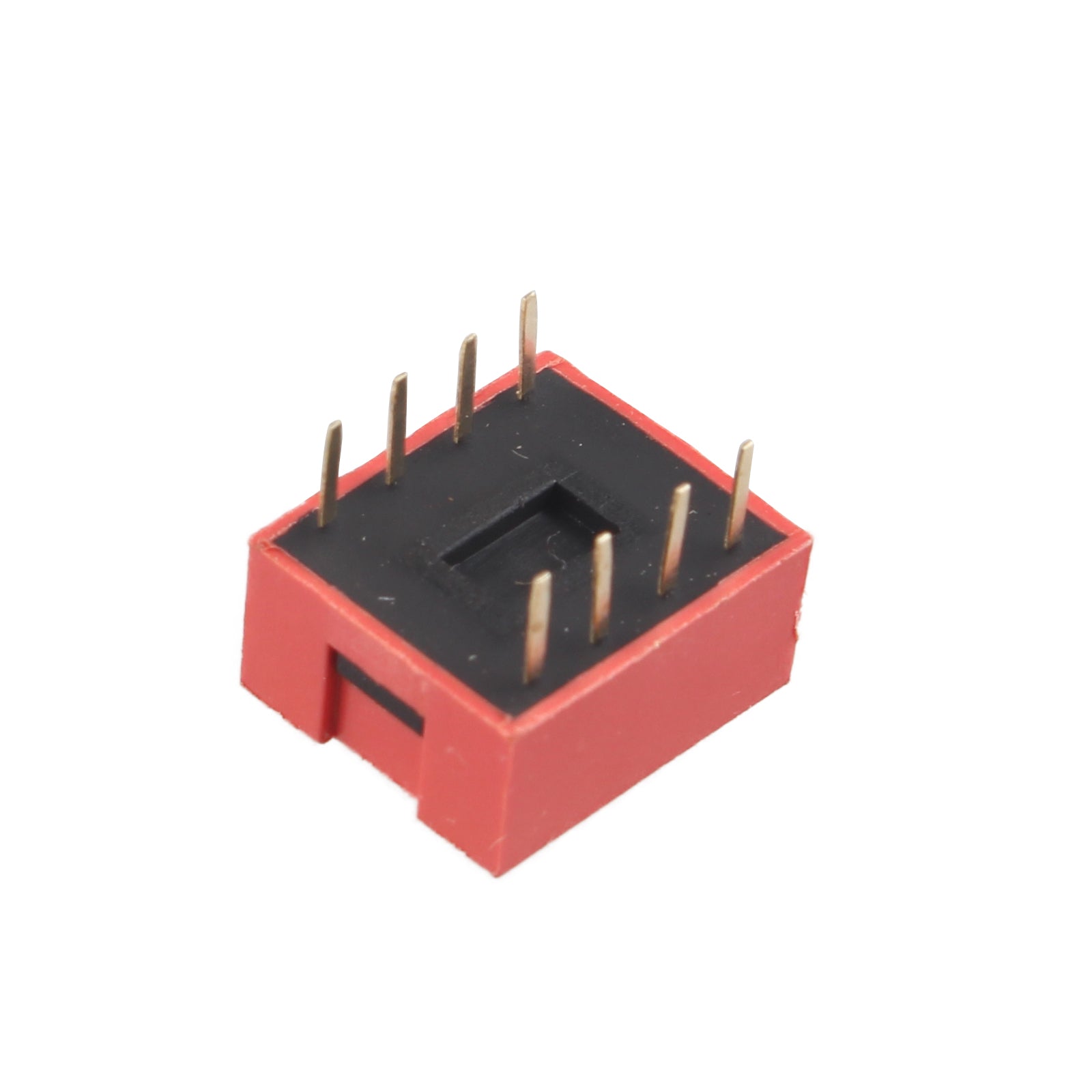

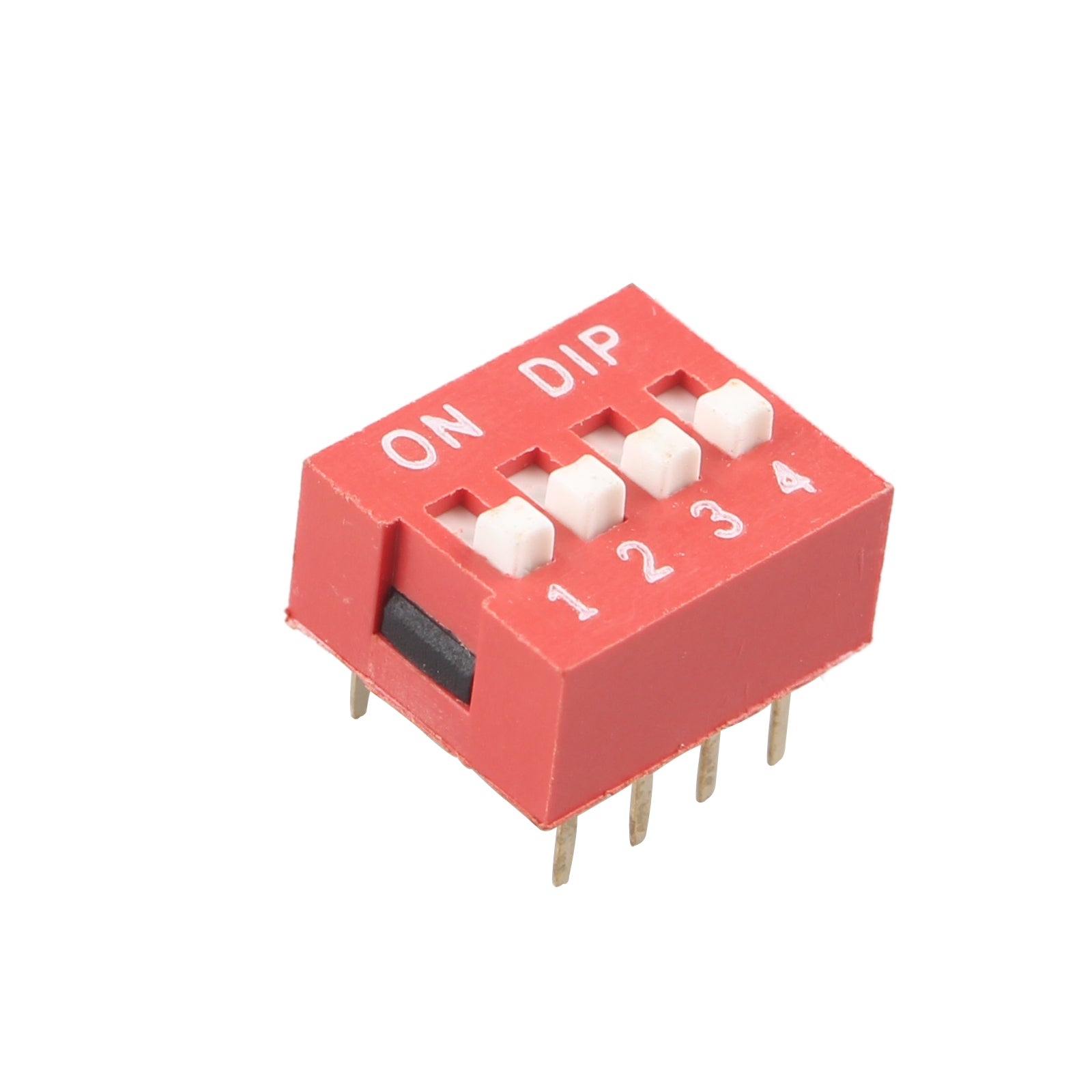

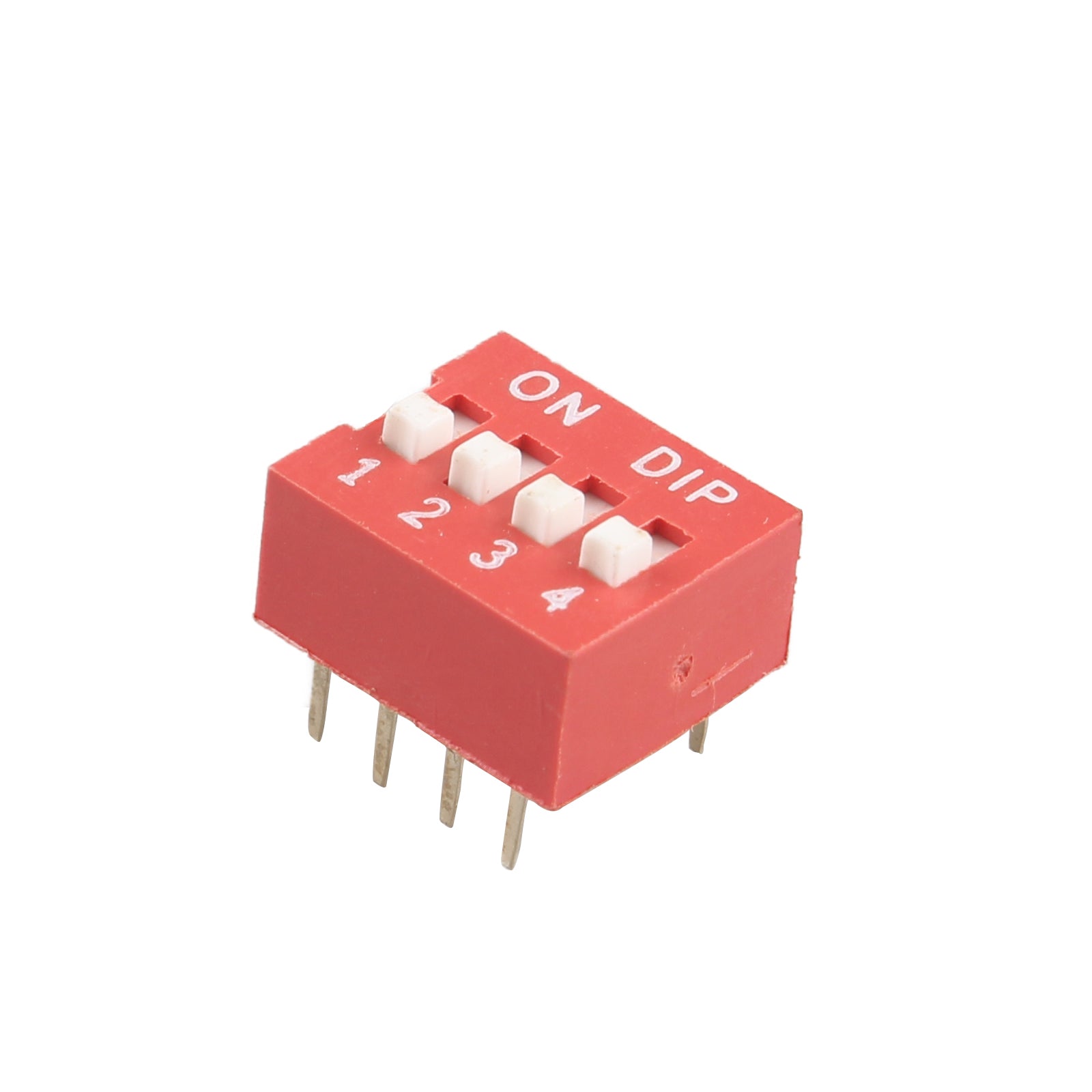

- Product Name: DIP Switch; Type: 4 Way Slide Style;

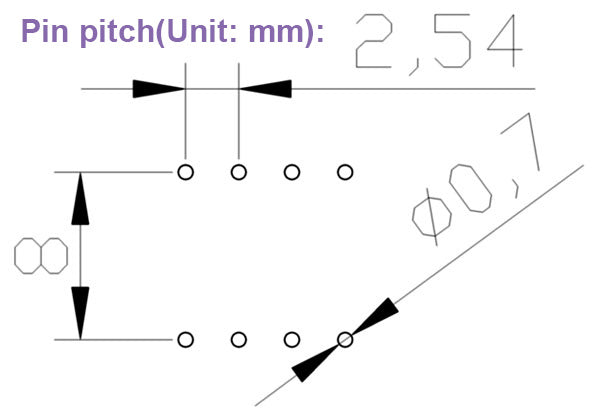

- Pitch: 2.54mm; Non-Switching Rating: 100mA DC 50V; Switching Rating: 25mA DC 24V
- Dimension: 1.1 x 0.9 x 1cm/ 0.4" x 0.3" x 0.4"(L*W*T);
- Material: Plastic, Electric Parts; Color: Red;

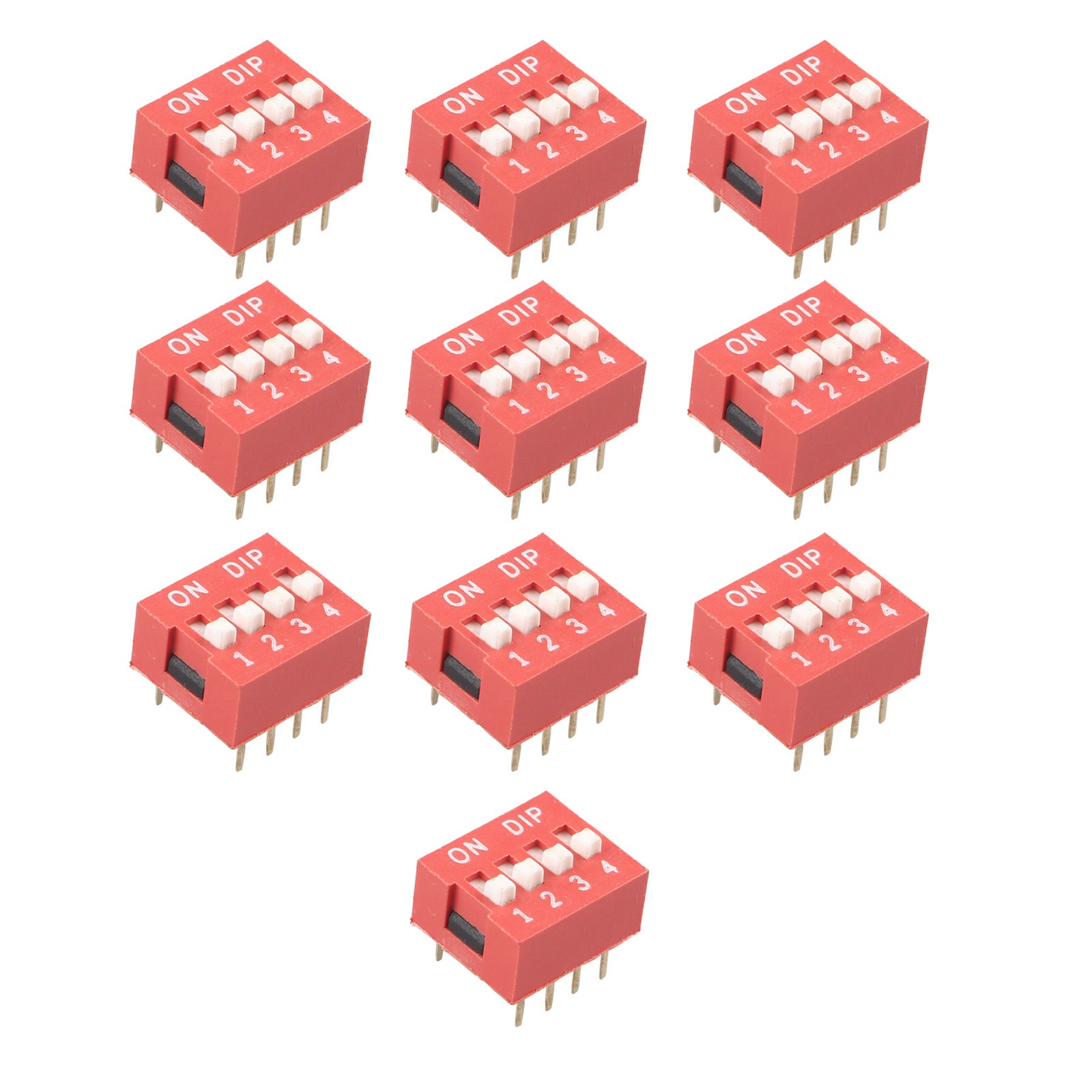

- Package Content: 10 x DIP Switch
This DIP switch is designed to be used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.
Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.
1, Hand Soldering, useing 30W soldering iron, not more than 3 seconds 350 centigrade, 270 centigrade less than 5 seconds.
2, Wave-soldering, 240 centigrade, less than 20 seconds, welding and cleaning process in the switch is disconnected.
10Pcs Slide Type Switch Module 2.54mm 4-Bit 4 Position Way DIP Red Pitch
