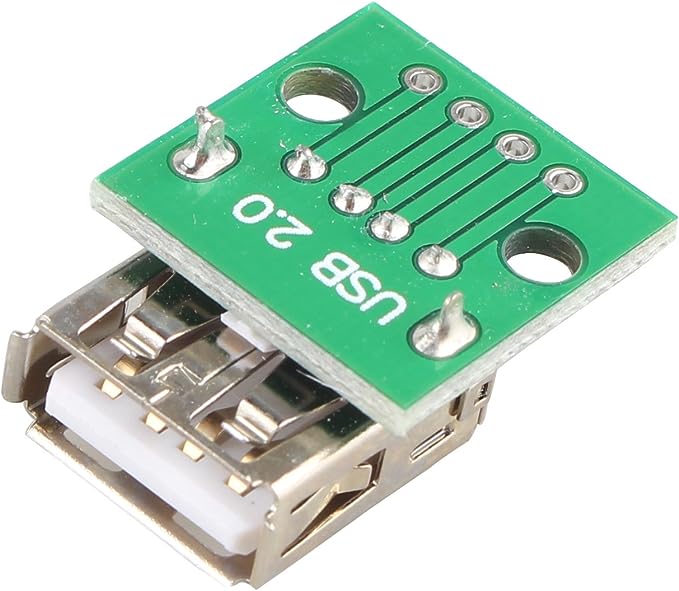

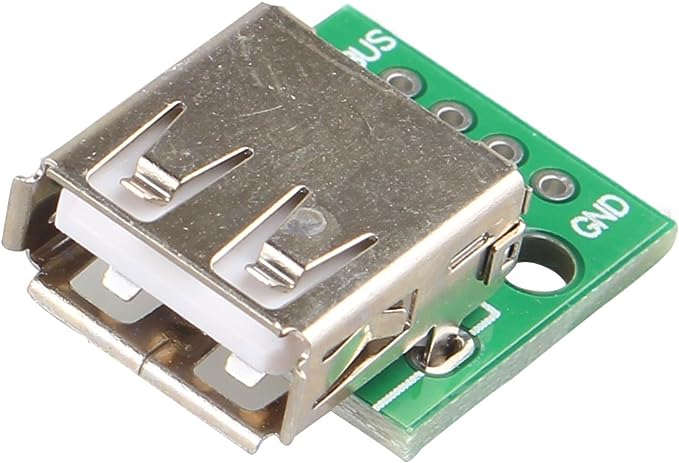

- This module can easily convert power and data of type A female USB connector to conventional DIP 2.54mm pin.
- Pin pitch: 2.54mm
- Operating Voltage: 5V.
- Operating Current: 500mA (MAX)
- It is suitable for breadboard and PCB experiment board DIY projects.
This adapter allows you to quickly and easily mount a USB Type A Female connector onto a breadboard or prototype board.
It brings all 4 pins (included Shield Ground) of its USB Type A Female socket out to prototyping work.

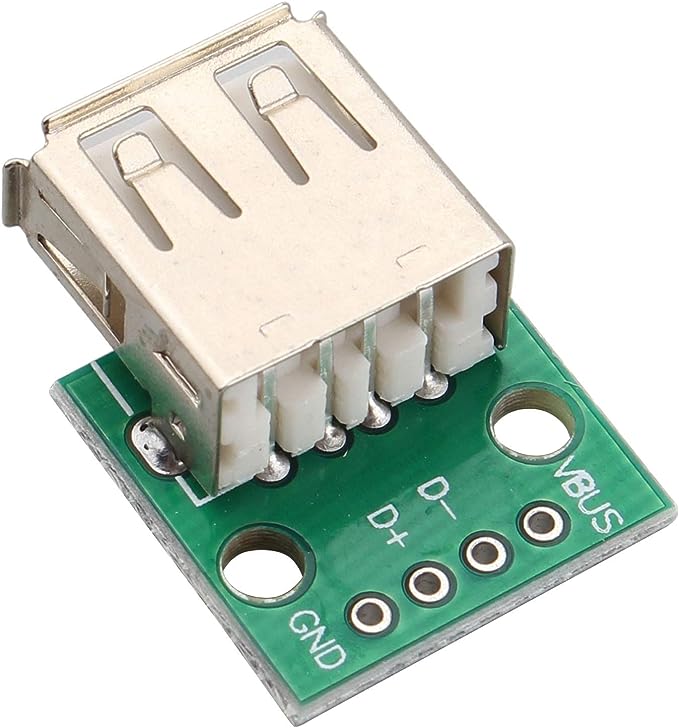

This simple board breaks out a female USB type A connector's
VCC, GND, D- and D+ (4 pins) to a 0.1inch pitch header.
If you want to add a USB to your project, but don't want to put up
with soldering tiny connectors, this is the board for you.
2.54mm Header
Material: Plastic
Size(LxW): Approx. 1.03 x 0.90 inch/ 26.06 x 22.93mm
Packing List:
10 x Type A Female USB To DIP Adapter Converter For Arduino 2.54MM PCB Board
