Features:
ADC bit rate: 16 bits.
Interface type: I2C.
Channels: 4 channels (AN0 AN1 AN2 AN3) or 2 differential inputs.

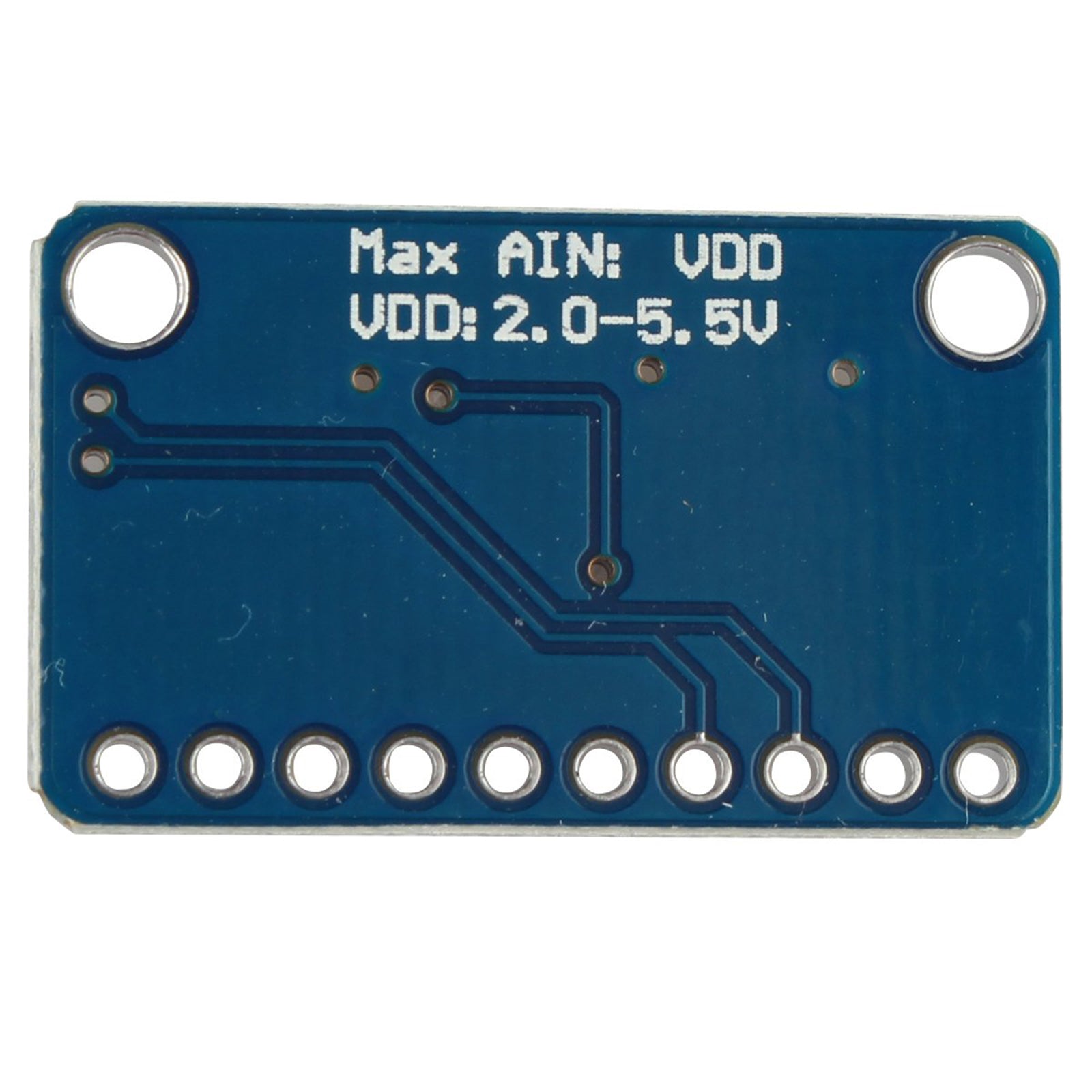

Input voltage: 2 ~ 5.5 V.
Channel input voltage: 0-VDD.
Continuous mode: only 150μ.
Single shot mode: automatically turns off.
Programmable data rate: 8 sps - 860 sps.
Programmed input range control, 7 types of input ranges: - 0.256 V ~ 0.256 V, - 0.512 V ~ 0.512 V, - 1.024 V ~ 1.024 V, - 2.048 V ~ 2.048 V, - 4.096 V ~ 4.096 V, - 6.144 V ~ 6.144 V.
I2C 7-bit addresses between 0x48 - 0x4B.
Dimensions: 18 x 28 mm.
Applications:
Portable instrumentation.
Consumer goods.
Battery monitoring.
Temperature measurement.
Factory automation and process control.
Package Inculded:

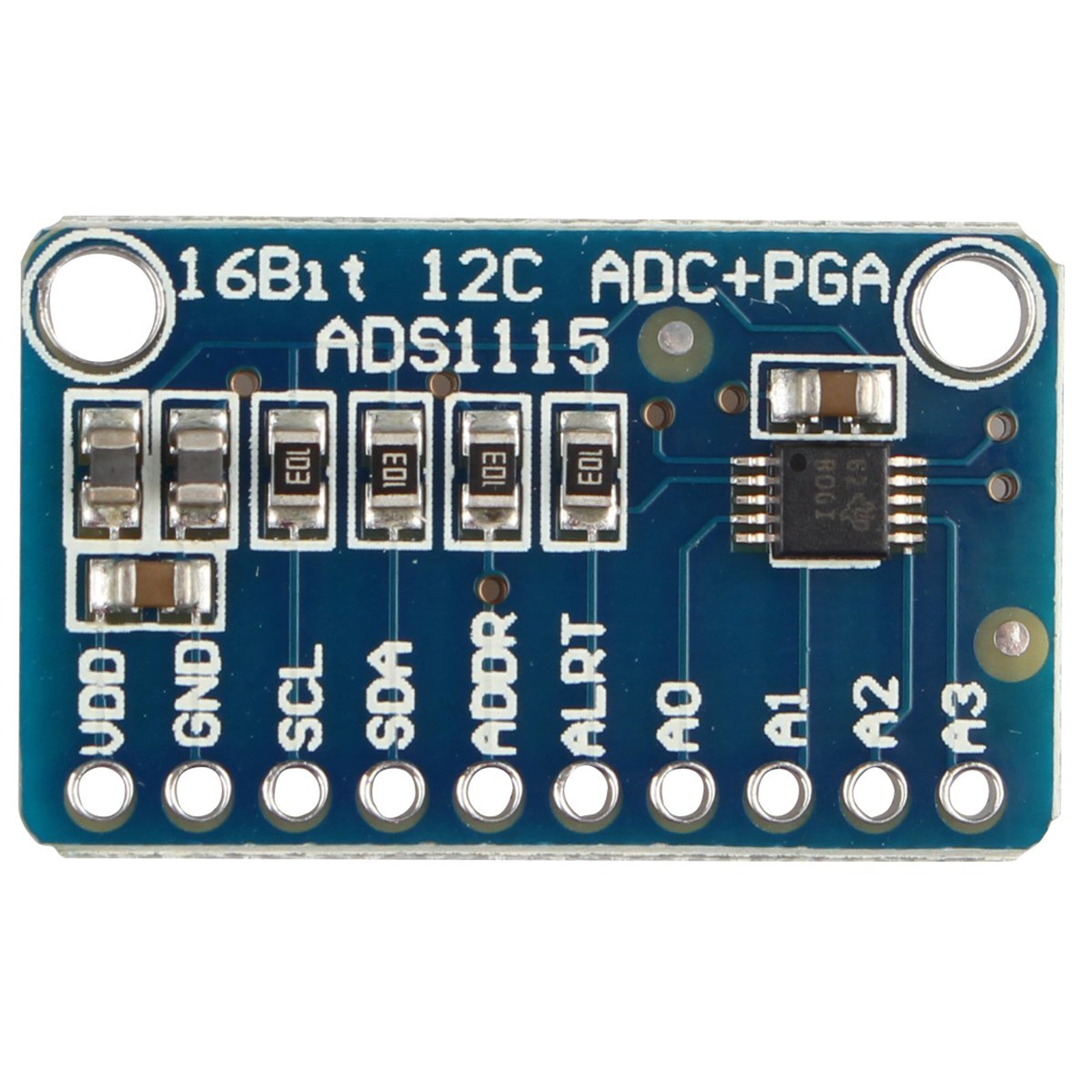

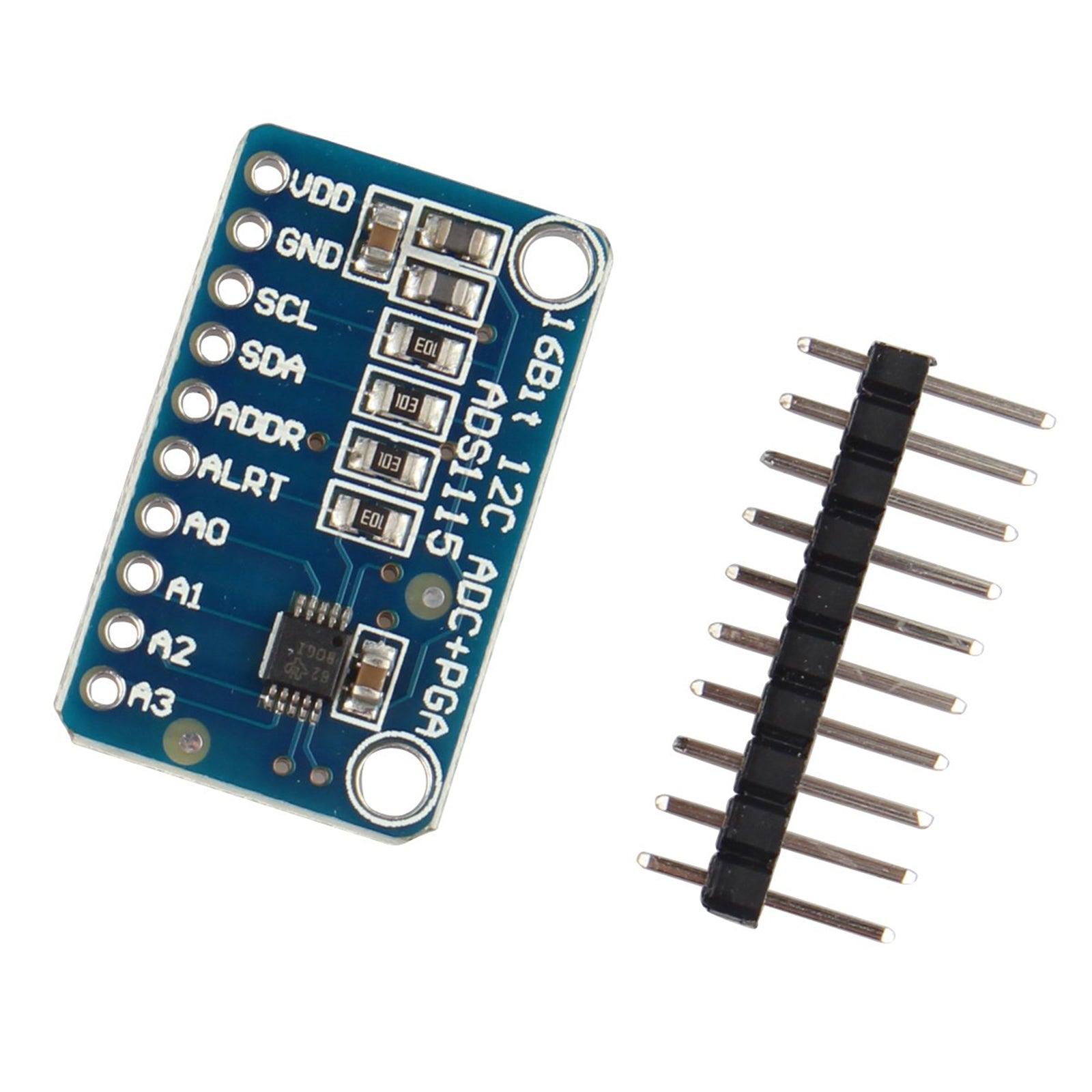

1 x CJMCU-ADS1115 development board module.
1 x pin header.
