HALJIA 16-Channel 12-bit PWM Servo Motor Driver I2C Shield Board Robot Compatible with Arduino Raspberry Pi

Regular price $12.99

Shipping calculated at checkout.
Descripition:

There's an I2C-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
It is 5V compliant, which means you can control it from a 3.3V Arduino and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
6 address select pins so you can stack up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs
Adjustable frequency PWM up to about 1.6 KHz
12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
Configurable push-pull or open-drain output

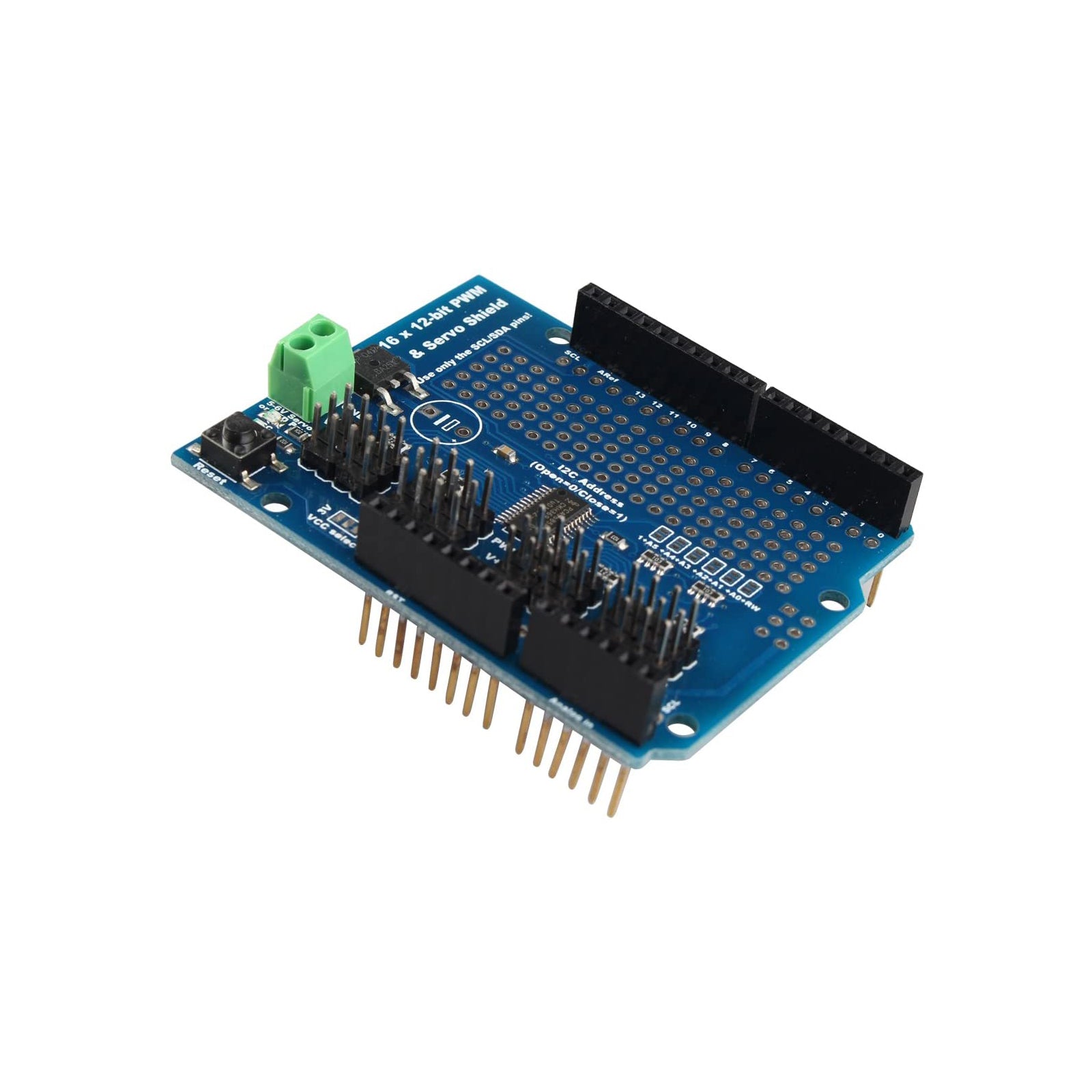

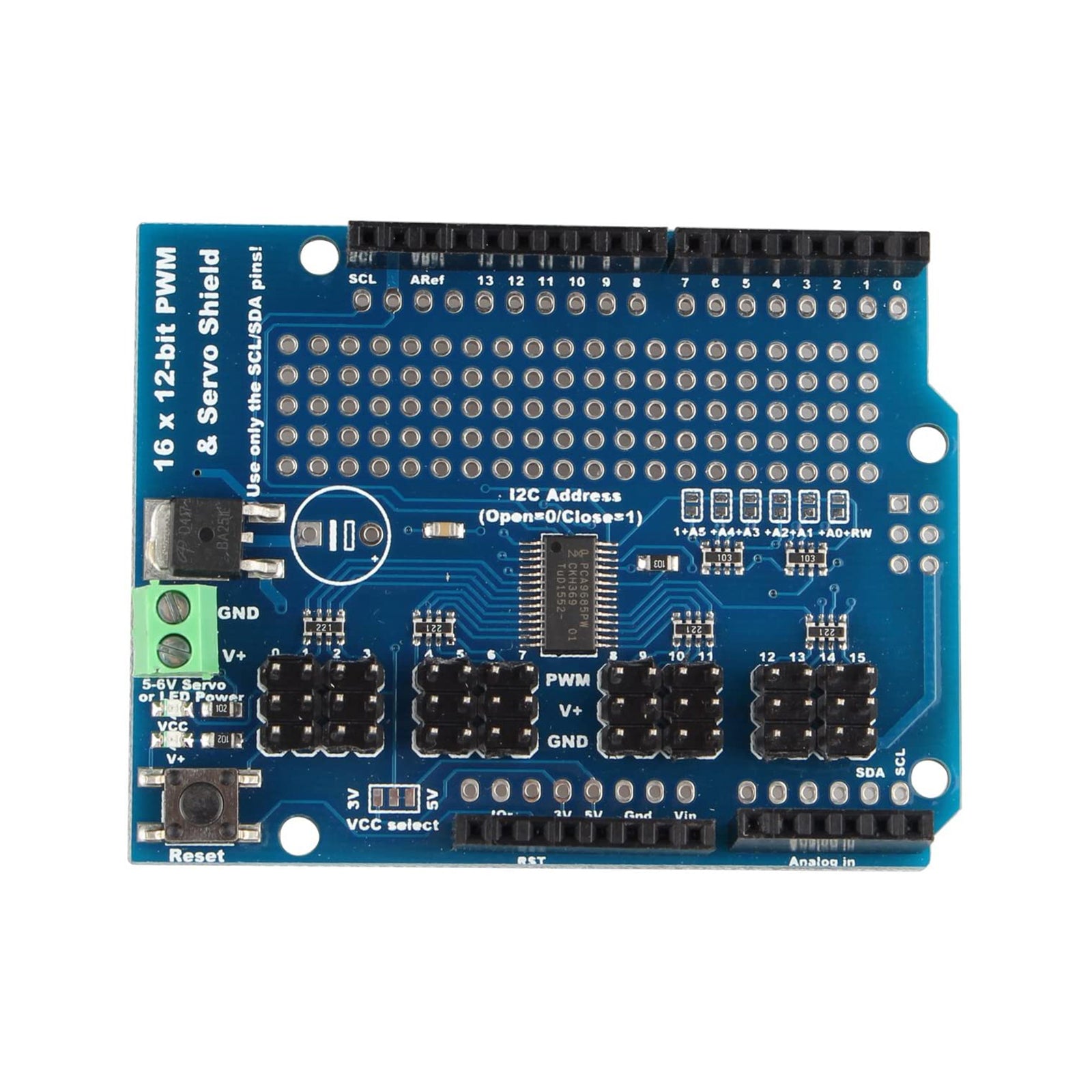

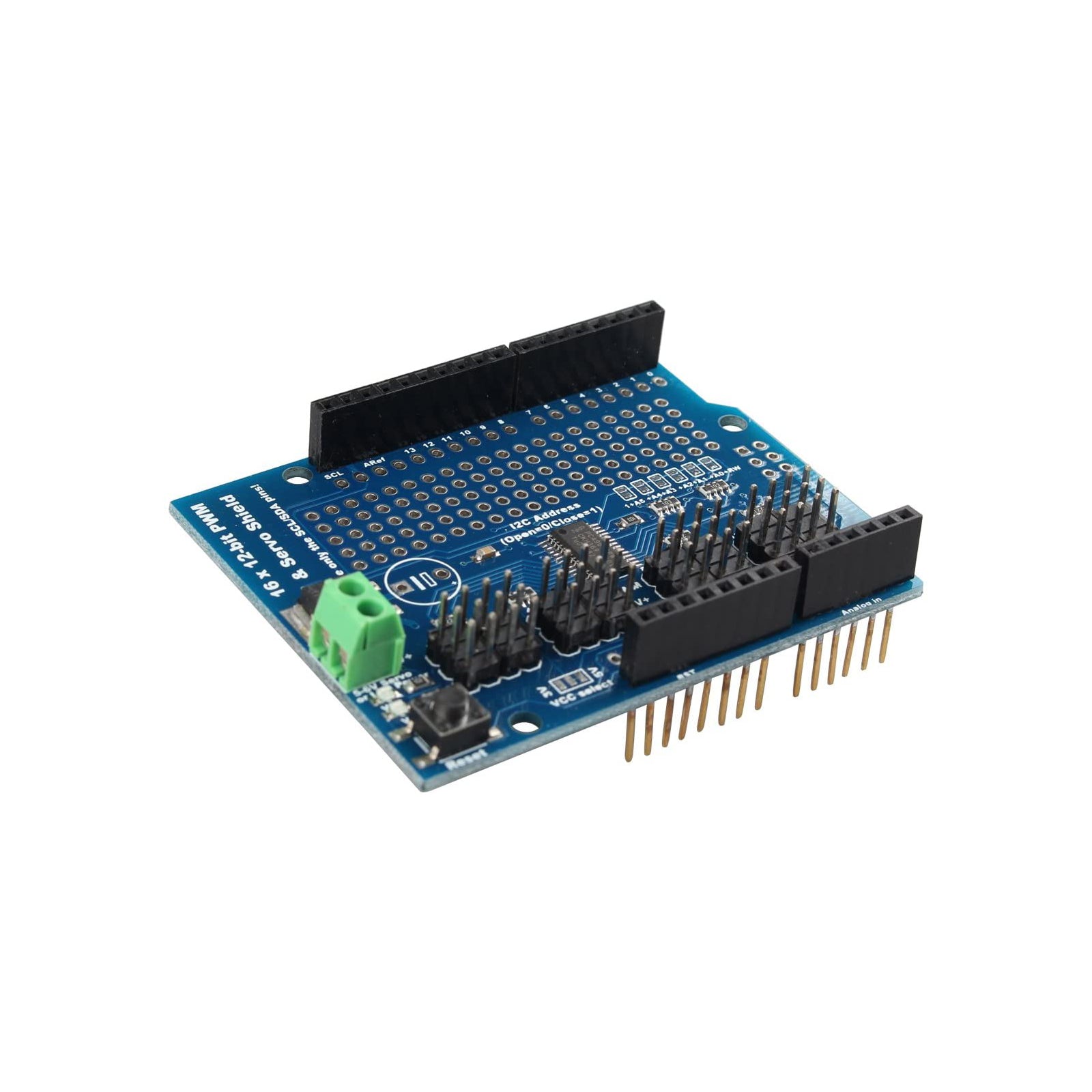

We wrapped up this lovely chip into a shield with a couple nice extras

Terminal block for power input (or you can use the 0.1" breakouts on the side)
Reverse polarity protection on the terminal block input
Green and red power-good LEDs

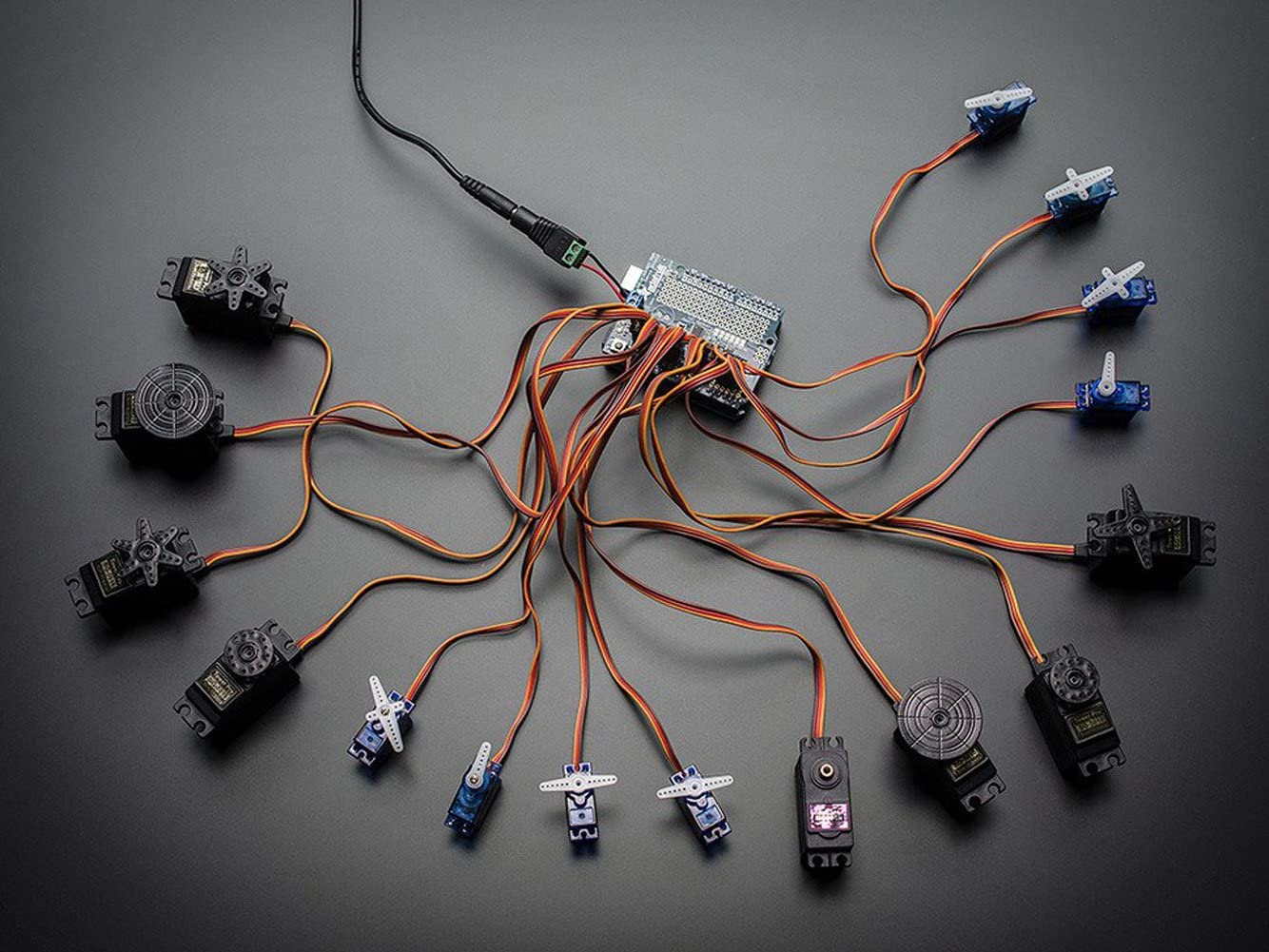

3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs areslightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
Stackable design. You'll need to pick up stacking headers and right angle 3x4 headers in order to stack on top of this shield without the servo connections getting in the way.
A spot to place a big capacitor on the V+ line (in case you need it)
220 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
Solder jumpers for the 6 address select pins
A lot of extra space remaining? Let's turn it into a prototyping area. You get a 5*20 proto area for any extra wiring you'd like to add
