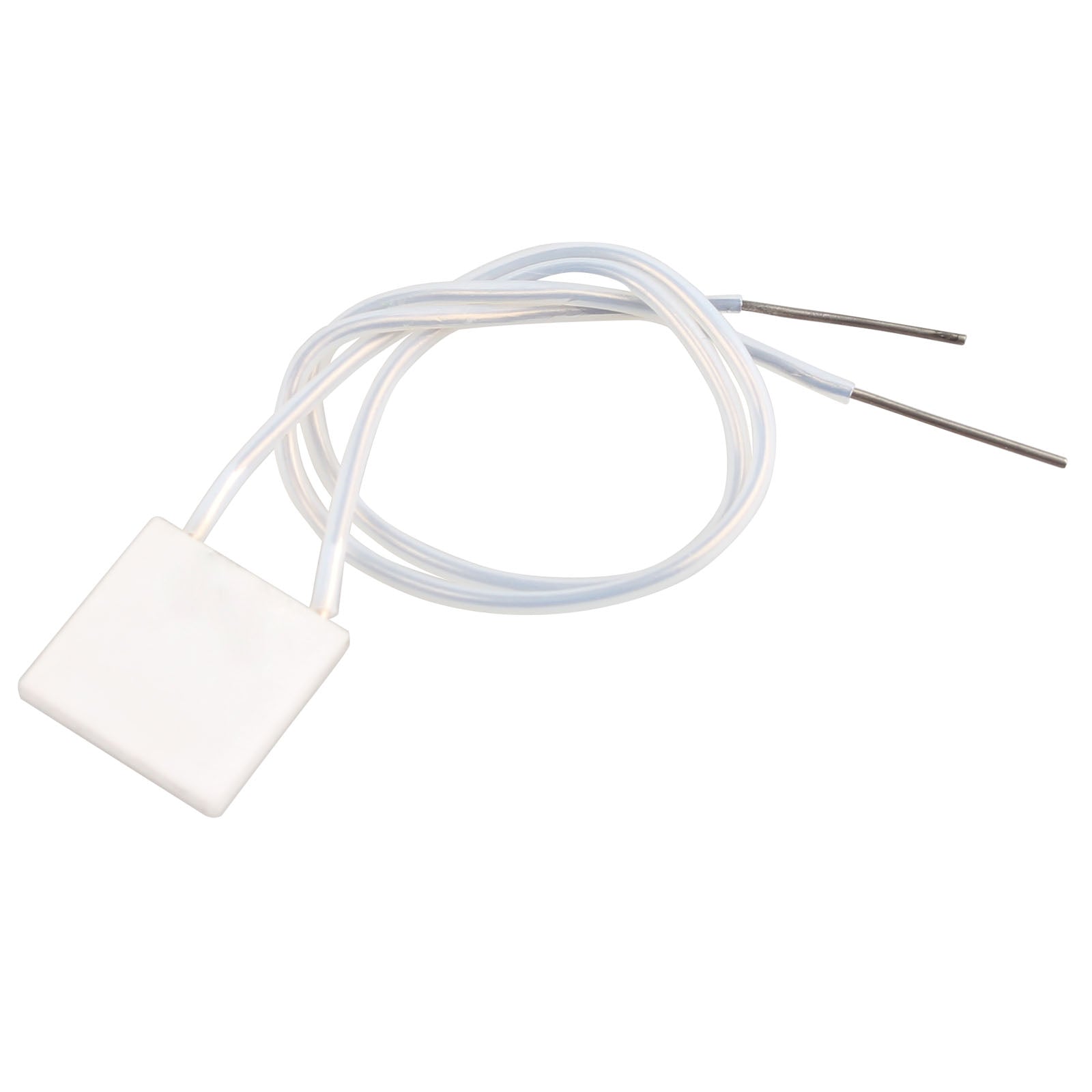

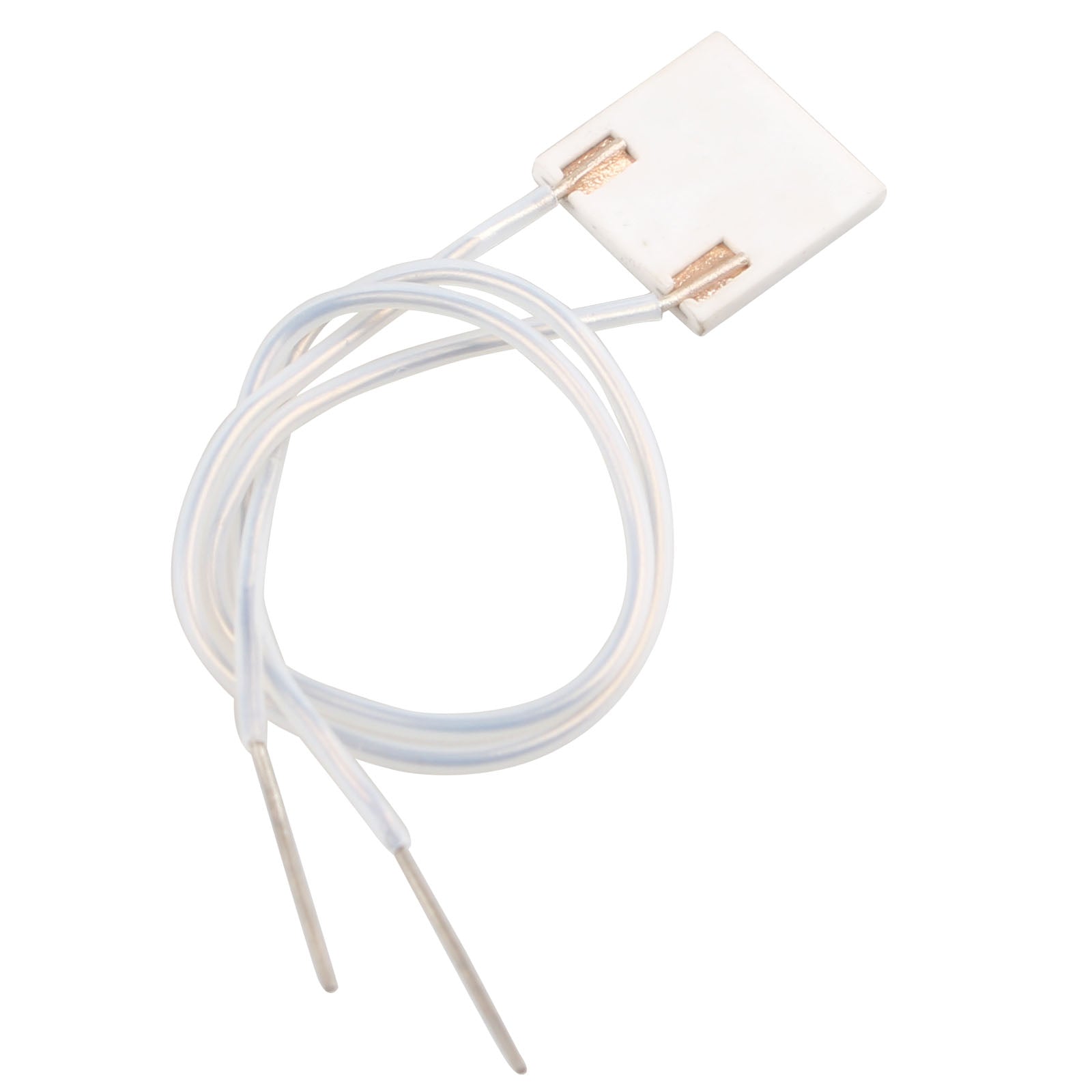

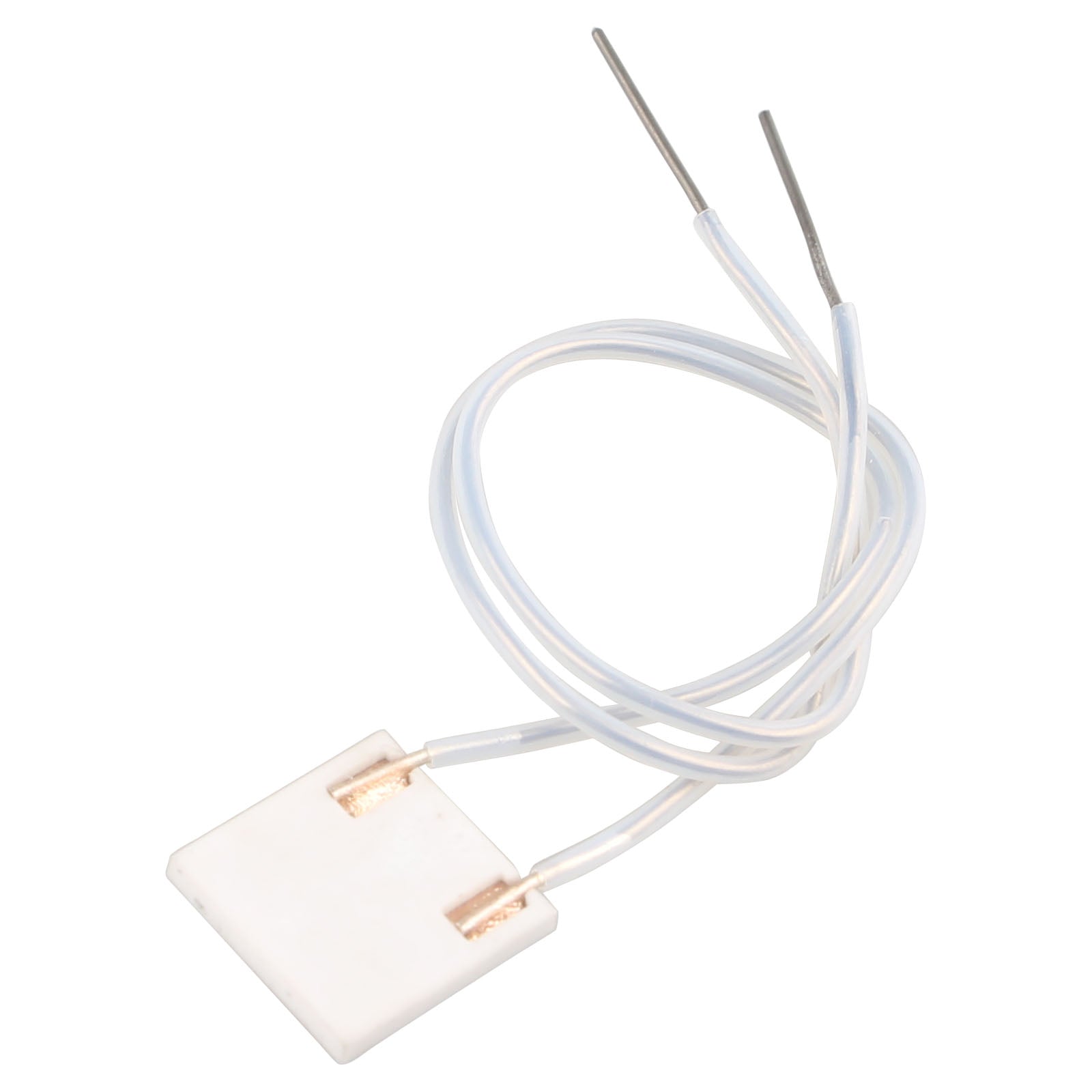

HALJIA 2-18V R=10 Mini Wired MCH Metal Ceramic Heater Plate Heating Element 10mm x 10mm

Regular price $8.99

Shipping calculated at checkout.
  • Country of Manufacture: CHINA; Material: Metal, Ceramic; Main Color: White;
  • The max temperature could up to 500-600 degrees, the max voltage:18V
  • Net Weight: 1g; Package Content: 1 x Metal Ceramic Heater
  • Resistance: 10ohm; Maximun Service Temperature: 580'C
  • Dimensions: 10 x 10 x 1.2mm/0.39" x 0.39" x 0.05"(L*W*H)

Material Description:
Heating elements: Ceramics sheet
Casing: high temperature-resistant glass fiber tube
Lead: 0.5mm industrial nickel wire

The MCH (metal ceramics heater) heating element is a new type of high efficient environment protection and energy saving ceramic heating elements,
which can save more than 20%-30% power effect compare to PTC ceramic heaters.
The surface of MCH is security and not charged, the insulation performance is great.
Which can endure the withstand voltage 4500V/1S testing, no breakdown, the leakage current <0.5mA.
The MCH contains no lead, cadmium, mercury, hexavalent chromium, PCBS, and other harmful substances, in full compliance with the EU environmental protection requiments.

Applications:
The MCH (metal ceramics heater) widely used in all kinds of fields nowadays.
Such as: intelligent bidet seat, electric water heating machine, straight hairer, hair curler, automobia exhaust oxidation sensors, industrial equipment heater devicer,

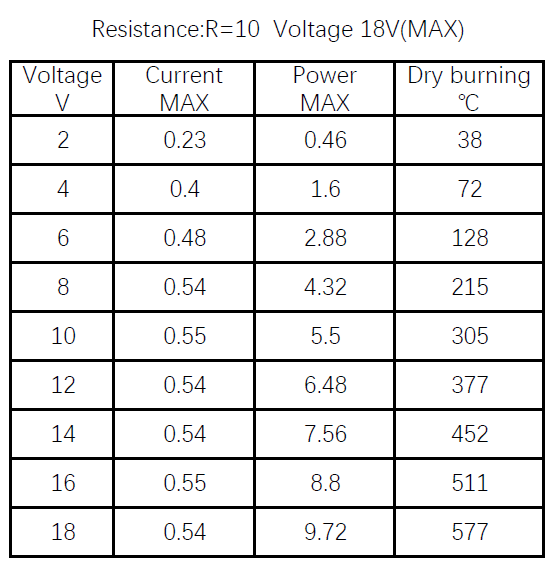

and small heating appliance, etc. Buyers please take attention to the voltage.The calculation method of power: (voltage x voltage)/ resistance=power.

Packing List:
1 * Metal Ceramic Heater
