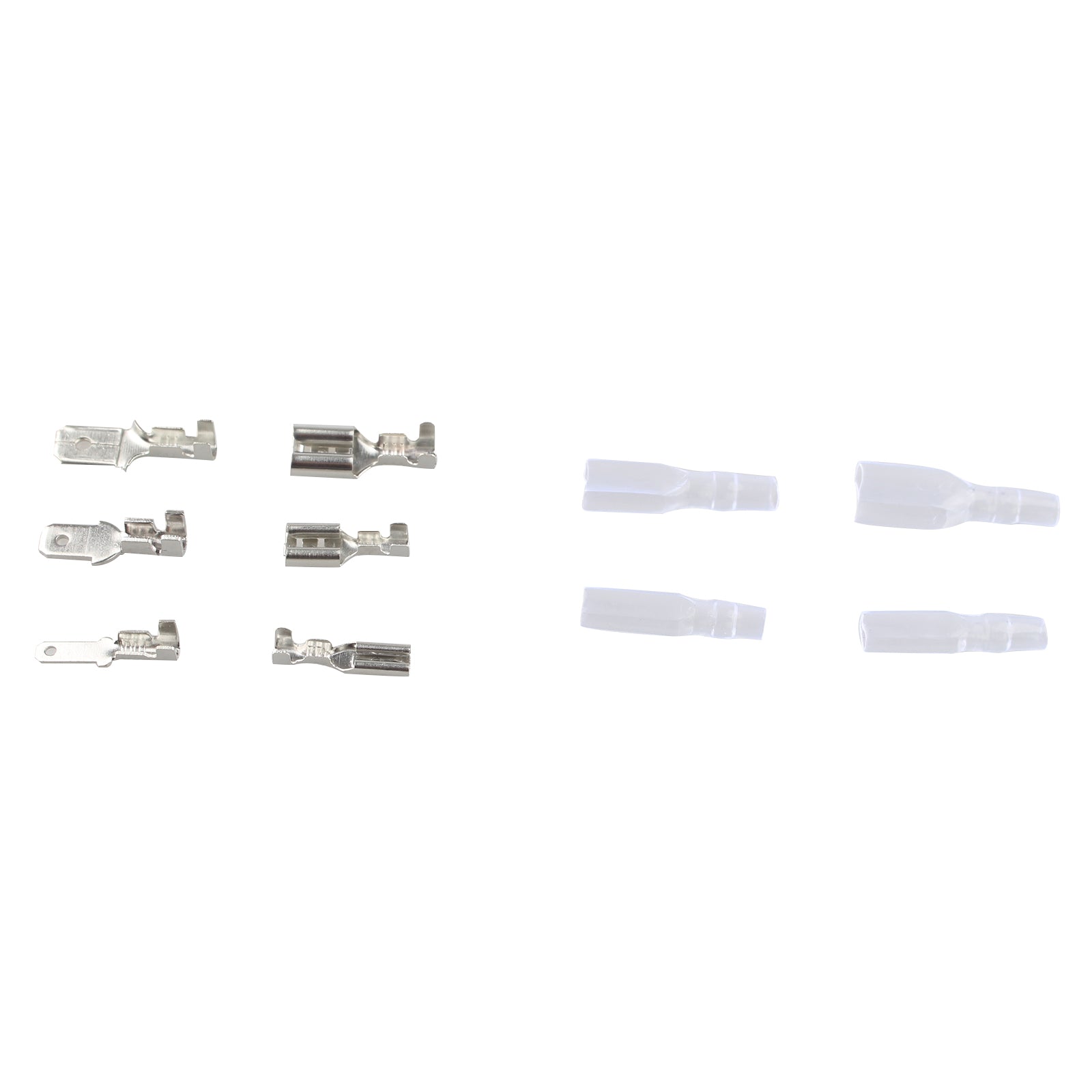

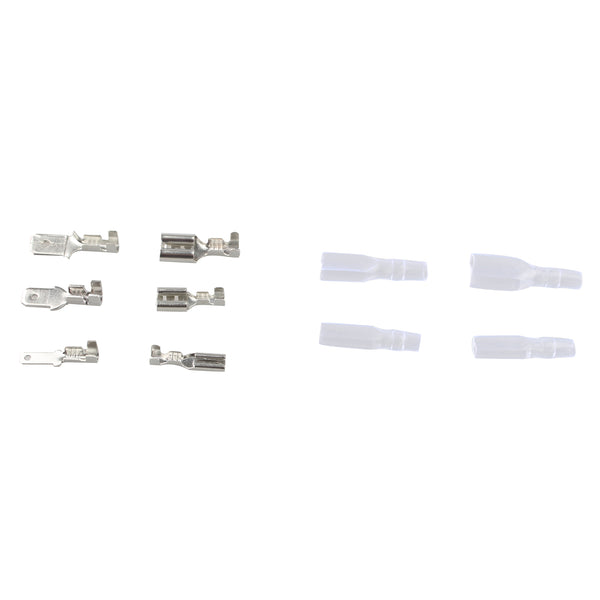

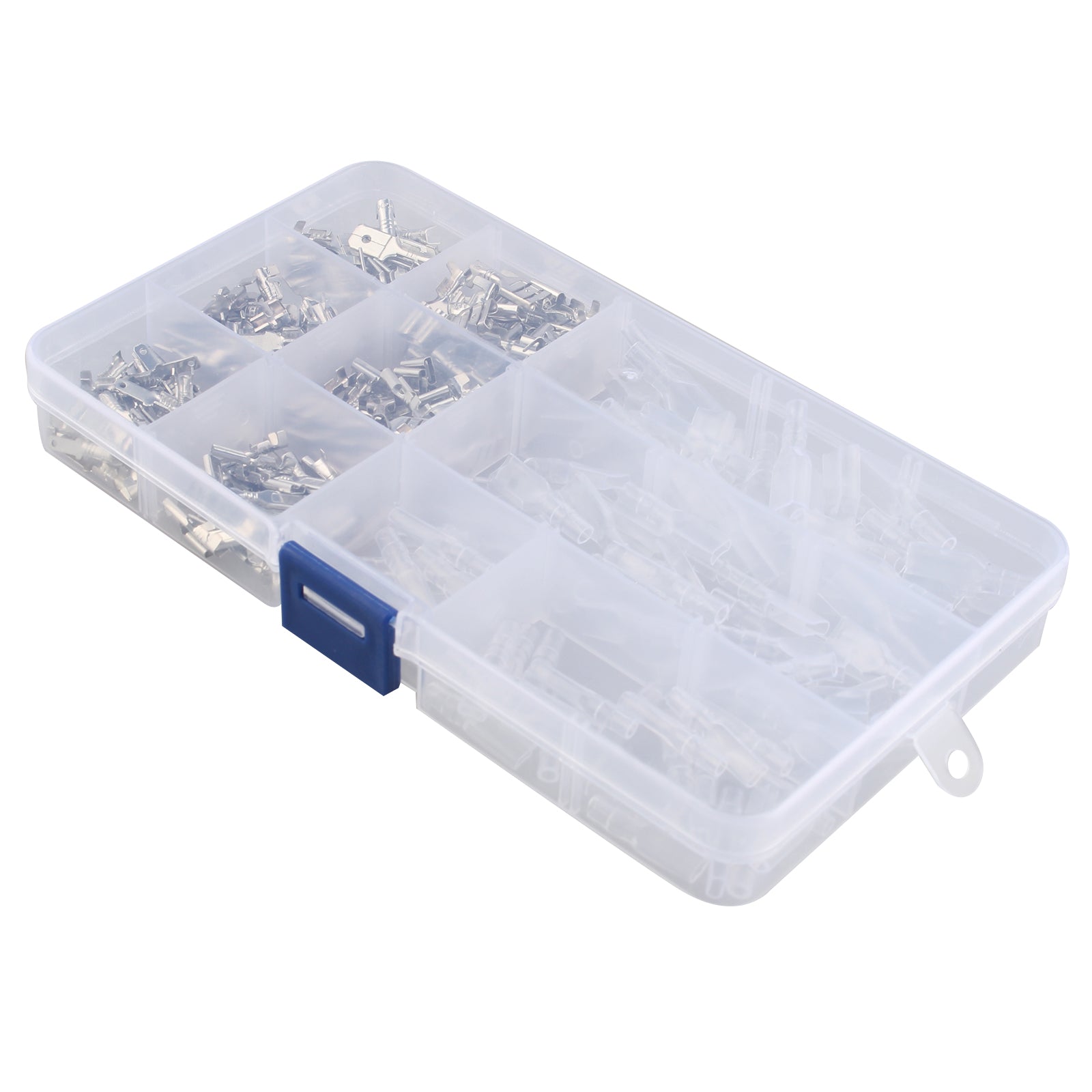

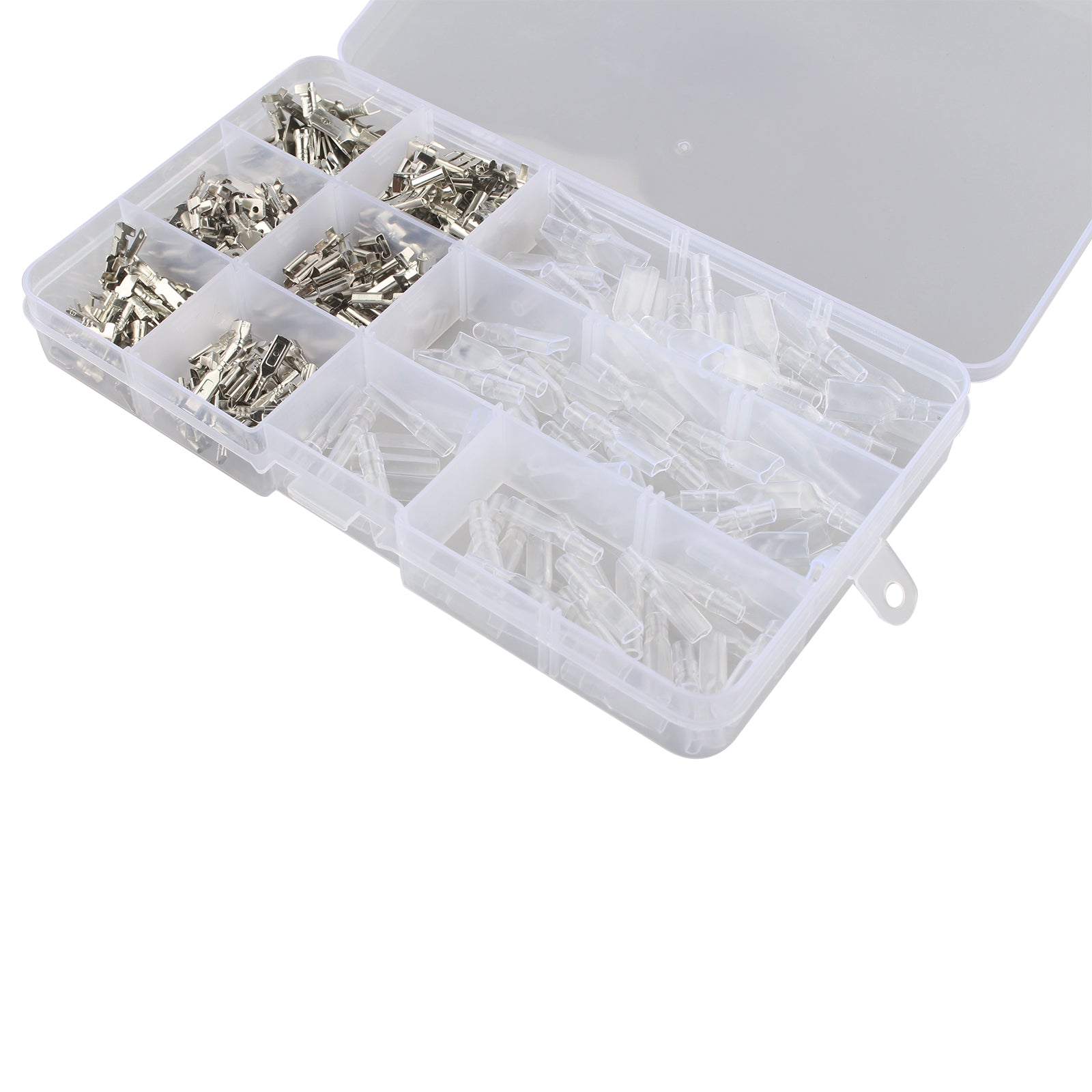

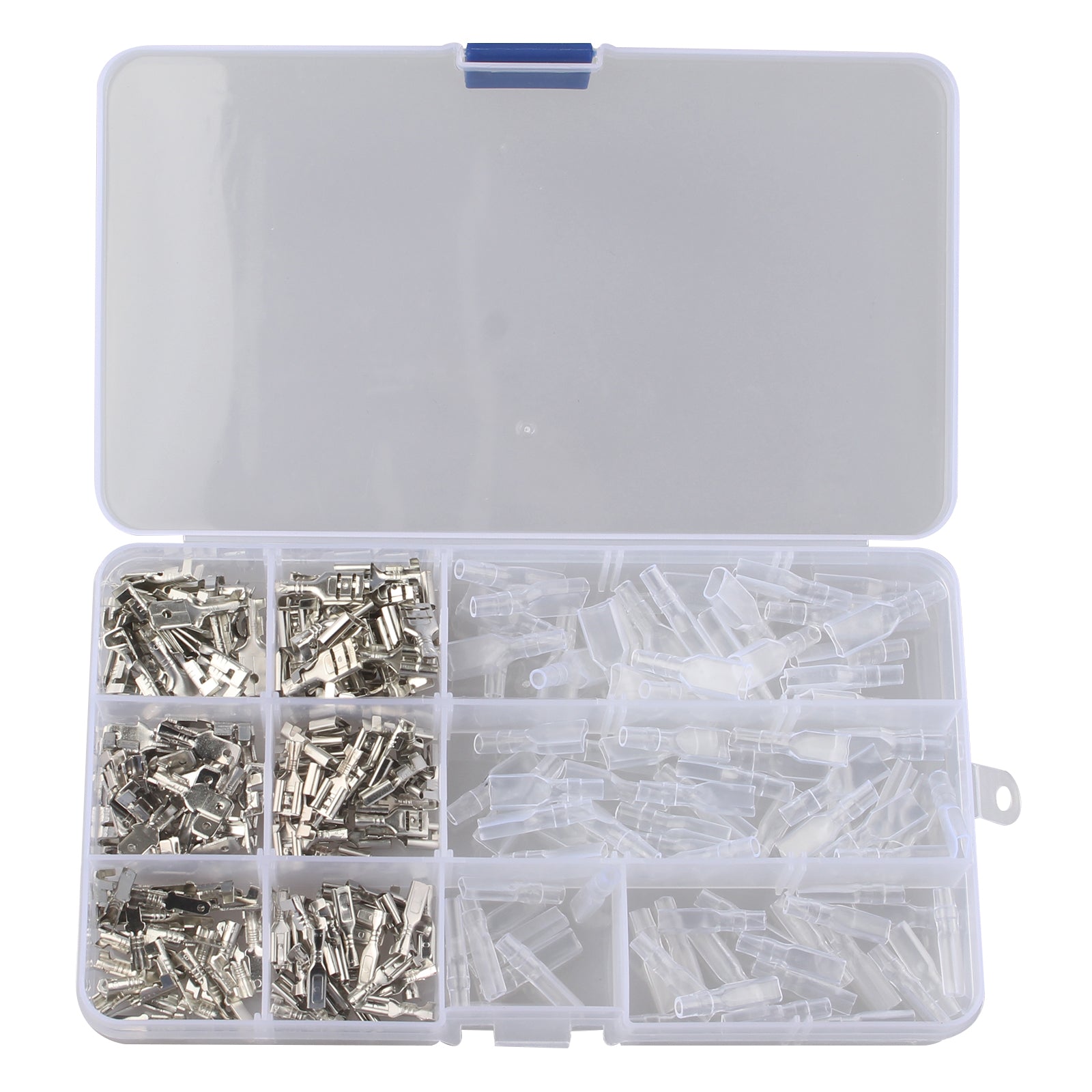

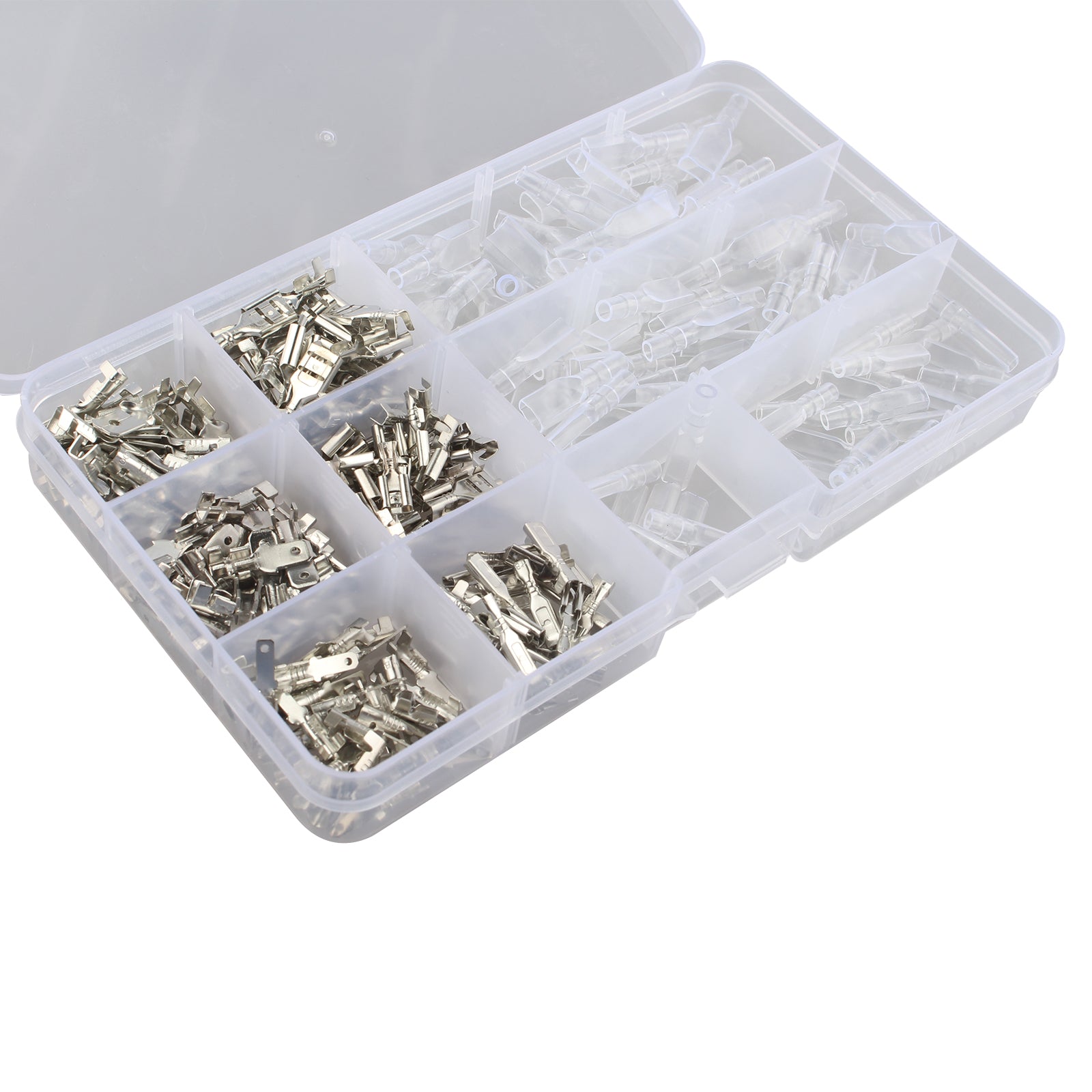

This male and female spade crimp terminal connector assortment kit includes 2.8mm,4.8mm,6.3mm three type,180 pieces in total and 90 pcs insulating sleeves.
Widely used in the electrical wire connecting like home appliances,auto,audio system for a quick connecting.
Durable and easy to install Very convenient and practical
Material: Metal, Plastic
Color: Silver & Transparent
Specifications:
6.3 Type: Inner diameter: 6.3mm, thickness:0.4mm(male),0.8mm(female), compatible wire:0.75-2.5mm²
4.8 Type: Inner diameter: 4.8mm, thickness:0.35mm(male),0.5mm(female), compatible wire:0.75-2.5mm²
2.8 Type: Inner diameter: 2.8mm, thickness:0.25mm(male),0.5mm(female), compatible wire:0.5-1.5mm²

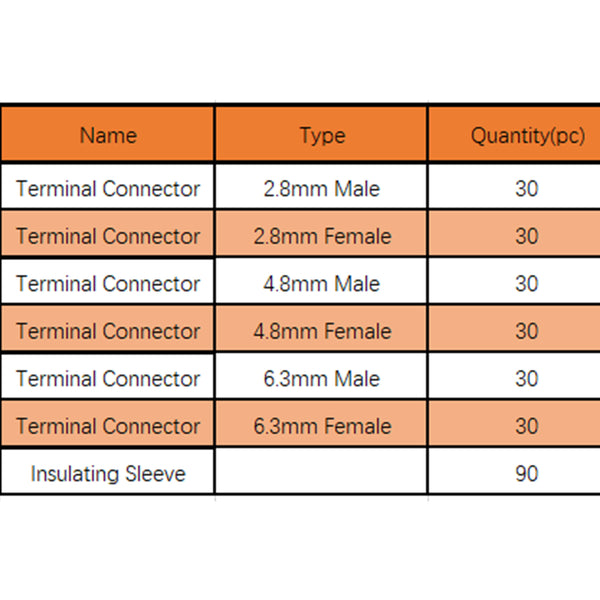

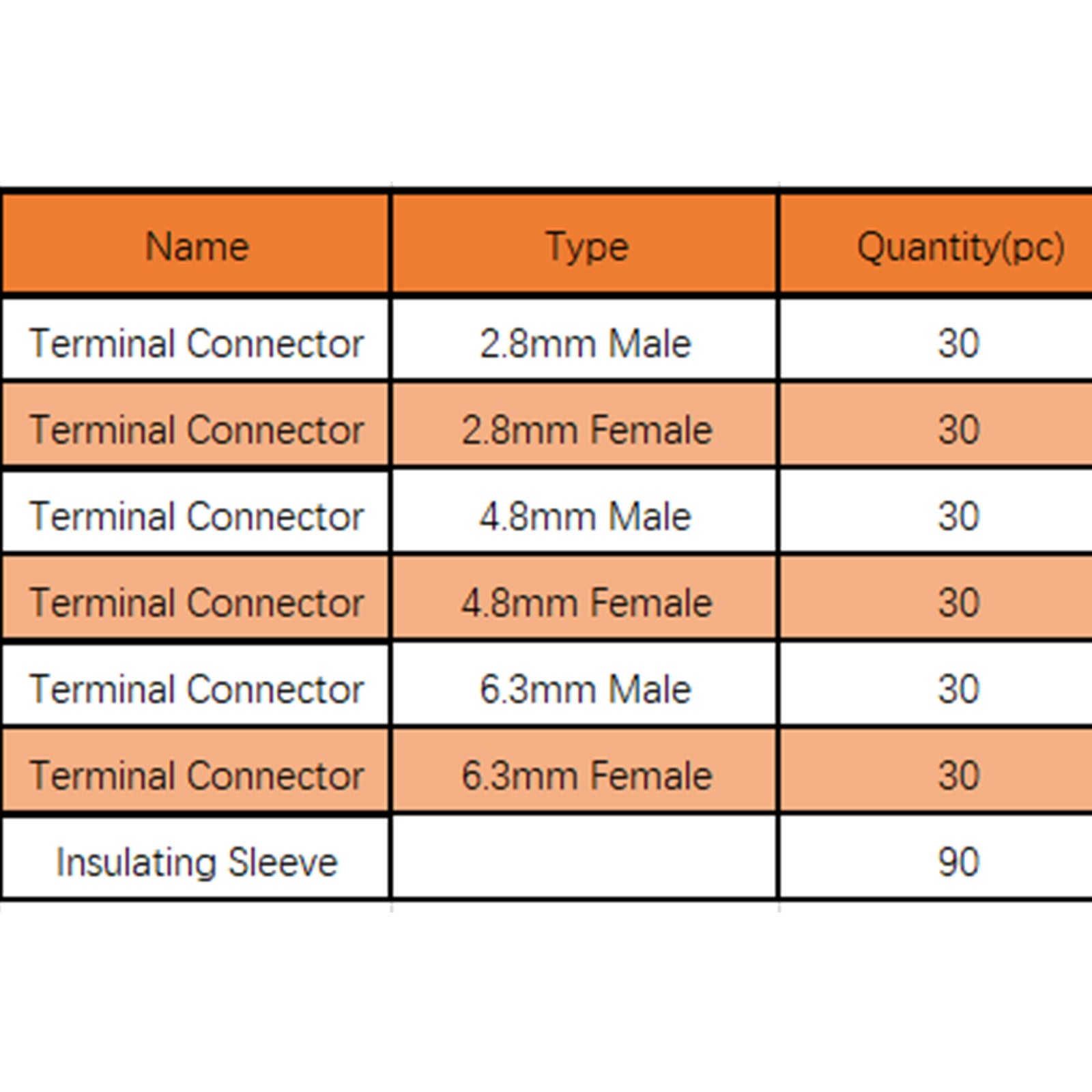

Package Includes:
30*2.8mm Male Spade Crimp Terminal Connector
30*4.8mm Male Spade Crimp Terminal Connector
30*6.3mm Male Spade Crimp Terminal Connector
30*2.8mm Female Spade Crimp Terminal Connector
30*4.8mm Female Spade Crimp Terminal Connector
30*6.3mm Female Spade Crimp Terminal Connector
90*Insulating Sleeve for Female Terminal
Packing List:
1*270 Male/Female Spade Crimp Terminal Connector with Insulating Sleeve
