Feature:
When the voltage is below the set value,it will buzzer with red LED light, preset value 3.3V. Push key which can change the voltage settings and save.
Test the working state of lithium battery, to protect the battery from overcharging or over-discharging.
Used for lithium batteries 1S ~ 8S detection, automatically detect each cell voltage and total voltage. Support reverse connection protection.

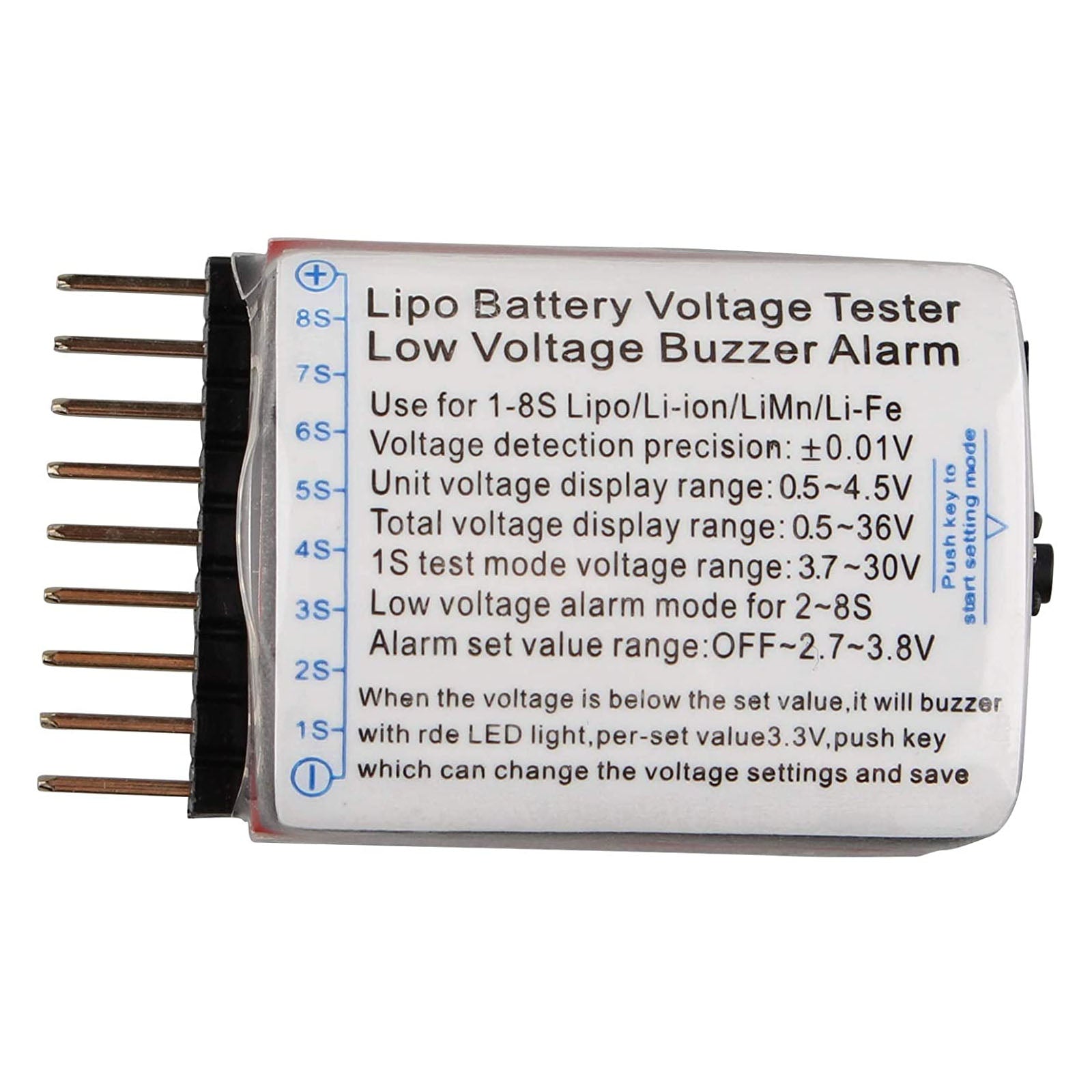

Parameter:
1.Used for 1-8s Lipo / Li-ion / LiMn / Li-Fe
2.Voltage detection accuracy: ± 0.01V.
3.Group voltage display range: 0.5V ~ 4.5V
4.The total voltage display range: 0.5V ~ 36V
5.1S test mode voltage range: 3.7V ~ 30V
6.Low voltage buzzer alarm mode 1S - 8S
7.Alarm voltage setting range: OFF ~ 2.7 ~ 3.8V
8.Size: 40 mm x 25 mm x 11 mm
Packing List:

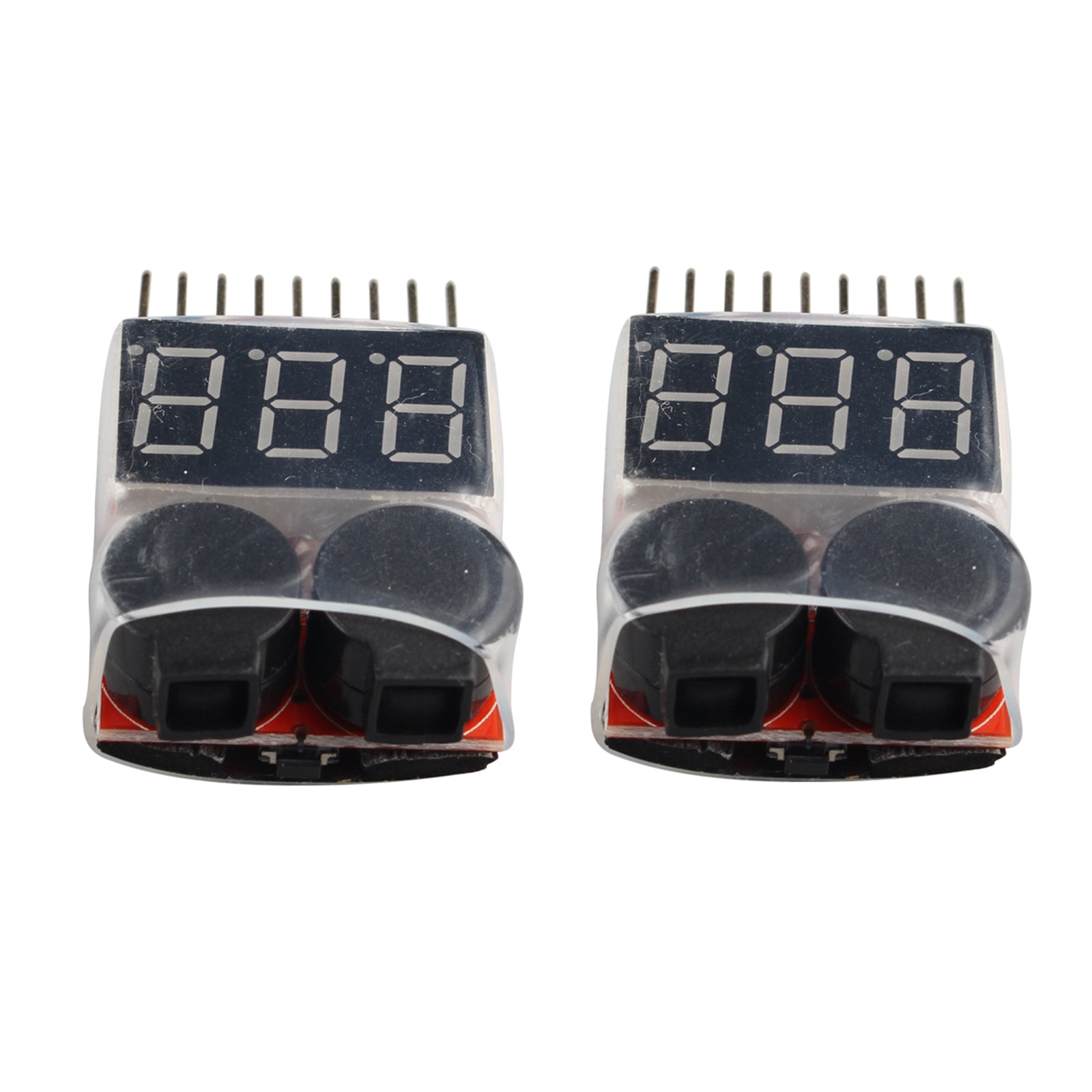

2*Battery Tester Low Voltage Buzzer Alarm Indicator
