- High-quality stepper motor with gear reduction, low noise and smooth operation. Provide with five wires and four coils and 1/64 gear reduction.
- The stepper motor can be used for ordinary ULN2003 driver board, connect to the 2 phase, support the development board.
- 5V can be driven, which is convenient for MCU developers. An open interface can also be used to drive other stepper motors through this board.
- Applicable to various platforms such as 51/AVR/AVR/ARM.Great stepper motors for your DIY project such as robot design.
- Suitable for single-chip learning machine learning or air conditioning windshield drive and security camera monitoring adjustment direction drive.

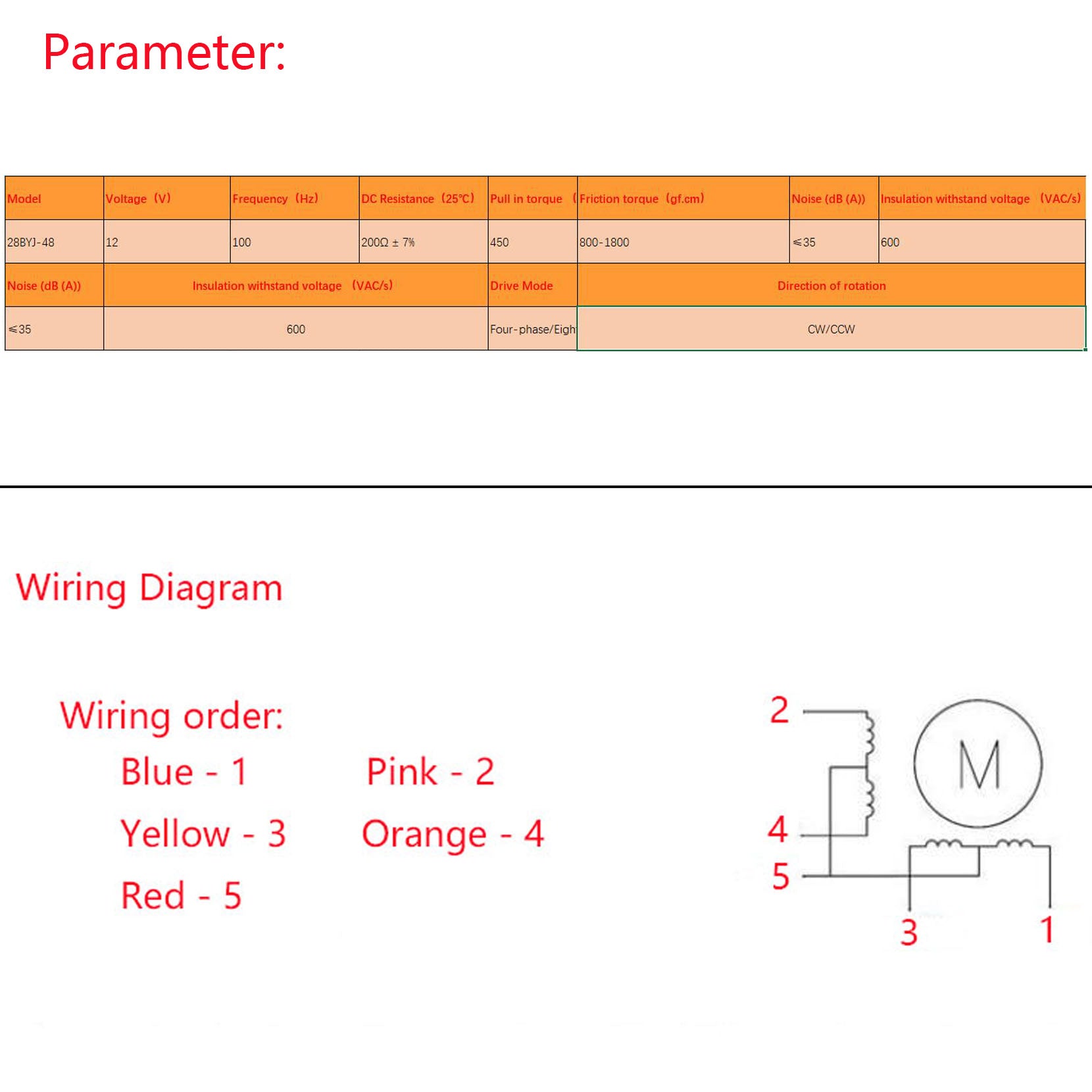

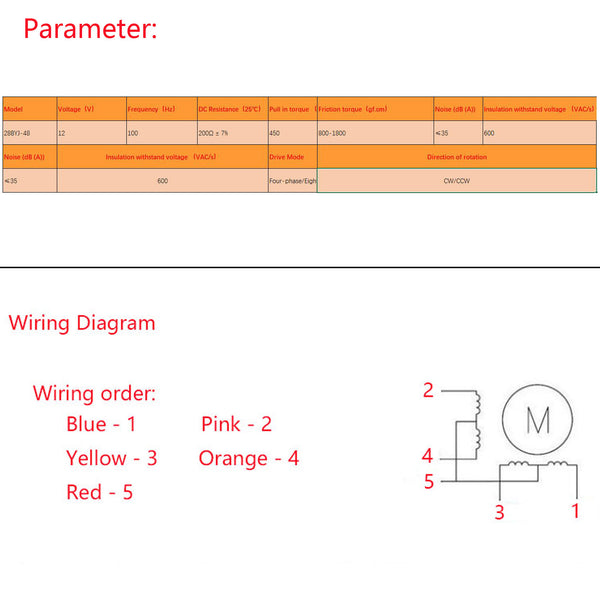

Product specifications:
Motor name: Decelerating Permanent Magnet Stepper Motor
Motor model: 28BYJ-48
Driving voltage: 12V
Drive mode: 4 phase/ 8 beat
Gear reduction ratio: 1/64
Step angle: 5.625 x 1/64

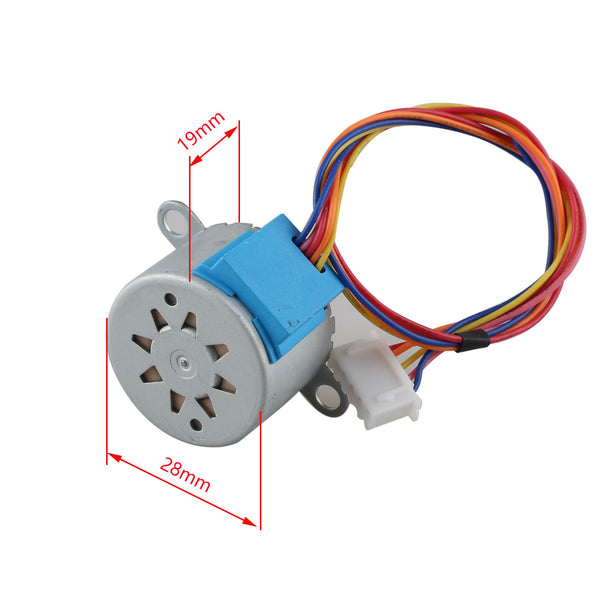

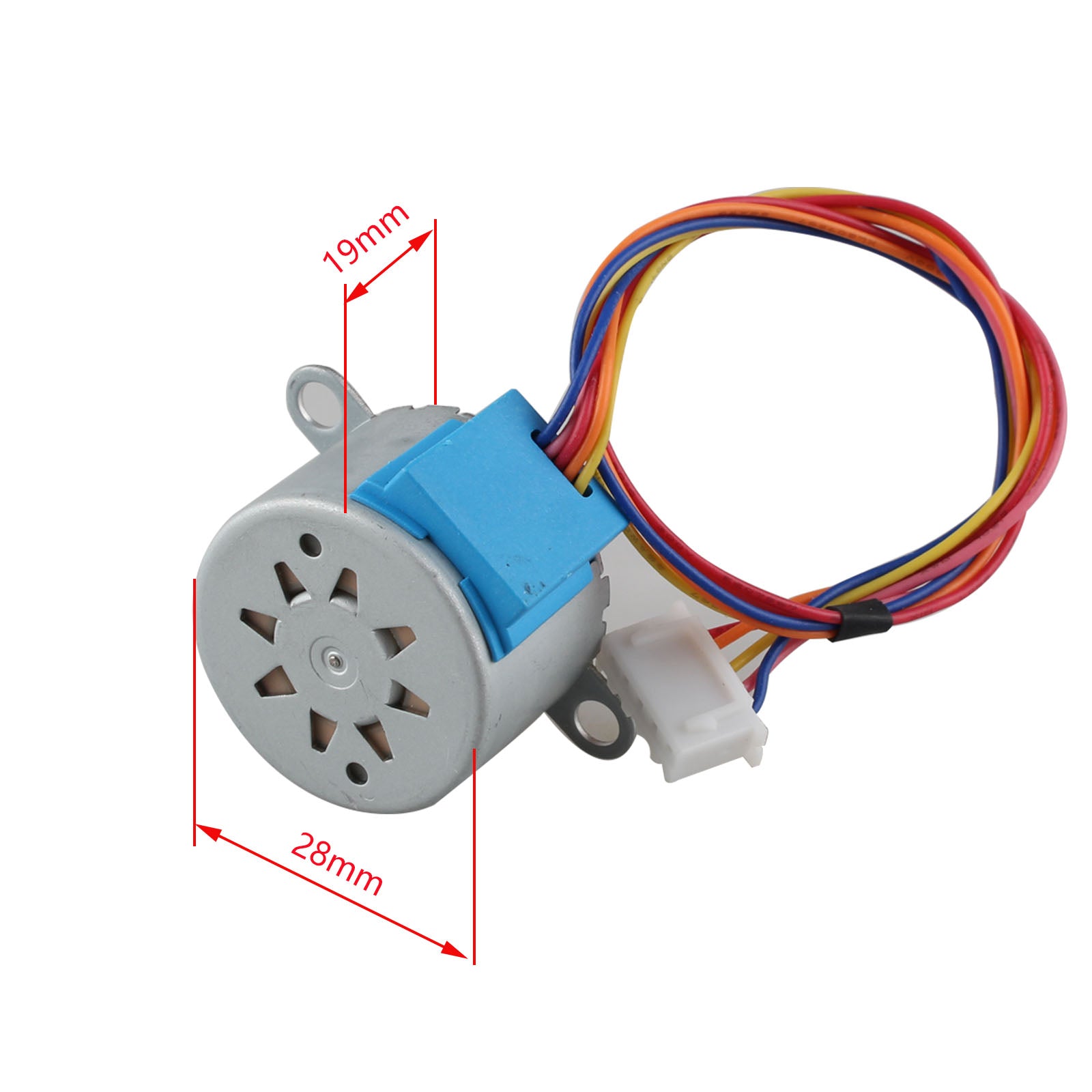

Motor Diameter: 28mm
Wire Length：24cm
Motor Size：42 × 30.8 × 28.6 mm
Weight：33.7g
Packing List:
2 x 12V Stepper motor
