Buzzer is an electronic sounder with integration structure.
Using DC power, it is widely used on computers, printers, photocopiers, alarm, electronic toys, automotive electronic equipment, telephone, timer and other electronic products.
Piezoelectric buzzer is mainly made up by multivibrator, piezoelectric buzzer chip, impedance matching unit, resonator and shell.
Multivibrator is composed of transistors or integrated circuits. When switched on, multivibrator vibrates and outputs audio signal.
Impedance matcher drives piezoelectric buzzer sound.
Connected to rated power and the buzzer will sound continuously.
Can be controlled conveniently.
Specifications:
Model: 2312
Color: Black

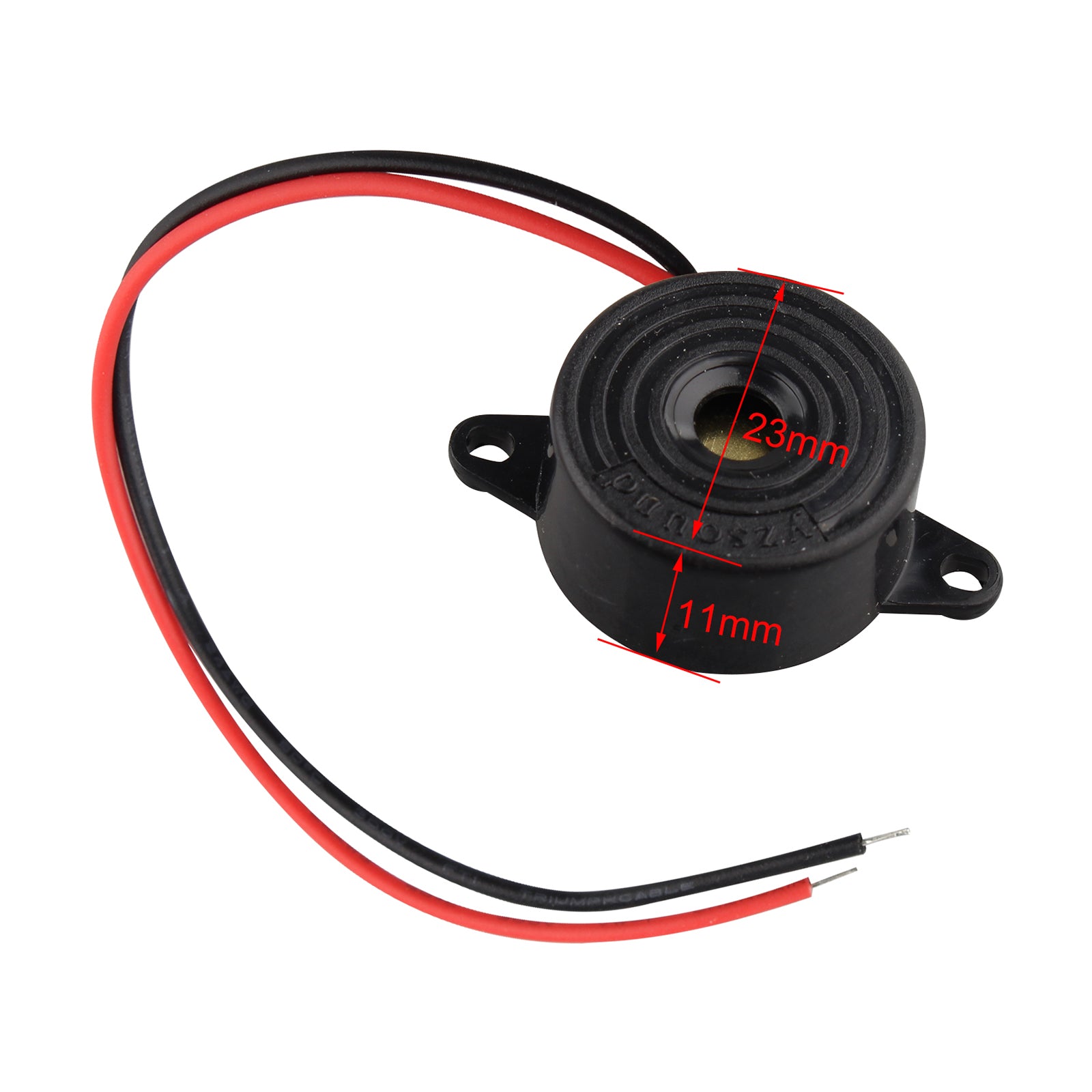

Diameter: 23mm
Height: 11mm
Cable Length: 120mm
Sound Pressure Level: 85 to 95 decibels
Rated Voltage: 12V DC
Working Voltage Range: 3V-24V
Max Current: 10mA
Weight: 3.9g
Packing List:

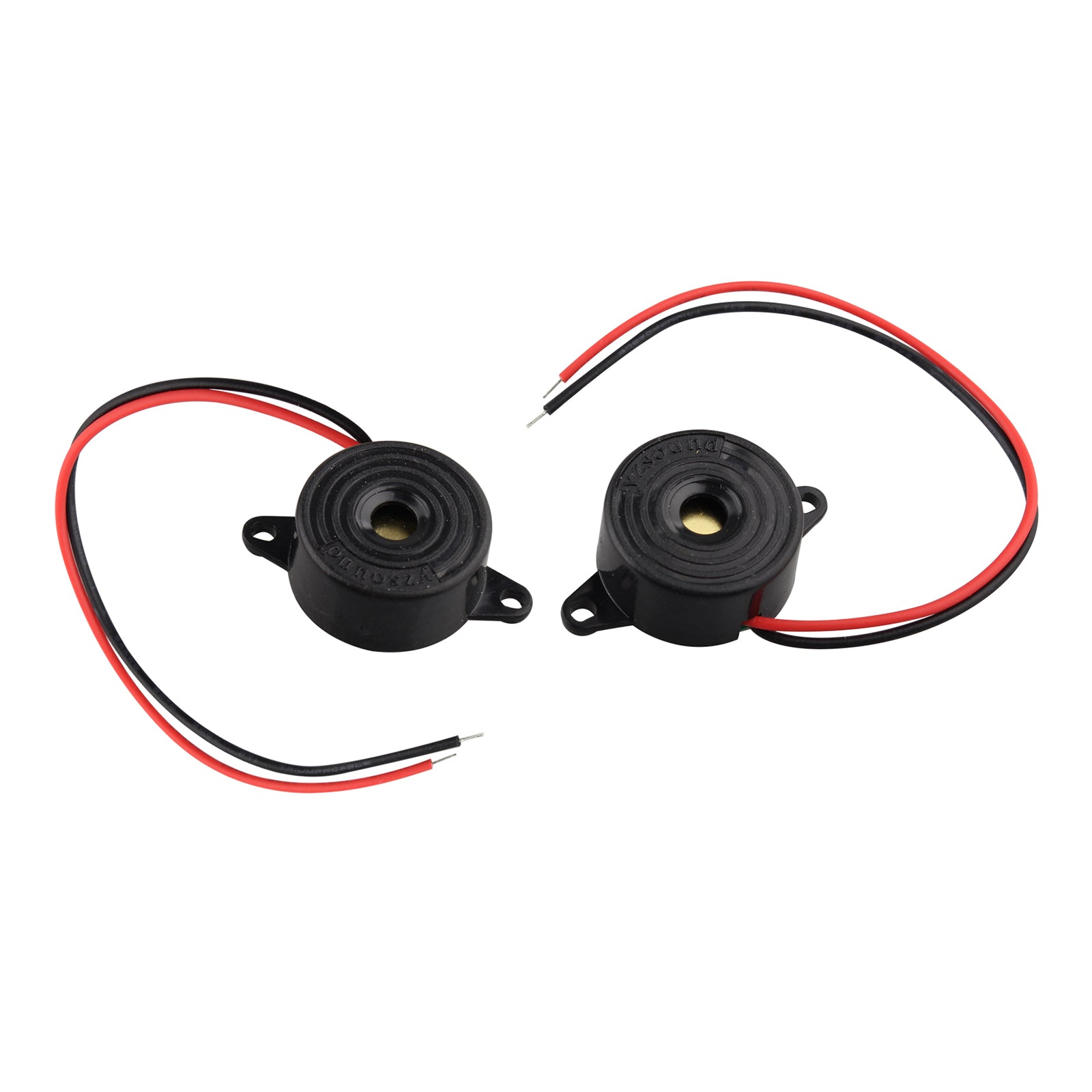

2 x Active Electronic Alarm Buzzer
