- This relay module is 5V active low. Relay output maximum contact is AC250V 10A and DC30V 10A.

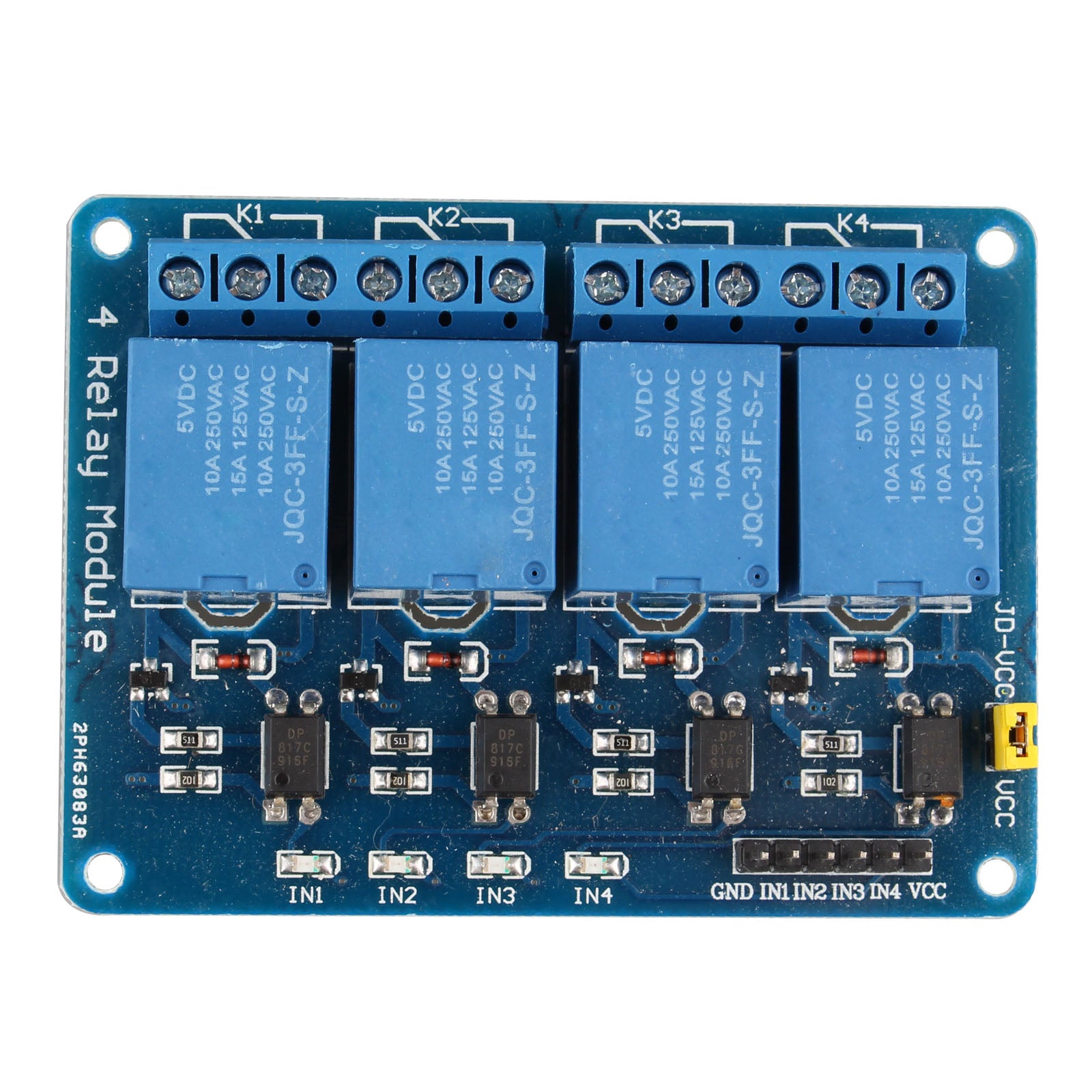

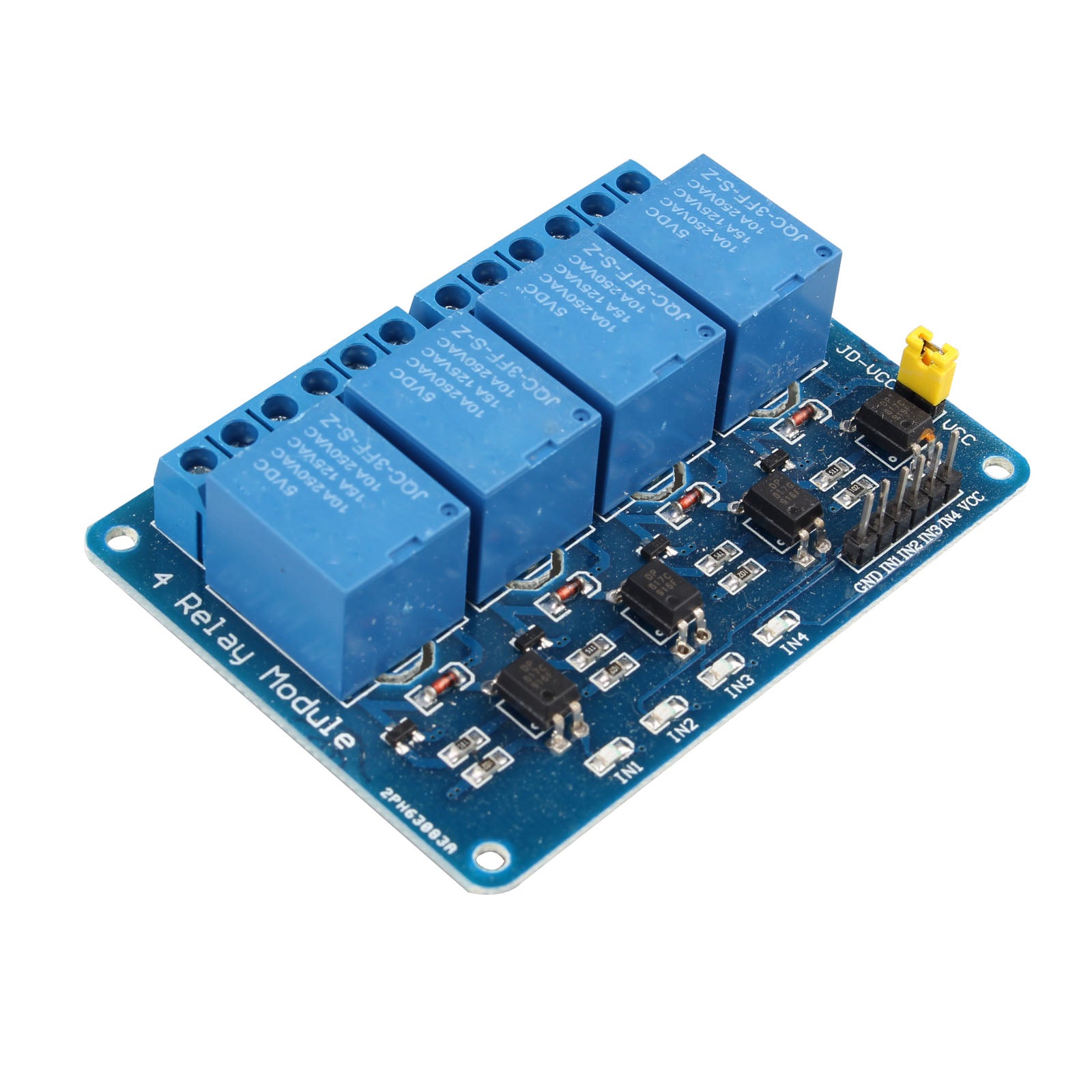

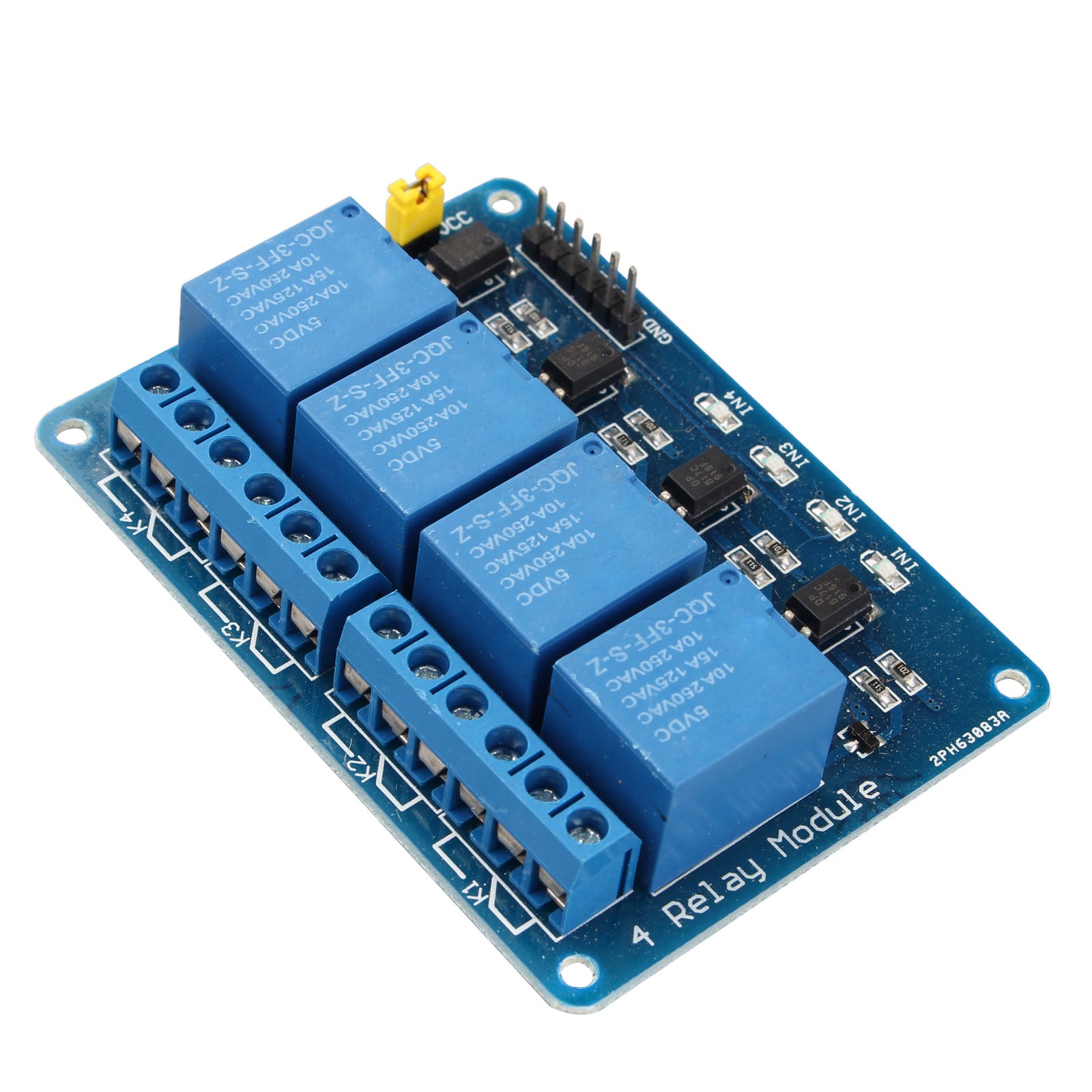

- 4-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc. It is also able to control various appliances and other equipments with large current.
- Working status indicator lights are conducive for the safety use.
- Made for Arduino, 8051, AVR, PIC,DSP, ARM, ARM, MSP430, TTL-Logik and more.
- Widely used for all MCU control, industrial sector, PLC control, smart home control.
Features:
4 relay output modules, relay output contacts up to 250A 10A. Input IN1, IN2, IN3, and IN4 low signal are active. VCC, GND power input terminal, relay can be separately powered by relay power input terminal JD-VCC.
USES:
1. Support all microcontroller control.
2. Industrial field.
3. PLC control.
4. Home intelligent control.

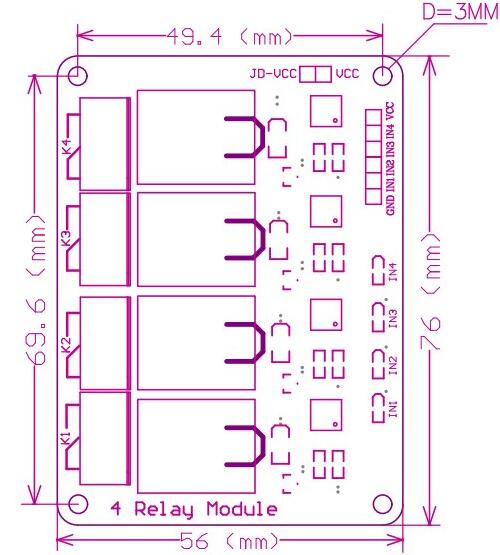

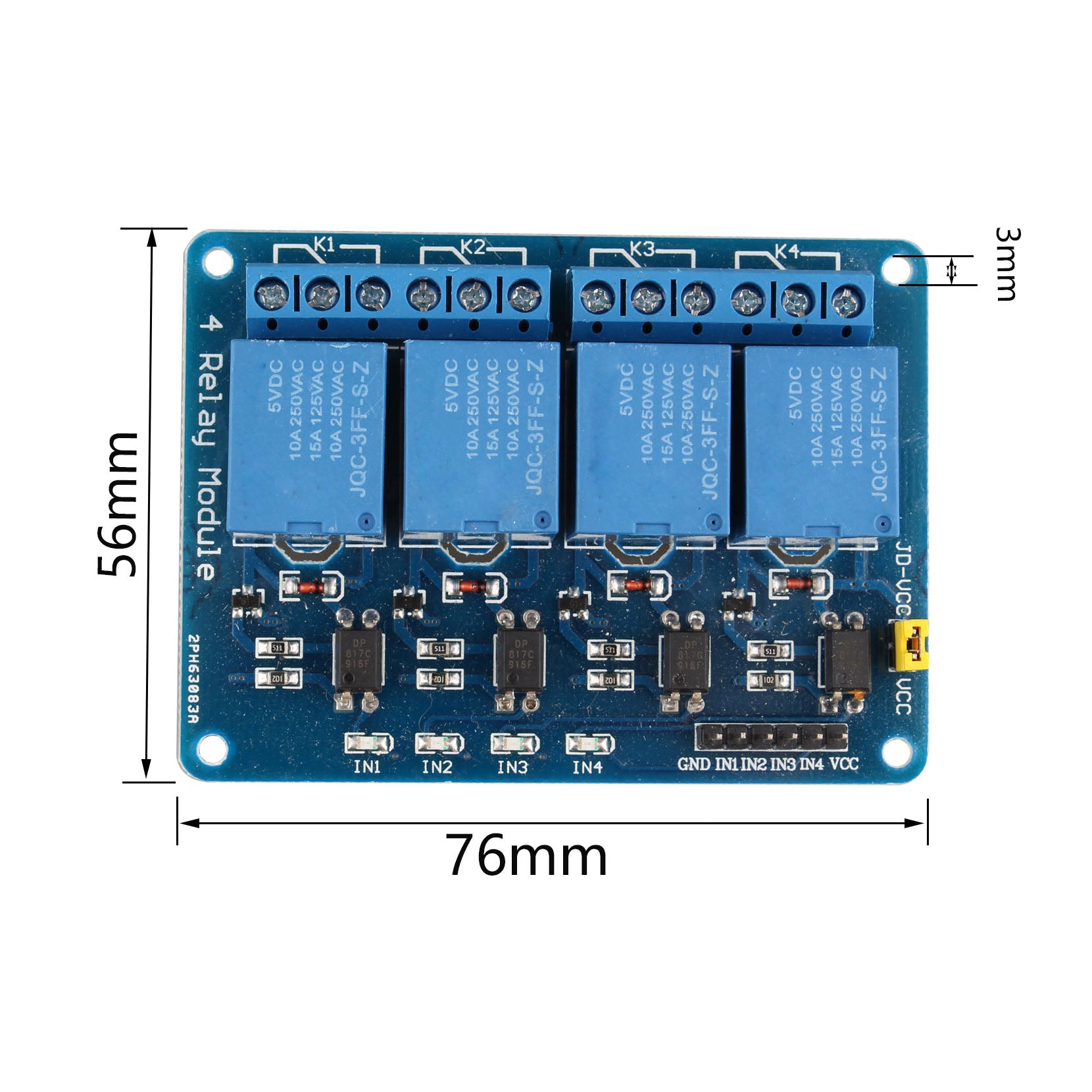

Size: 76 x 56 x 19 mm
Weight: 55.8g
Packing List:

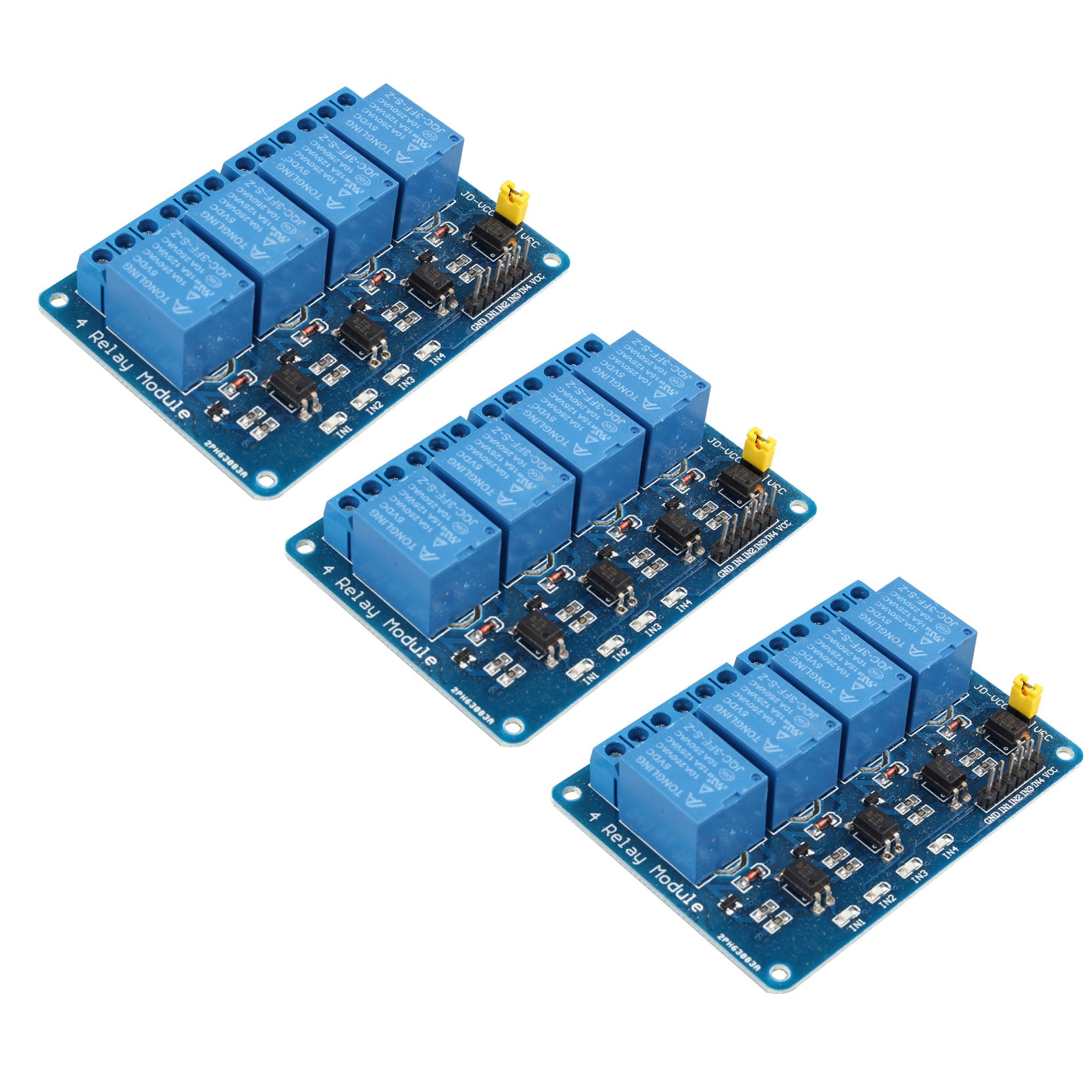

3 x 4 Channel Relay Module
