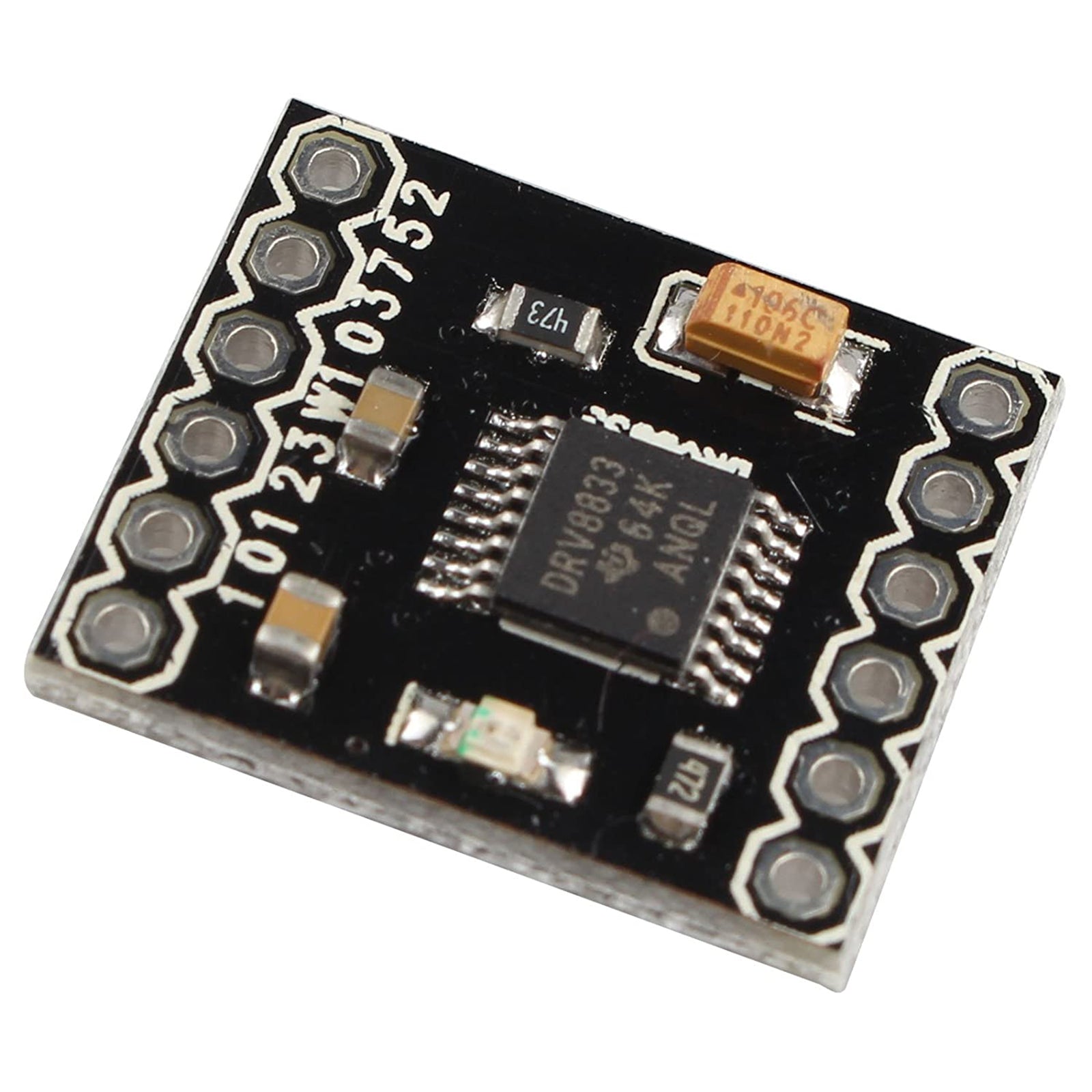

The motor driver can control up to two DC motors at a constant current of 1.0A (4A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz.
Note: However, when using the board at currents up to 0.6A, it may be necessary to improve thermal performance with a heat-sink.
Features:
Driver Chip: DRV8833
Power supply voltage: VM = 2.7-10.8V
Output current: Iout=1.0A(average) / 4A (peak)
Standby control to save power
CW/CCW/short brake/stop motor control modes
Built-in thermal shutdown circuit and low voltage detecting circuit
All pins of the DRV8833 break out to 2.54mm spaced pins, and it can be plugged onto the breadboard.
Filtering capacitors on both supply lines
Great for DIY and smart car projects
Instructions:

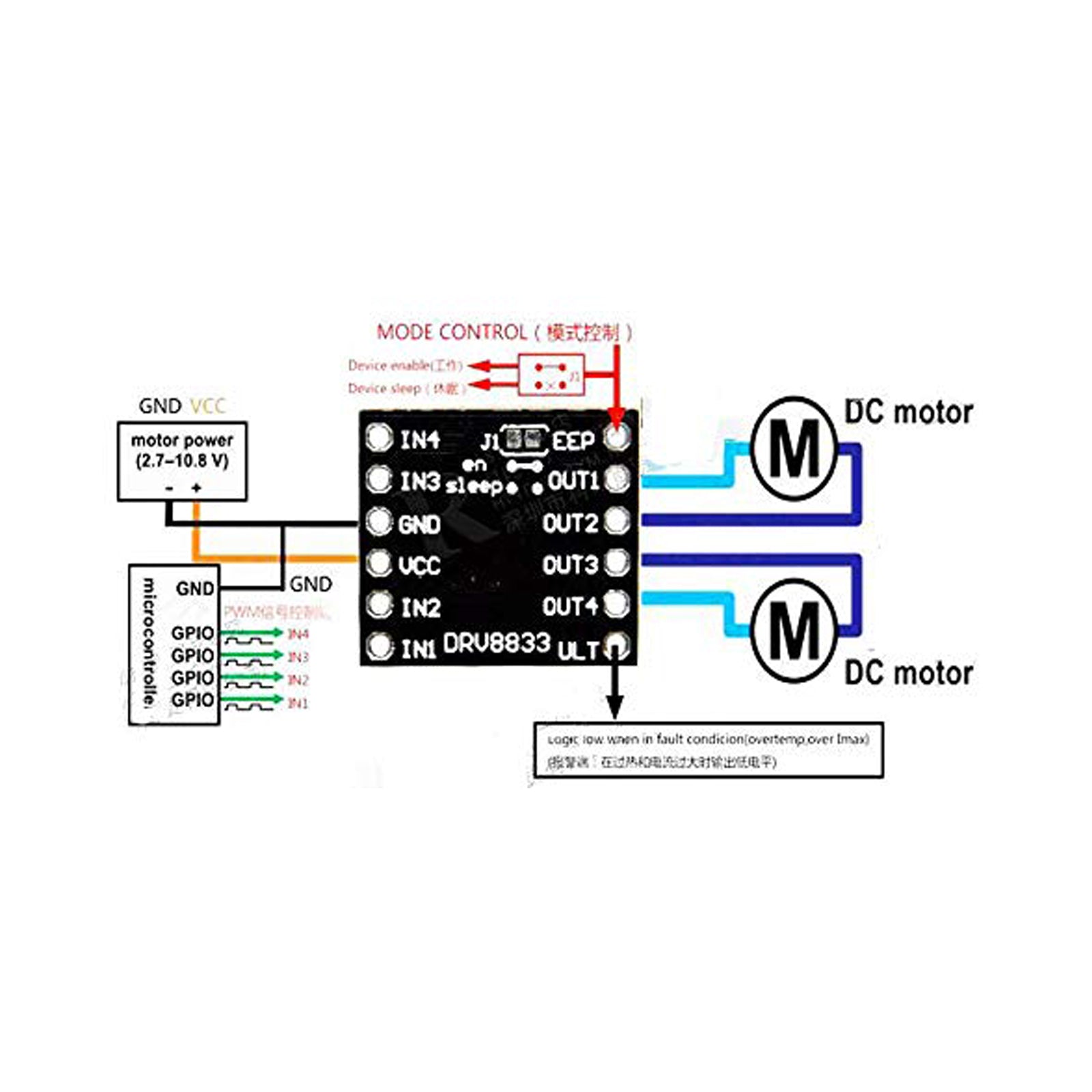

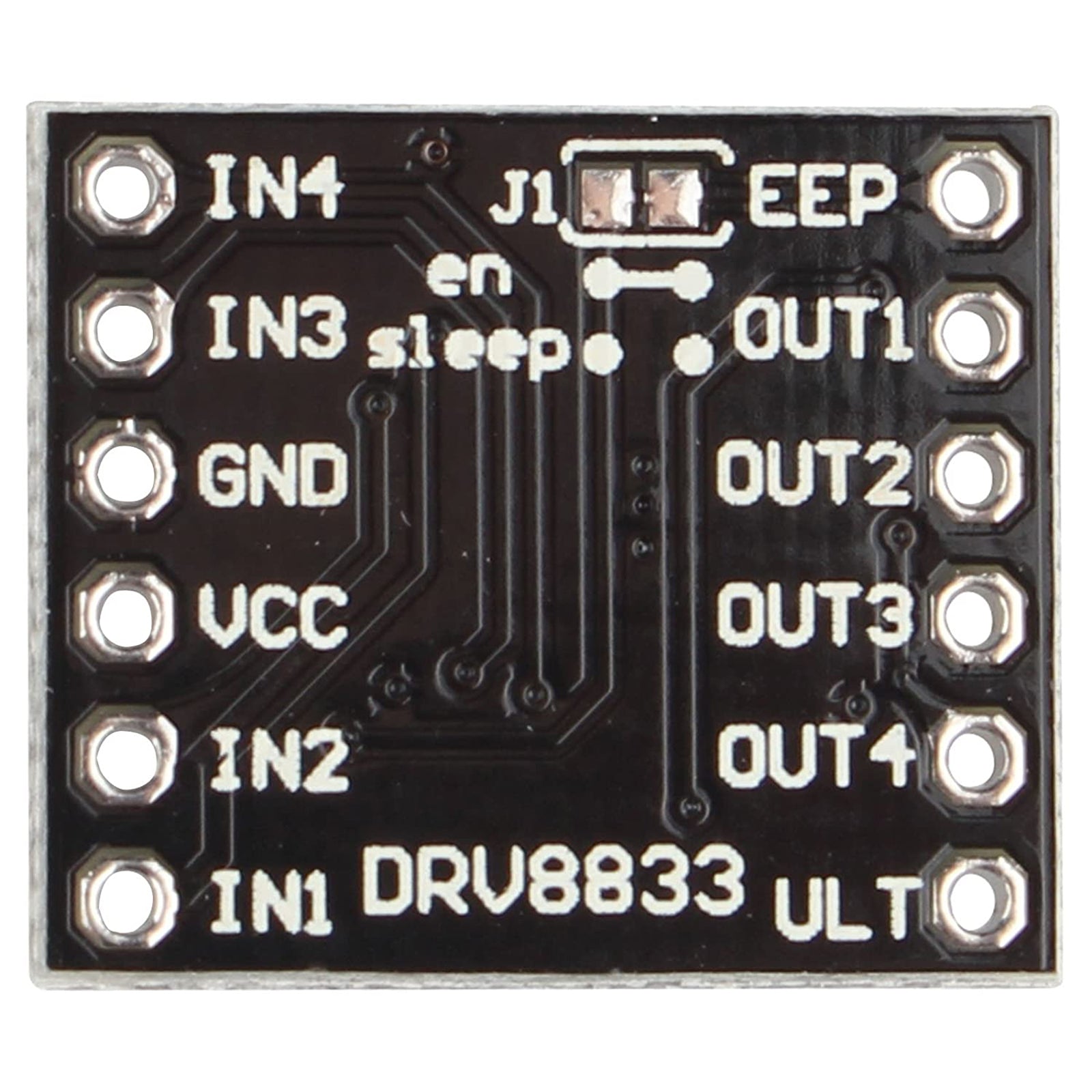

ULT PIN:mode set.Low level is sleep mode
OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
EEP PIN:Output protection.Default no need to connect.
VCC:3-10V
GND
Packing List:

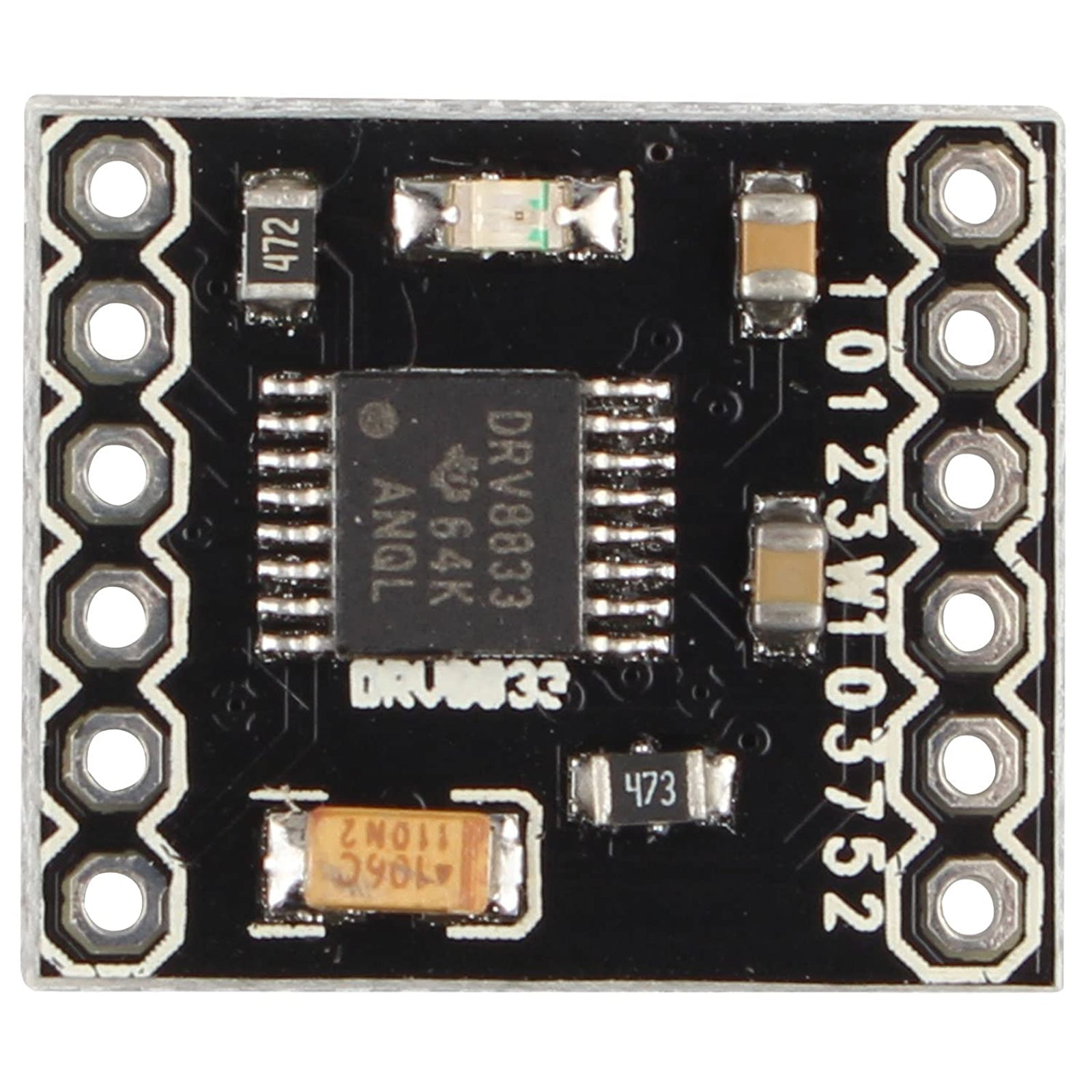

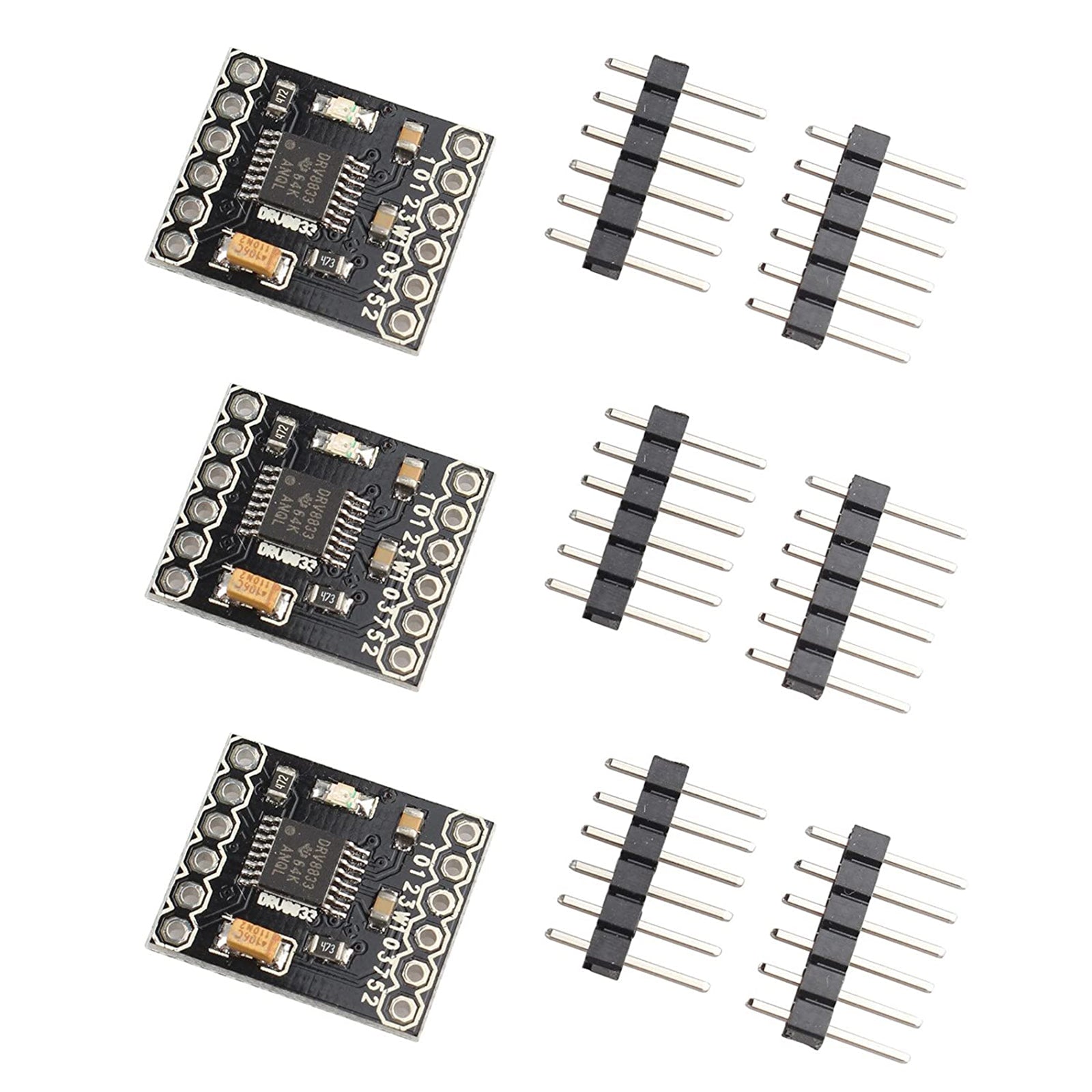

3 x DRV8833 Motor Driver Module
