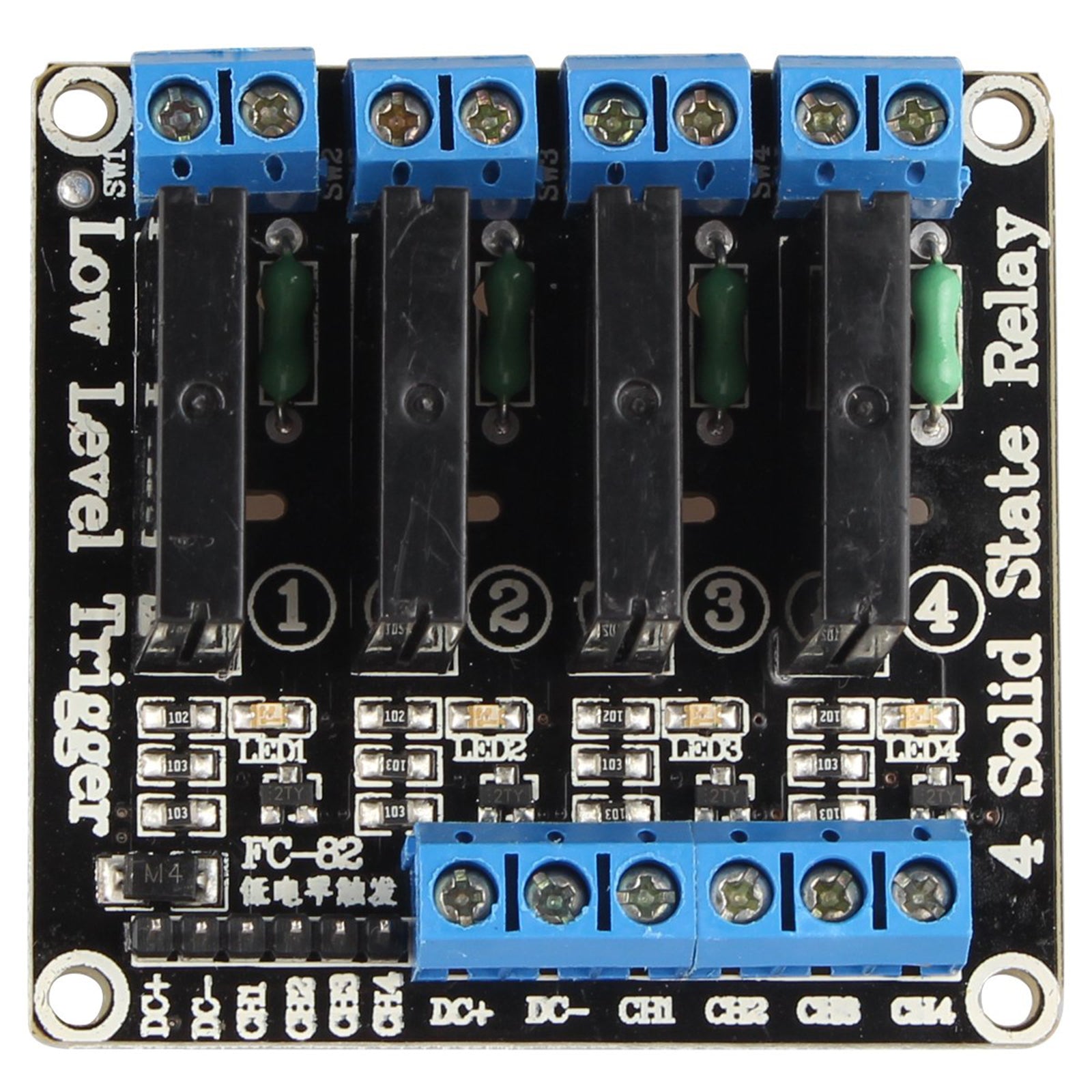

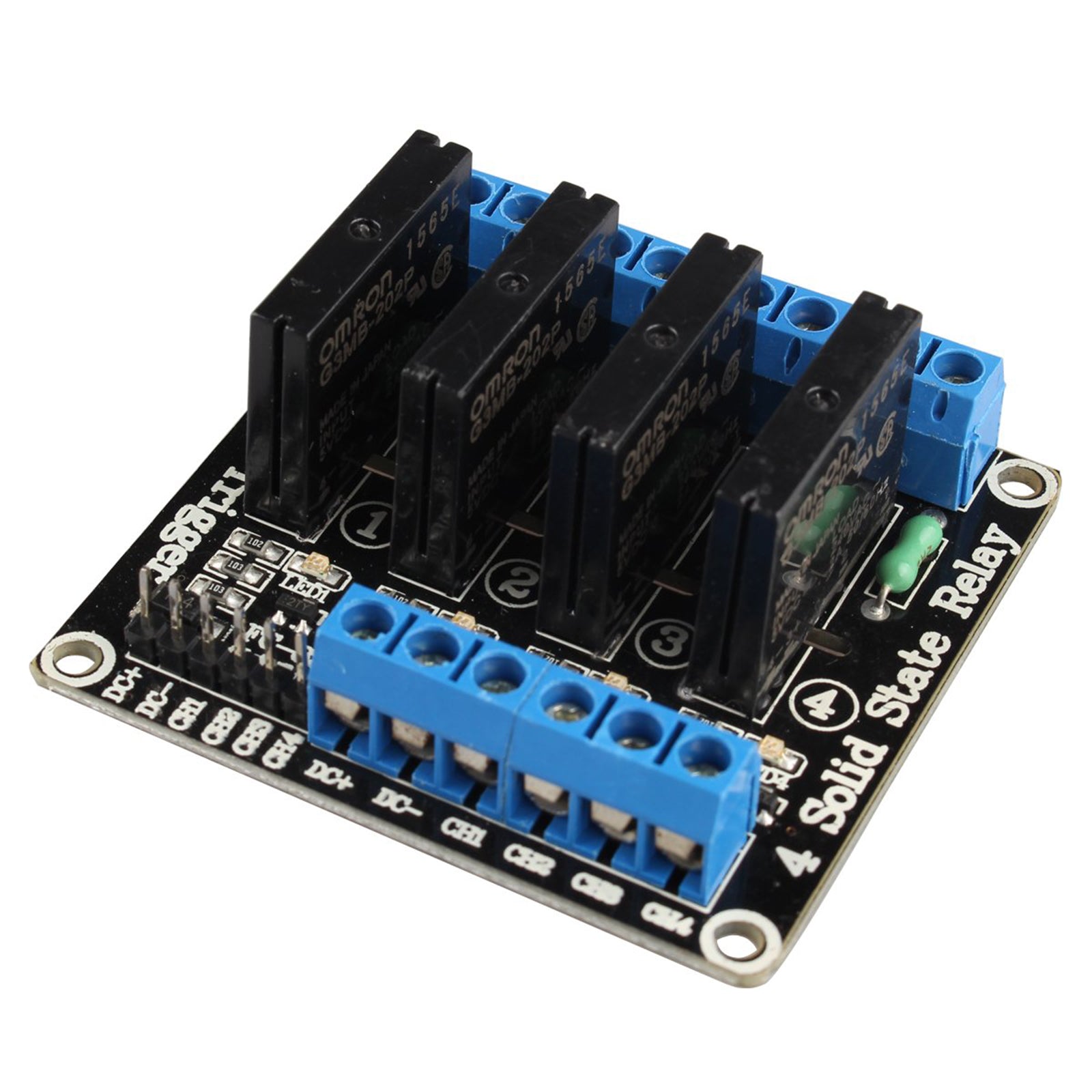

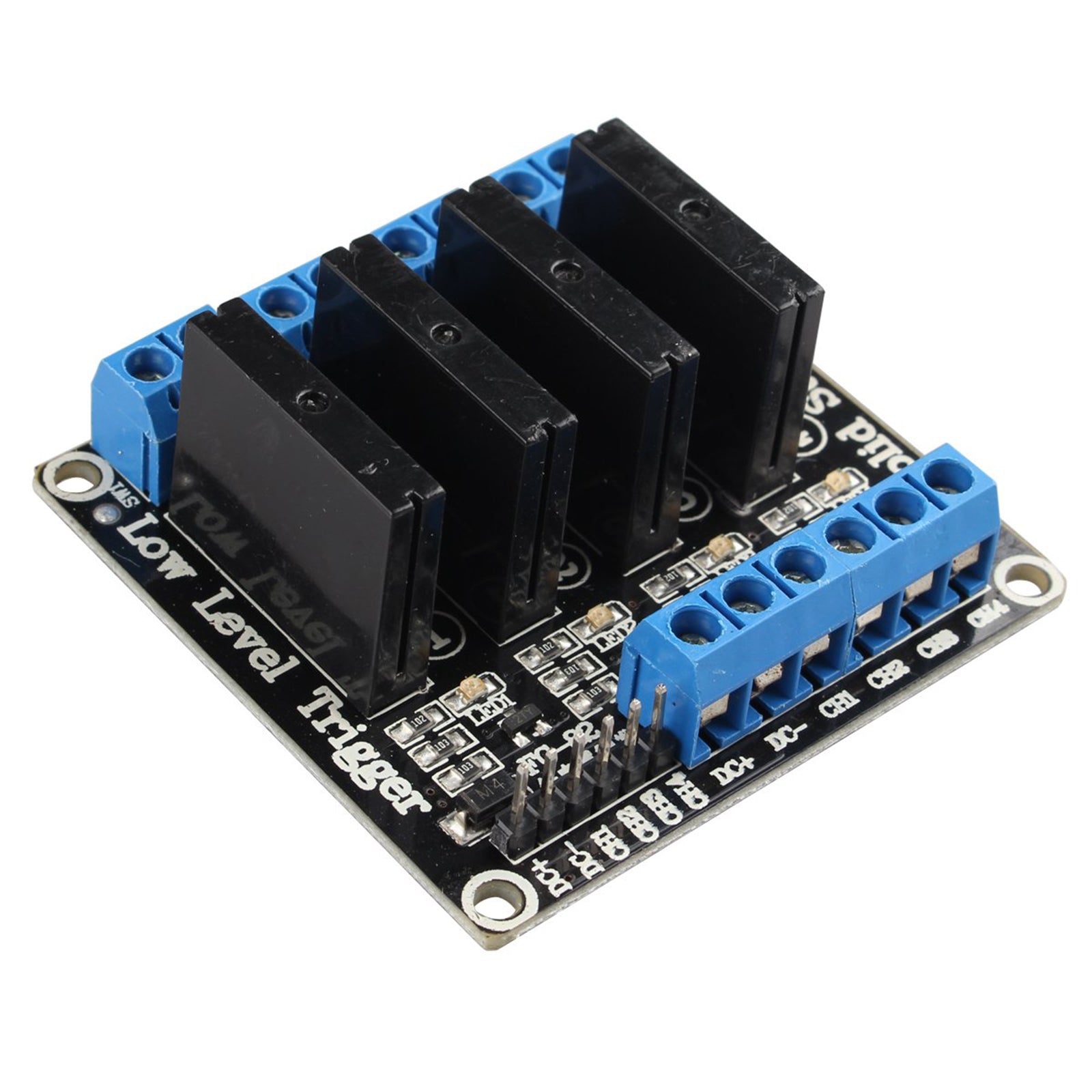

- 4 channel 5 V solid state relay module with resistive fuse for Arduino UNO Duemilanove Mega2560 mega1280 Raspberry Pi Arm DSP Pi.
- 5 V solid state relay 240 V 2 A, output with resistive fuse 240 V 2 A.
- Input voltage: 5 V DC (160mA);
- Input control signal voltage: (0-2.5 V State low relay on); (3.3 V-5 V High Relay Off);
- Size: 57 * 55 * 25 (length * width * height) weight: 40g.
Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: negative power supply
CH1: 1 relay module signal trigger end (low level trigger effective)
CH2: 2 relay module signal trigger end (low level trigger effective)
CH3: 3 relay module signal trigger end (low level trigger effective)
CH4: 4 relay module signal trigger end (low level trigger effective)
Package Inculded:
1 x 4-channel relay module
