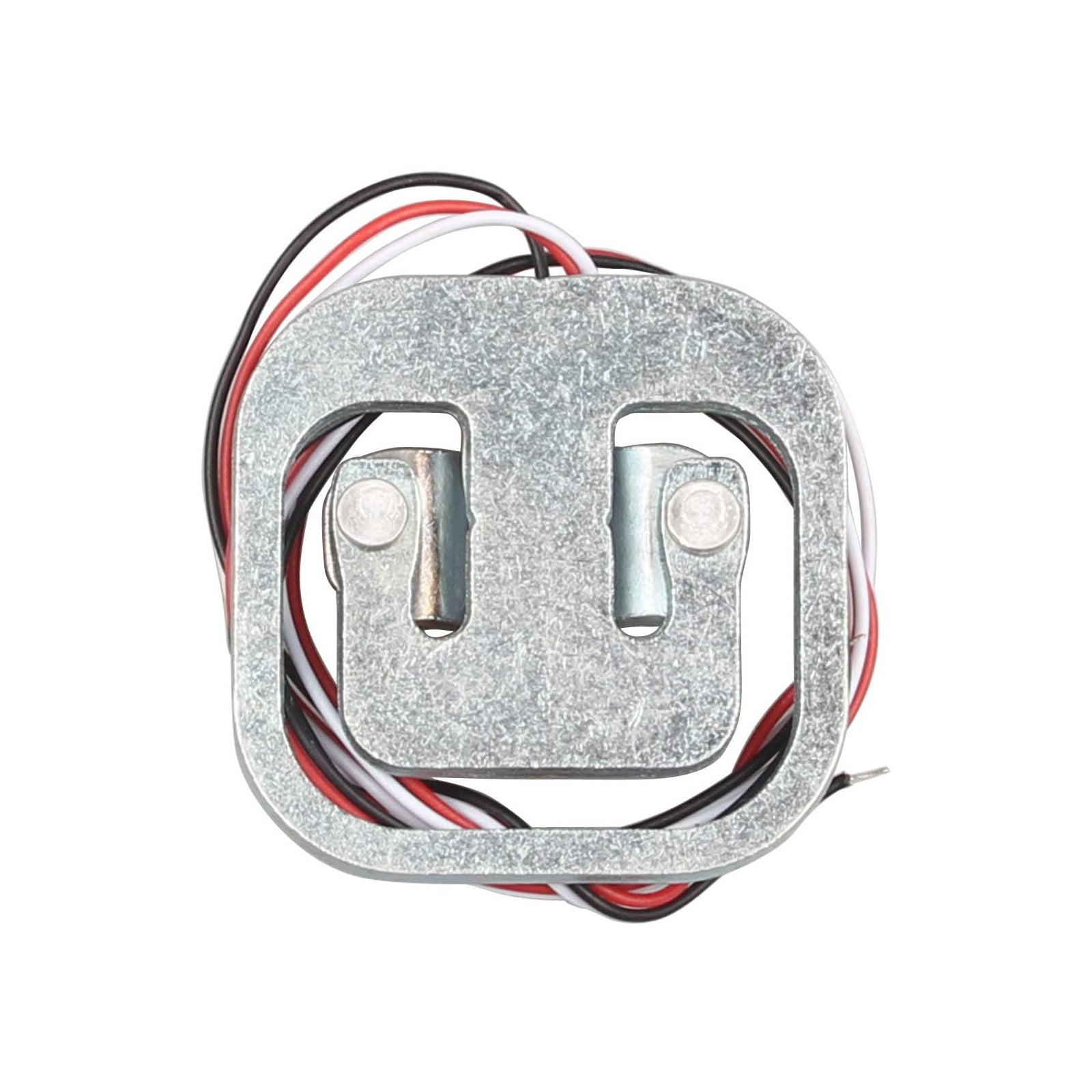

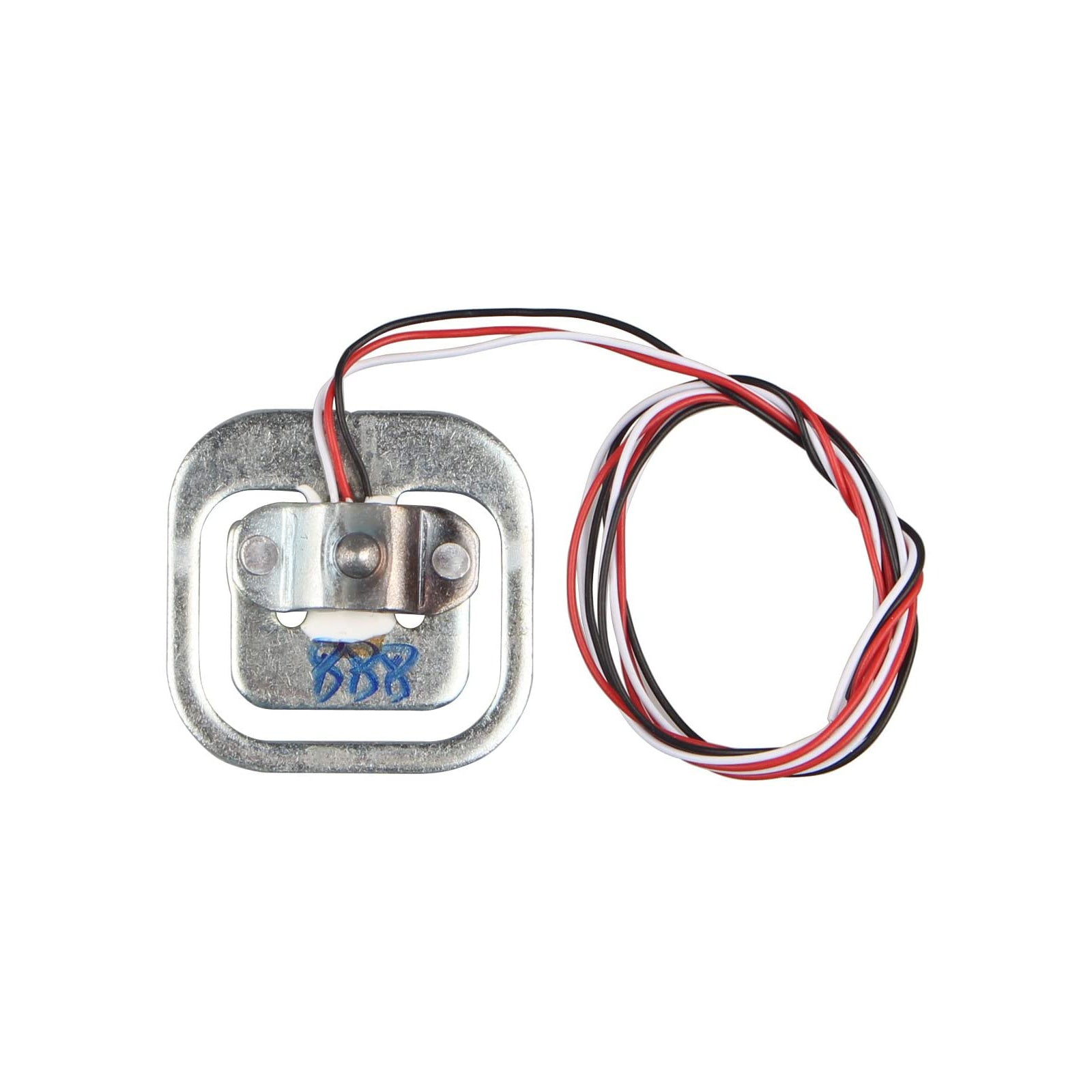

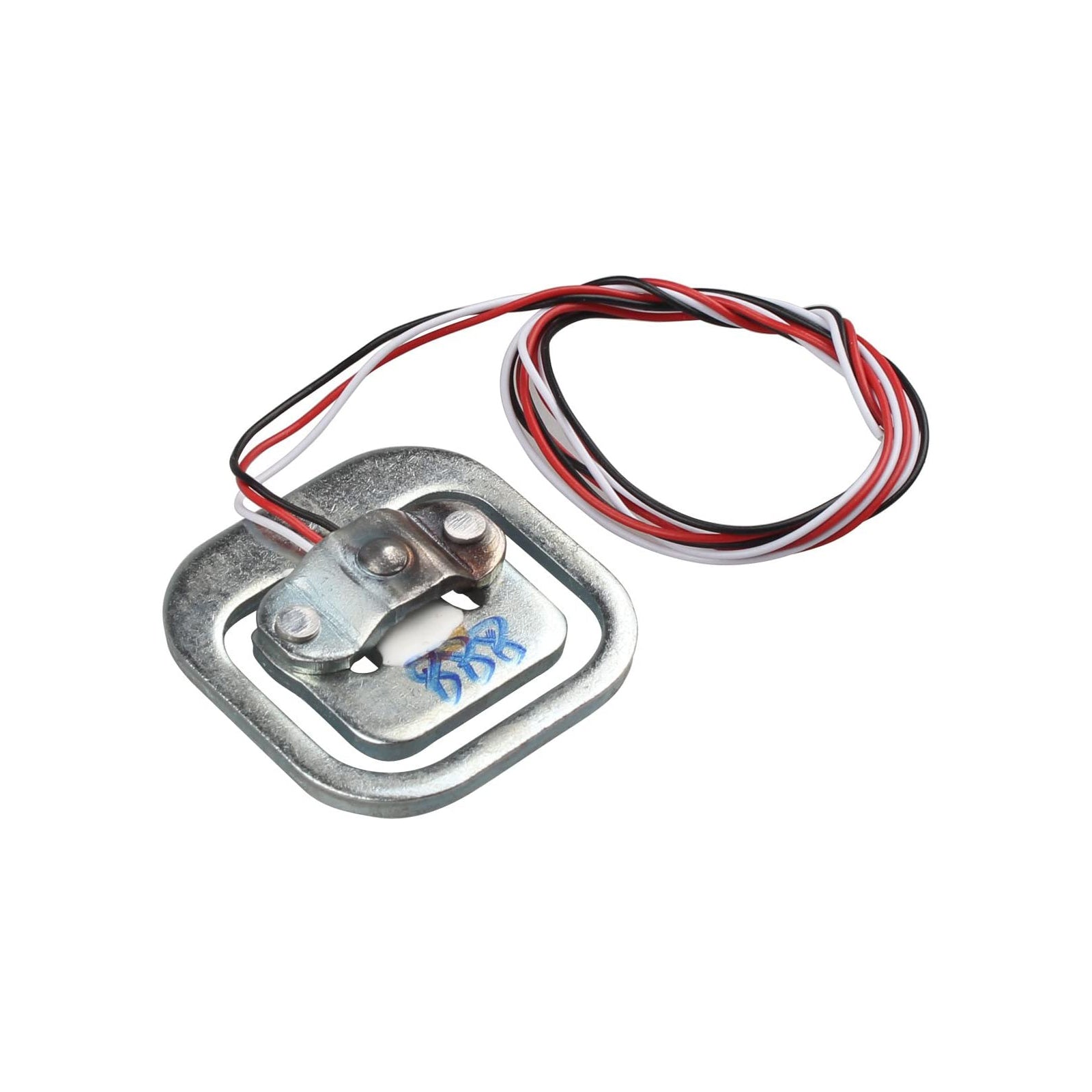

HALJIA 4PCS 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge Original Compatible with DIY Arduino Etc

Regular price $6.99

Shipping calculated at checkout.
  • Total Rated Load : 4x50Kg /440 lb;Overall Precision : 1.0+/- 0.1;Working Temperature : -20C to +65C
  • Compensated Temperature Range : -10C to +50C;Safety Overload : 120%F.S.;Recommend Excitation Voltage : DC 5V
  • Max Excitation Voltage : DC 8V;Hole Dia : 3mm/0.12";Hole Center Distance : 27mm/1"
  • Total Size : 34 x 34 x 8mm /1.3" x 1.3" x 0.31"(L*W*T);Wire Length : 15cm/6";Material : Aluminium Alloy
  • Color : Silver Tone; Package Content : 4Pcs x Half Bridge Weight Sensor

Product description

The internal 1000 ohm half bridge strain gauge, the measuring range is 50kg weighing sensor, half bridge structure.
Size: 34mm x 34mm


This sensor is a group of half bridge strain gauge, using the method can have the following three:
1, using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. External resistance requirements are higher.
2, the use of two sensors to form a full bridge measurement, measuring the range of two sensors and: 50kgx2=100kg
3, the use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kgx4=200kg


Packing List:

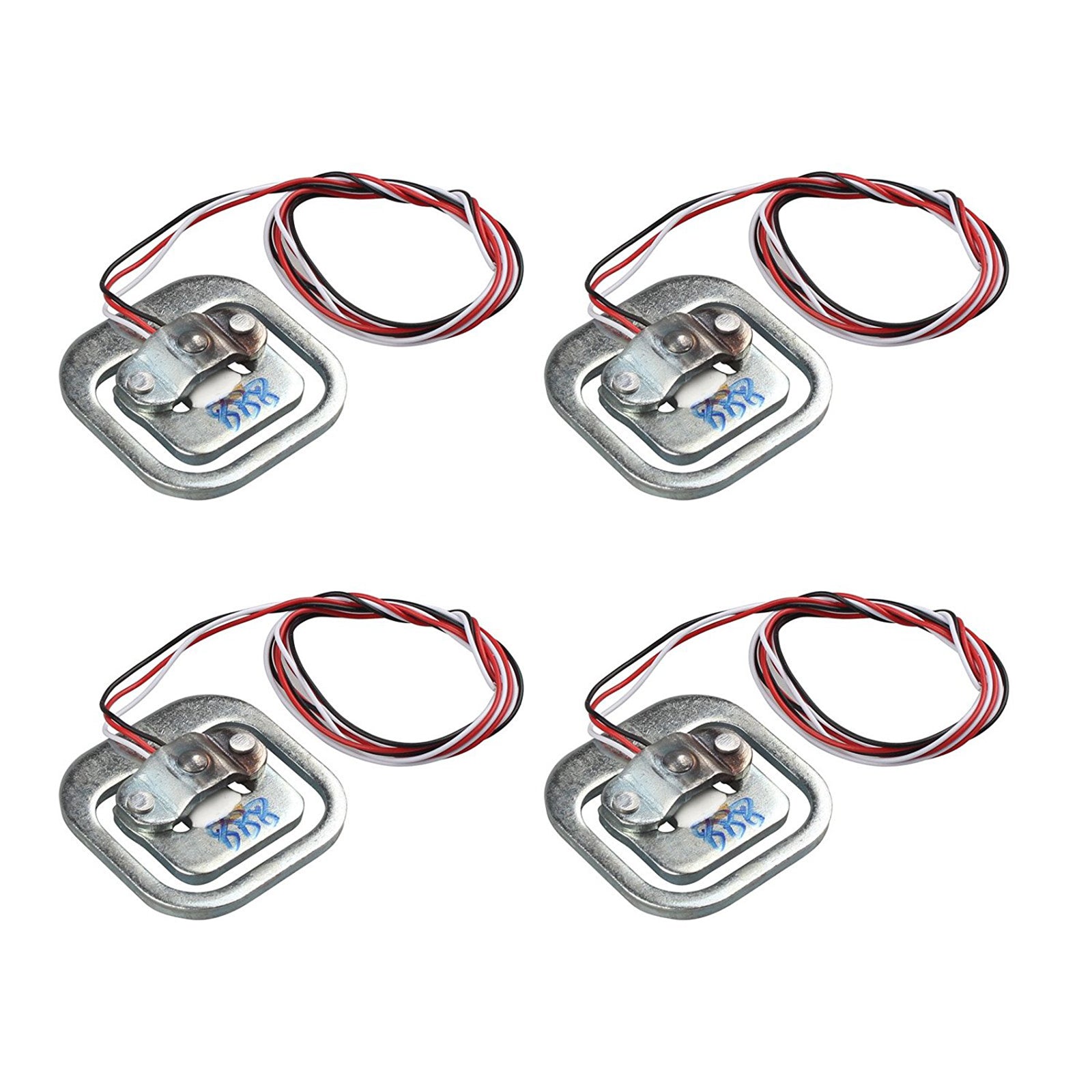

4 x 50KG Weighing Sensor
