- Working voltage: DC 5V--36V; continuous current 15A at normal temperature, power 400W! Under auxiliary cooling conditions, the maximum current can reach 30A.

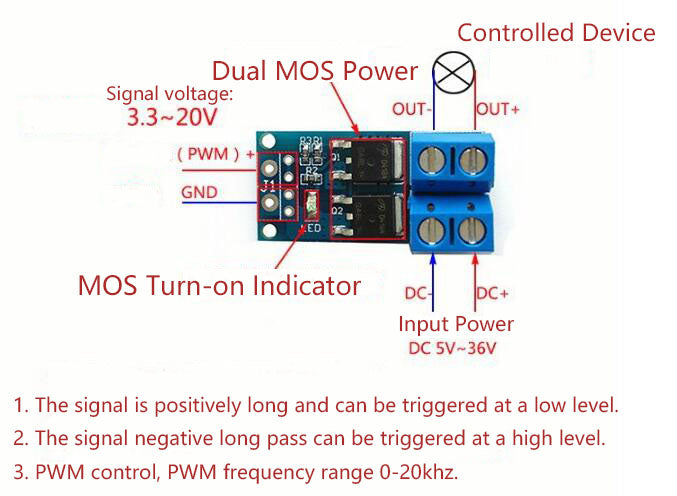

- Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power supply, etc., can be connected to PWM signal, signal frequency 0--20KHZ perfect support.

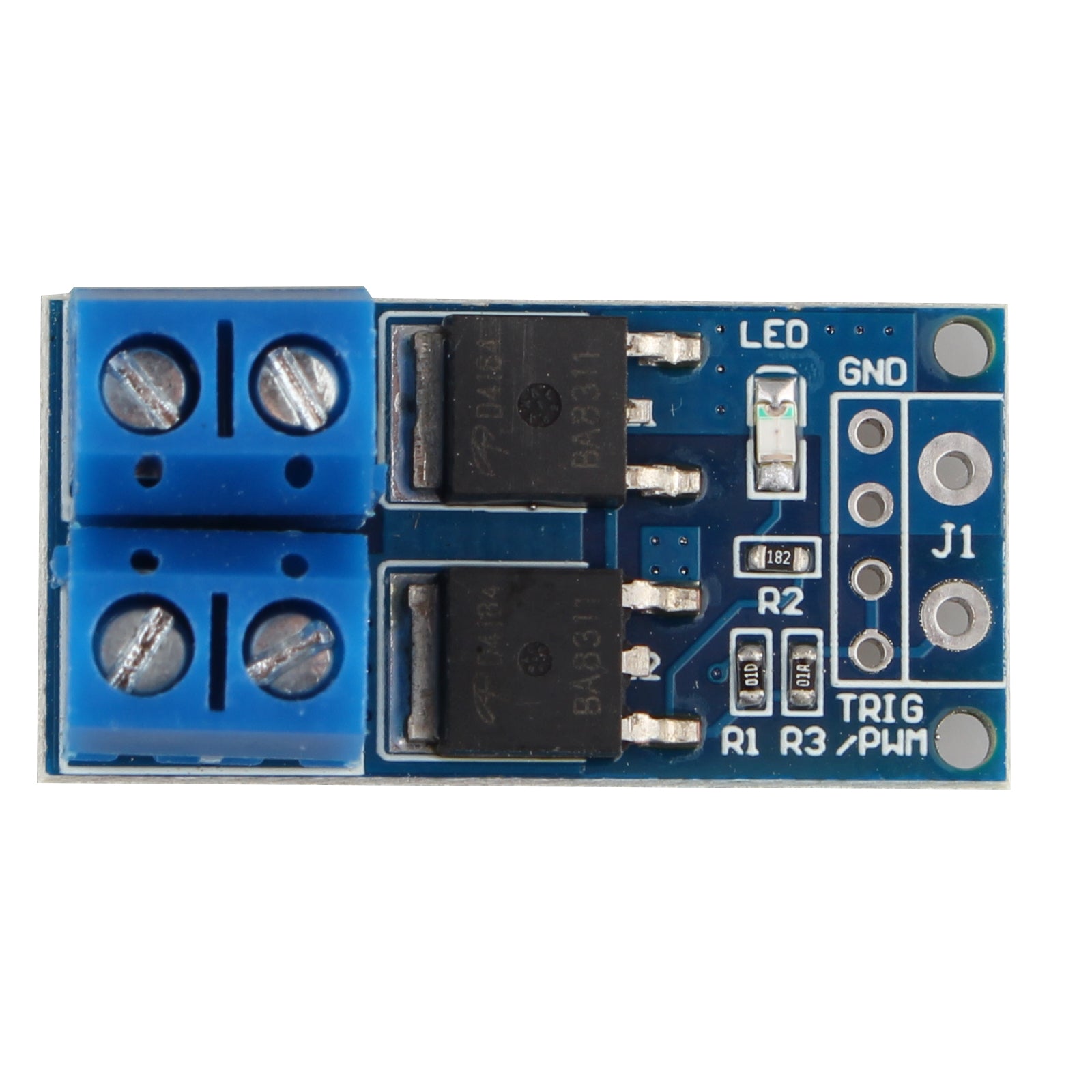

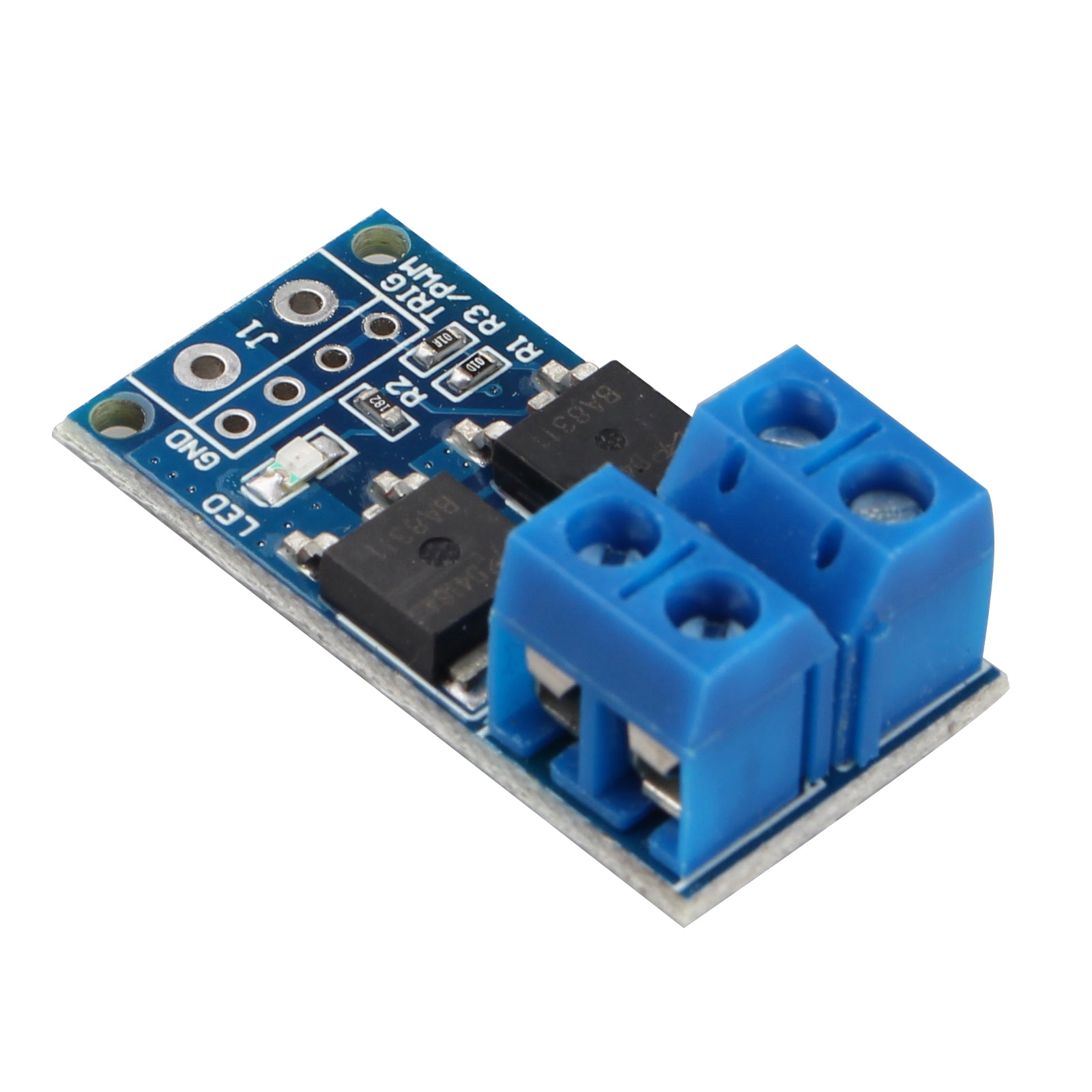

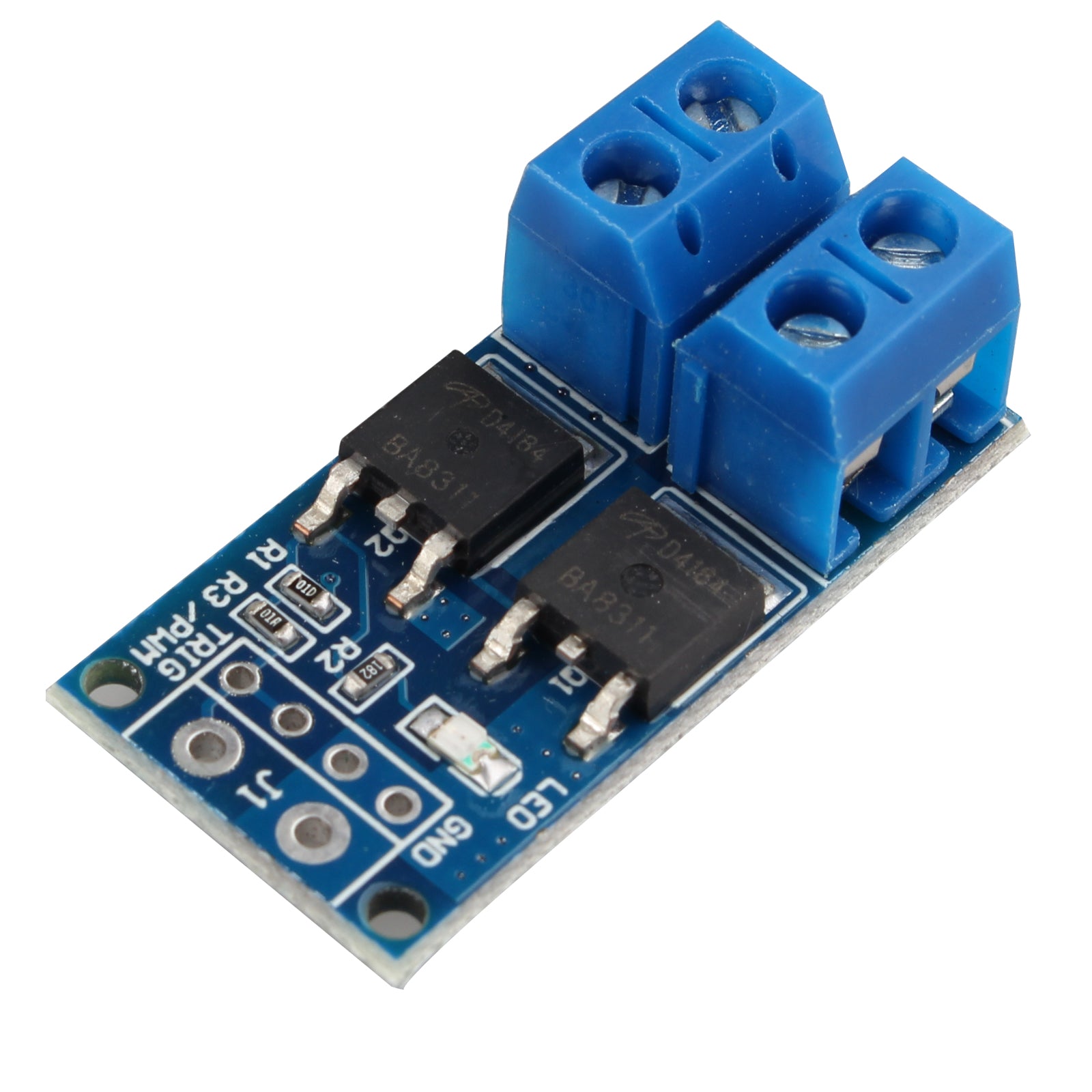

- Adopt dual MOS parallel active output, with lower internal resistance, larger current and strong power, which satisfies the use of most equipment.
- Wide voltage (DC 5-36v) , perfect support for PWM. The PWM controller can access PWM signal, which can perfectly supported the frequency of 0-20khz. It can be applied in various high power equipments.
- It can control high-power devices, motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc., can input PWM, control motor speed, lamp brightness, etc.
Features:
1: Working voltage: DC 5V--36V.
2: Trigger signal source: digital high and low level (DC3.3V--20V), can be connected to single-chip IO port, PLC interface, DC power, etc., can be connected to PWM signal, can support signal frequency in 0--20KHZ.
3: Output capacity: DC 5V--36V, continuous current 15A at normal temperature, power 400W! The maximum current can reach 30A under auxiliary cooling conditions.
4: Application: The output can control high-power equipment, motor, bulb, LED strip, DC motor, micro pump, solenoid valve, etc. It can input PWM, control motor speed, brightness of lamp and so on.
5: Service life: unlimited switch; working temperature: -40-85 ° C.
6: Adopt dual MOS parallel active output, lower internal resistance, larger current, strong power, 15A, 400W at room temperature, which satisfies the use of most equipment.
7: Wide voltage, support PWM.
8: Easily realize the control of high-power equipment.

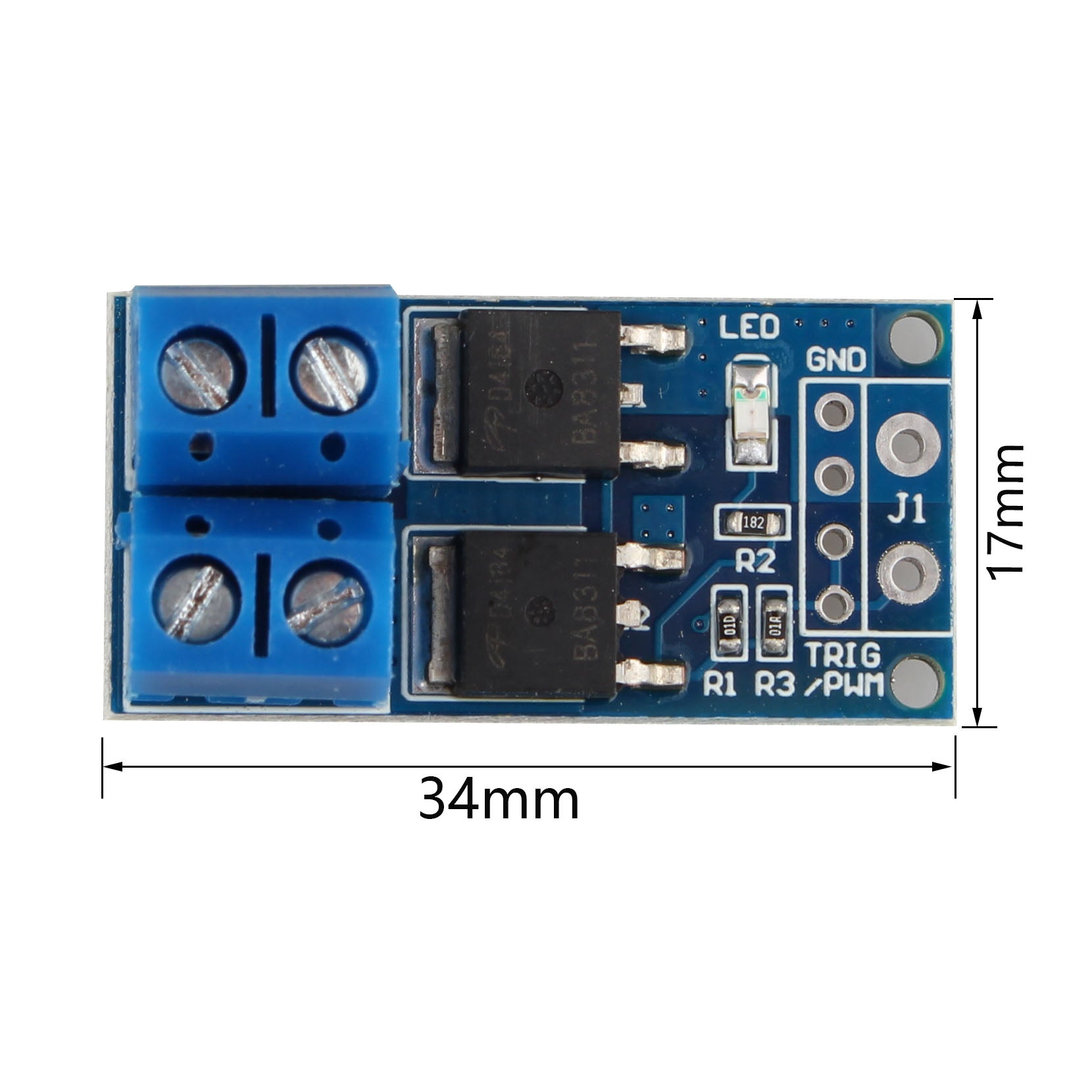

9: Size: 34 x 17 x 14mm
10: Weight: 5.2g
Packing List:

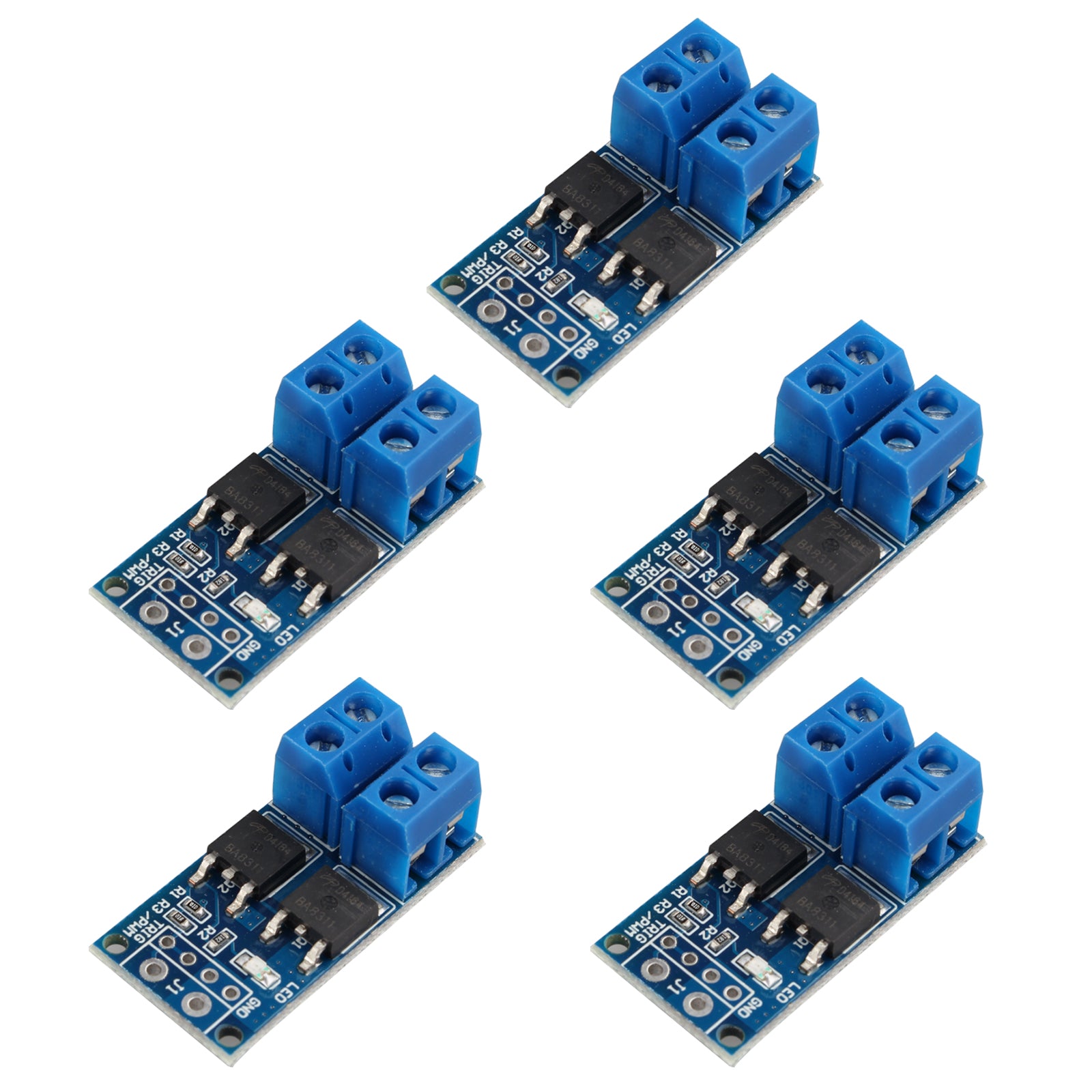

5 x Trigger switch drive module
