1. Working voltage: DC 2.7-12V;
2. Static power consumption: <0.1mA;
3. Delay time: 2 seconds;
4. Block time: 2 seconds;
5. Trigger mode: repeatable;
6. Sensing range: ≤100 degree cone angle, 3-5 meters; (depending on the specific lens)
7. Working temperature: -20-+60℃
8. Module lens: small lens

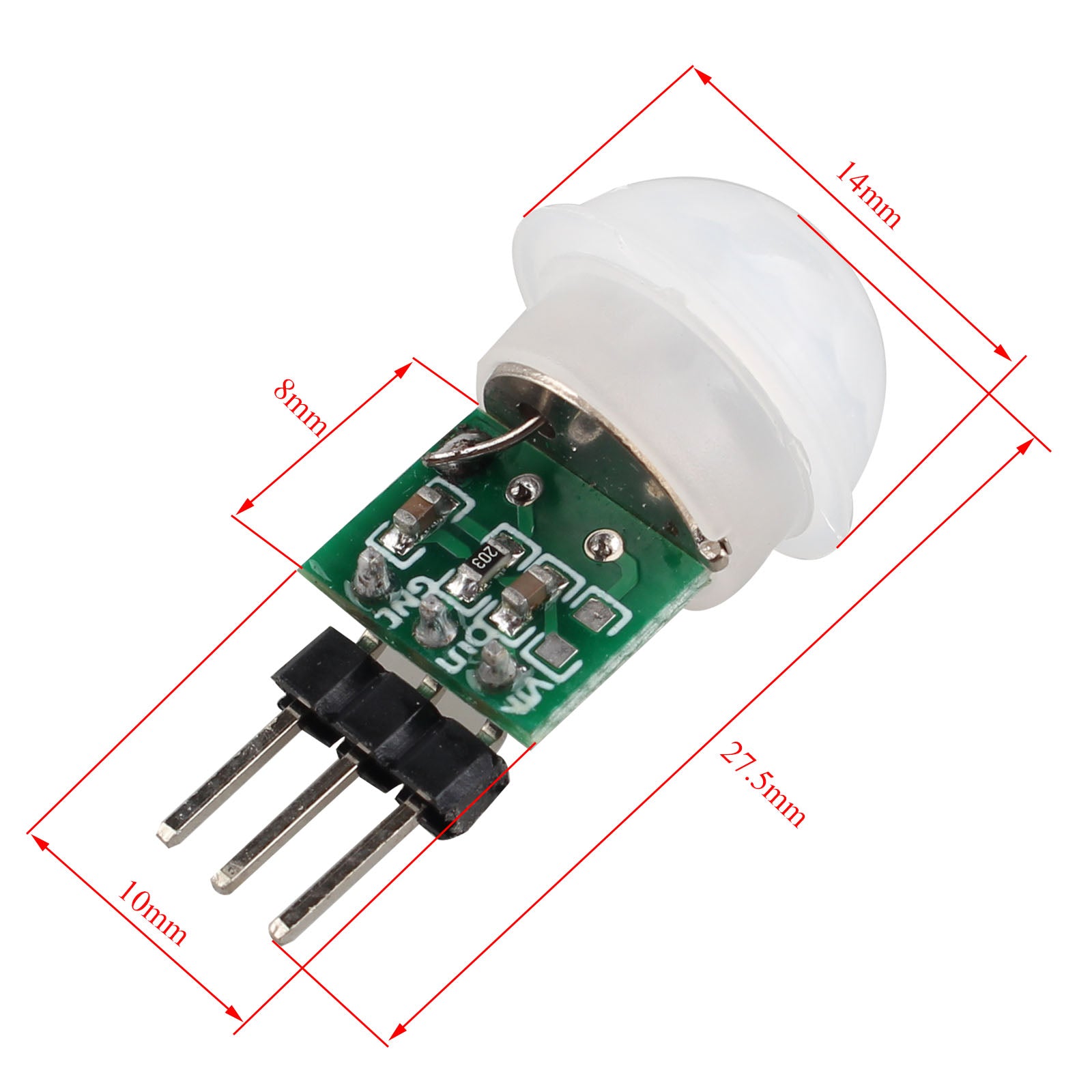

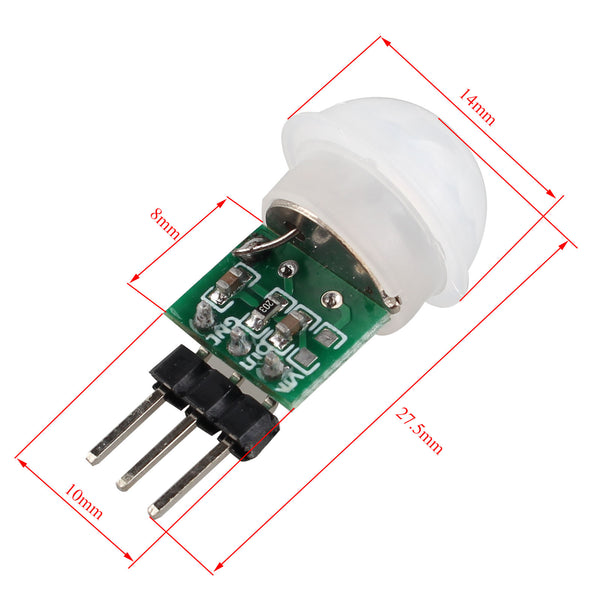

9. PCB size: 10 × 8 mm
10. Module size: 27.5 × 14 mm
1. Enhanced anti-interference, internal digital signal processing, direct high and low level output.
2. Repeatable trigger mode: that is, after the sensor outputs a high level, during the delay period, if a human body moves in its sensing range, its output will remain at a high level until the person leaves after a delay before it becomes low level. (The sensing module automatically delays a delay period after detecting each activity of the human body, and takes the time of the last activity as the starting point of the delay time.)
3. Widely applications: Security Products, the human body sensors toys, the human body sensor lighting, industrial automation and control, etc.

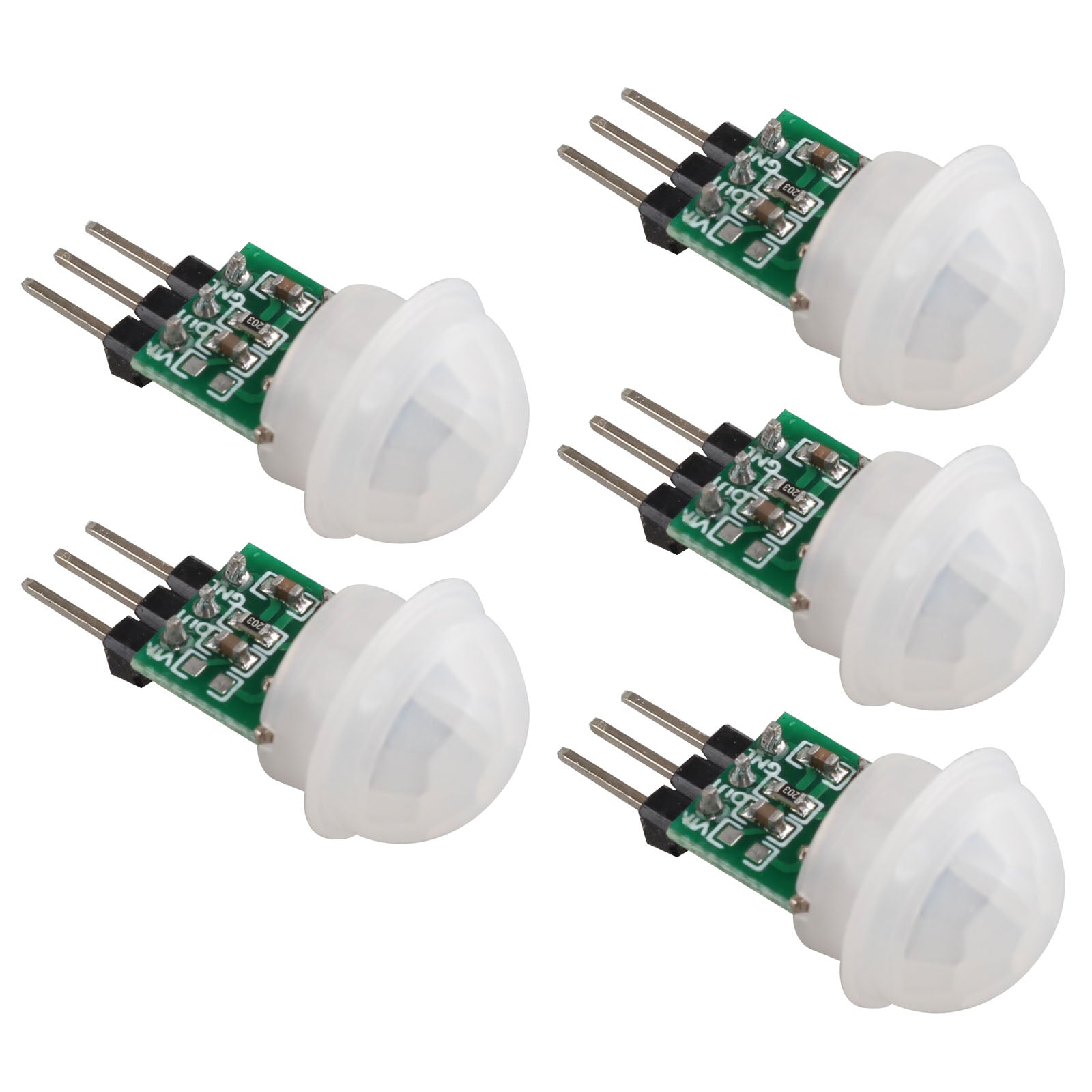

5 × AM312 IR Human Sensor Sensor Module

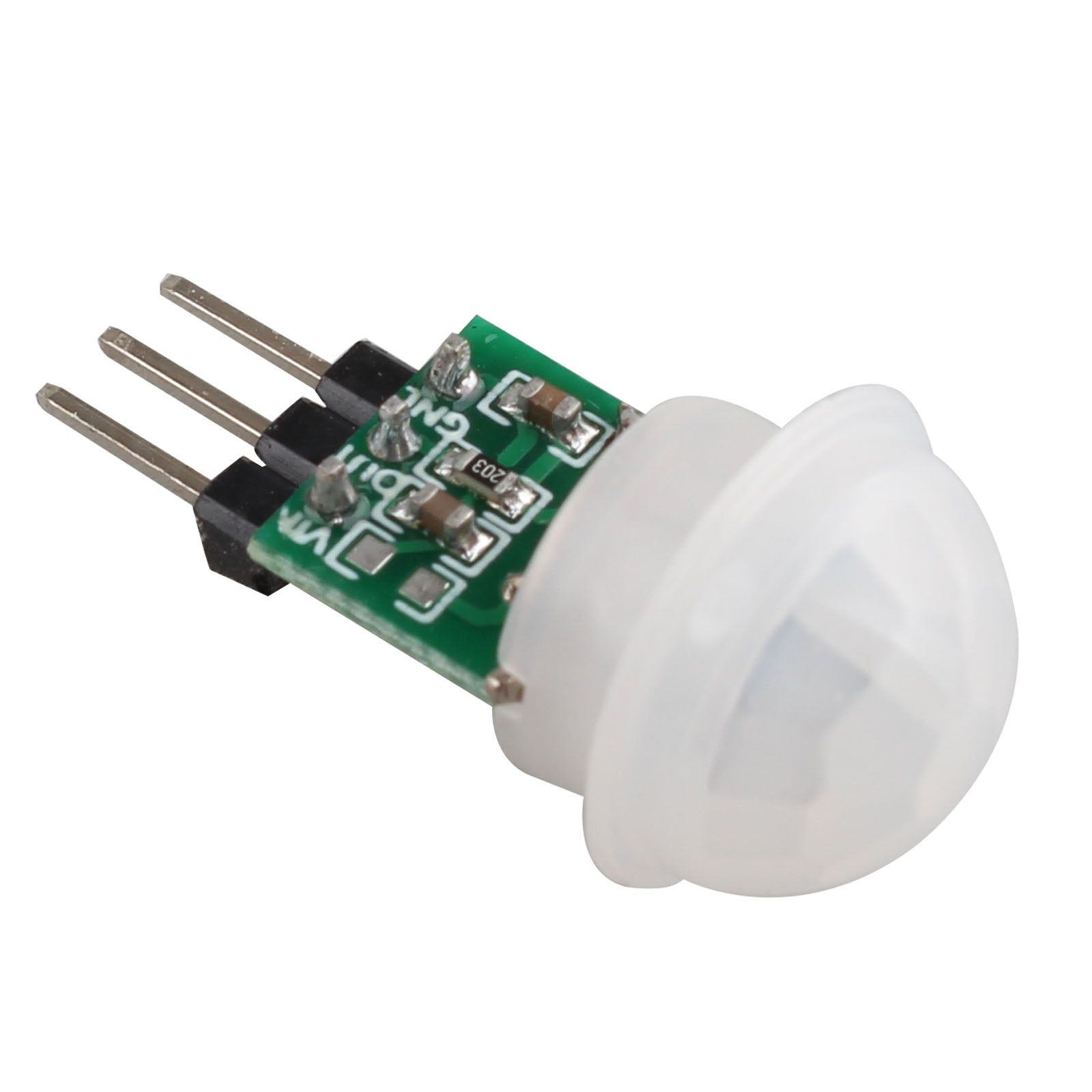

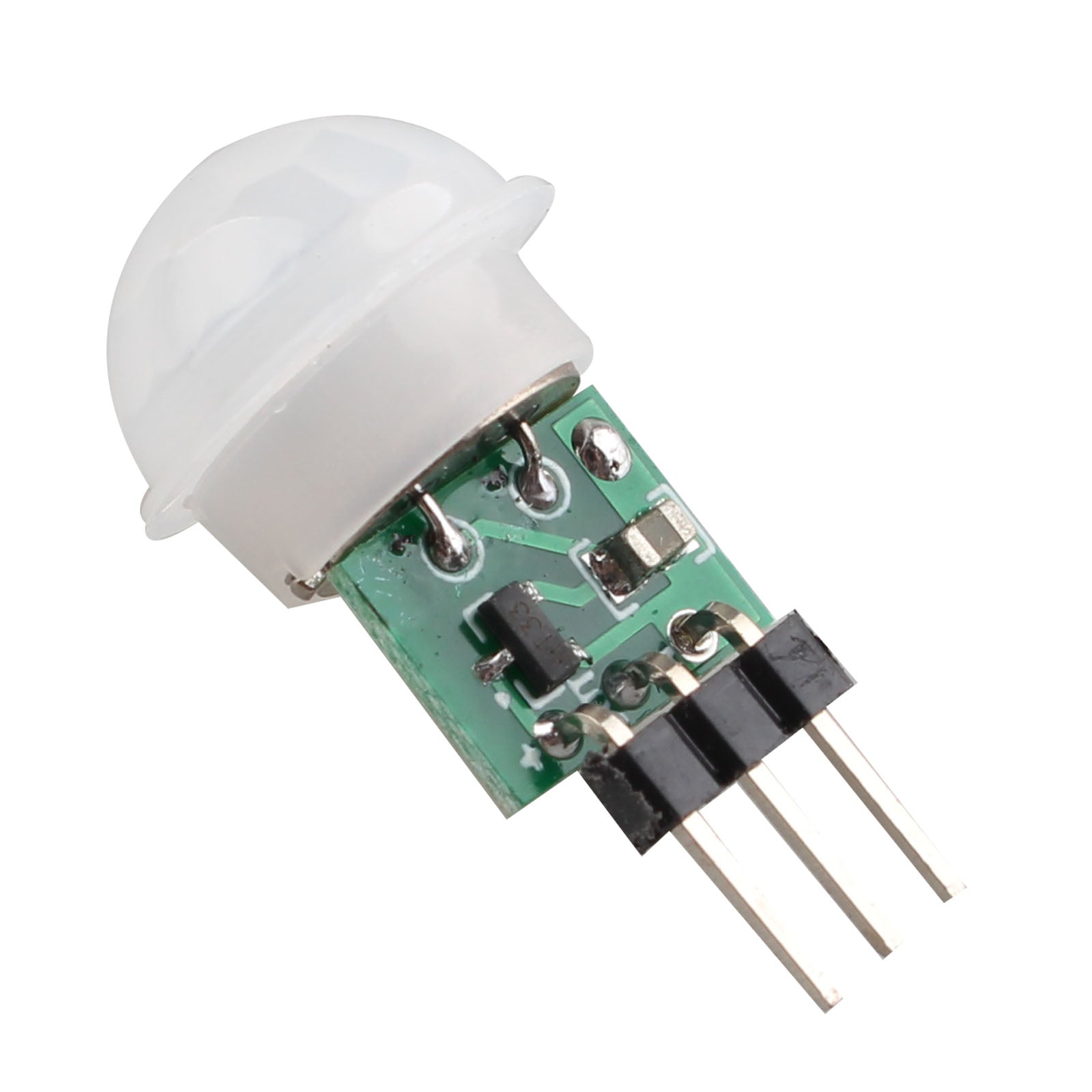

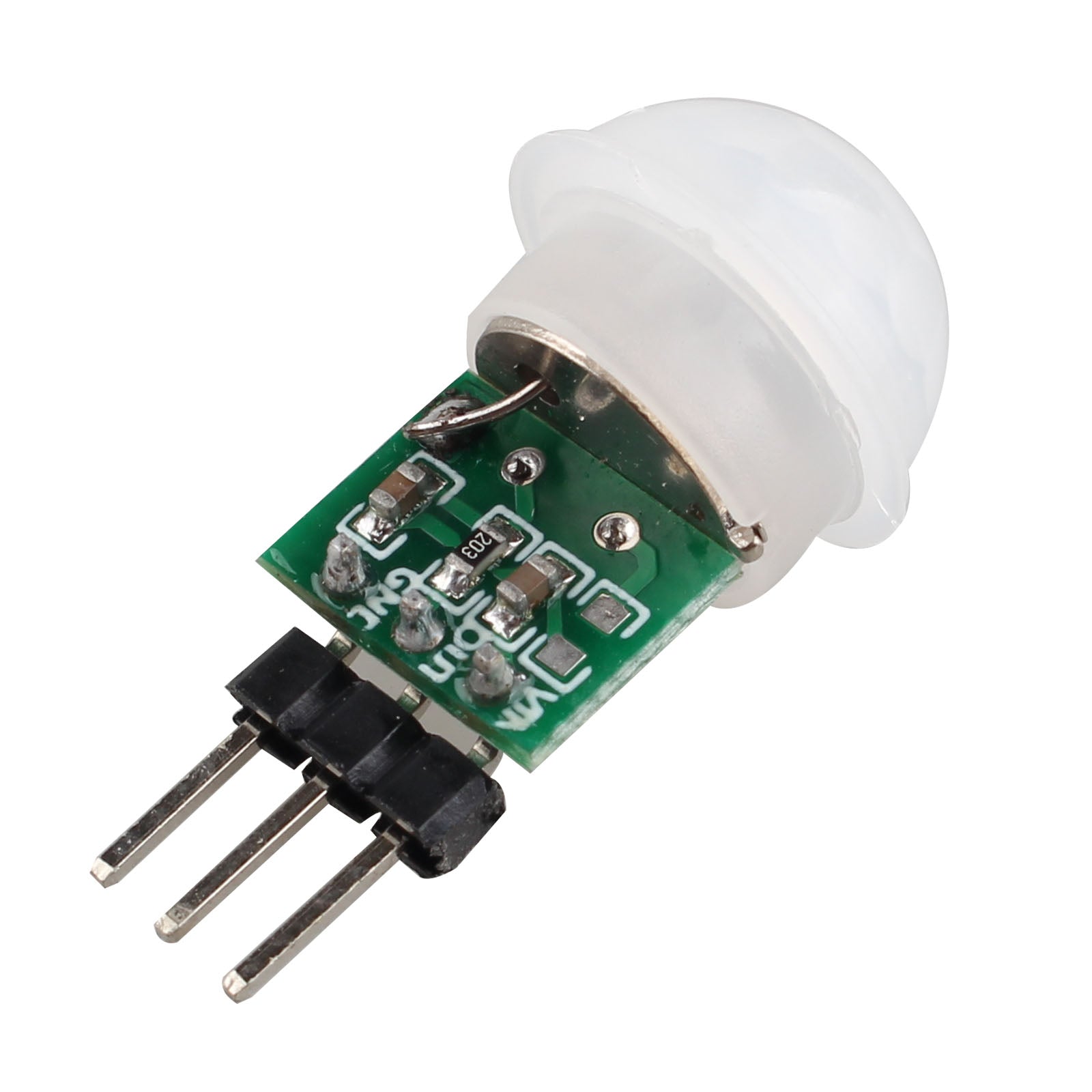

AM312 human body induction module: It is a digital intelligent automatic control product based on passive human body infrared technology. It has high sensitivity and strong reliability, and is widely used in various automatic induction electrical equipment.
