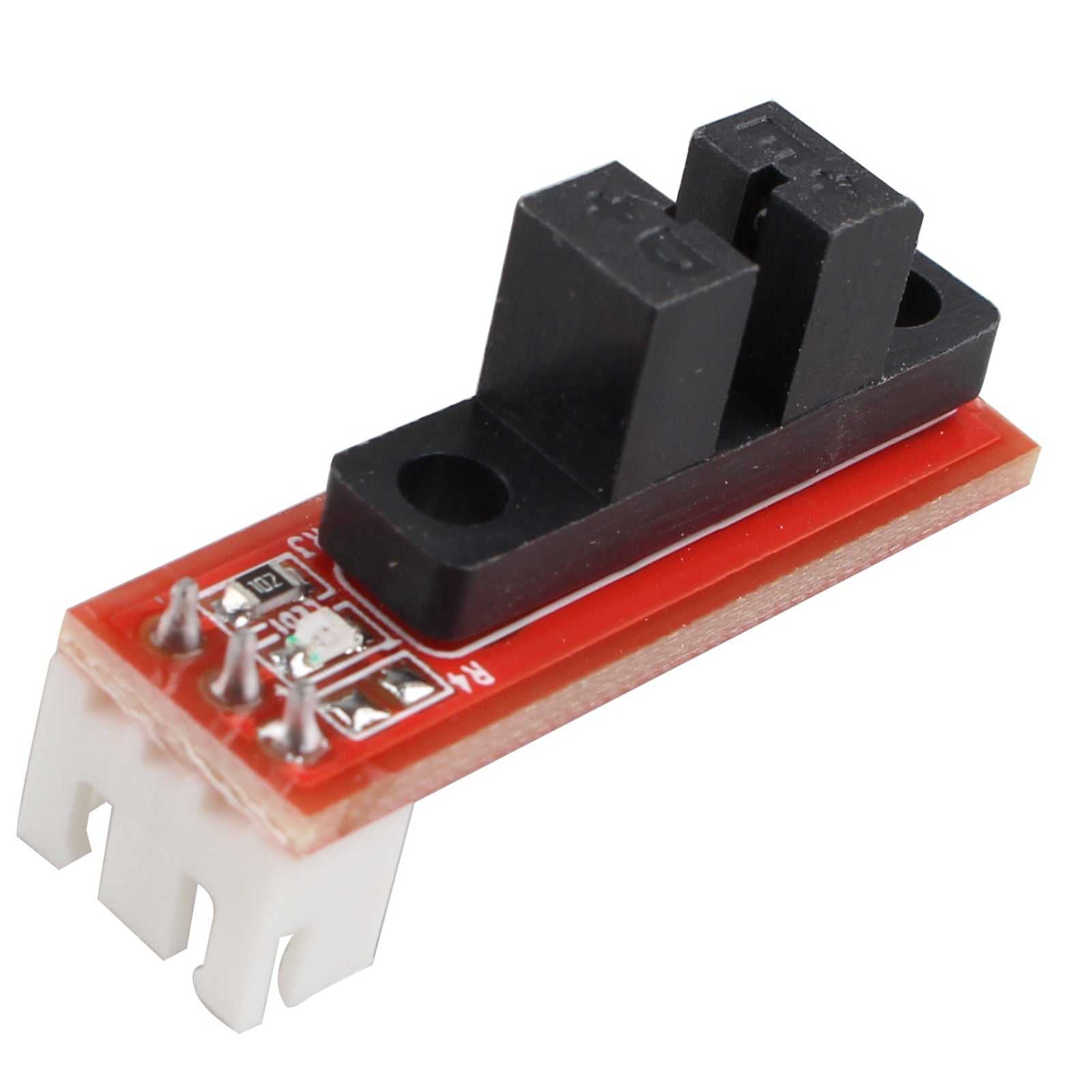

High-quality optical limiting optical switch 3D printer switch transmission, Supporting the use of RAMPS 1.4 Board.
Module Function : Converter; Accessories Function : Connector
The optical endstop is a reliable endstop / switch solution for any type of 3D printers and other CNC and/ or 3D tools.
Advantages: Designed with optical transmission principle, no loss, no noise, longer service life, reaching more than 100,000 times.
High-quality wiring, using 22AWG wire, the copper wire inside is very thick, can withstand 2A current, 300V voltage. The temperature range of the insulating layer is also very wide, which can reach 80 degrees. It is incomparable with ordinary thin copper wire. It is not easy to pull off, and it is also convenient to insert and remove. For convenience, the plug on the other side is integrated and can be used directly.

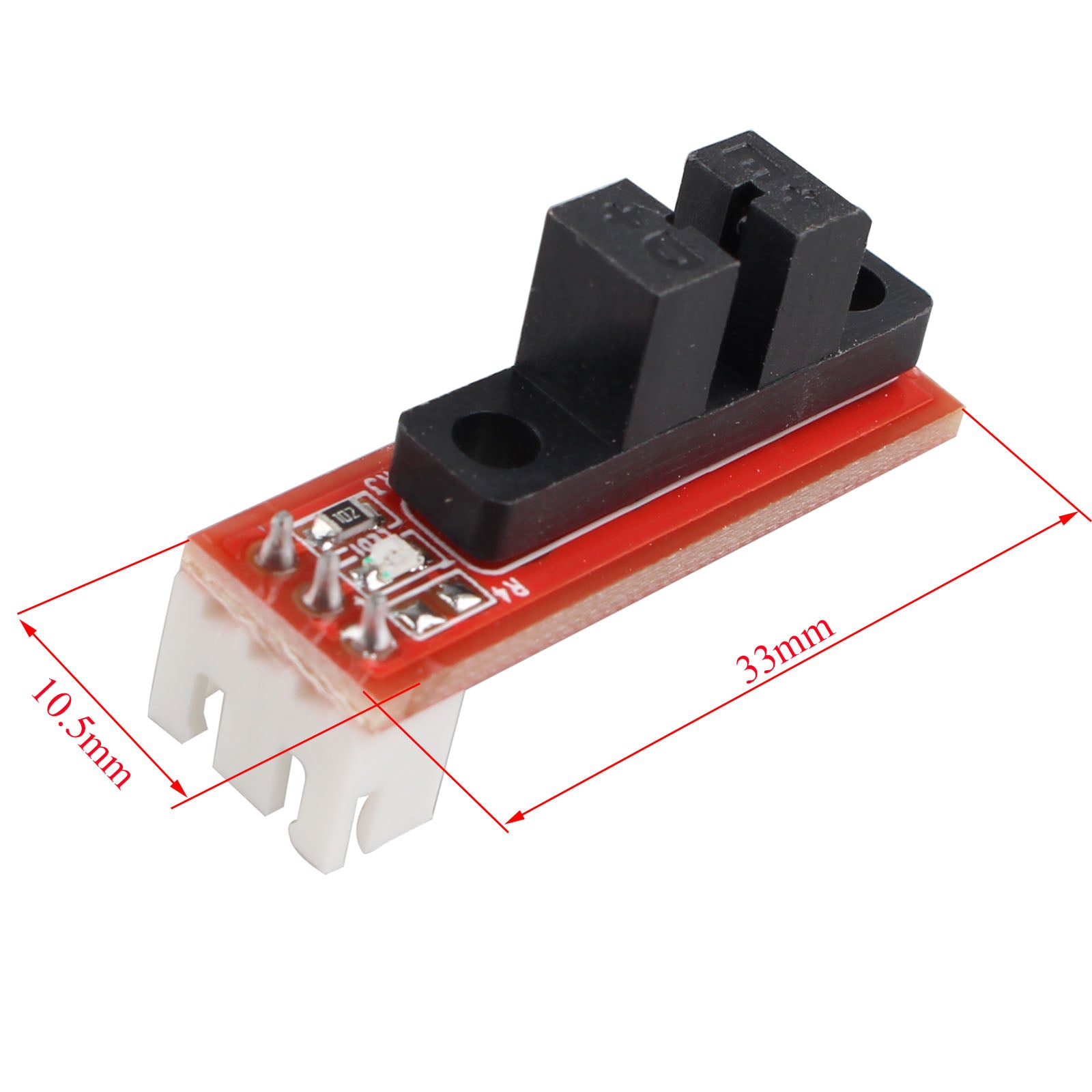

Board Size: 33 x 10.5 x 19.3 mm
Cable length: 51cm
Kit weight: 6.7g

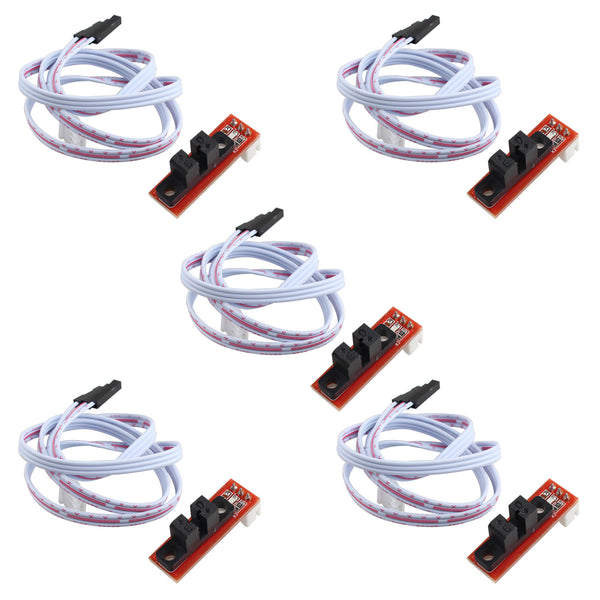

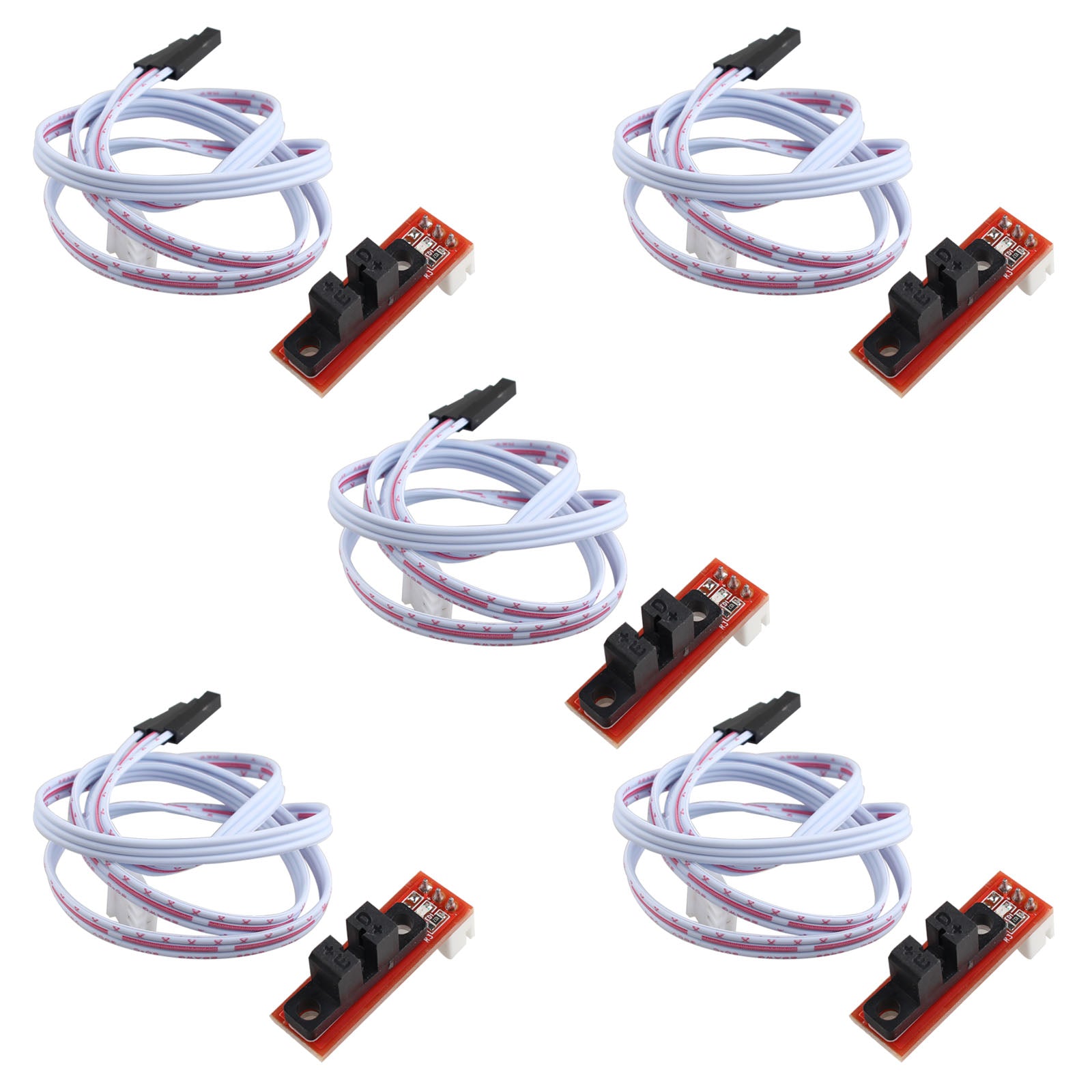

Packing List:
5 x Optical Endstop
5 x Cable
