Button direction: front, back, left, right, vertically downward
Voltage: 3.3V, 5V
Output: Digital level (press low level, release high level)
The number of IO: 7
Operating voltage: 2.0V-9.0V
Operating temperature: -40℃To 85℃
Platform: Arduino, MCU, ARM, Raspberry Pi

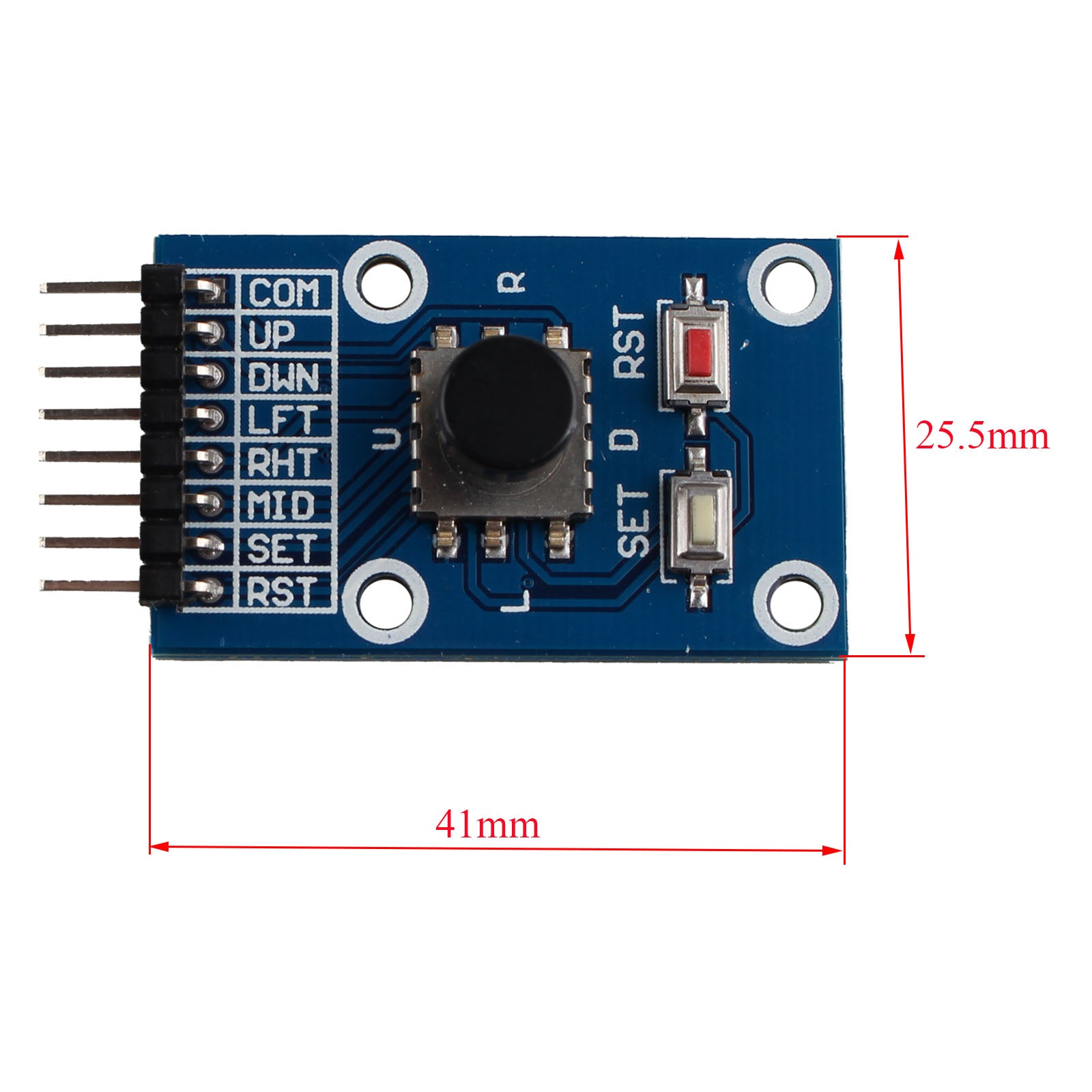

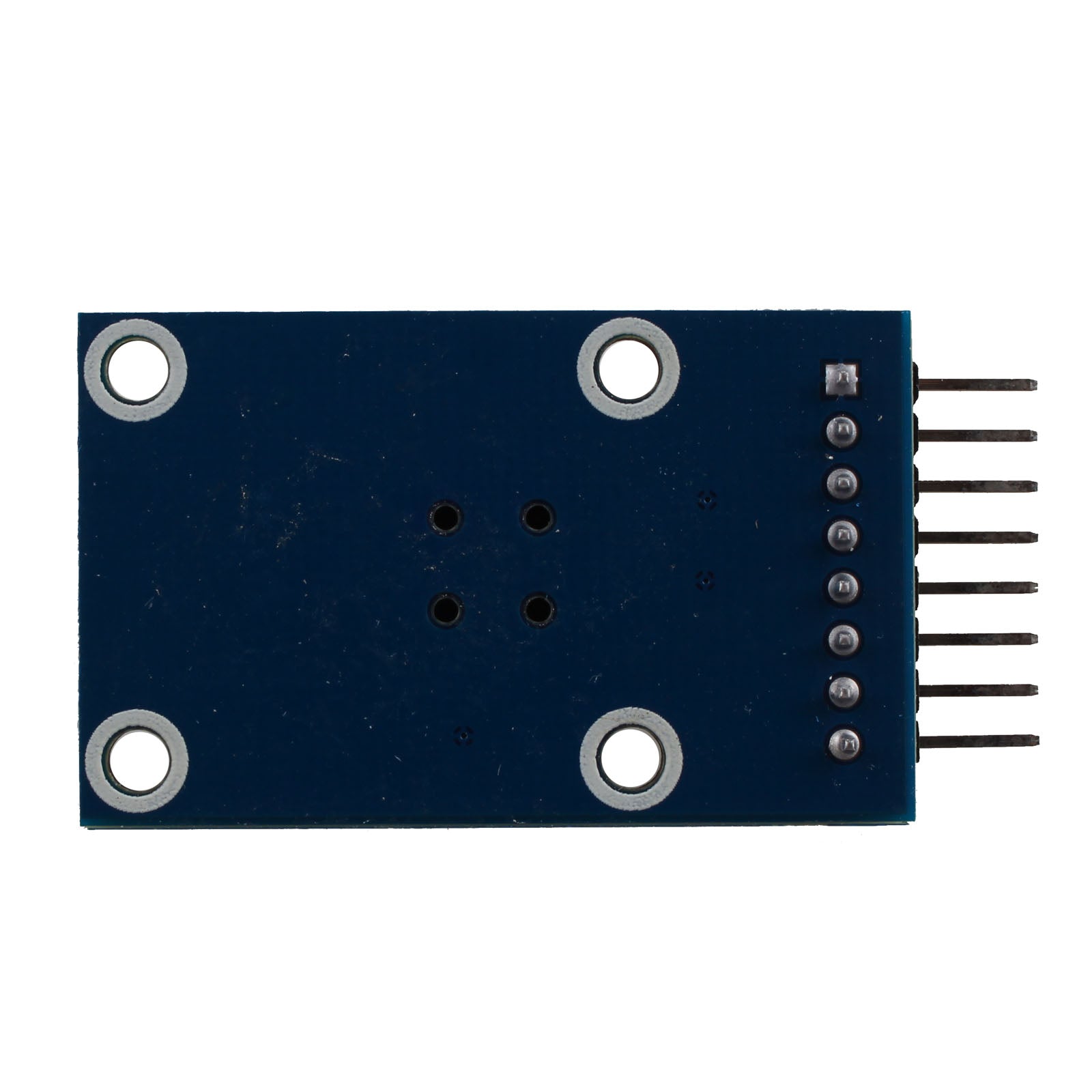

Size: 47.5 × 25.5 × 14 mm
Weight:5.1g

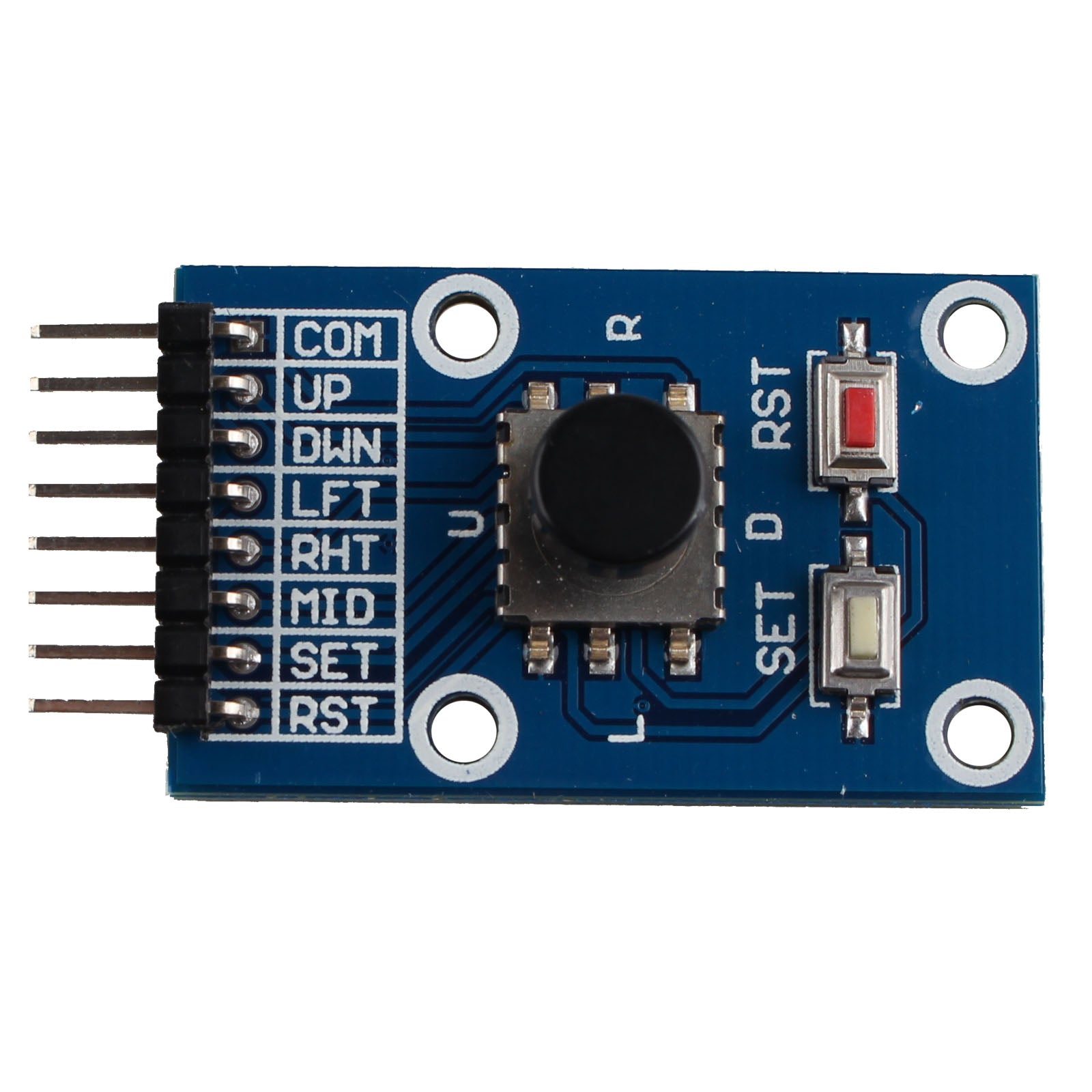

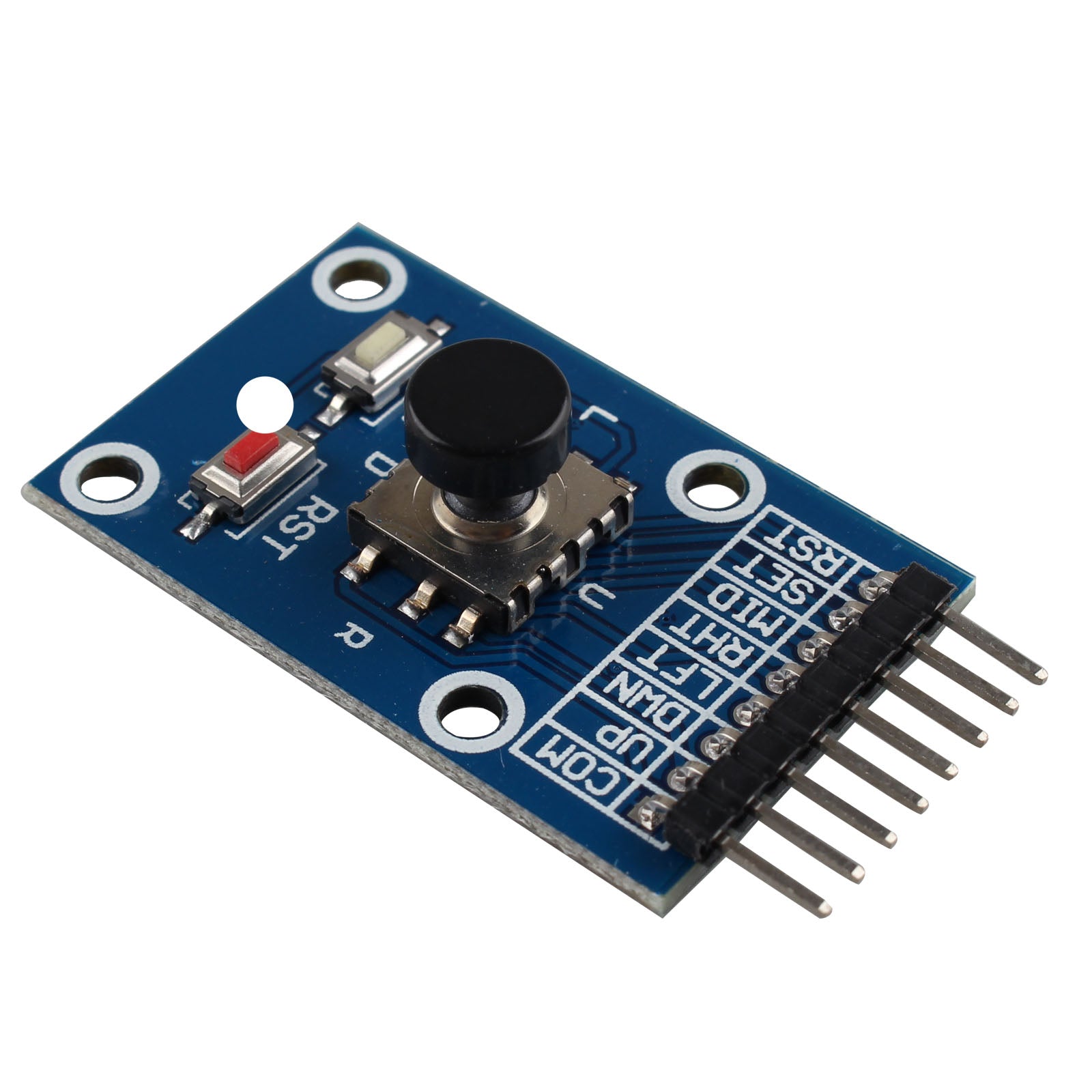

Pin Descrbtion:

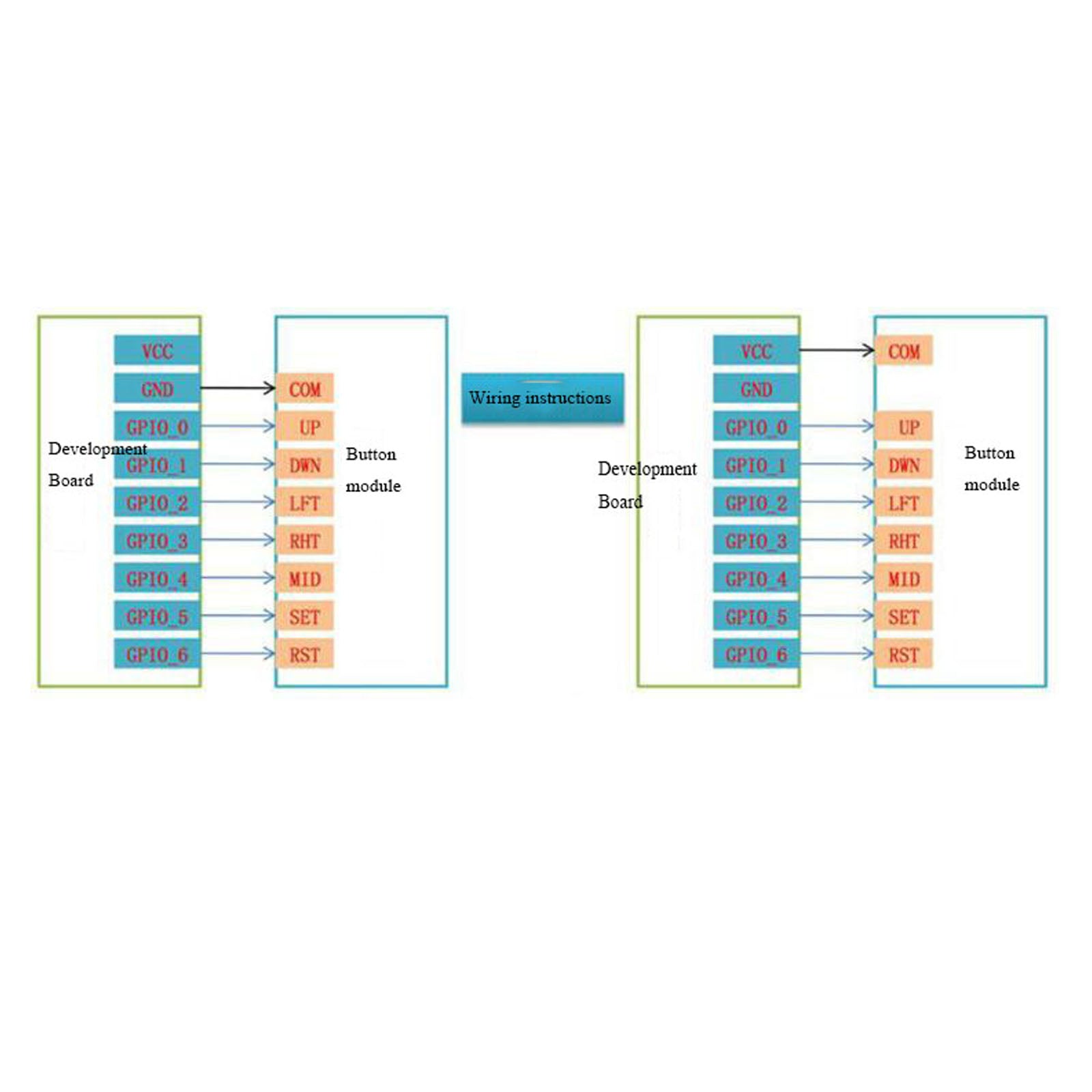

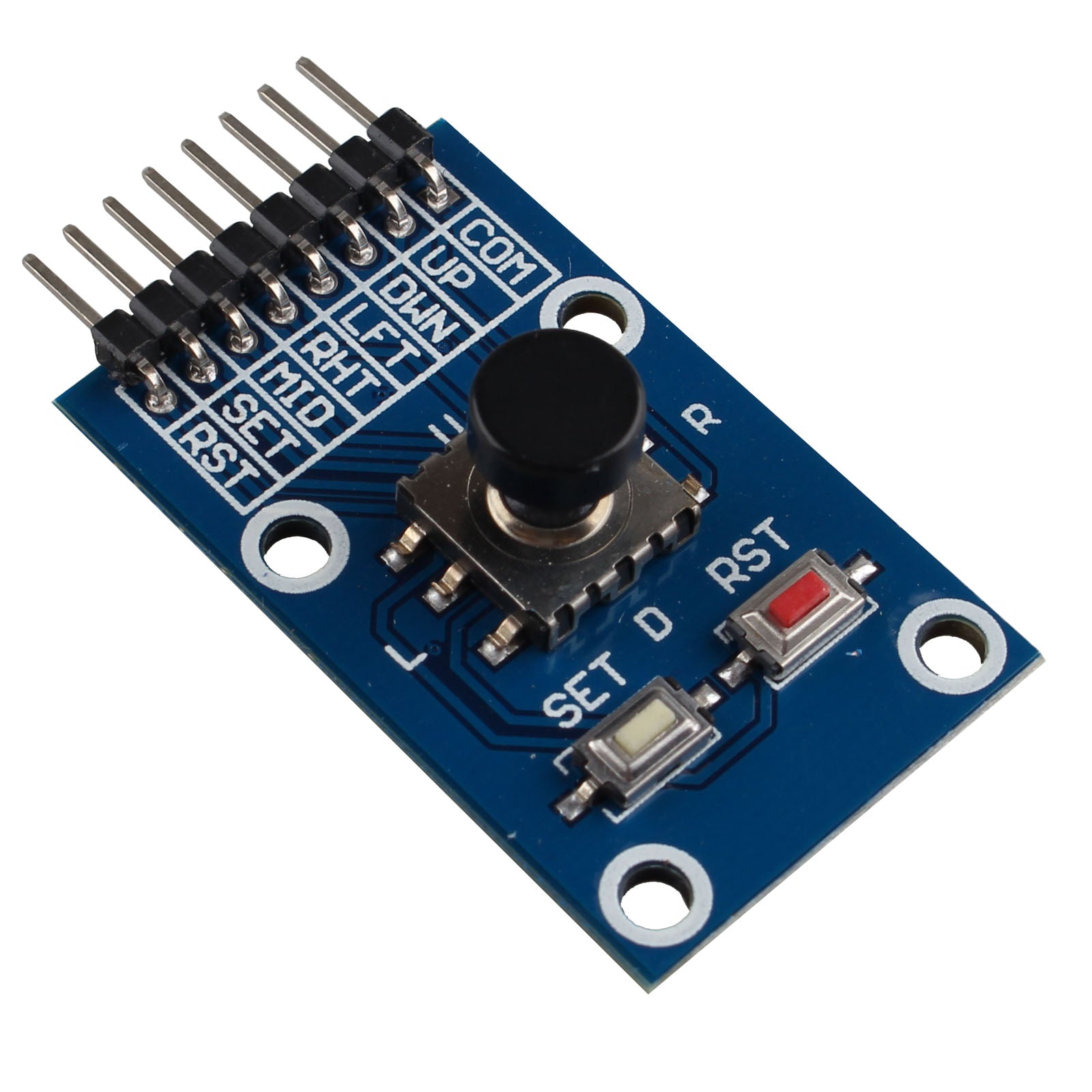

1. COM (Common end): VCC or GND connected to the MCU development board
2. UP (Up direction button): Connect to IO pin of the MCU
3. DWN (Down direction button): Connect to IO pin of the MCU
4. LFT (Left direction button): Connect to IO pin of the MCU
5. RHT (Right direction button): Connect to IO pin of the MCU
6. MID (Middle direction button): Connect to IO pin of the MCU
7. SET (Set button): Connect to IO pin of the MCU
8. RST (Reset button): Connect to IO pin of the MCU
Packing List:
5 × 5D Joystick Module
Specification:
