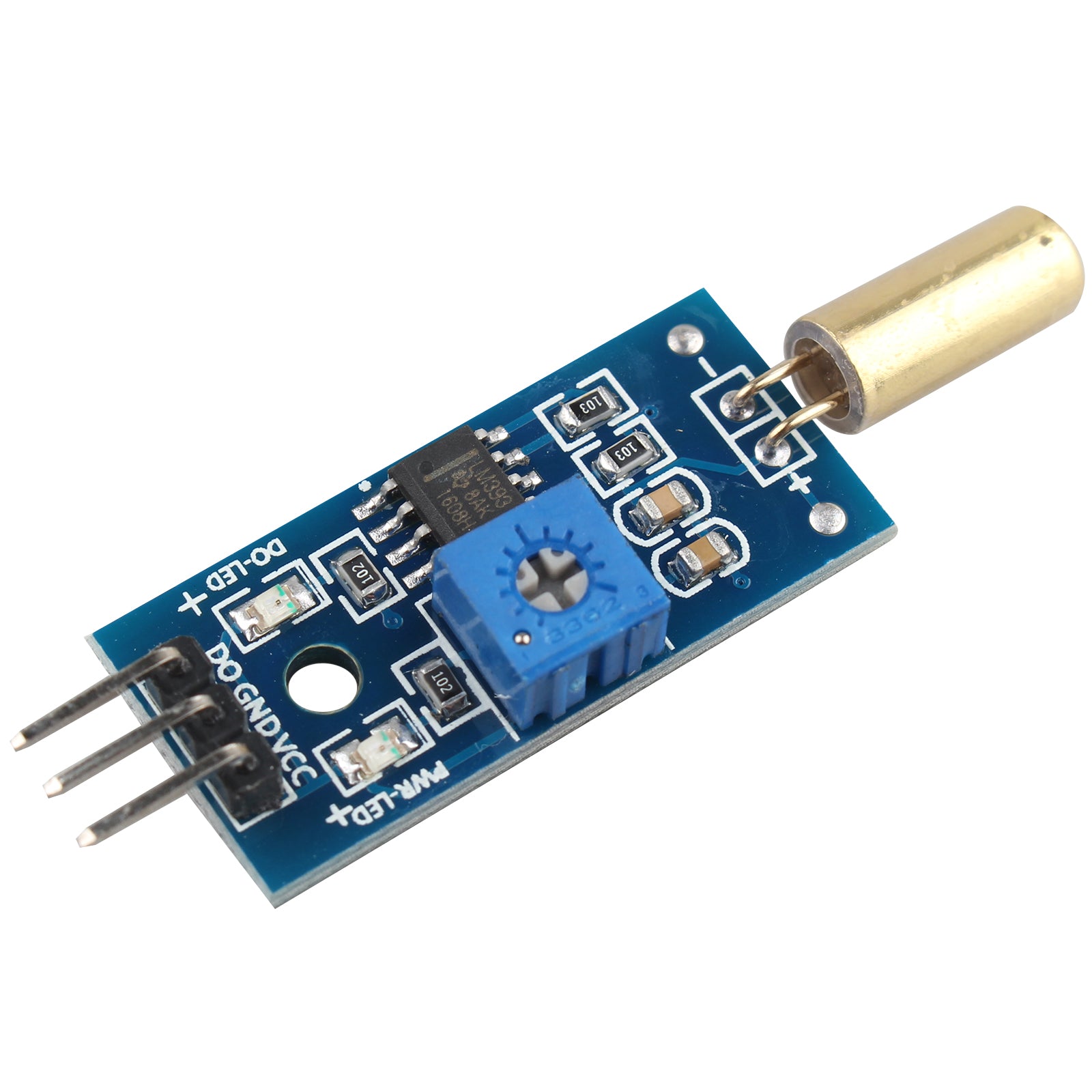

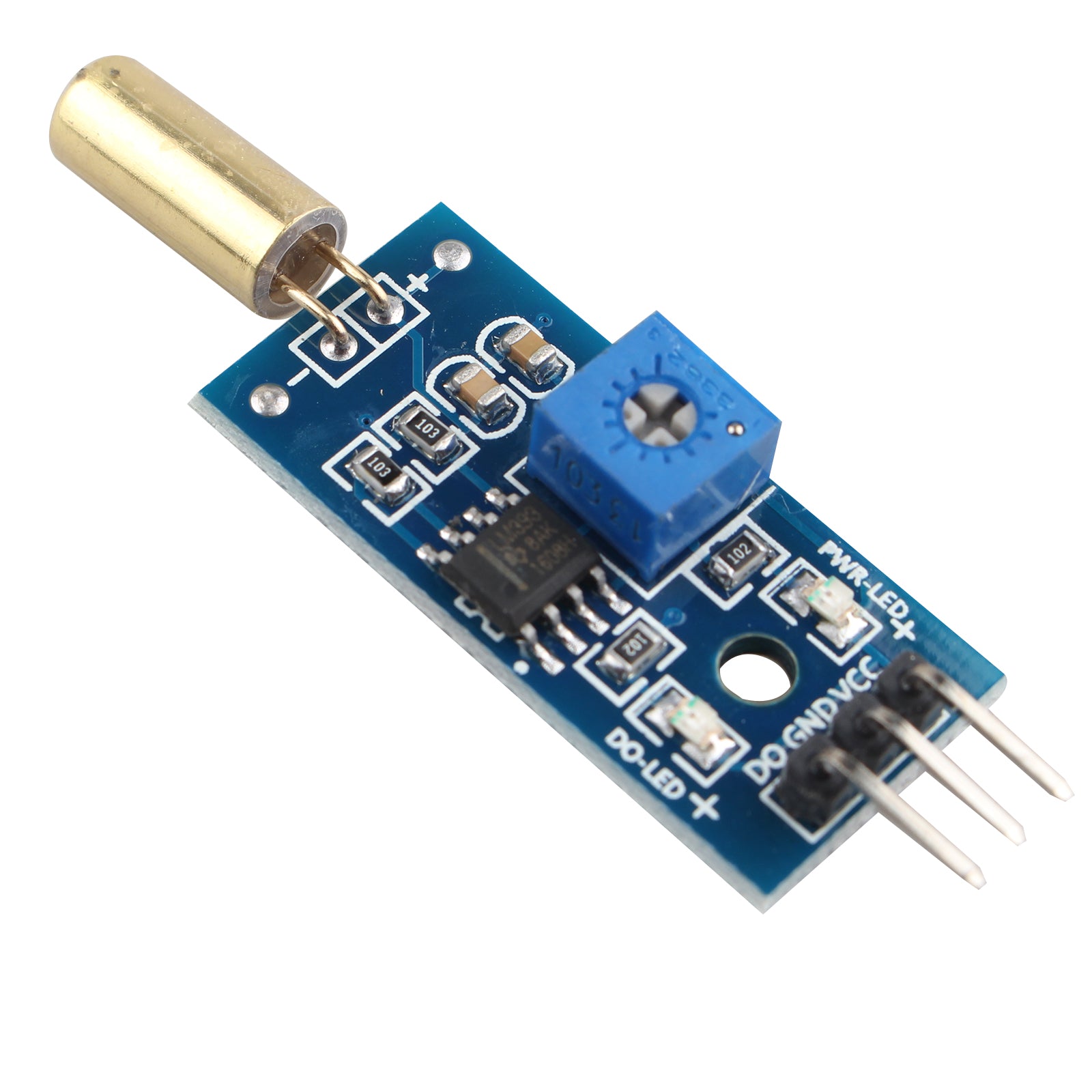

1.High sensitivity angle switch SW-520D as sensor
2.Comparator output, clean signal, good waveform, strong drive ability,more than 15mA
3.Operating voltage 3.3V-5V
4.Output type: digital switch output (0 and 1)

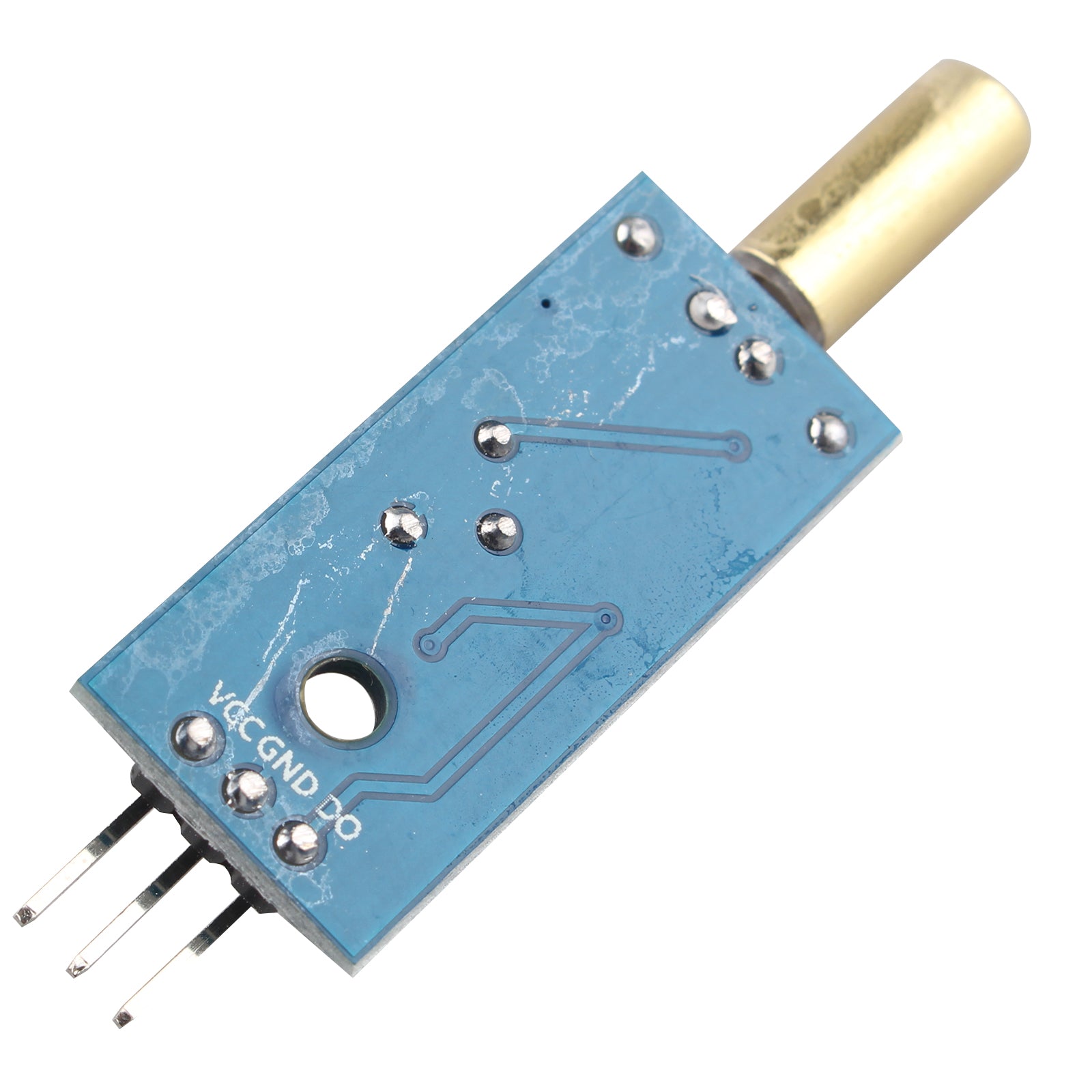

5.With a fixed bolt hole, easy to install
6.Using wide voltage LM393 comparator
Instruction:
1.The amount of switching output of the module depends on the angle switch on and off,
when the angle switch is off, DO output high electricity level, angle switch on, DO output electricity low
2.The output can be directly connected with the microcontroller, through the microcontroller to detect high and low levels,
which to detect the angle change
3.The output can directly drive the relay module, which can form a high-power angle switch,
protect electrical equipment and other products when dumping, automatic power off .
Packing List:

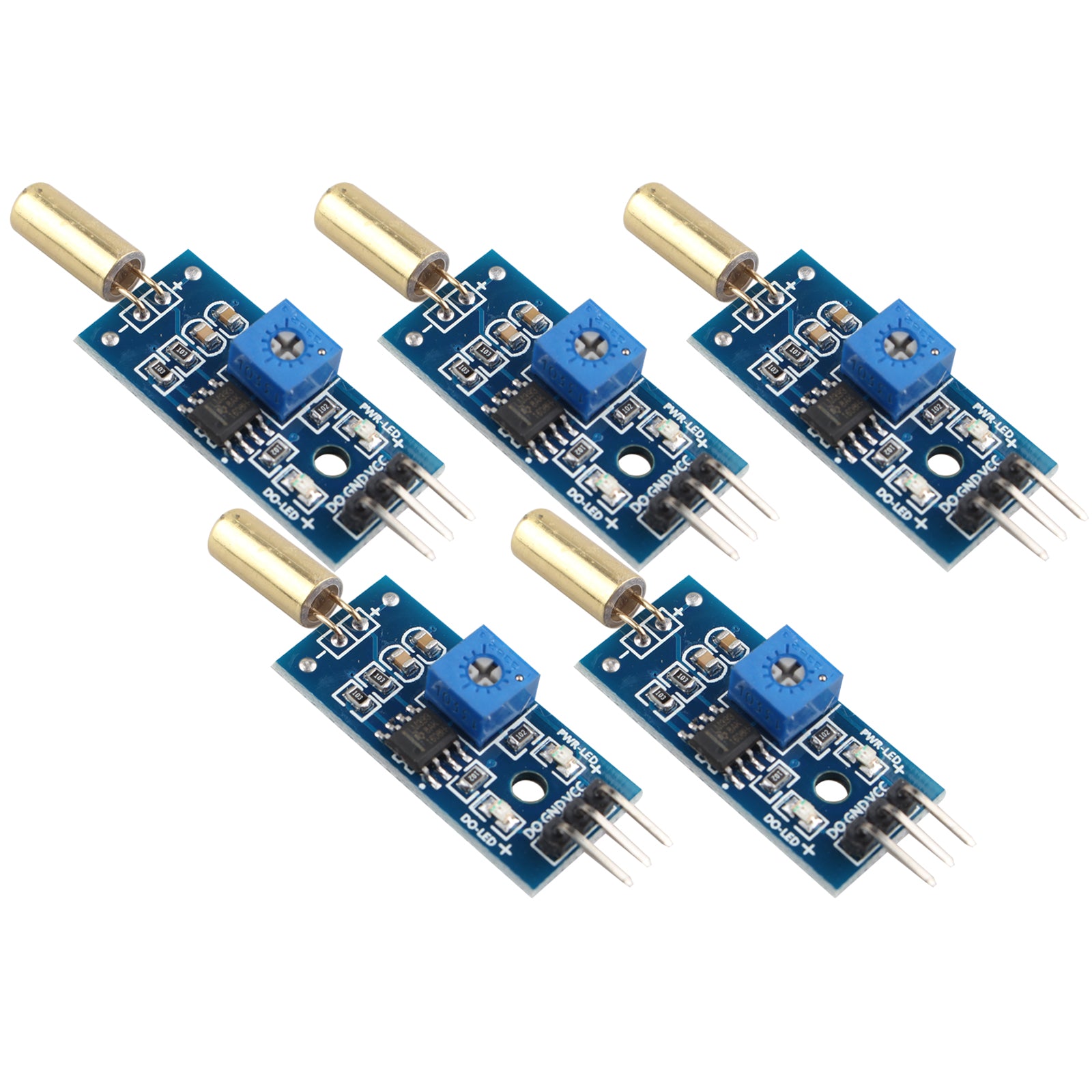

5*SW-520D Angle Sensor Board Tilt Sensor Module
