- The character type liquid crystal display module is a dot matrix type liquid crystal display module specially used for displaying letters, numbers, symbols, etc., and can display 4 lines with 20 characters in each line.
- Support 4-bit and 8-bit data transmission.
- Provide 5×7 dot matrix + cursor display mode.
- Provide display data buffer DDRAM, character generator CGROM and character generator CGRAM, you can use CGRAM to store the font data of up to 8 graphic characters of 5×8 dot matrix defined by yourself.
- Provide rich command settings: clear display; cursor return to origin; display on/off; cursor on/off; display character flashes; cursor shift; display shift, etc.
Specification:
Model: 2004A
Working voltage: 5V
Display screen: blue screen
Backlight color: yellow-green/white/red
Sight Size: 76.0mm×26.0mm
Dot size: 0.55mm×0.55mm
Character size: 29.5mm×47.5mm
Controller: SPLC780
Display content: 20 characters × 4 lines Operating voltage +5V
Connection method: conductive adhesive strip

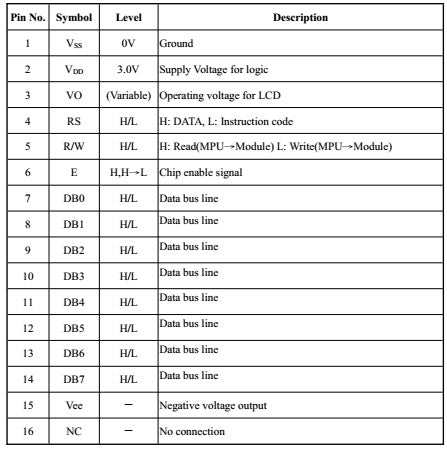

Interface mode: single row parallel port
Backlight type: EL/LED
Working temperature: -10～+60℃
Storage temperature: -20～+70℃

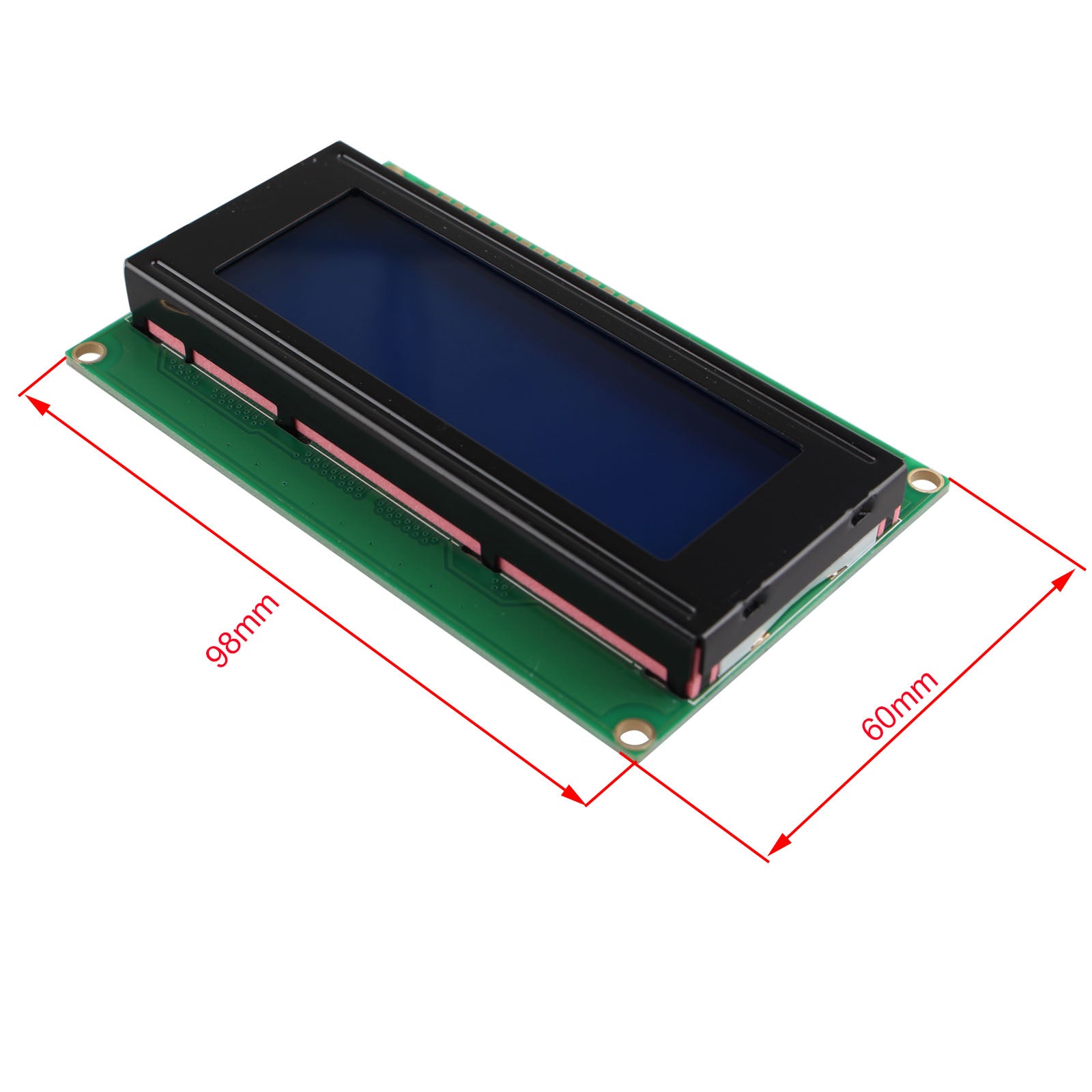

Shape Size: 98.0mm×60.0mm
Weight: 71g
Packing List:
1 × 2004A LCD Module
