- IIC/I2C/TWI LCD Module commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment and so on

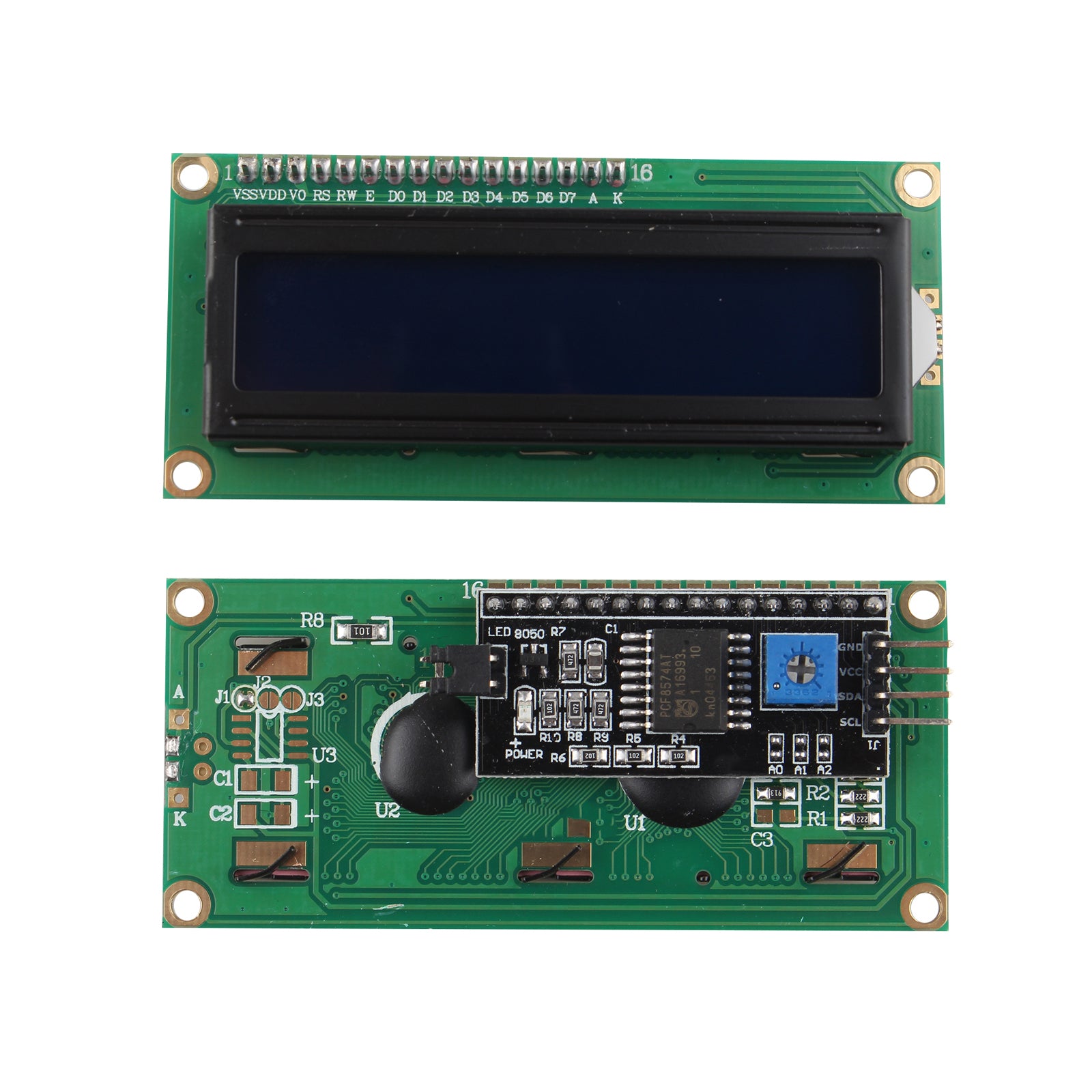

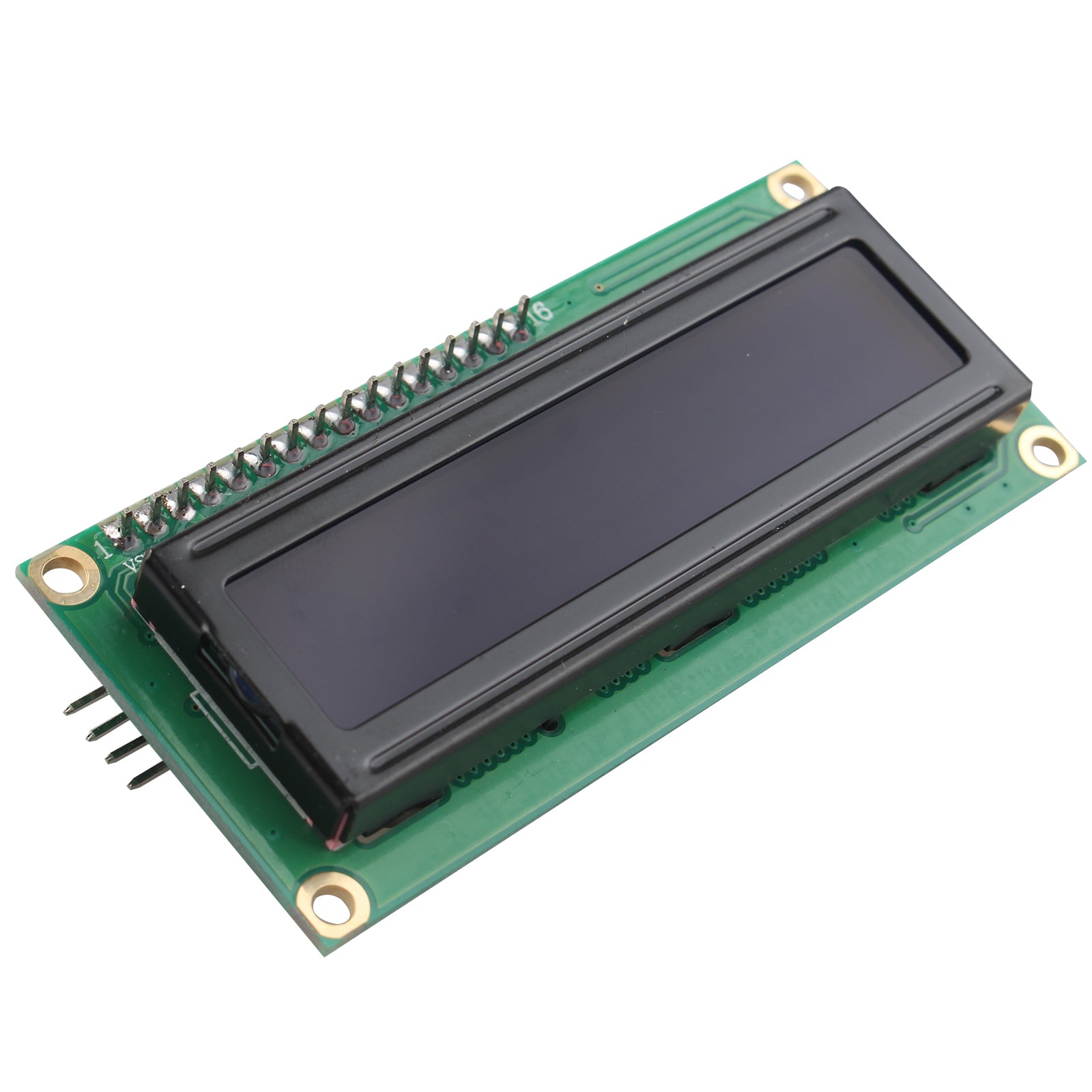

- 16x2 Character LCD module based on the controller.
Features:
-Display:white on blue with blue backlight
-Wide viewing angle and high contrast
-Built-in industry standard HD44780 equivalent LCD controller
-LCM type: Characters
-Can display 2-lines x 16-characters
-Voltage: 5V DC
-Module dimension: 80mm x 35mm x 11mm
-Viewing area size: 64.5mm x 16mm
-Widely used for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc

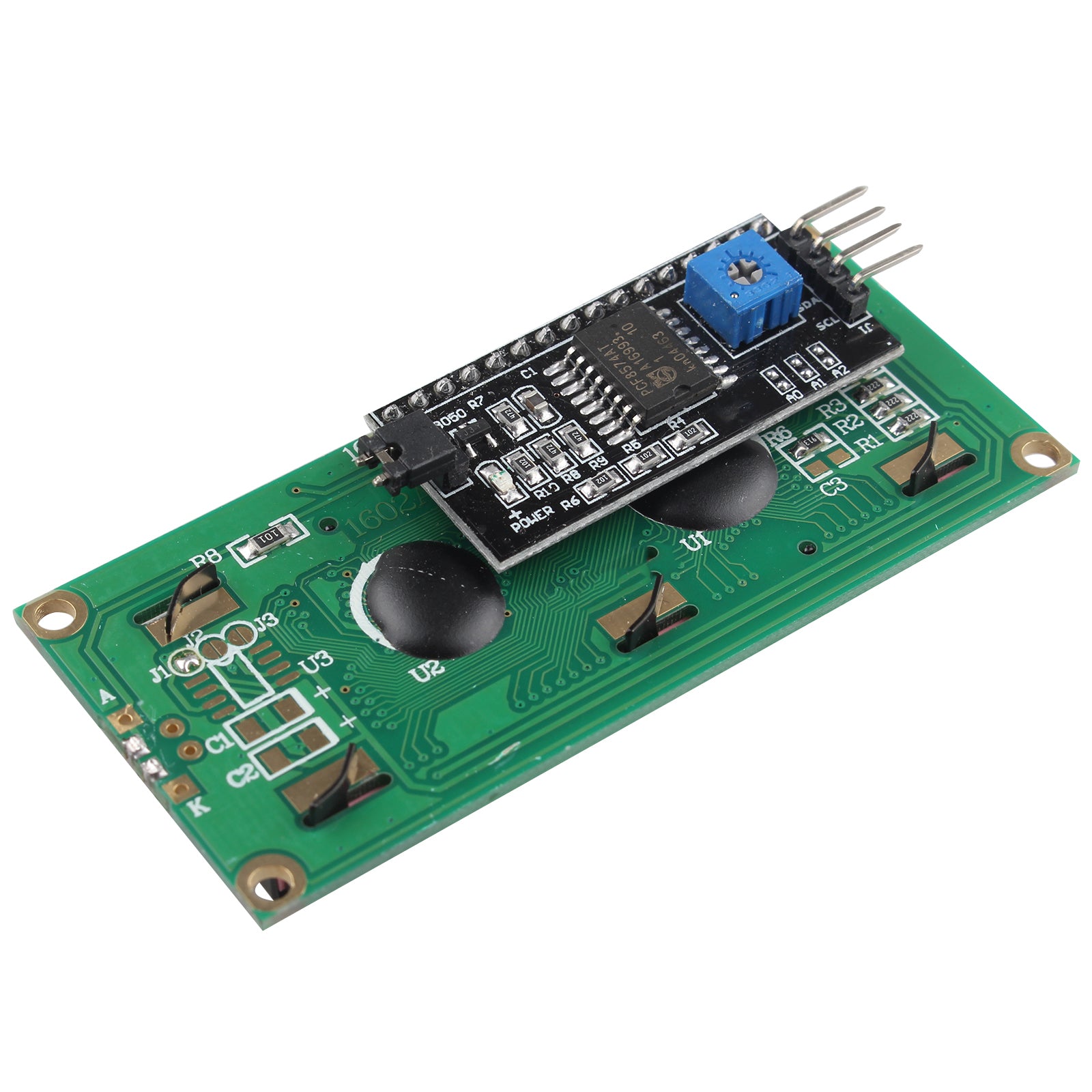

-This IIC bus controlled module, only occupy 2 IO, for many sensor, SD card, relay modules, the original 1602 screen which need 7 IO ports to drive up,this module can save 5 IO ports
Packing List:
1 x 1602 IIC/I2C LCD Module for Arduino
Download Link:
http://download.haljia.com/download/Display/IIC1602/LiquidCrystal_I2C1602V1.rar
