Features:

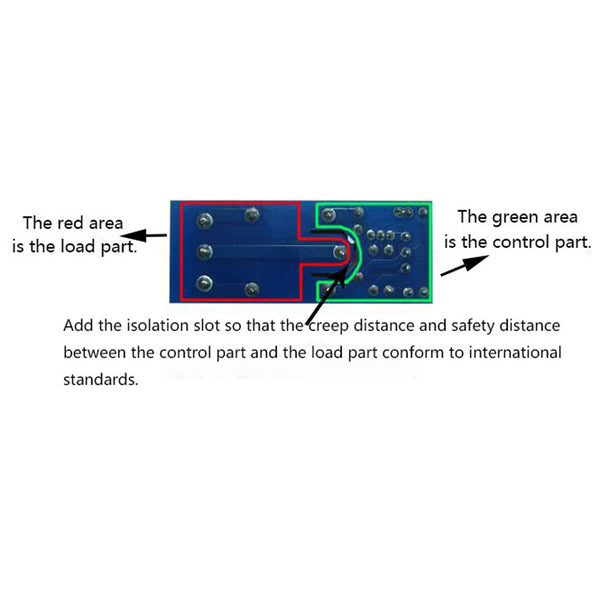

This module complies with international safety standards, and the control area and the load area have isolation slots.
This module can be used as a microcontroller development board module, can be used as home appliance control.
This module control DC or AC signal and control 220V AC load.

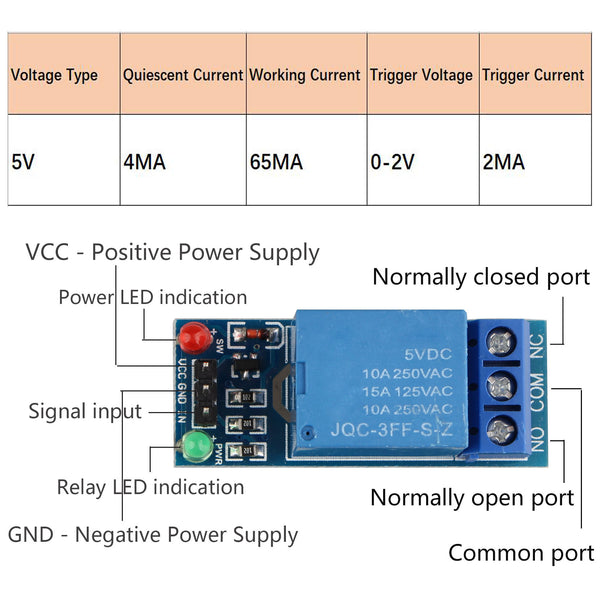

There is a normally open and a normally closed contact. With power and relay action indication, bright when connect and go off when disconnects.
The blue terminal is more convenient to connect to the control line.

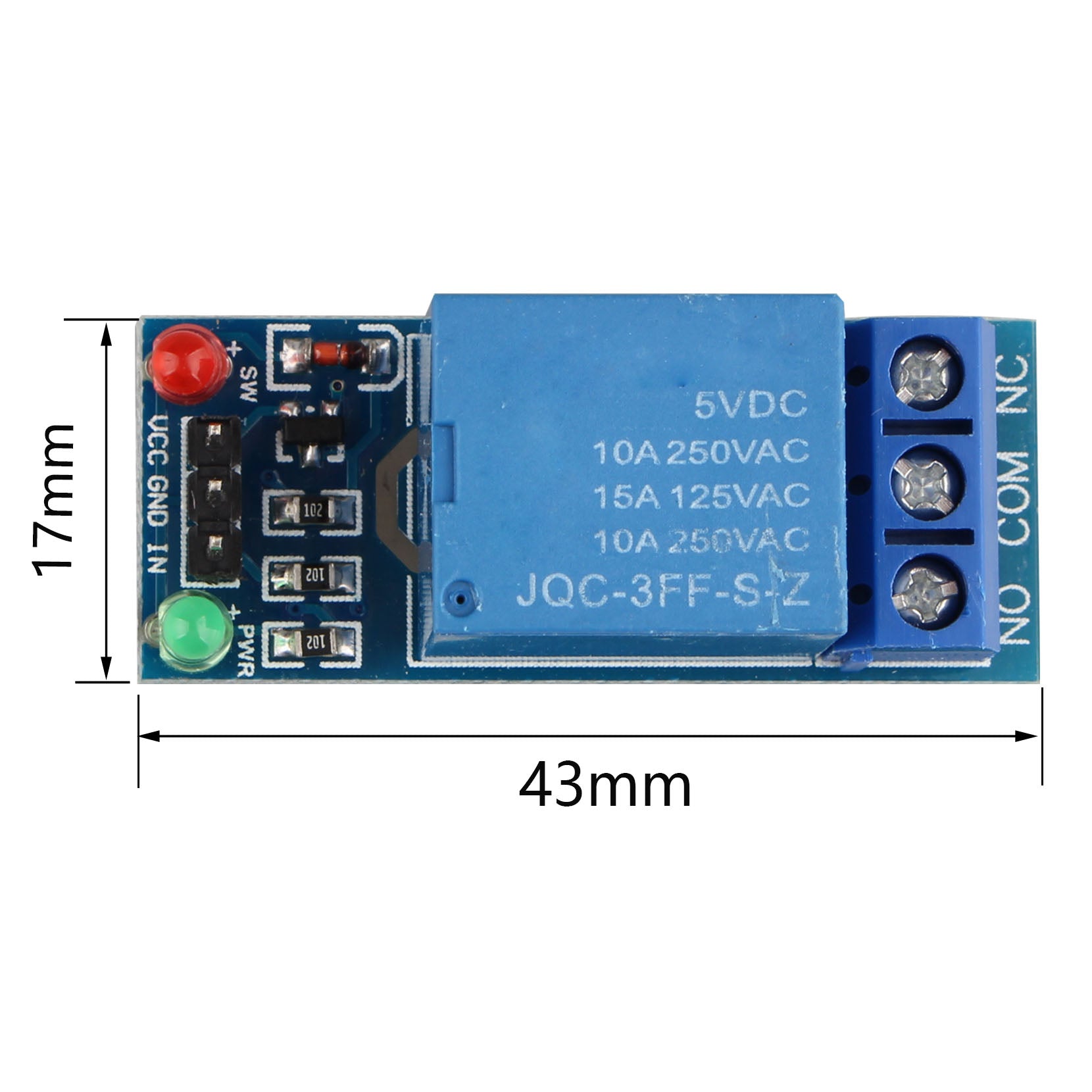

Size: 43 x 17 x 18 mm
Weight: 12.8g
Packing List:

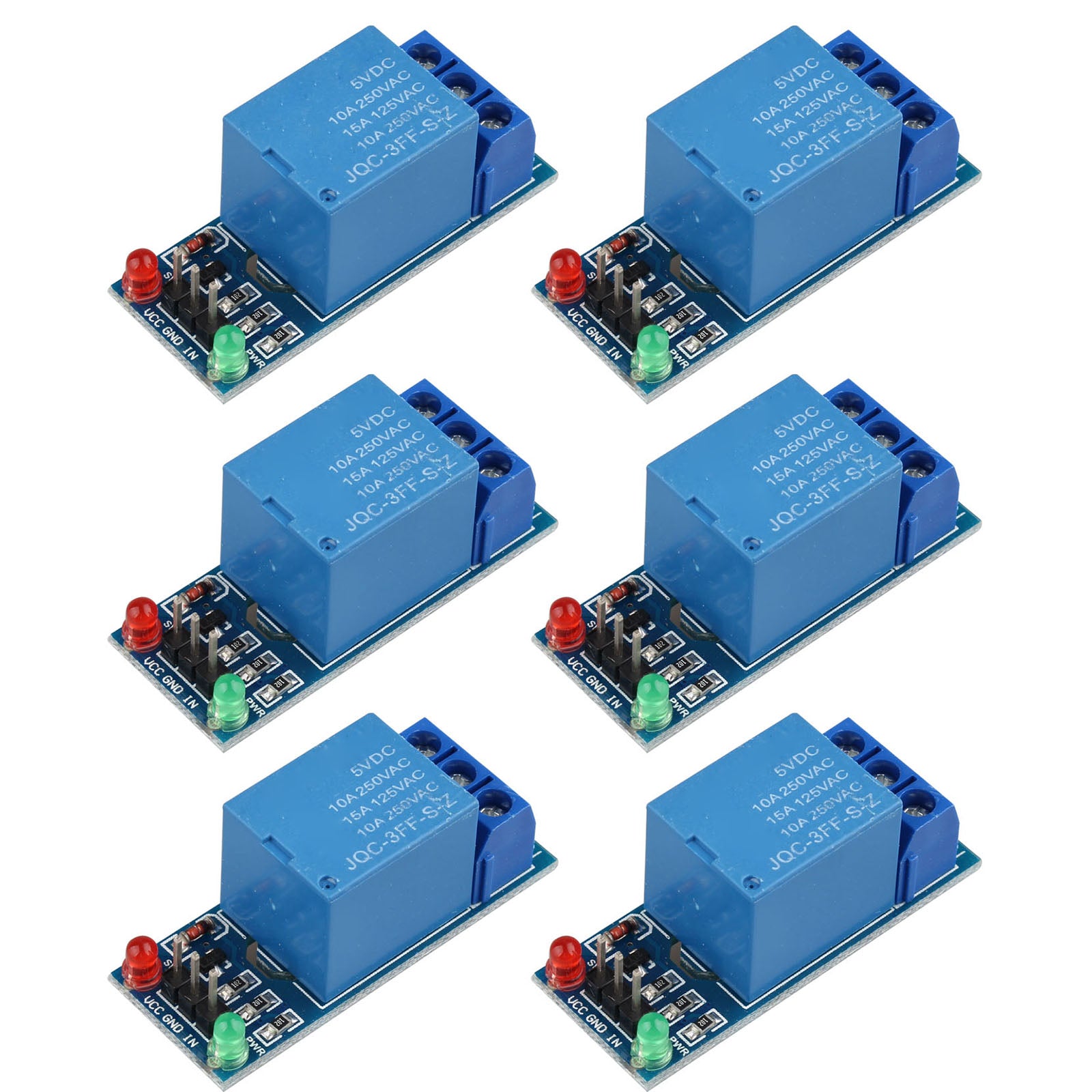

6 x 1 Channel Relay Module
