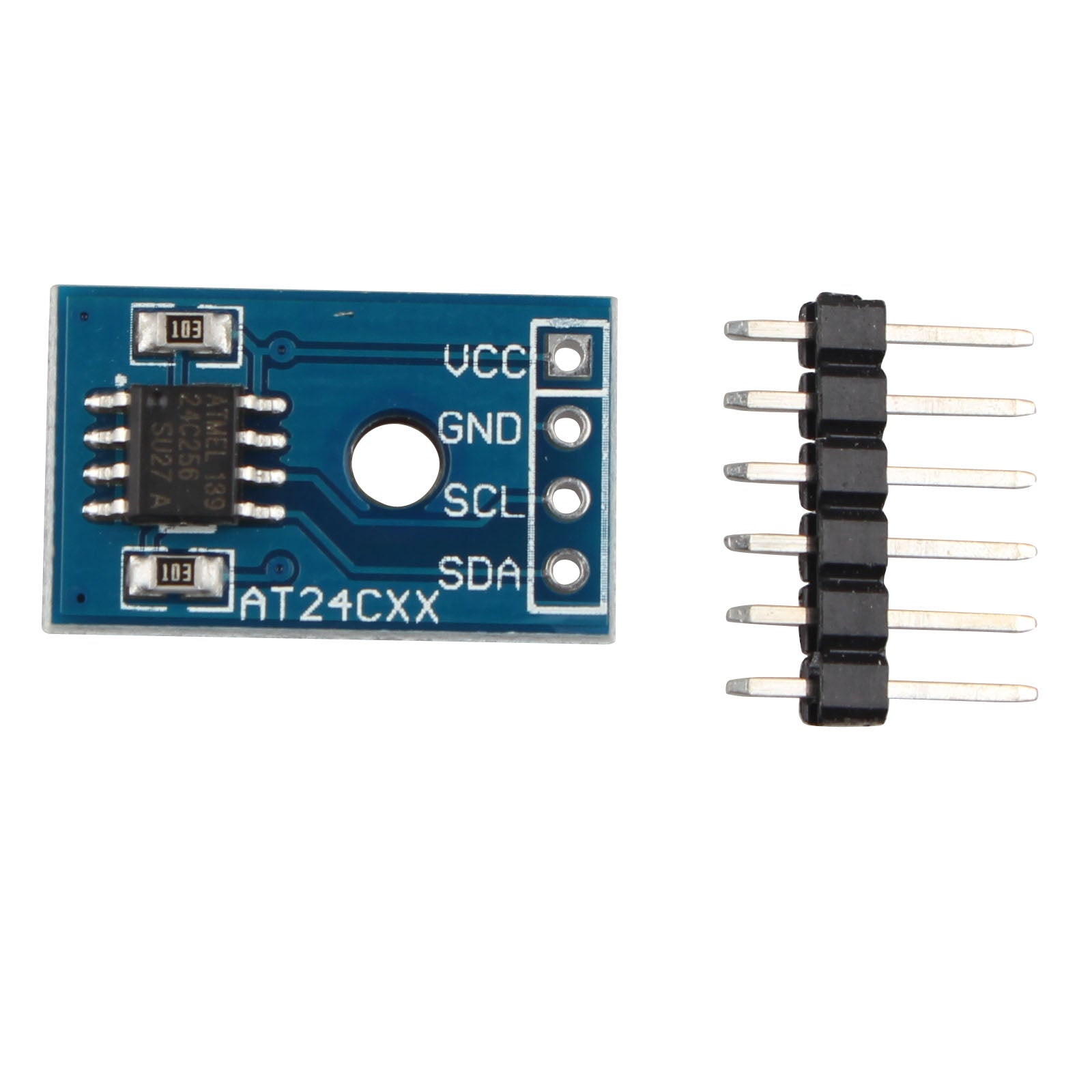

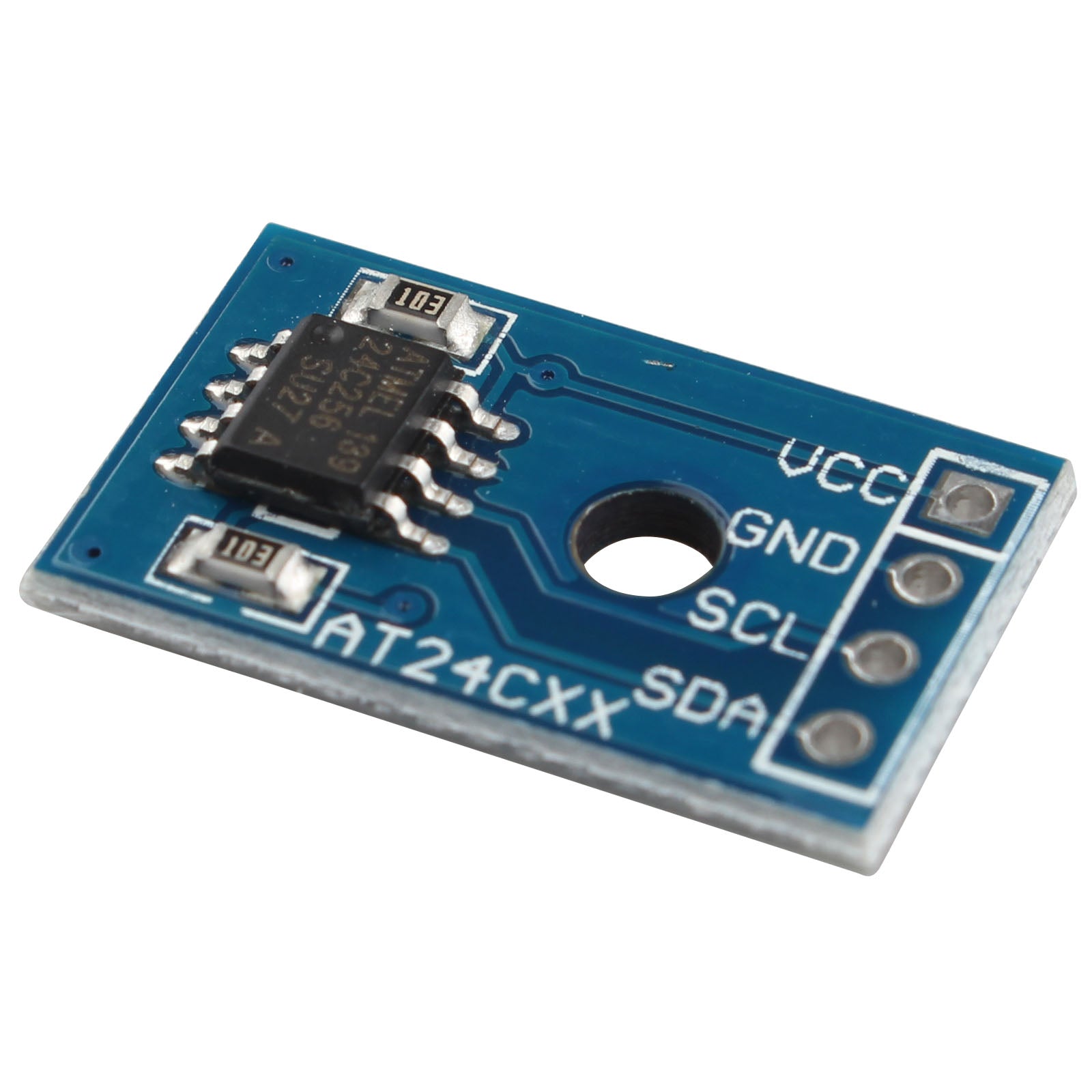

- Onboard chip AT24C02 chip.
- Built-in I 2 C communication requires a pull-up resistor.
- All pins are pulled out and marked.

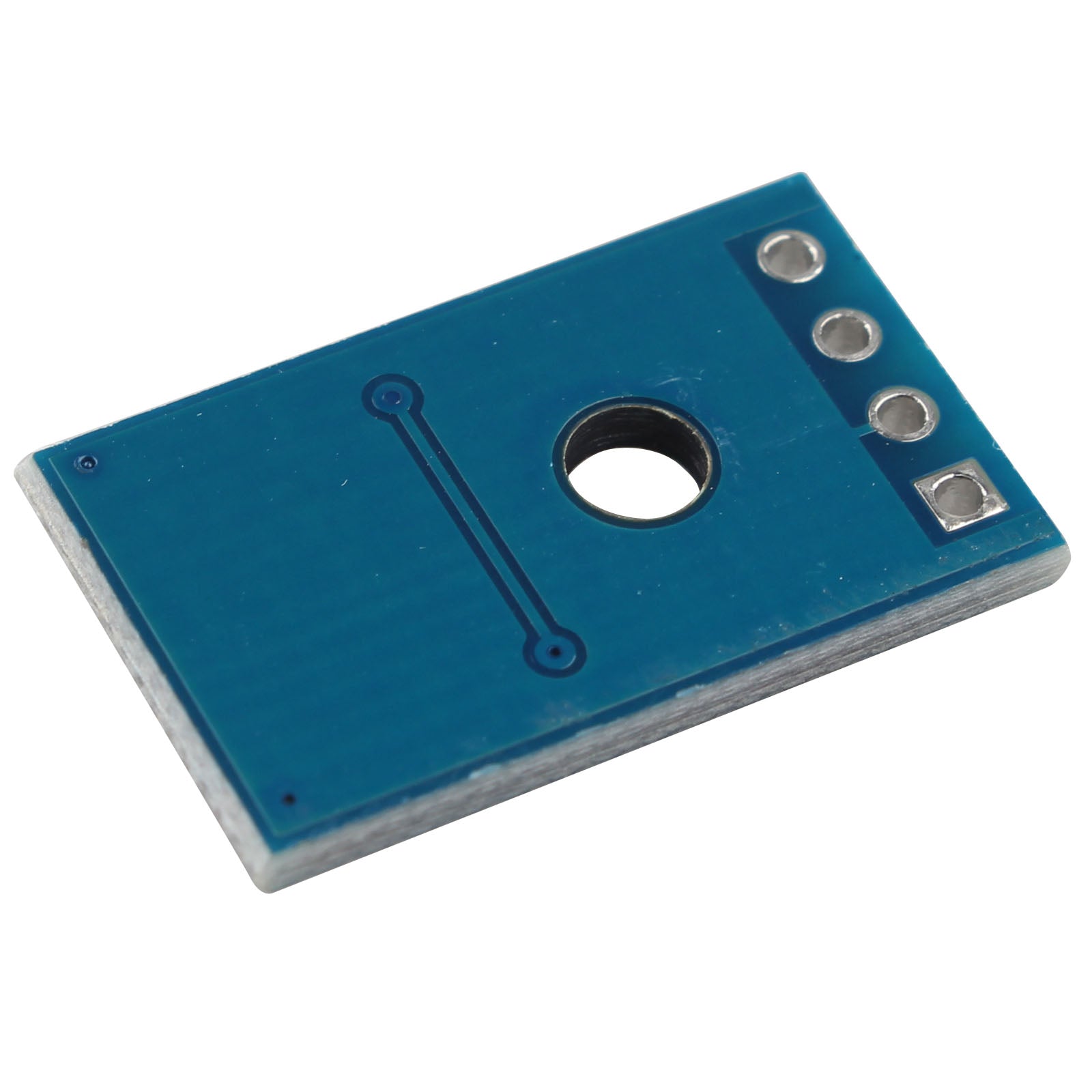

- PCB board size: 1.9 (CM) × 1.1 (CM)
- Low-voltage and Standard-voltage Operation, VCC = 2.7V–5.5V
Feature:
-Low-voltage and Standard-voltage Operation, VCC = 2.7V–5.5V
-Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K)
-1024 x 8 (8K), or 2048 x 8 (16K)
-Two-wire Serial Interface
-Schmitt Trigger, Filtered Inputs for Noise Suppression
-Bidirectional Data Transfer Protocol
-400 kHz Compatibility
-8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
-Partial Page Writes Allowed
-Self-timed Write Cycle (5 ms max)
-High Reliability
-Endurance: One Million Write Cycles
-Data Retention: 100 Years
-ESD Protection: >3000V
-Operating temperature: -55 to 125°C
-Size:20*10mm
-Weight:1.4g
Packing List:
1*AT24C02 chip memory module
