- Power supply: 3-5V (internal low voltage regulator).
- Stepped up their game with their new BMP280 sensor, an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183.
- This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI!
- This precision sensor is the best low-cost, precision sensing solution for measuring barometric pressure with+/-1 hPa absolute accuracy, and temperature with +/-1.0Degrees Celsius accuracy.
- Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with +/-1 meter accuracy
Typical applicationEnhancement of GPS navigation
e.g.time-to-first-fix improvement,dead-reckoning,slope detection
Indoor navigation(floor detection,elevator detection)
Outdoor navigation,leisure and sports applications
Weather forecast
Health care application(e.g. sirometry)
Vertical velocity indication(e.g. risk/sink speed)
Target devices
Handsets such as mobile phones ,table PCs,GPS devices
Navigation systems
Portable health caredevices
Home weather stations
Flying toys
Watches

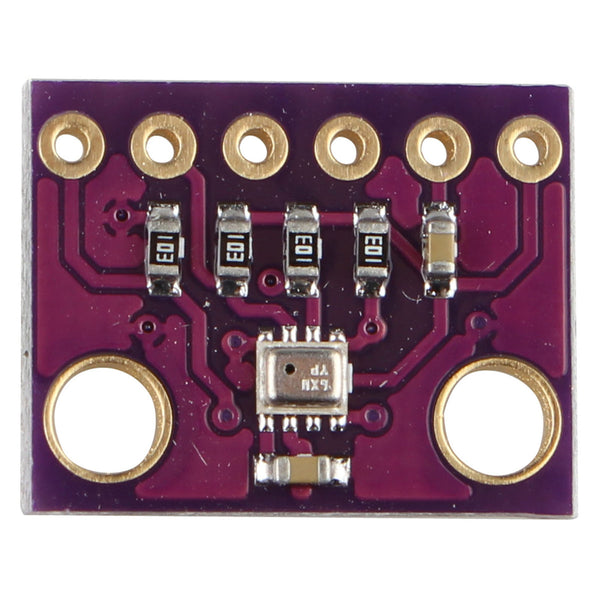

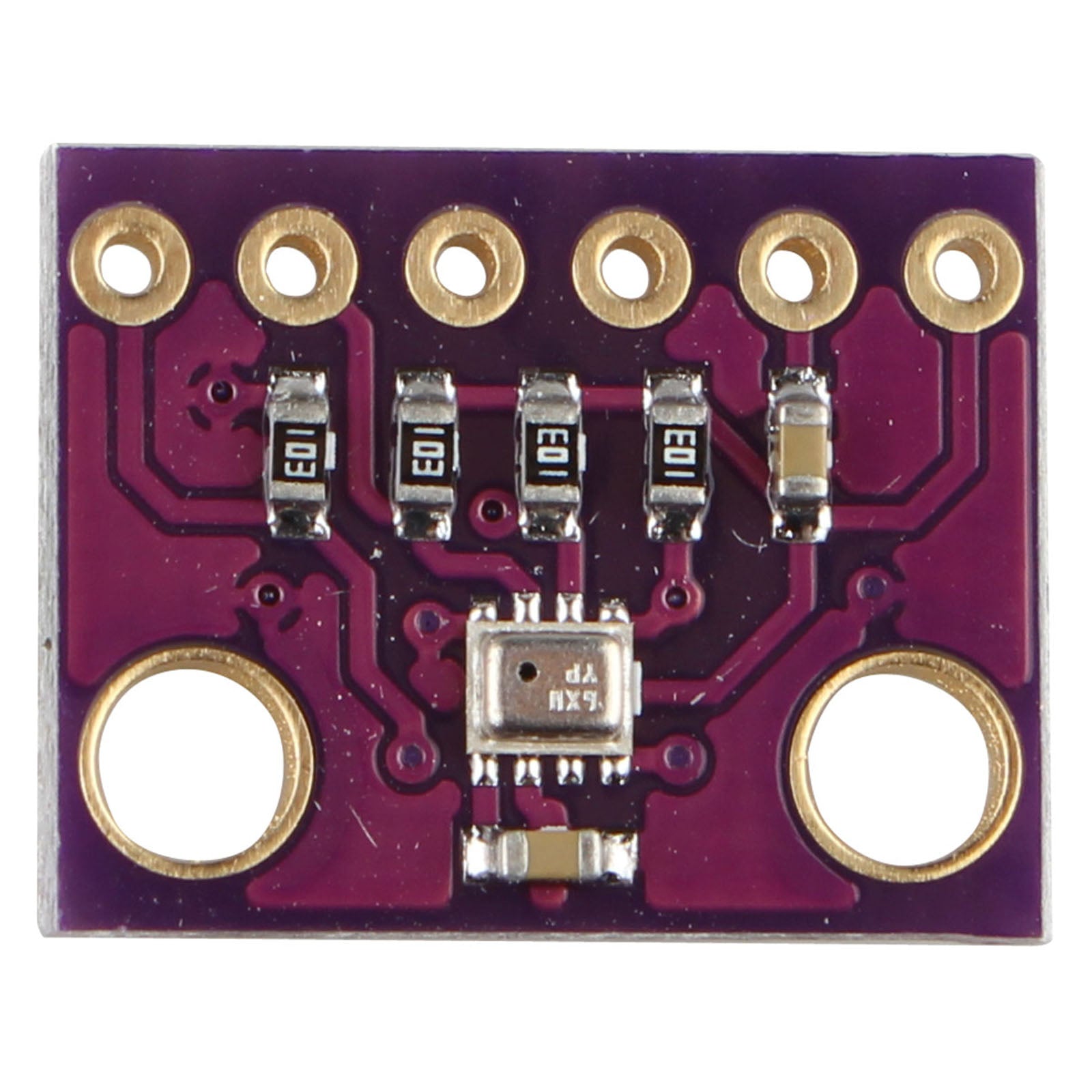

PCB size:(L*W)1.52* 1.20cm/0.60*0.47 inch
material:CCL
colour:purple
Packing List:

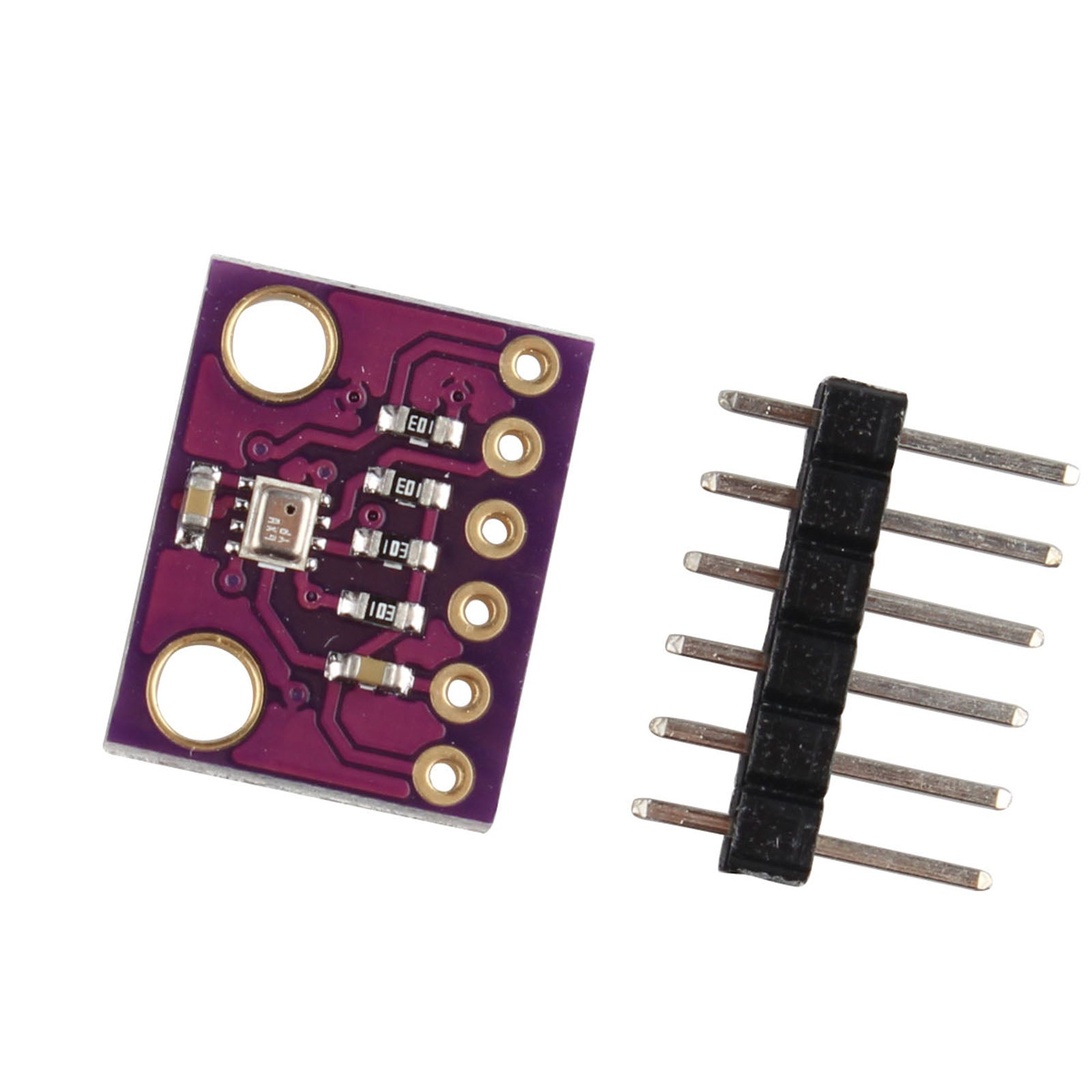

1* Pressure Sensor Module
