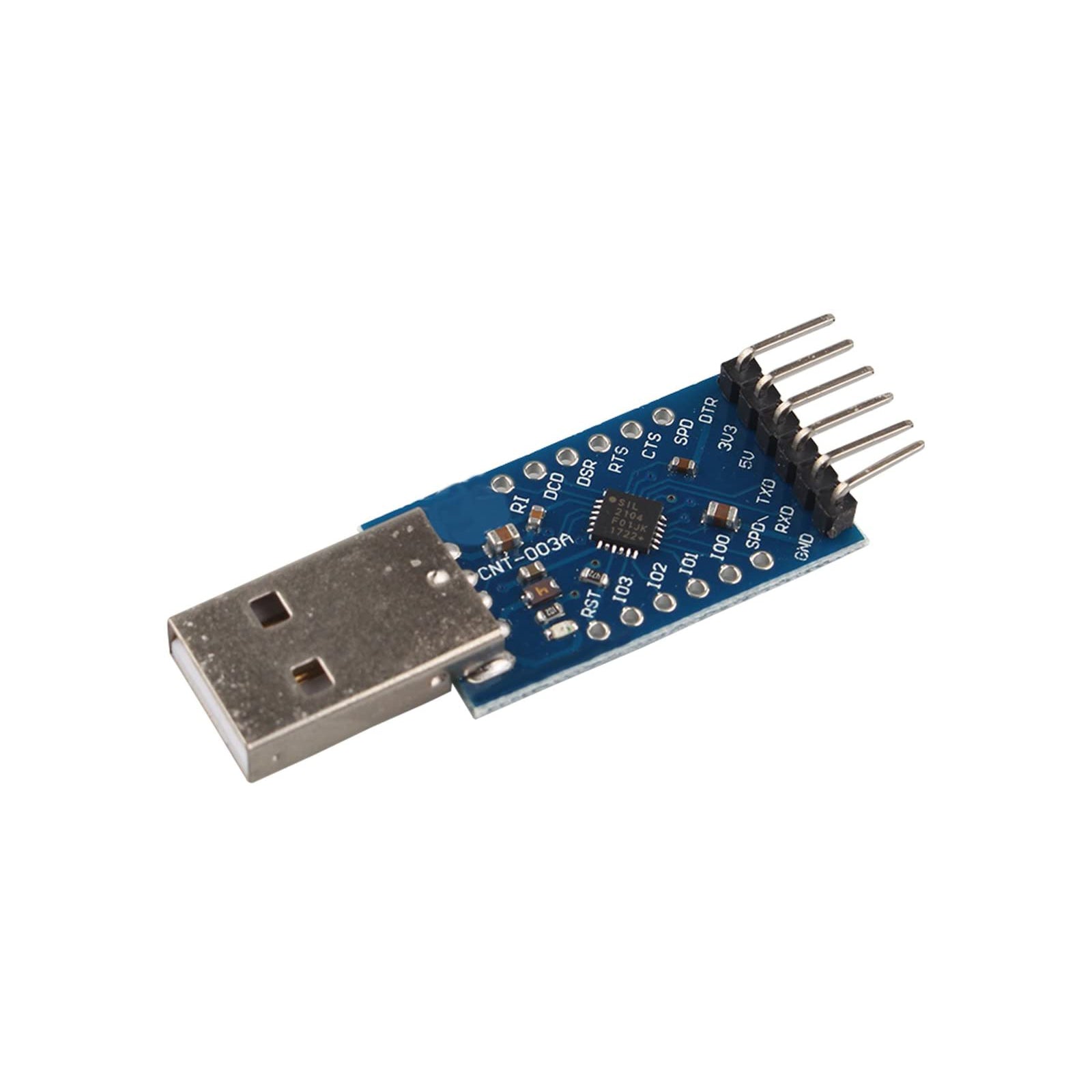

This CP2104 Module Serial Converter is designed to be used for USB to TTL electronic projects and STC downloading and Used for upgrade of DVD/hard disk/Router/GPS

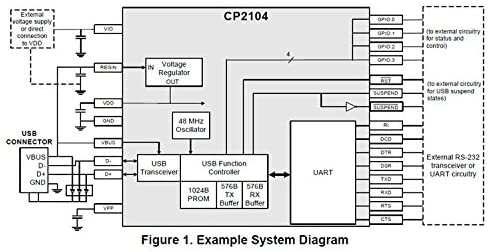

Built-in USB to RS232 Transfer chip and Stable and reliable chipset CP2104
Supports Windows 98SE,2000,XP,Vista,Window7, Windows 10, Mac OS 9,Mac OS X Linux 2.40
USB specification 2.0 compliant with full-speed 12Mbps
Standard USB type A male and TTL 6pin connector. 6pins for DTR, 3.3V, 5V, TXD, RXD, GND
Event character support Line break transmission
USB suspend states supported via SUSPEND pins
Temperature Range:-40 degree to +85 degree

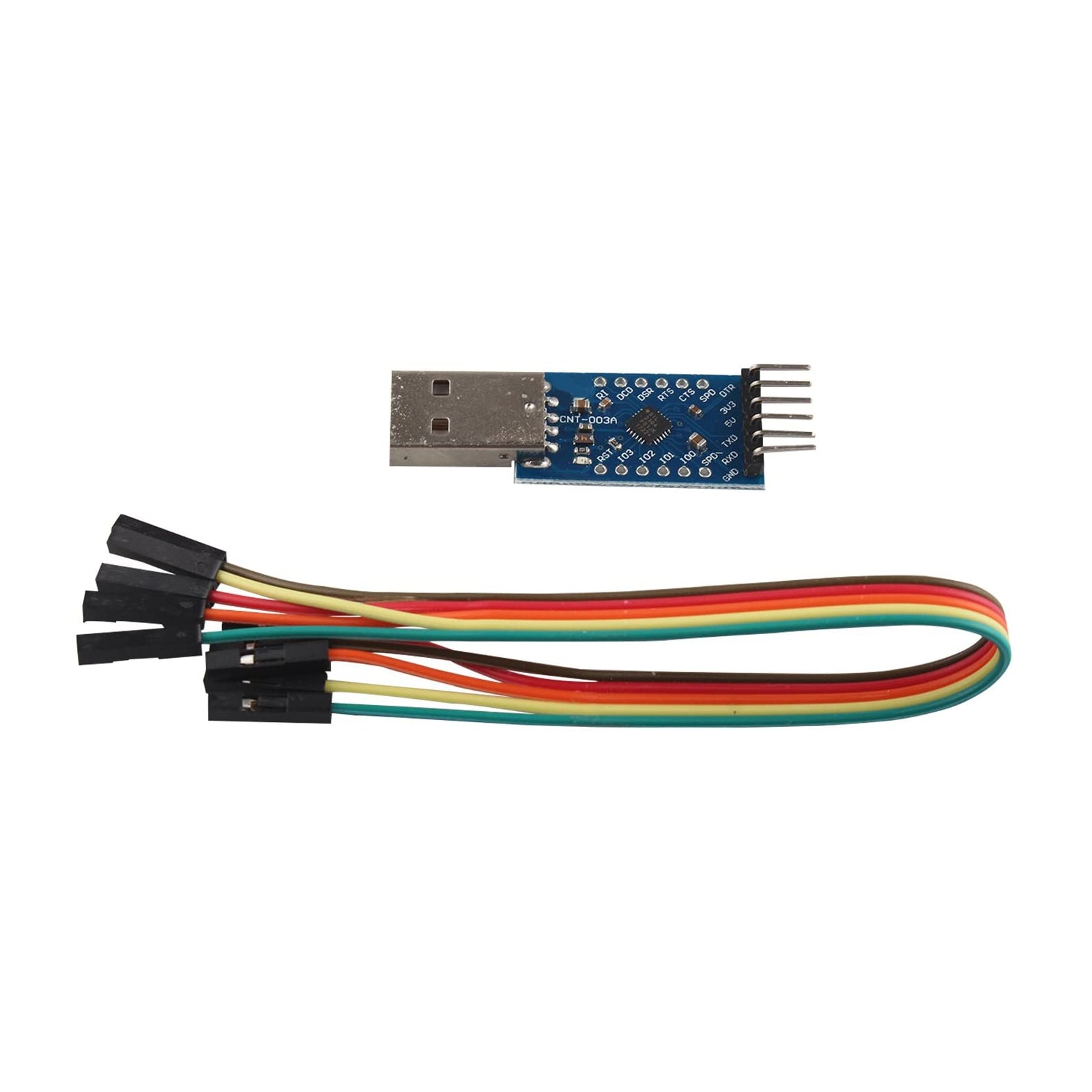

Packing List:
1x CP2104 6PIN Modul
