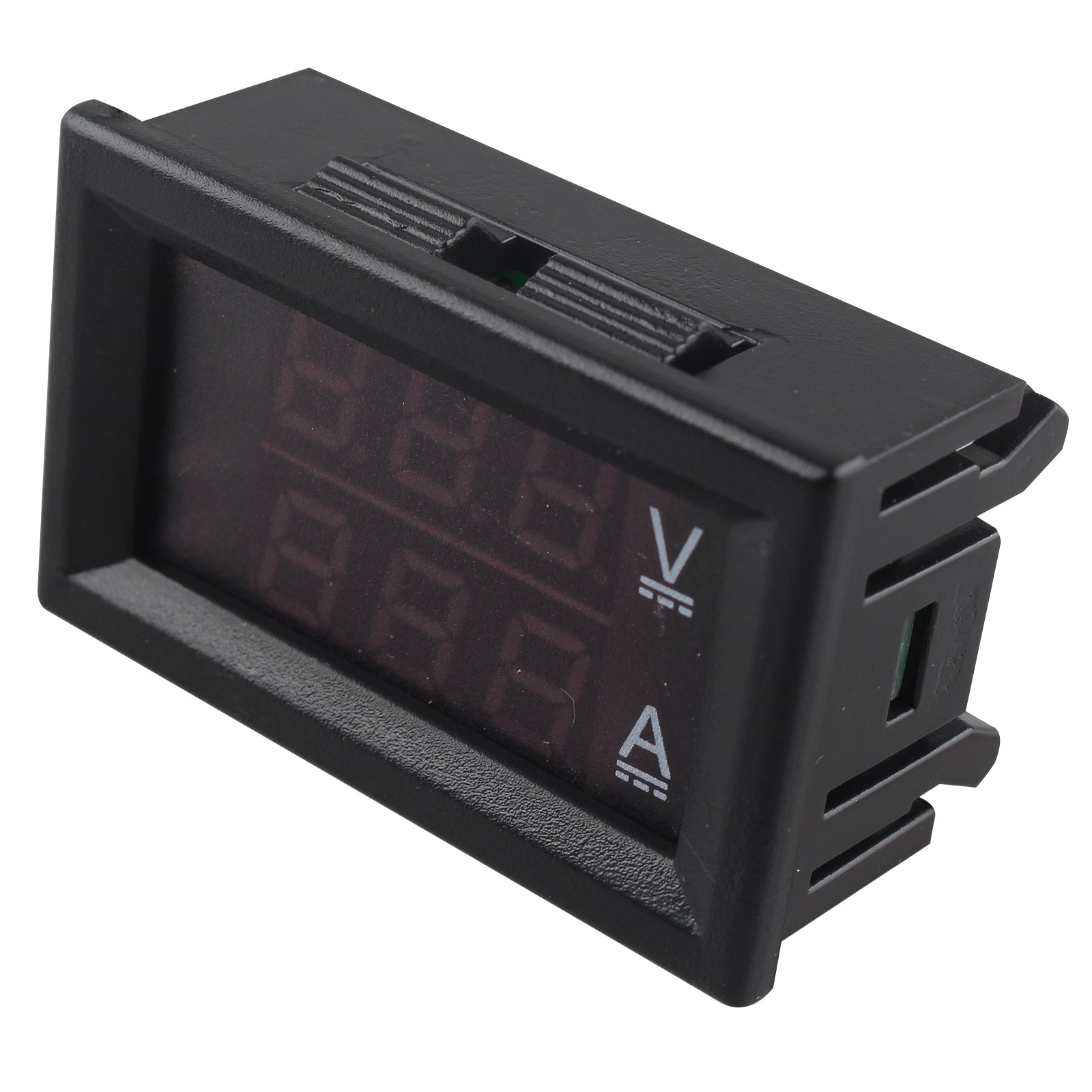

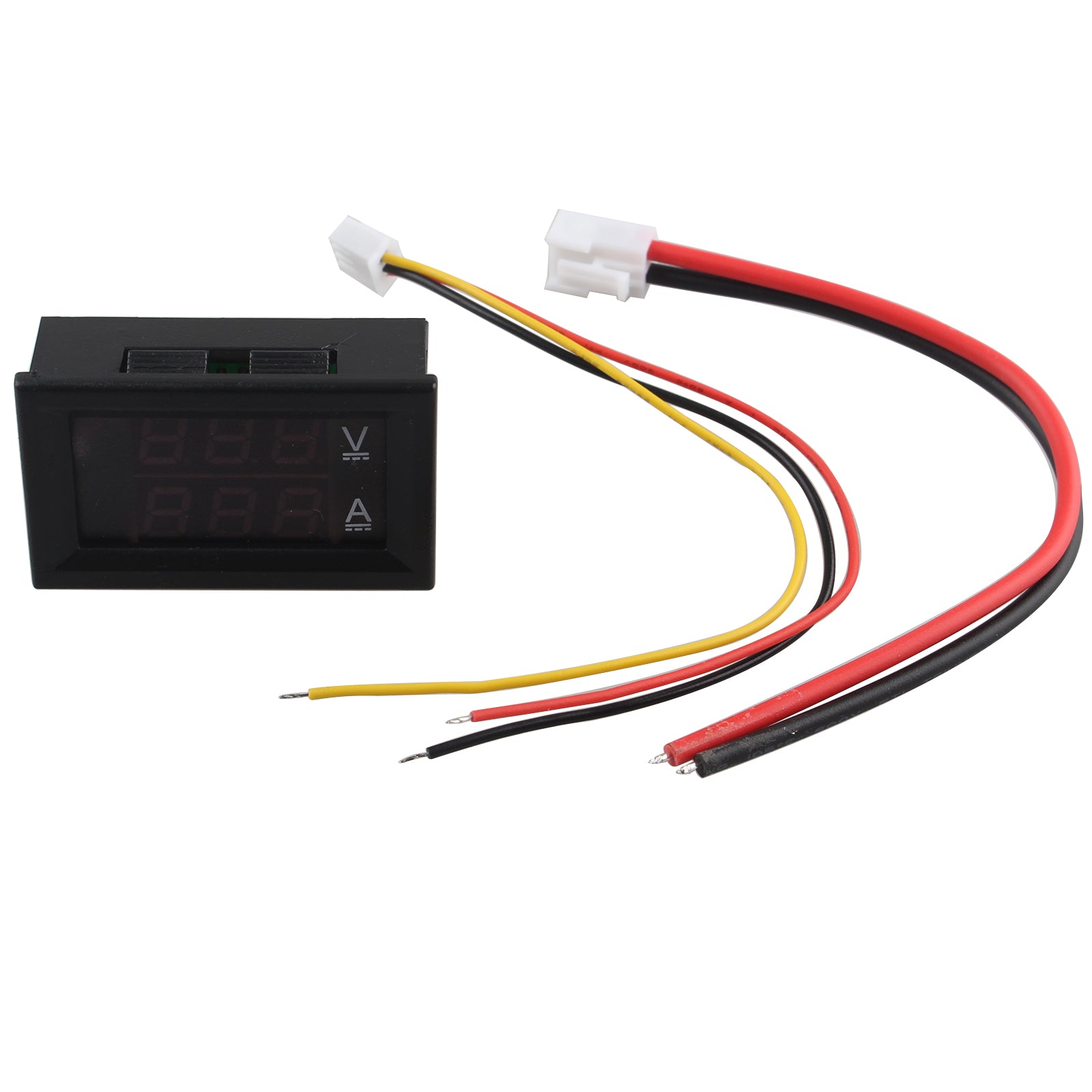

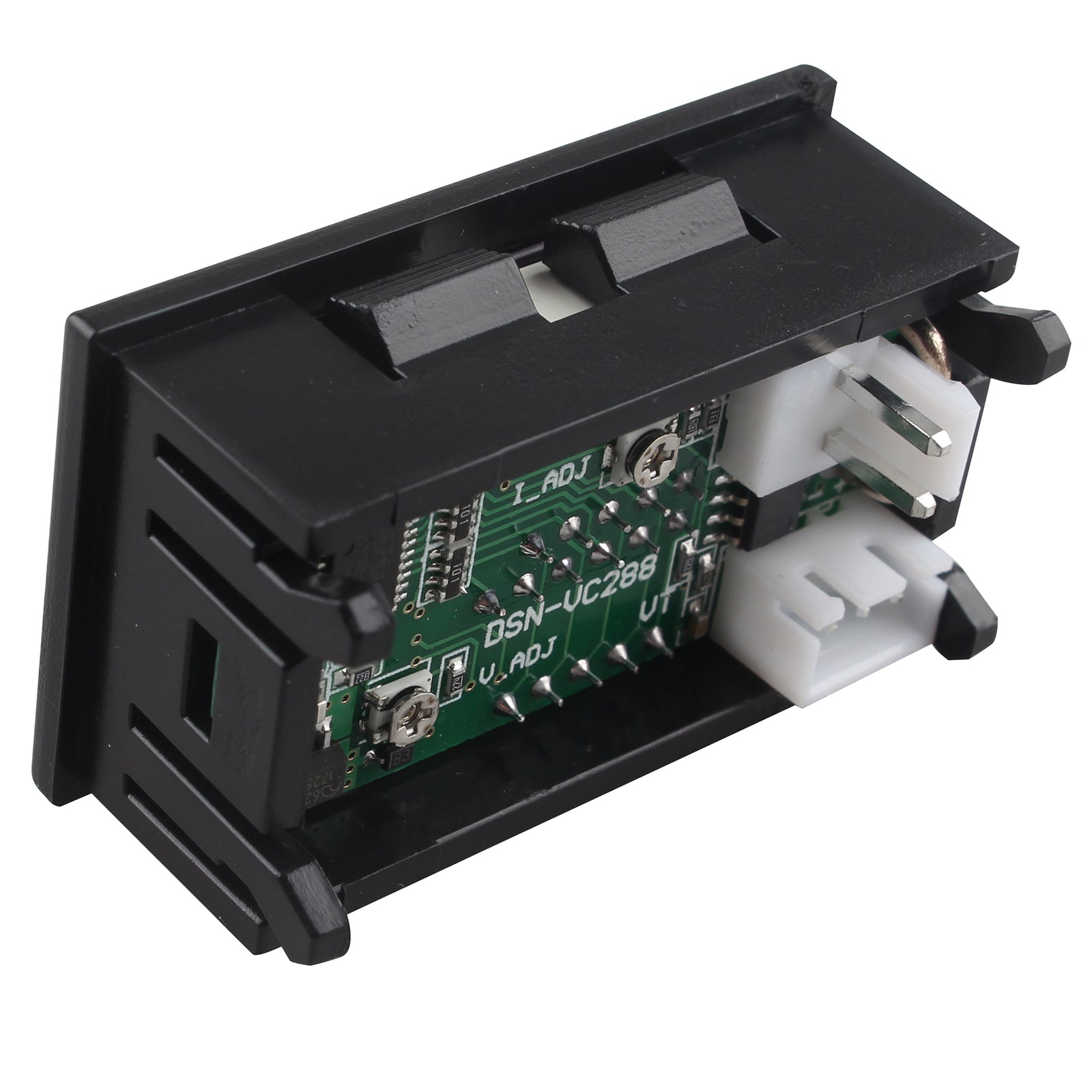

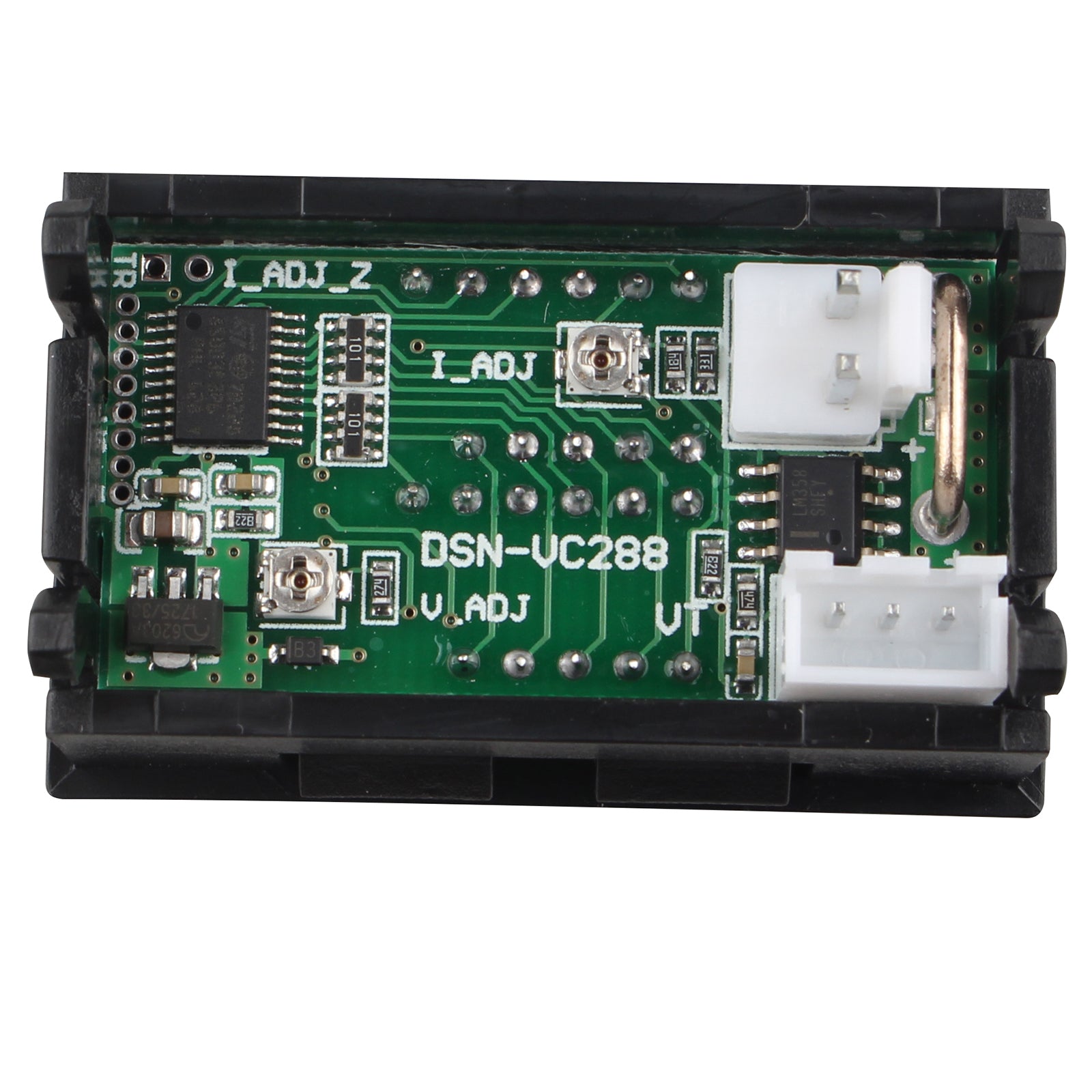

HALJIA DC 0-100V 10A Digital Voltmeter Ammeter Voltage Meter Current Monitor Gauge 5 Wires LED Display Volt Amp Monitor with Fine Adjustment

Regular price $6.99

Shipping calculated at checkout.
Features:

Voltmeter Range: DC 0-100V (resolution of 0.1V)
Ammeter Range: 0-999mA, 0-10A, 0-50A, 0-100A (4 ranges optional)
Power Supply: DC 4-30V
Voltage Accuracy:±0.1%
Ammeter Accuracy:±1%
External shunt specifications:75 milliohms
Working current:<20mA
Refresh rate:about 300mS once
Display: Dual 0.28" three digit LED tube
Display color:red + red, red + blue. Optional
Lead length:15cm
Dimensions:48 x 29 x 22 mm(L*W*H)
Mounting holes:46 x 27 mm
Working temperature:-10 ℃ ~ 65 ℃

Note:
1.shunt is needed,if current is 5A or 10A,otherwise, the meter will be burned out
2.This header power supply range is 4 ~ 30V (out of range will be burned out), the measurement range is 0 ~ 100V.

Packing List:
1*Voltmeter Ammeter Voltage Current Monitor Gauge
