- The 365 diaphragm pump is a diaphragm pump that allows for long periods of idling. There are no mechanical parts in the pump body and no wear.
- The 365 diaphragm pump has a large water output with self-priming function!
- It can be used as a water pump, or as a fish tank for water exchange, experimental model, inflatable swimming pool, tea set machine, grain and oil station pumping, car scrubbing, notebook water cooling, mineral water canning and so on.
- It can be used as an air pump, aquarium aerated air pump! Turn down the voltage and use 3-5V voltage to do computer thermal circulation pump!
- The silicone sleeve is fixed behind the pump. Do not cover the cooling hole of the motor. Move it backwards to avoid heat dissipation and service life!
Product Specifications:

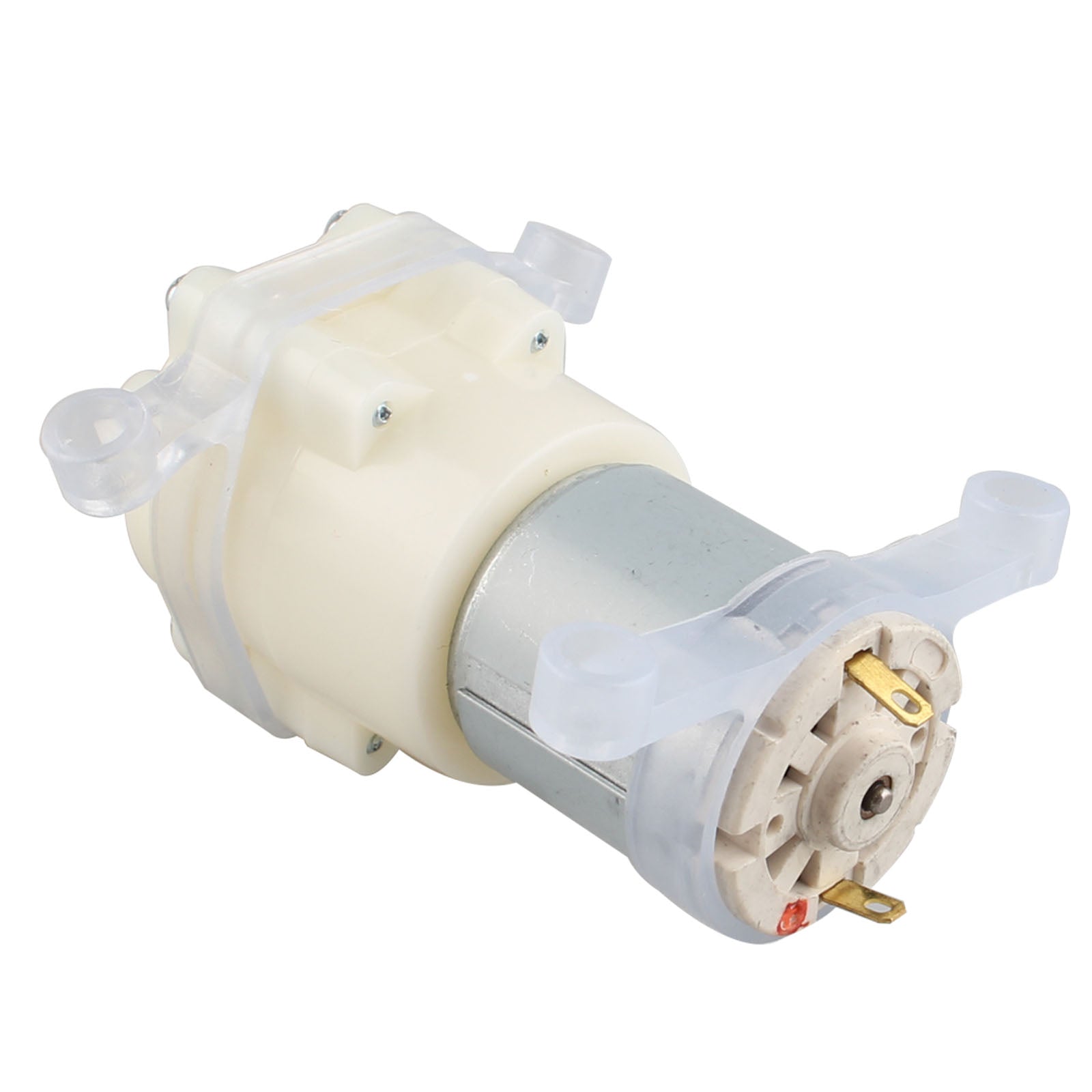

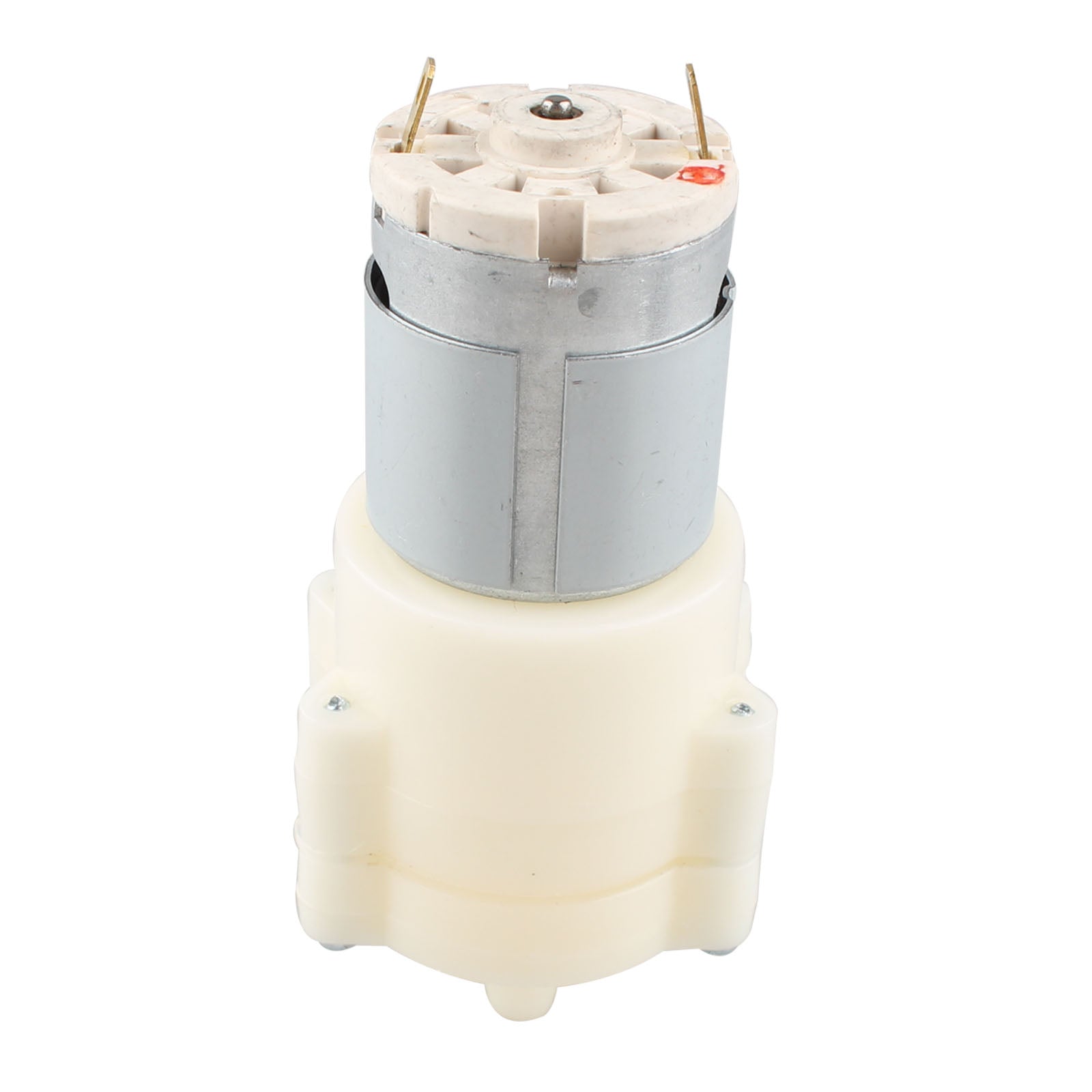

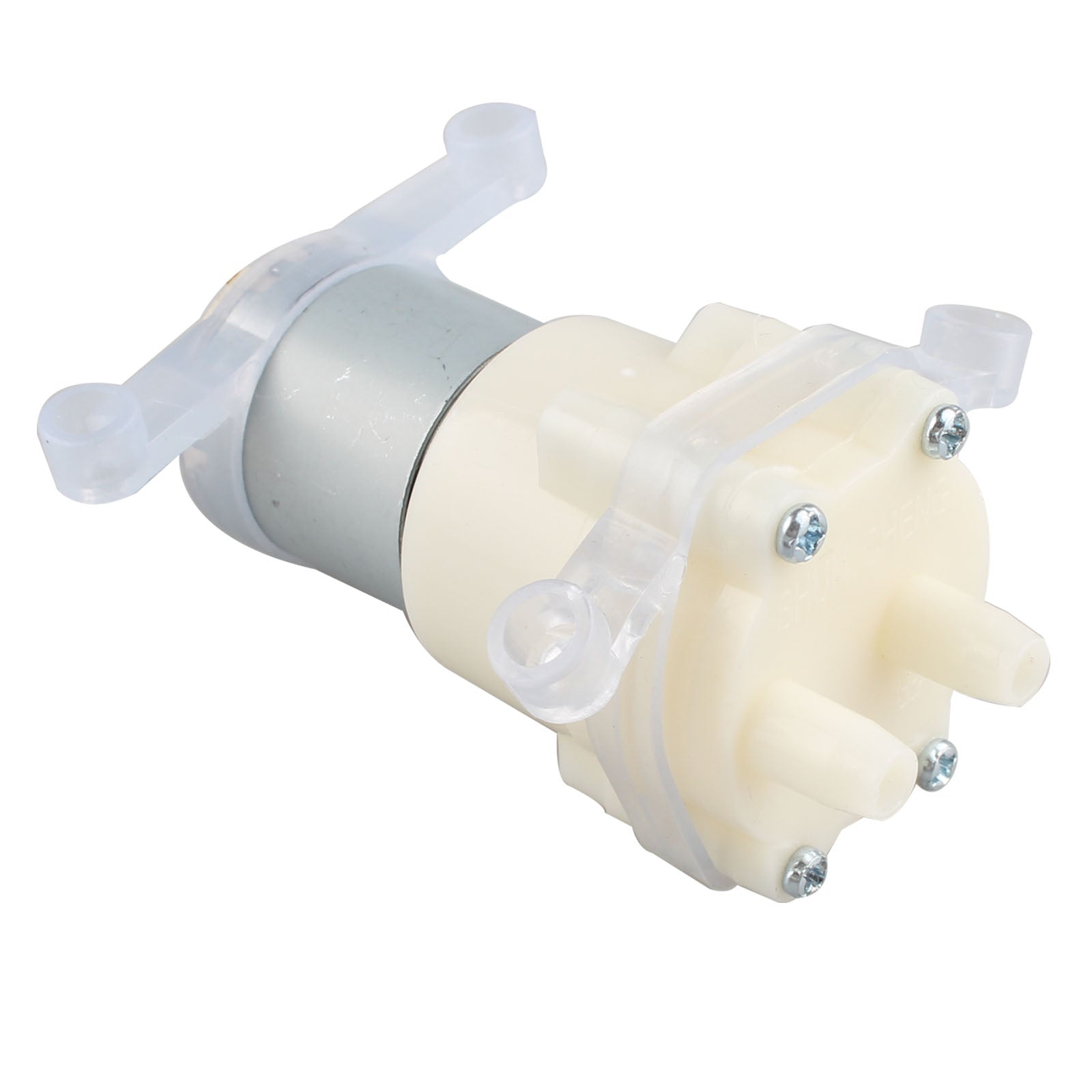

Product model: 365 DC miniature diaphragm pump
Working voltage: DC 12V
No-load current: 0.23
Load: 450 mAh
Maximum flow: 2-3 liters / minute
Maximum pressure at the outlet: 1-2.5 kg
The highest lift: 1-2.5 meters
Normal working hours: 2-3 years
Maximum suction: 2 meters

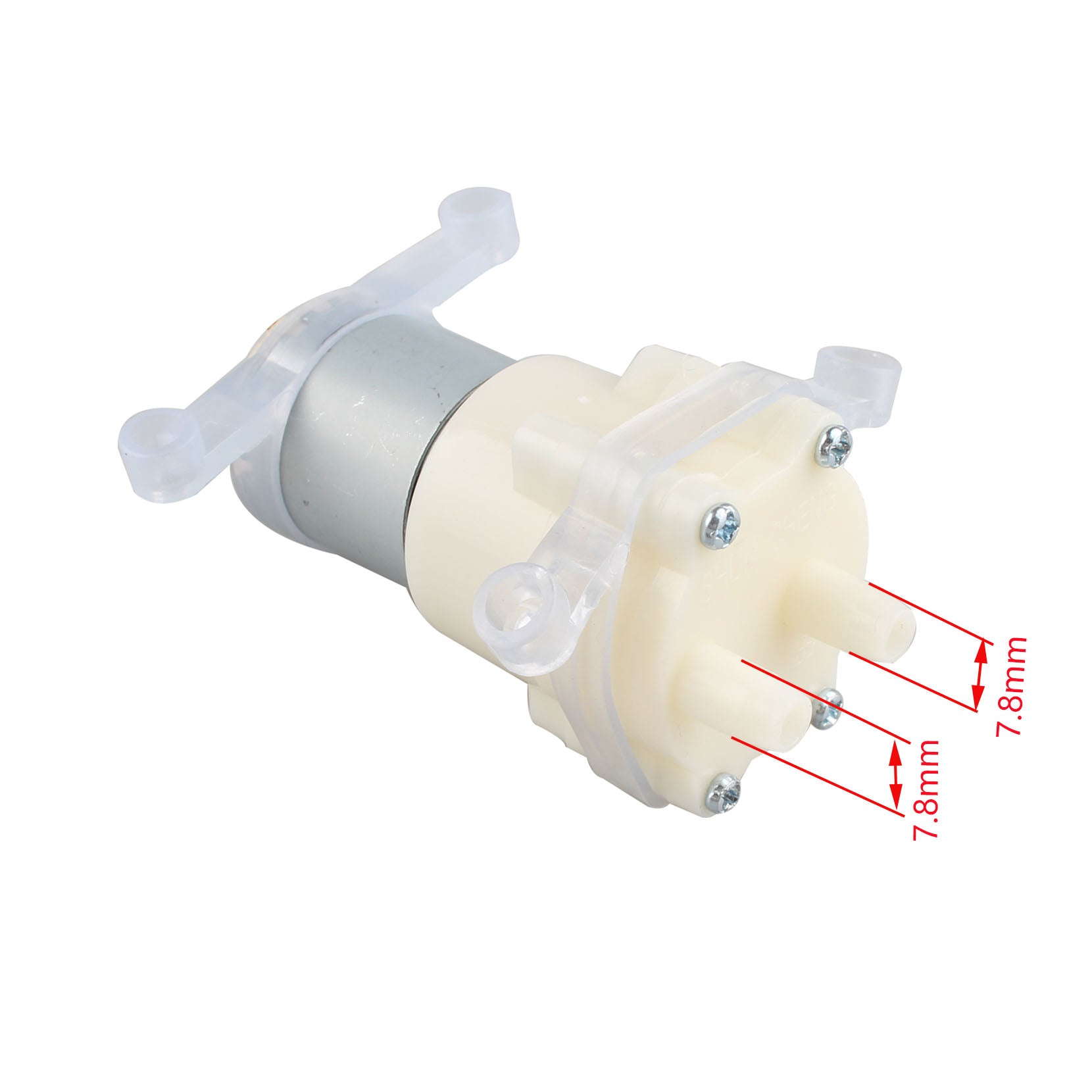

Inlet and outlet diameter: 7.8mm outer diameter

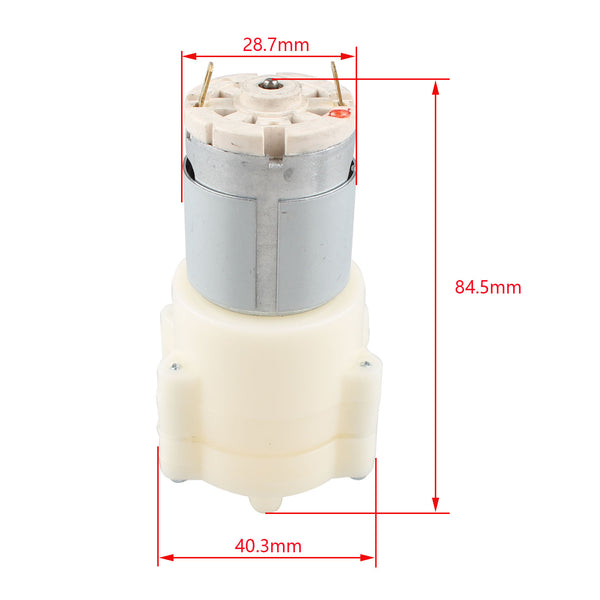

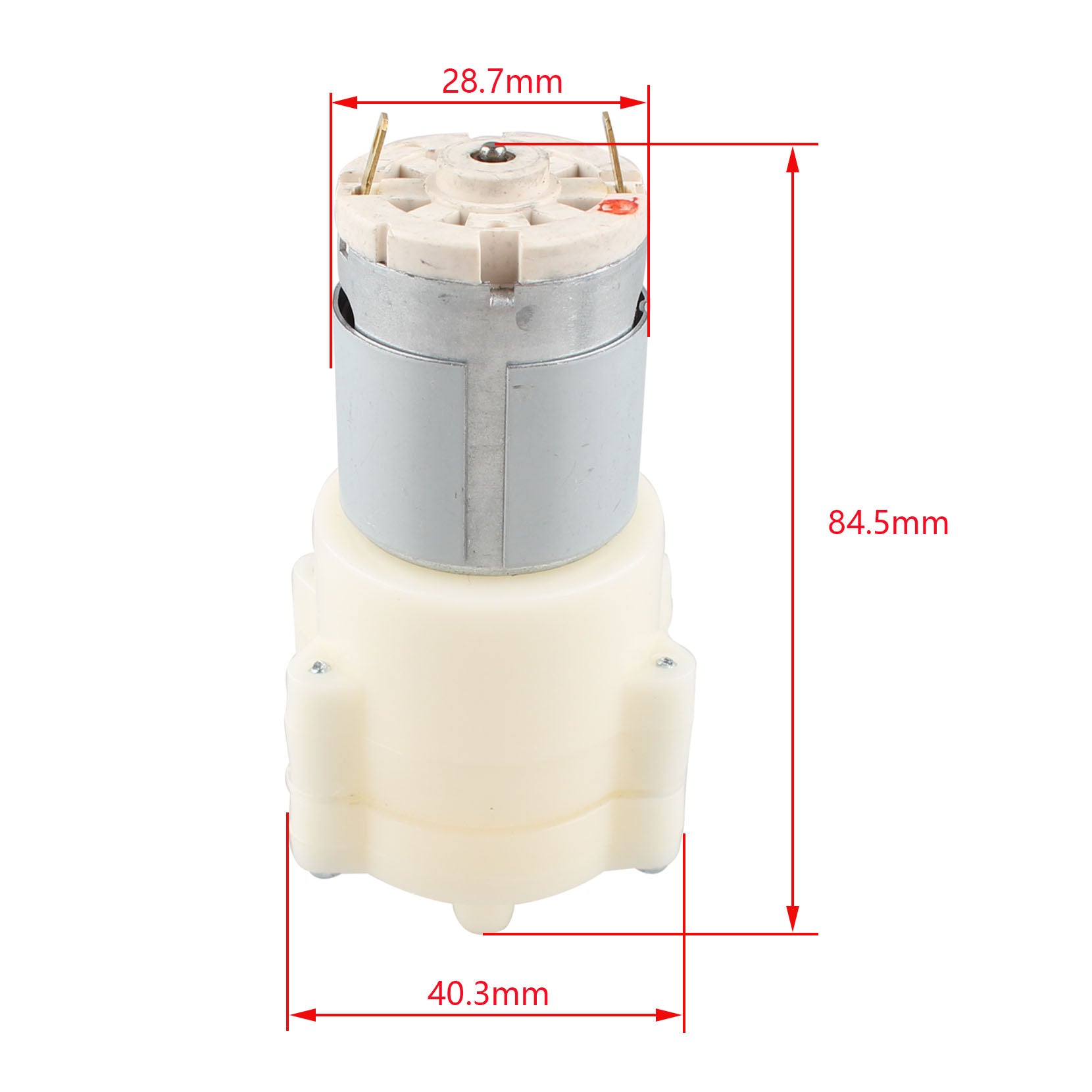

Motor length (including pin): 39mm
Motor diameter: 28.7mm
Pump length (including Inlet，outlet): 48mm
Total length (including Inlet，outlet and pin): 87.5mm
Pump diameter: 40.3 mm*35 mm
Weight: 89.7g
Use Range:

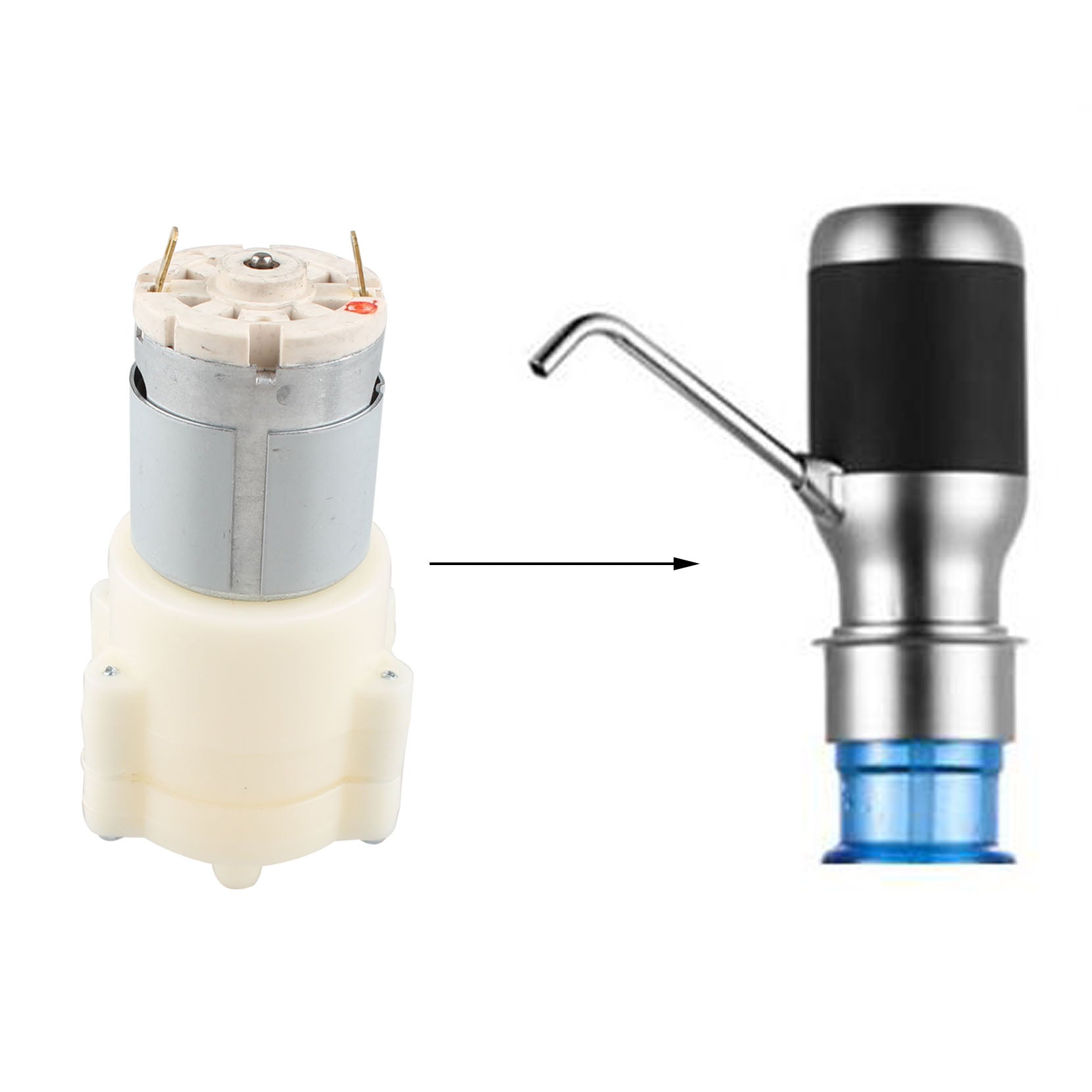

1. Tea set tea stove tea tray water dispenser series products such as: brand tea set machine.
2. It is widely used in home appliances, medical care, model DIY, aquarium equipment, etc., mainly to achieve functions such as pumping and cold water circulation.
Note:
The silicone sleeve is fixed behind the pump. Do not cover the cooling hole of the motor. Move it backwards to avoid heat dissipation and service life!
Packing List:

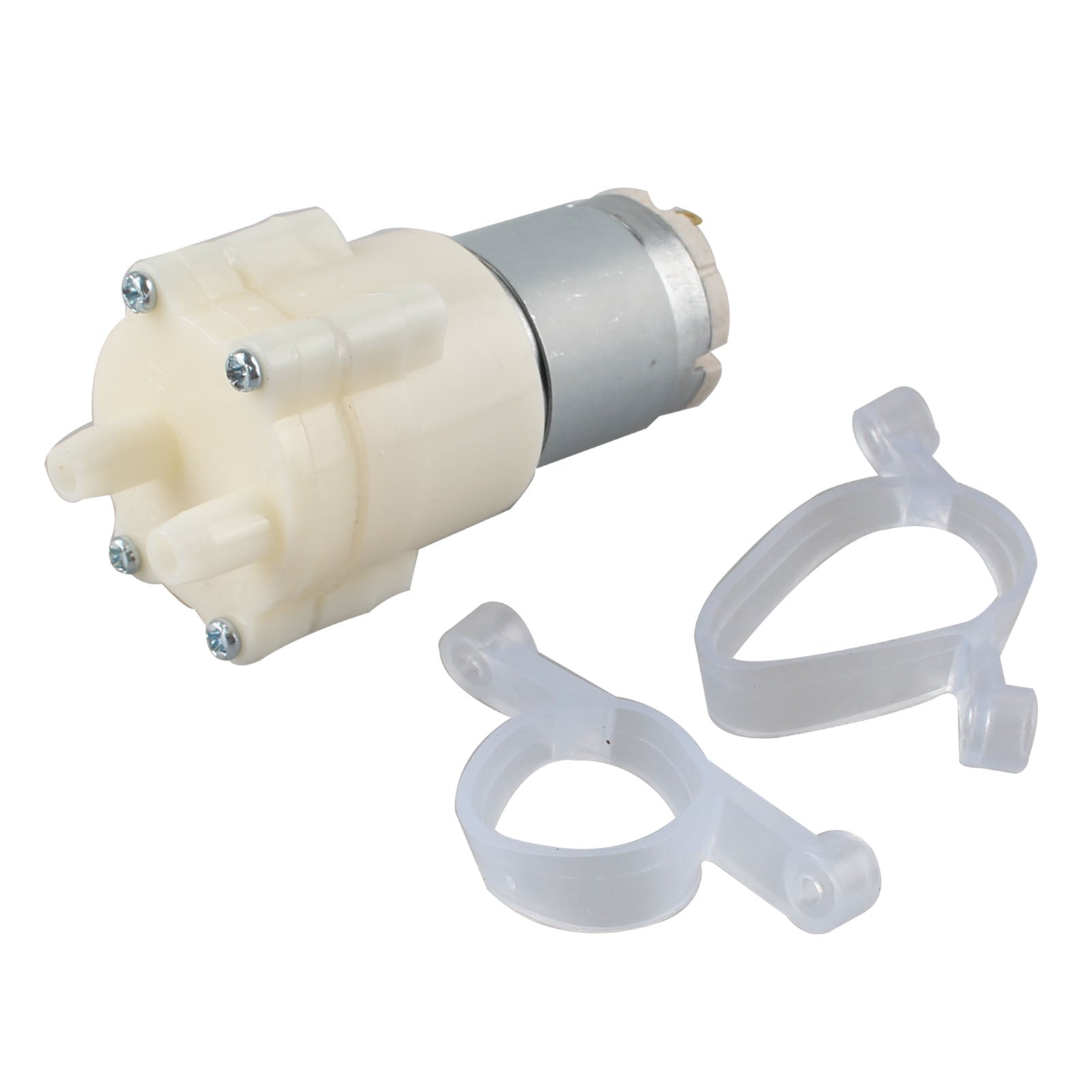

1 x 365 DC pump
