- High Receiving Sensitivity: Up to -116dBm
- Good selectivity, capable of suppressing stray radiation
- It has a RSSI signal strength and cansimulatevoltage output
- Capable of suppressing local oscillator radiation, allowing a number of receiving modules to work together
- Temp Range: -40-85 degree centigrade, can work even in a harsh environment and temperature
Characteristic:
(1) receiver sensitivity reach -116dBm;
(2) Operating frequency:433.92 MHz;
(3) Power supply voltage input range: 3V-5.5V;
(4) Low power consumption, 3.3V @ 433.92MHz, 6.0mA
(5) Power Enable mode power consumption can be done lowest 50nA;
(6) has an analog RSSI signal strength level output;
(7) Good selectivity and spurious radiation suppression, and easy through CE / Fcc international certification;
(8) Good local oscillator radiation suppression, multiple receiver modules to work together (ie, more than single income) and will not interfere with each other, used together does not affect the receiving distance.
(9) Temperature range: -40-85 Centigrade can work even in harsh ambient temperature.
Applications:
(1) car remote door switch (RKE);
(2) remote control door opener;
(3) wireless security alarm;
(4) remote control curtains;
(5) The wireless industrial controller;
(6) a wireless data transmission.
Packing List:

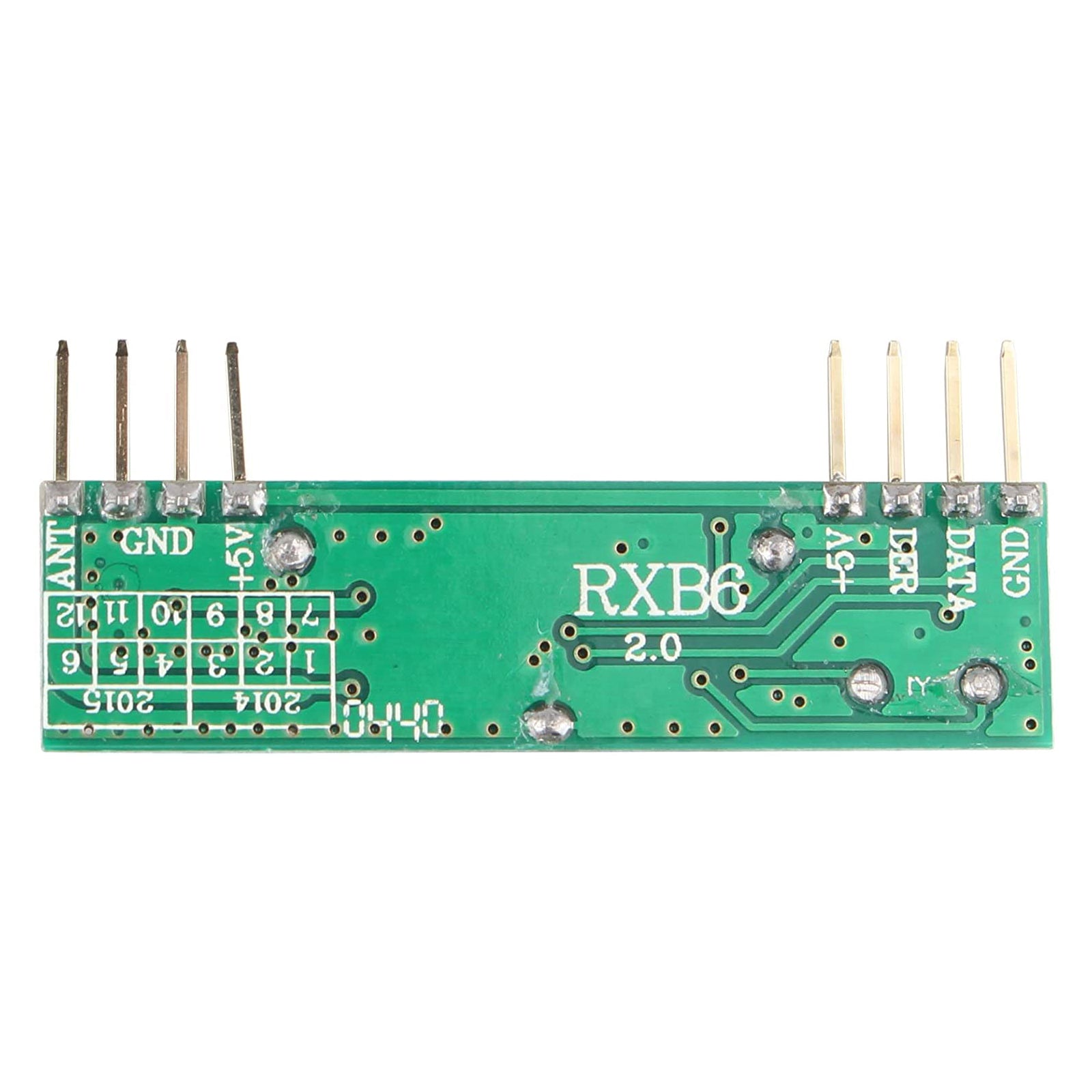

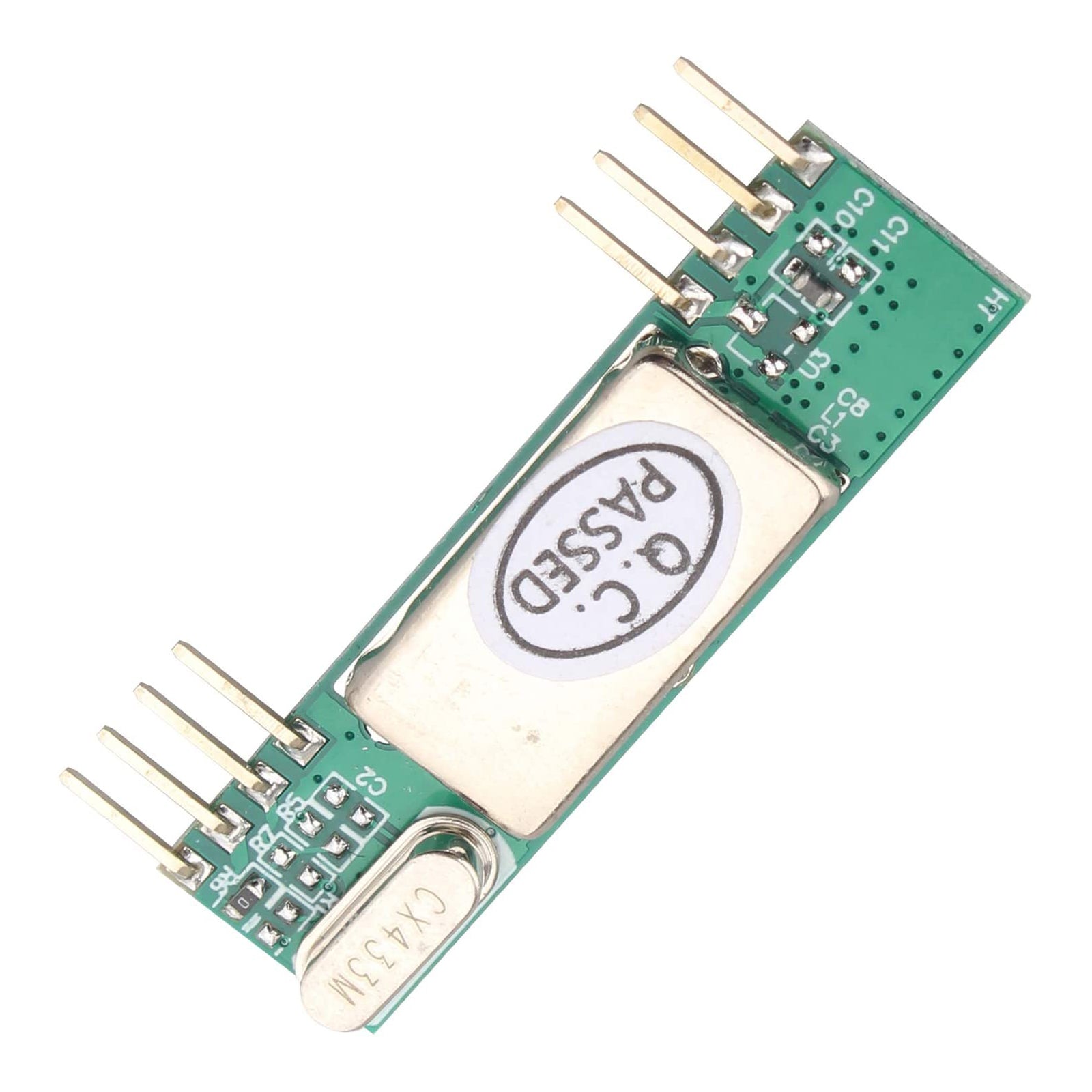

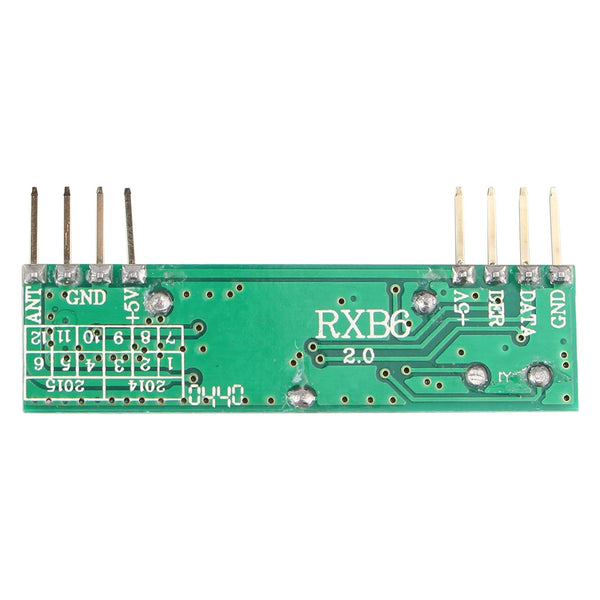

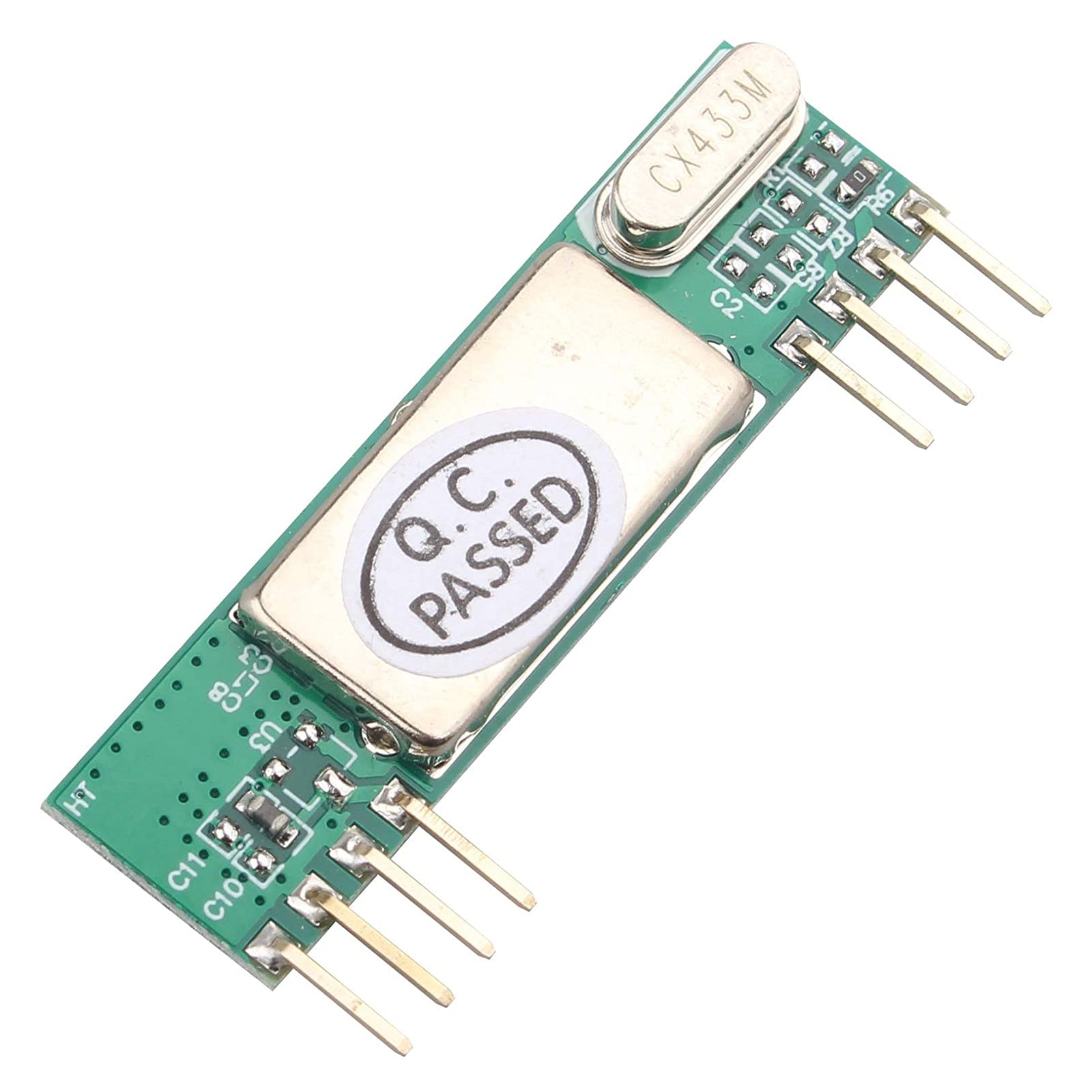

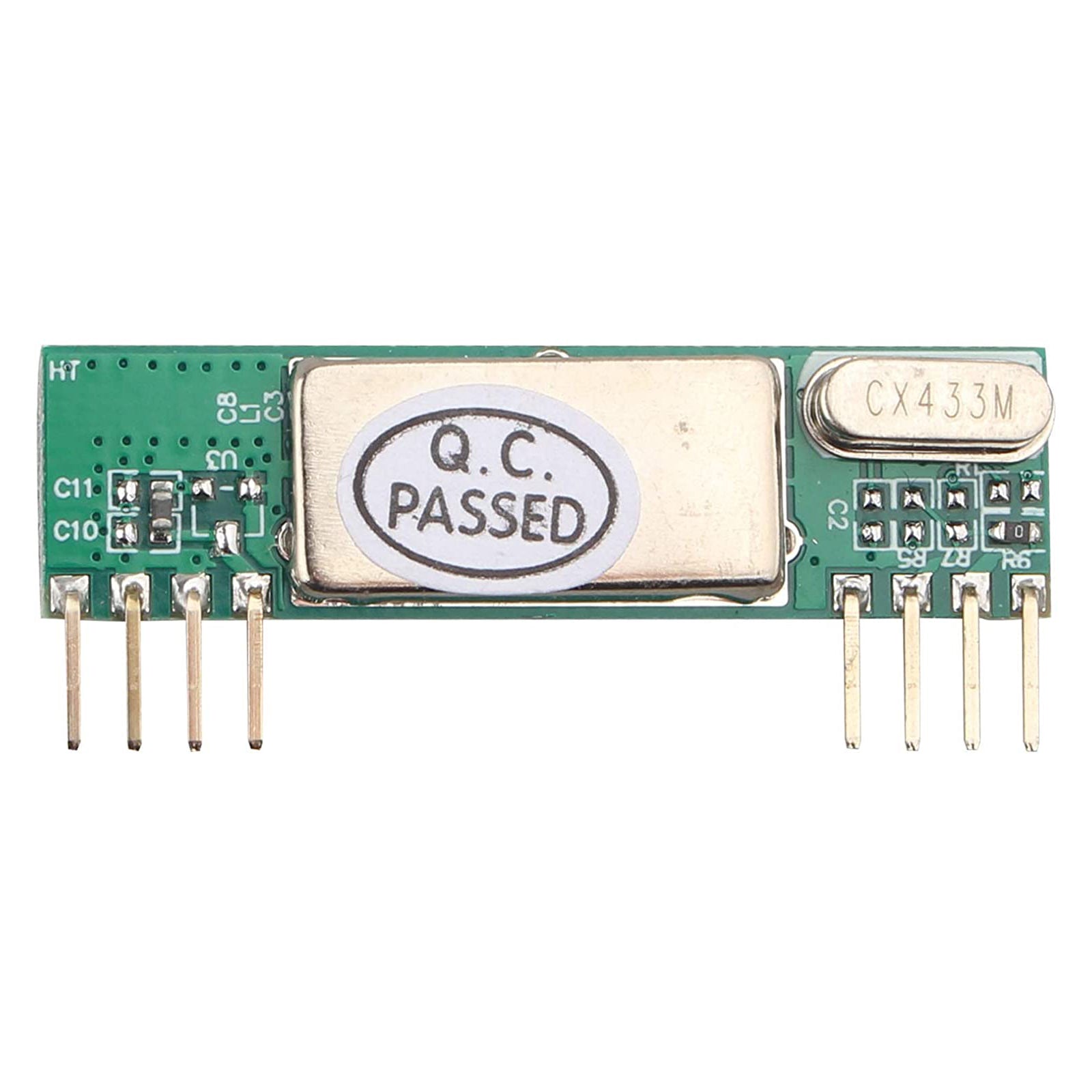

1*RXB6Wireless Receiver Module
