- Power LED and Test/Status LED
- ADC on 4 pins
- PWM on 3 pins (more possible with Software PWM)
- I2C and SPI (vis USI)
- 8k Flash Memory (about 6k after bootloader)
Product description

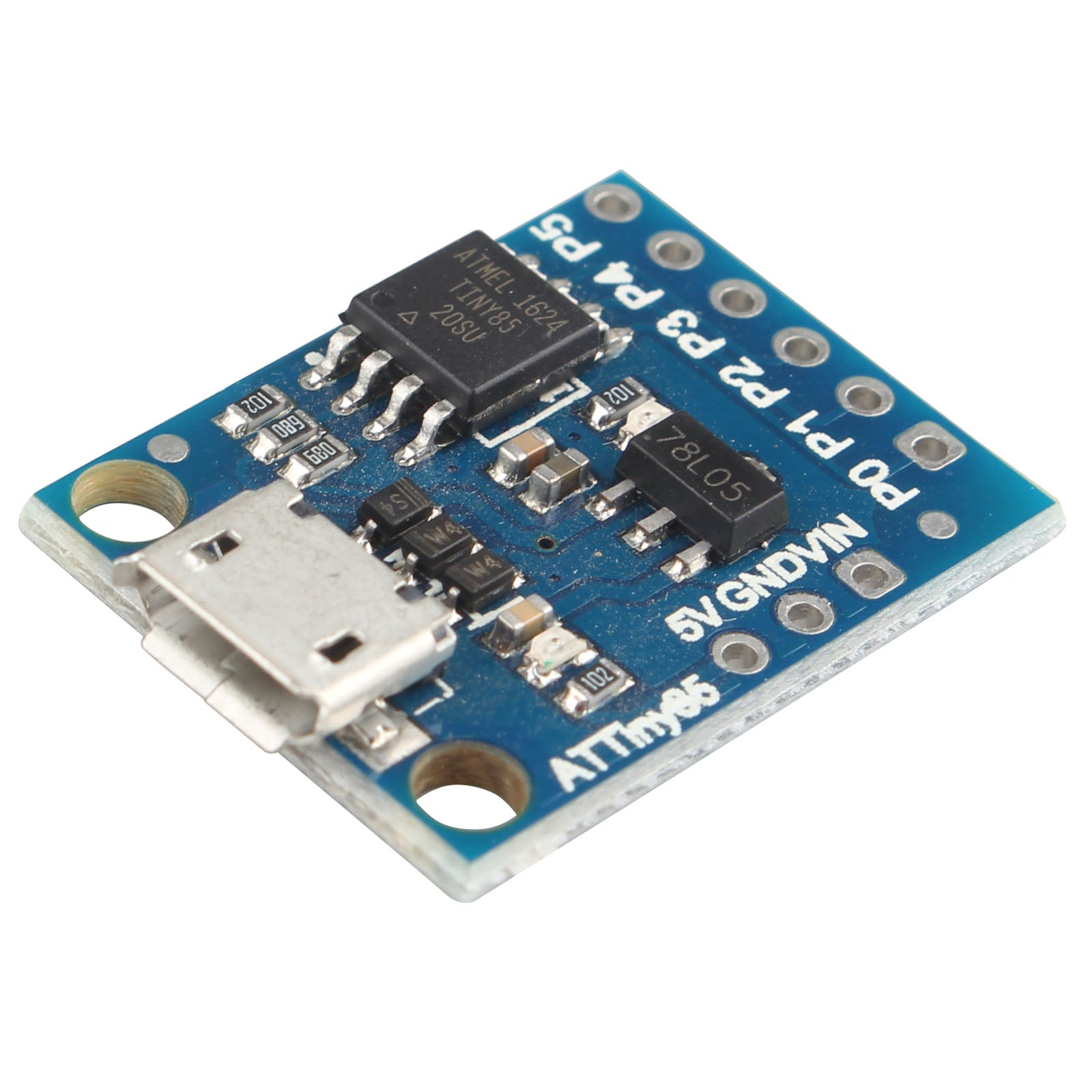

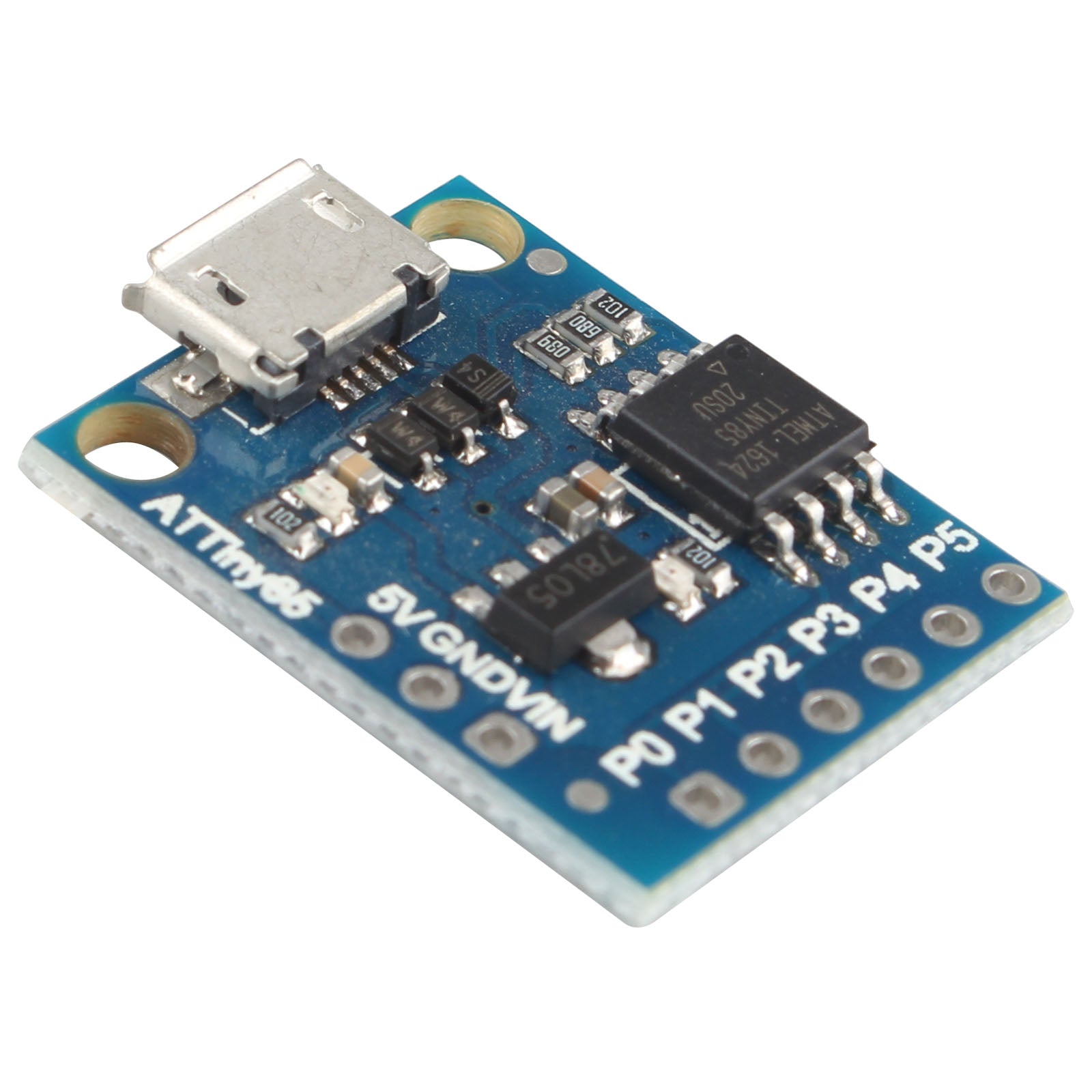

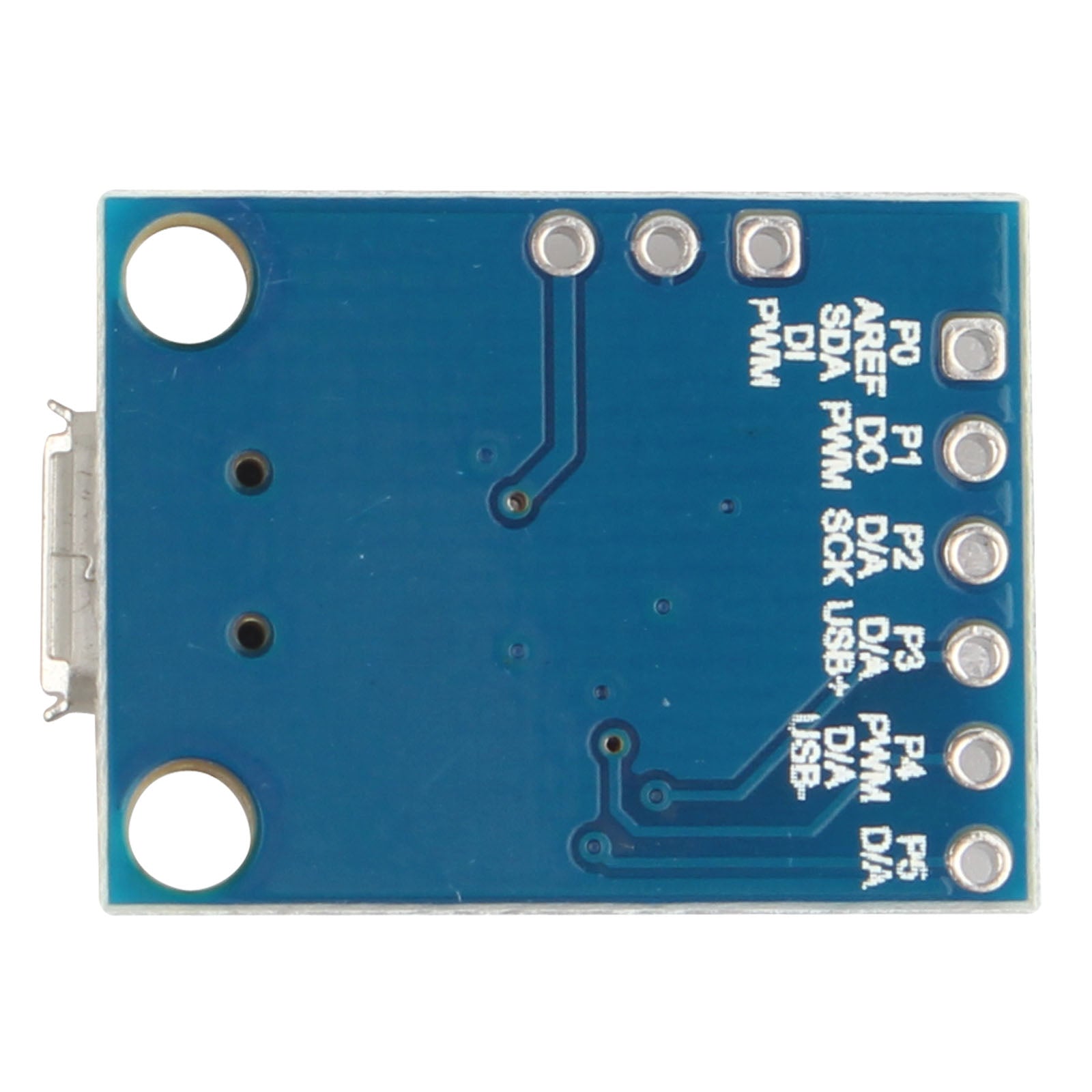

This tiny unit is an Attiny85 based microcontroller development board similar to the Arduino line, only cheaper, smaller, and a bit less powerful.
With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE the Digispark is a great way to jump into electronics, or perfect for when an Arduino is too big or too much for a smaller project.
Features :
Support for the Arduino IDE 1.0+ (OSX/Win/Linux)
Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
Built-in USB
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/Status LED
Packing List:

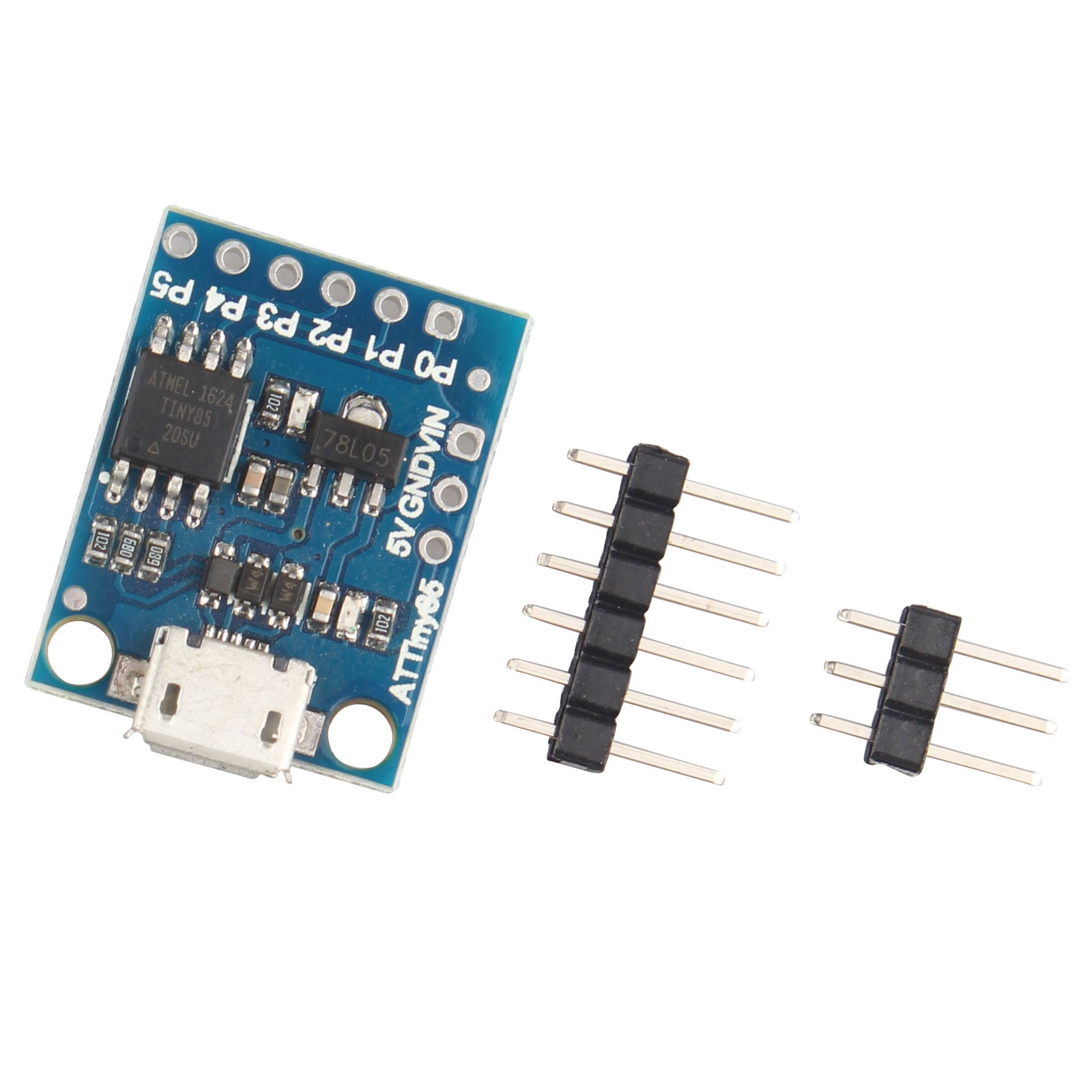

1*Micro-USB Development Board (with Pin)
