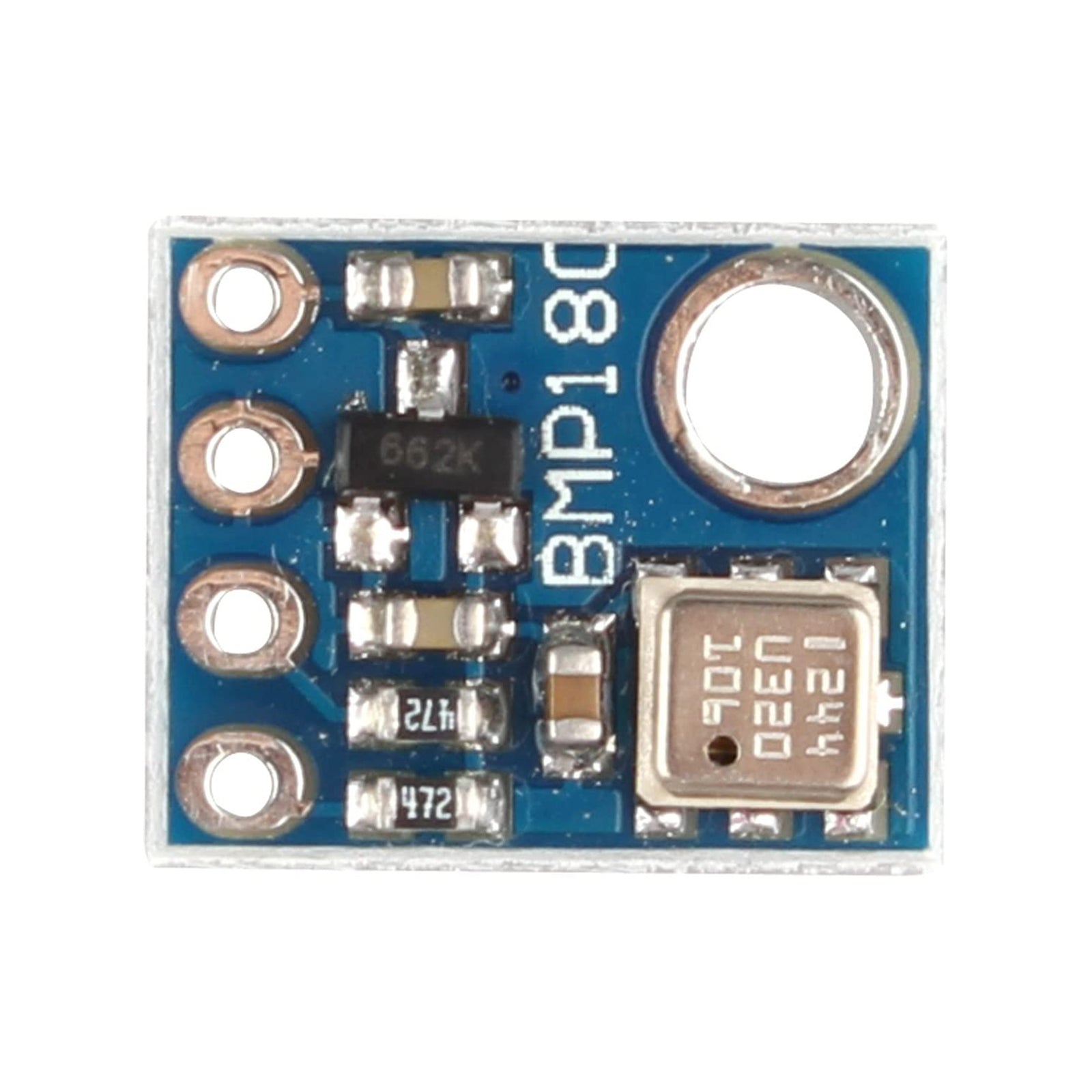

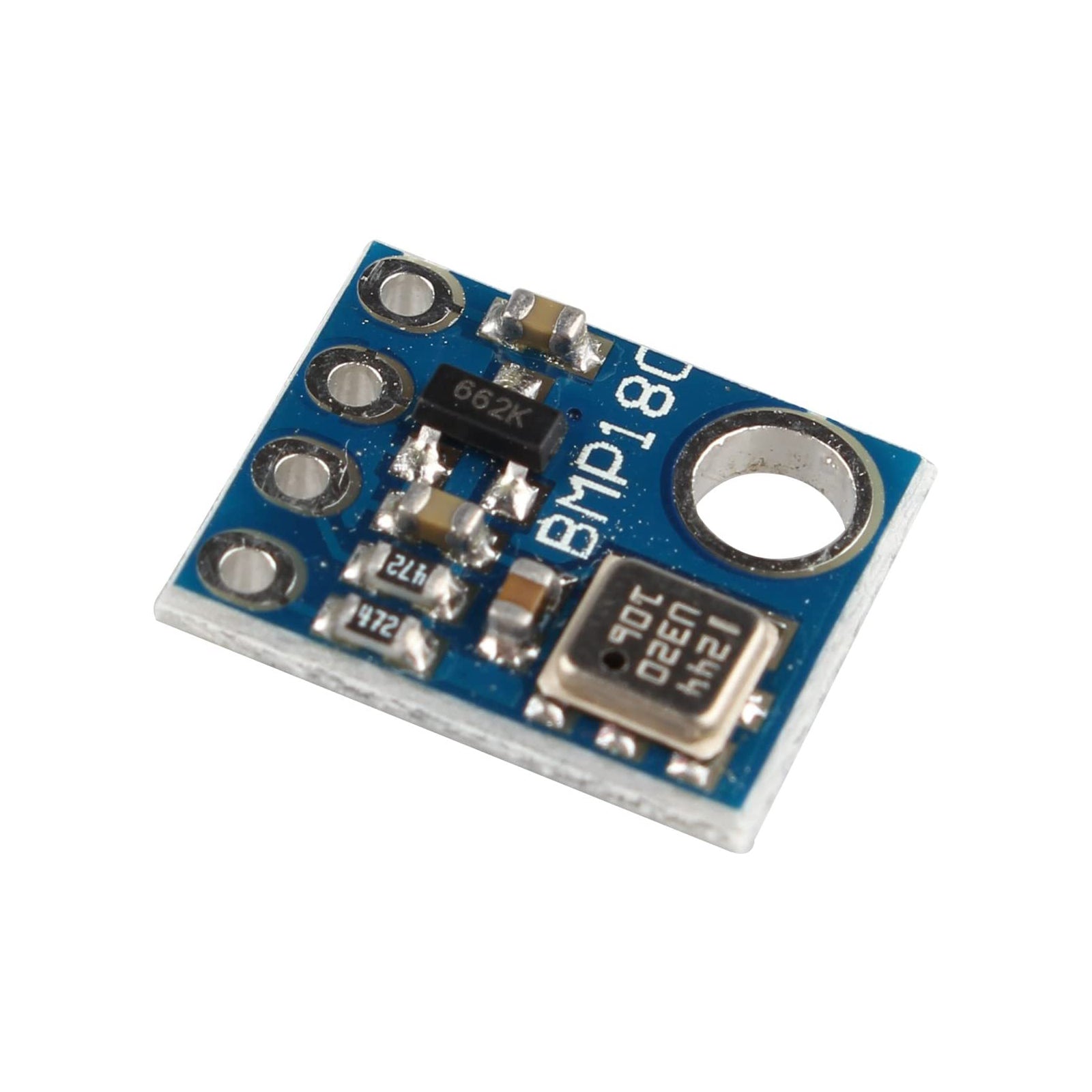

- BMP180 is a high precision, small size, ultra-low power pressure sensor can be used in mobile devices
- Its performance, absolute accuracy can reach the lowest 0.03hPa, and the power consumption is very low, only 3¦ÌA
- BMP180 using powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package, can be connected directly with a variety of microprocessor via the I2C bus
- Pressure range: 300~1100hPa ( altitude 9000m~-500m)
- Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
Main features:
Pressure range: 300~1100hPa ( altitude 9000m~-500m)
Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
LCC8 package: package leadless ceramic carrier (LCC)
Size: 3.6 * 3.8 * 0.93mm
Low power consumption: 5¦ÌA, in standard mode
High precision: low-power mode , the resolution is 0.06hPa (0.5 meters)
High linearity mode , the resolution is 0.03hPa (0.25 meters)
With temperature output
I2C Interface
Temperature compensation
Lead-free , RoHS compliant
MSL 1 Reaction time : 7.5ms
Standby current : 0.1¦ÌA
No external clock circuit
Typical applications:
GPS precision navigation, dead reckoning , the upper and lower detection
Indoor and outdoor navigation
Leisure, sports and medical health monitoring
Weather Forecast
Vertical speed indicator, rising / sinking speed
Fan Power Control

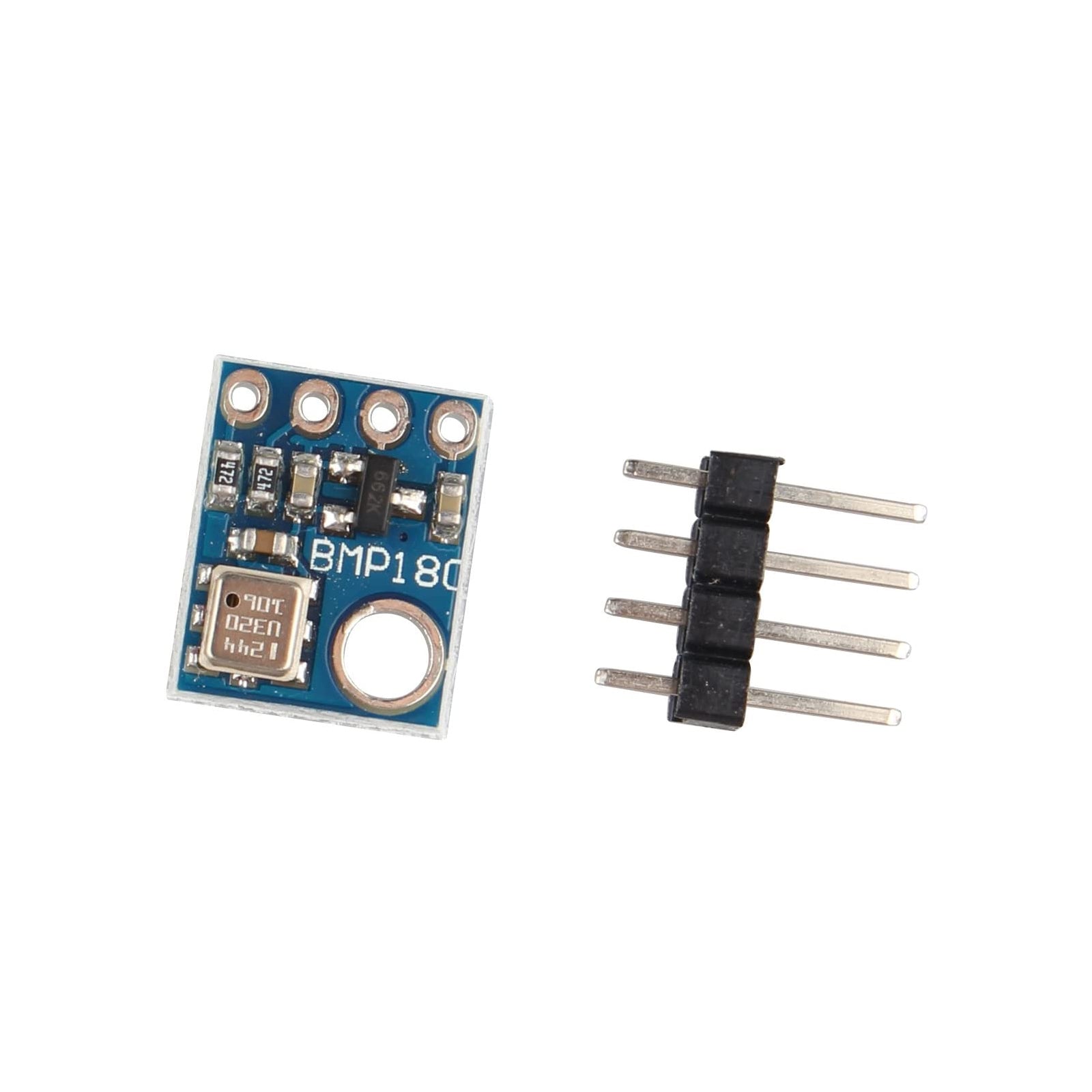

Packing List

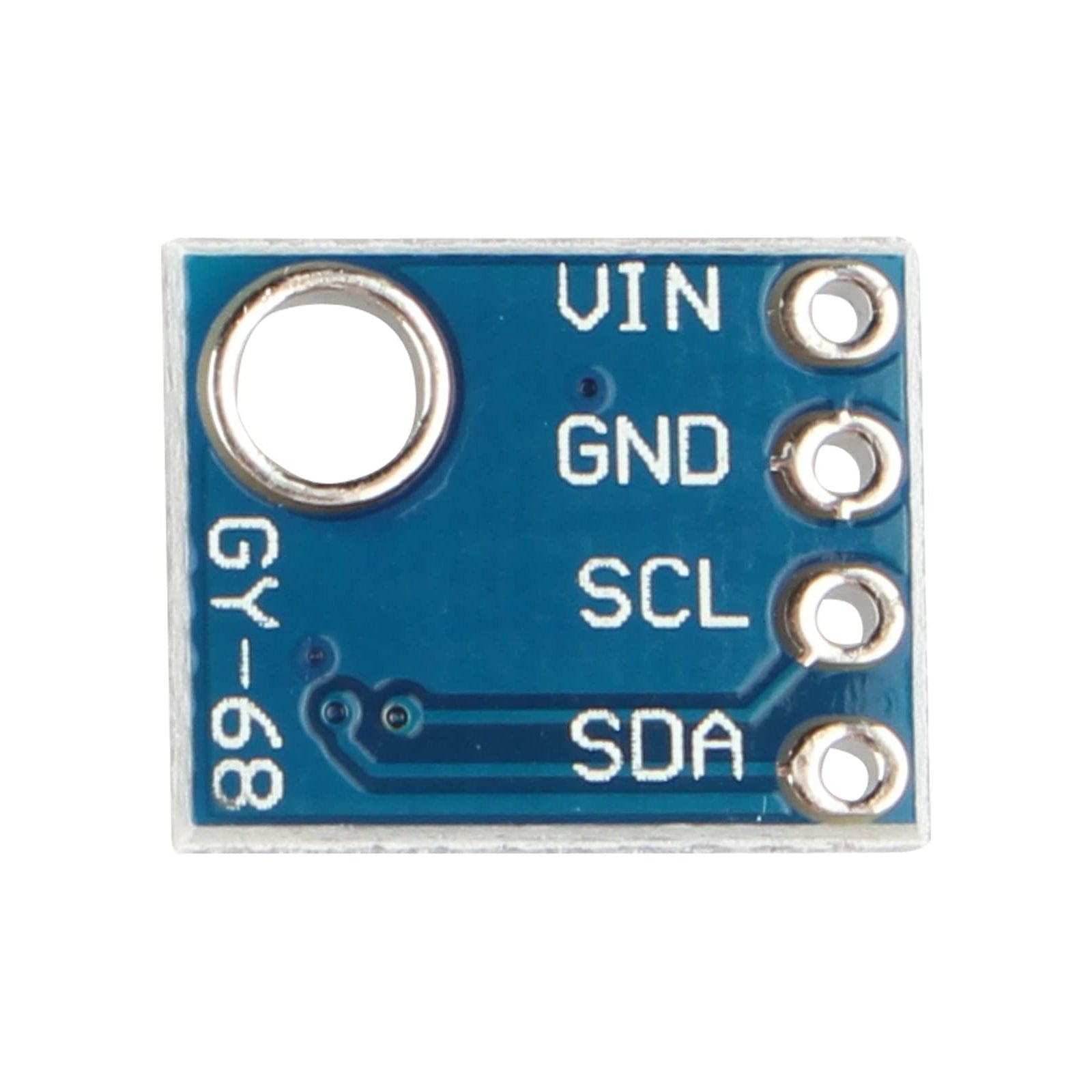

1 * GY-68 Module
1 * Pin Header
