- JQ6500 is a serial port MP3 chip, which integrates hard decoding of MP3 and WMV.
- The software supports TF card driver, supports the computer to directly update the content of spi flash, and supports FAT16 and FAT32 file systems.
- The simple serial port command can complete the playback of the specified music, and how to play music and other functions, without the cumbersome underlying operation, easy to use, stable and reliable is the biggest feature of this product.
- In addition, the chip is also a deeply customized product, a low-cost solution developed for the fixed voice playback field.
- Can be used in a variety of occasions, such as car navigation voice broadcast, road transport inspection, toll station voice prompts.
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

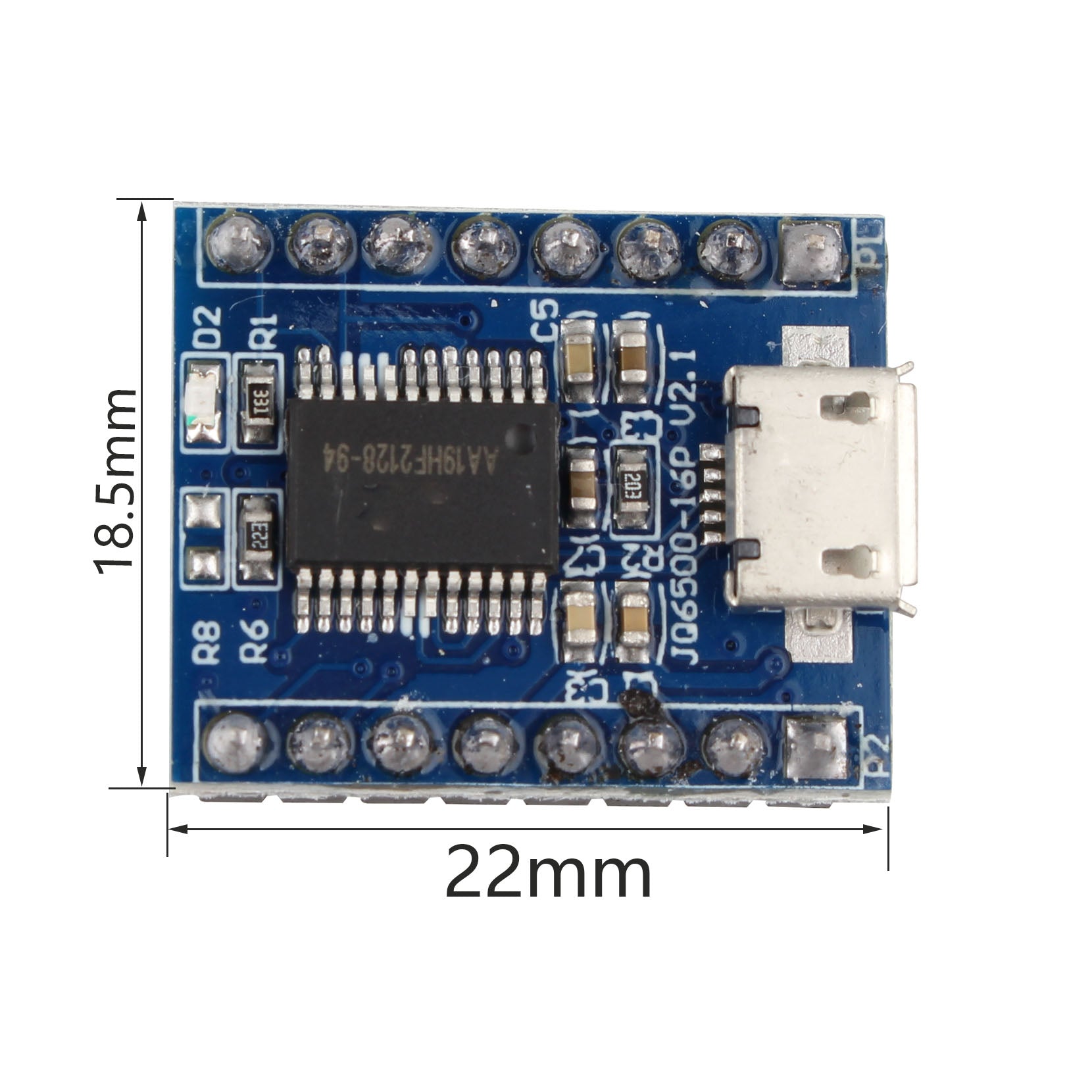

Size: 23 (mm) x 19 (mm) x 11 (mm)
Weight : 3 g
Packing List:
1 x JQ6500 Voice Sound Module
