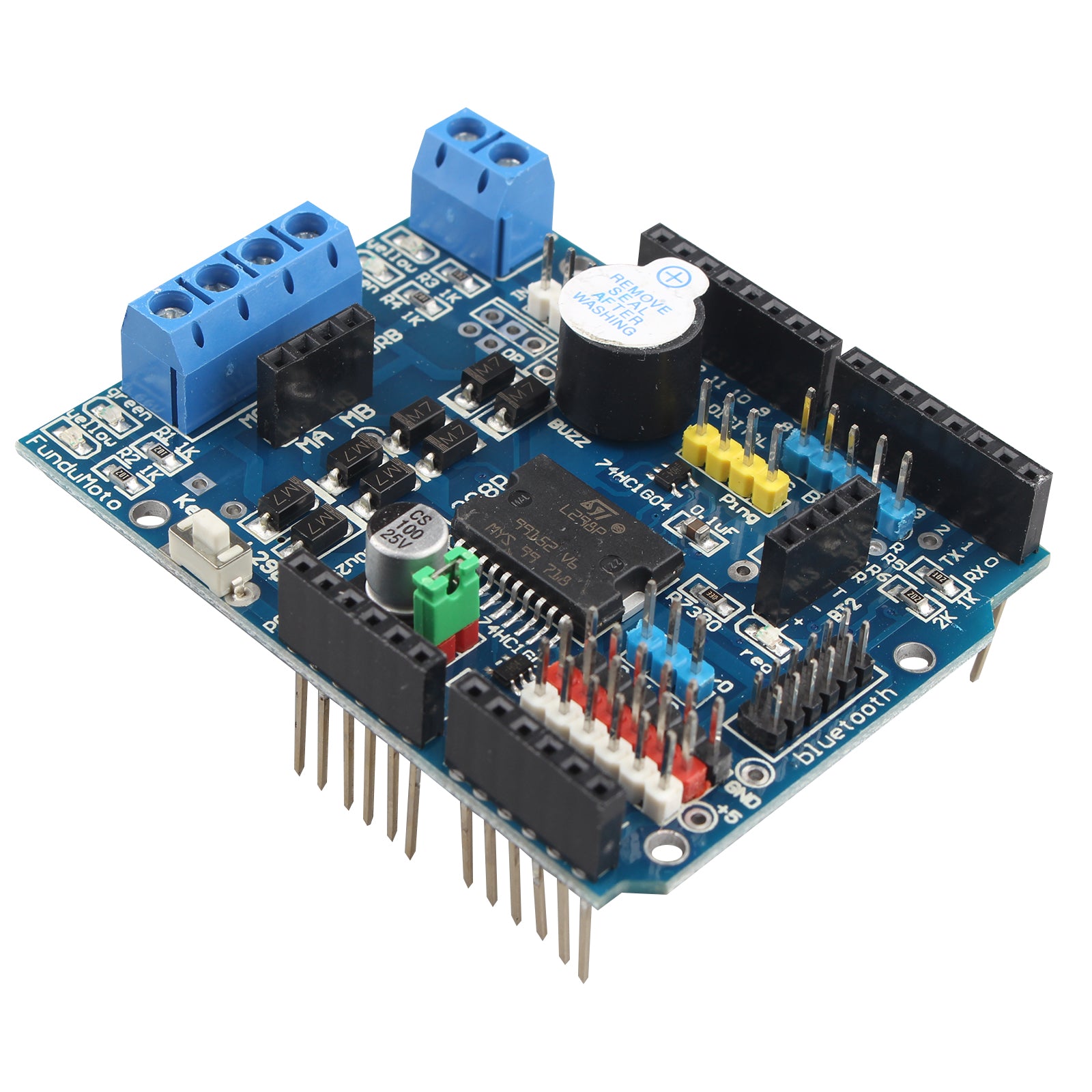

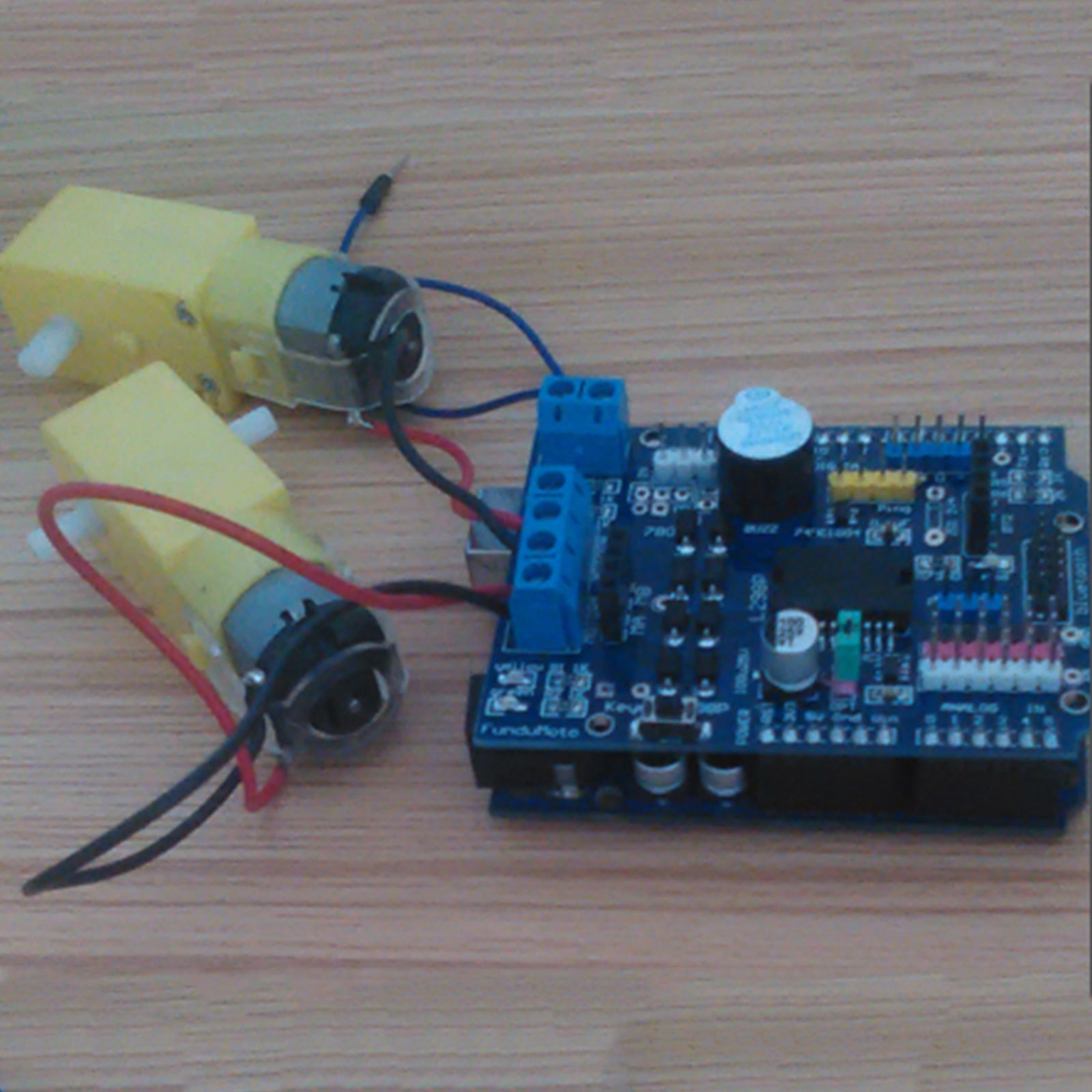

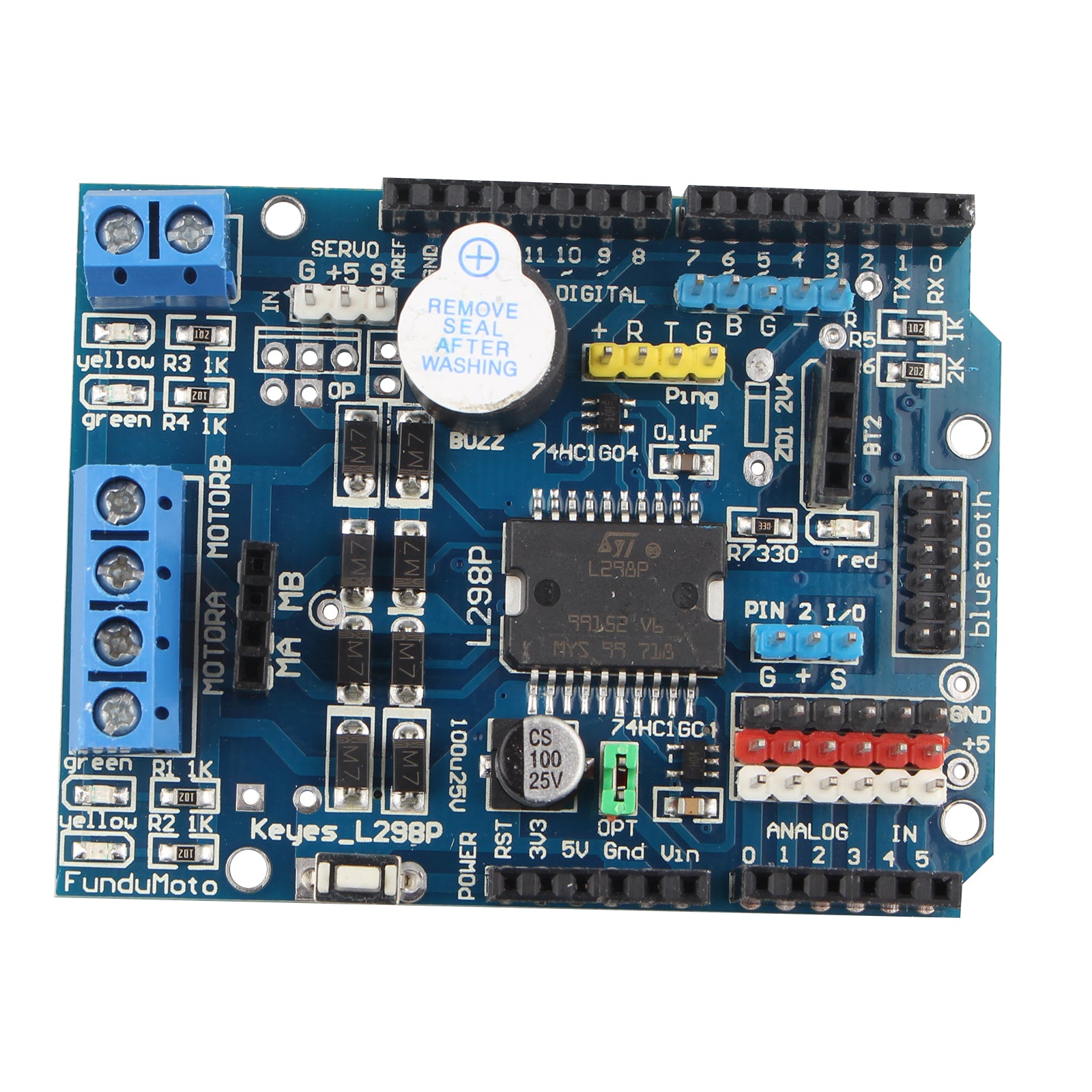

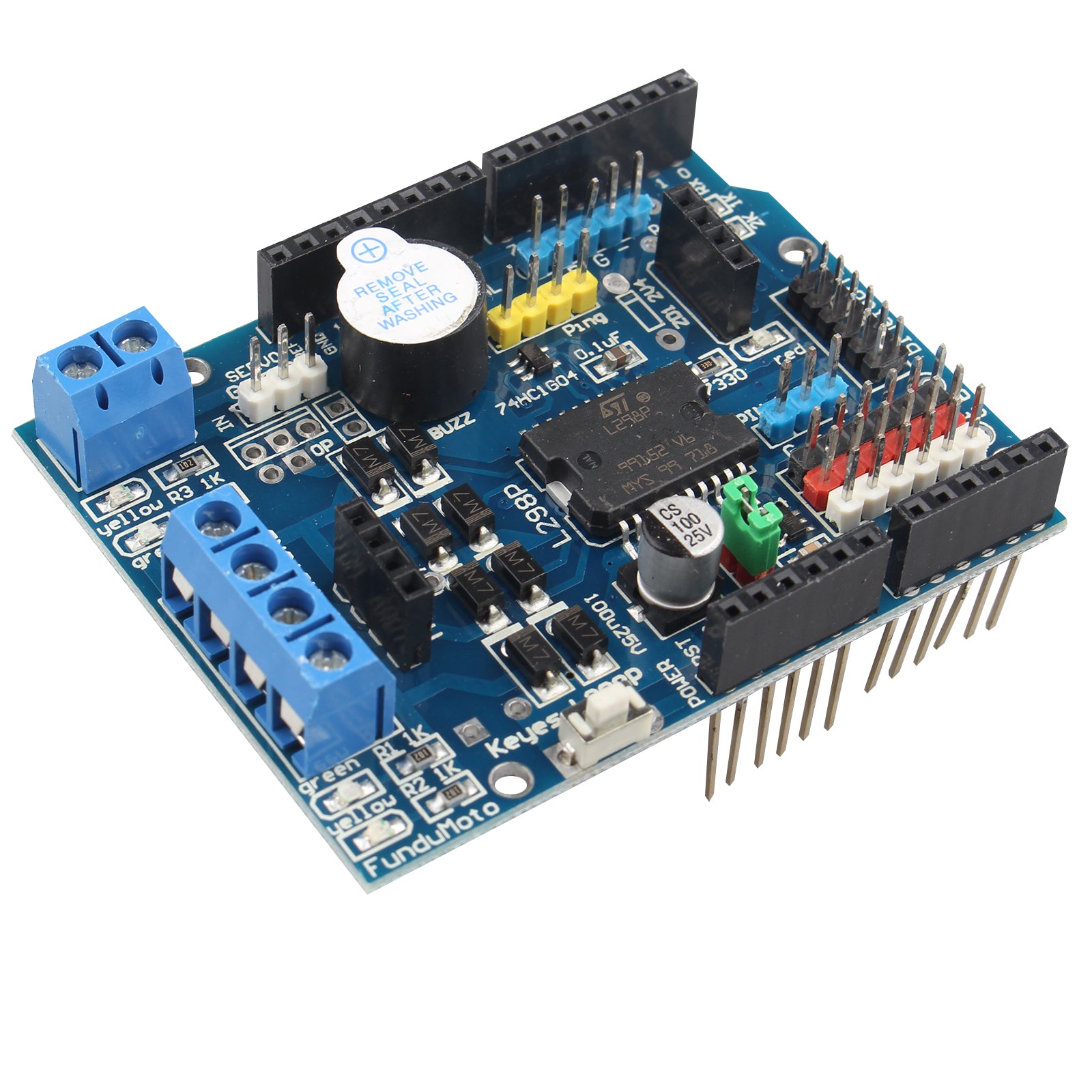

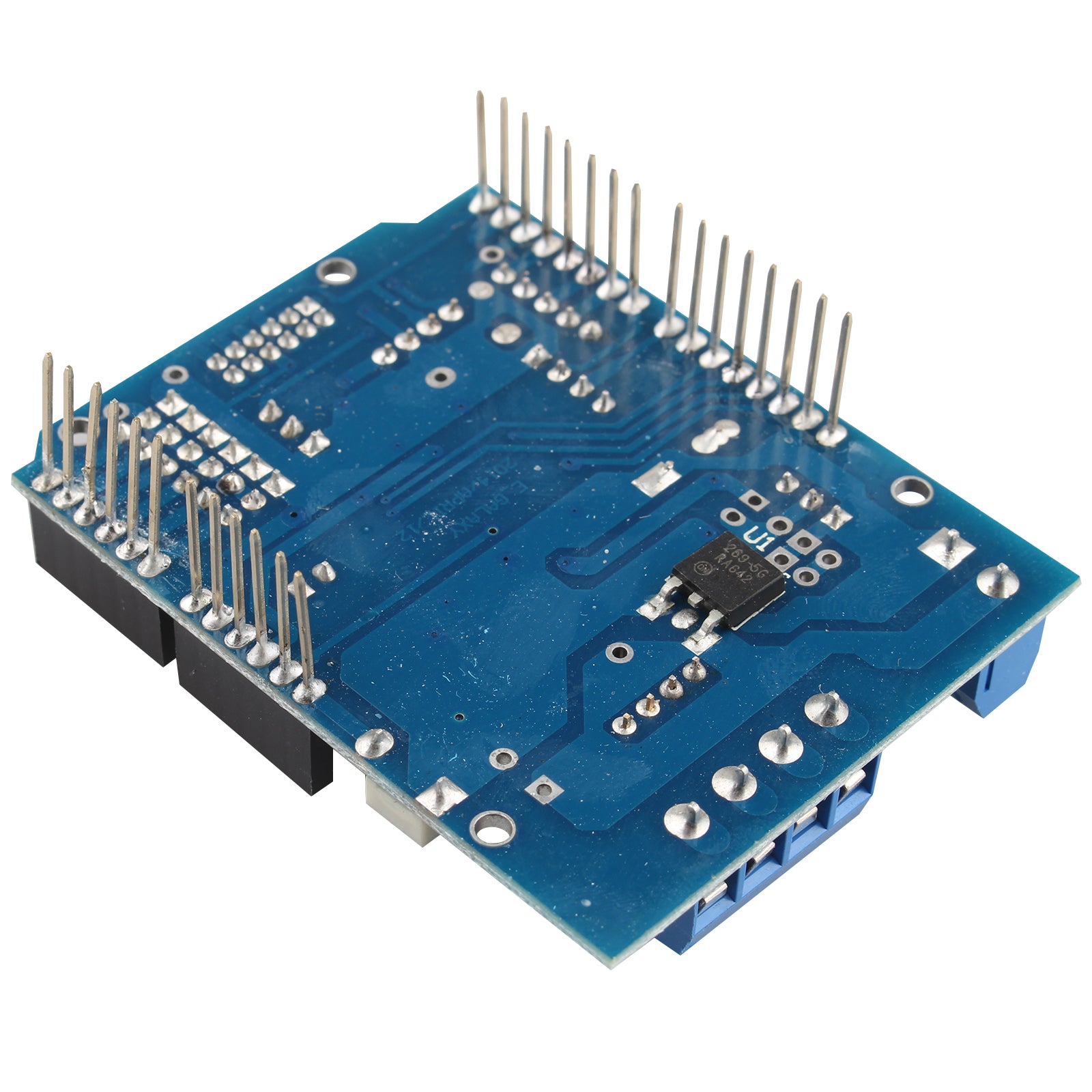

Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A
Use eight high-speed Schottky diodes at motor output as protection
Stack design can be directly plugged into the Arduino, easier to use
Technical Specifications:
1.input voltage of logical part VD: 5V
2.input voltage of driven part VS: VIN Input 6.5 -12V, PWRIN 4.8 -35V input
3.logical part of the work current Iss: <36mA
4.driven part of the operating current Io: <2A
5.maximum power dissipation: 25W
6.Working temperature: -25 + 130 Celsius
7.supports PWM / PLL mode motor speed control
8.hardware interface: 5.0mm pitch terminal
9.belt clip and signal can be controlled via front row access
10.Drive Type: Dual power H-bridge driver
11.Pin occupancy: D10~D13 direct drive motor
12.Board Size:70*52*24mm(L*W*H)
Program Code:
http://download.haljia.com/download/motor/L298P/L298P Motor Shield.rar
Packing List:
1*L298P Motor Driver Module
