Feature:
Support CAN V2.0B specification, the communication rate 1Mb / S.
0 to 8-byte data field.
Standard frame and expand the frame and remote frame.
Module 5V DC power supply, SPI interface protocol control.
120 ohm termination resistance. Impedance matching ensures drive capability, long-distance data transmission prevents signal emission.
PCB Size: 4.4 cm x 2.8 cm ,Screw hole center spacing 23mm x 35mm.
Working current: typical value of 5mA, standby current 1 microamperes.
Working temperature: Industrial grade -40 ℃ to 85 ℃.

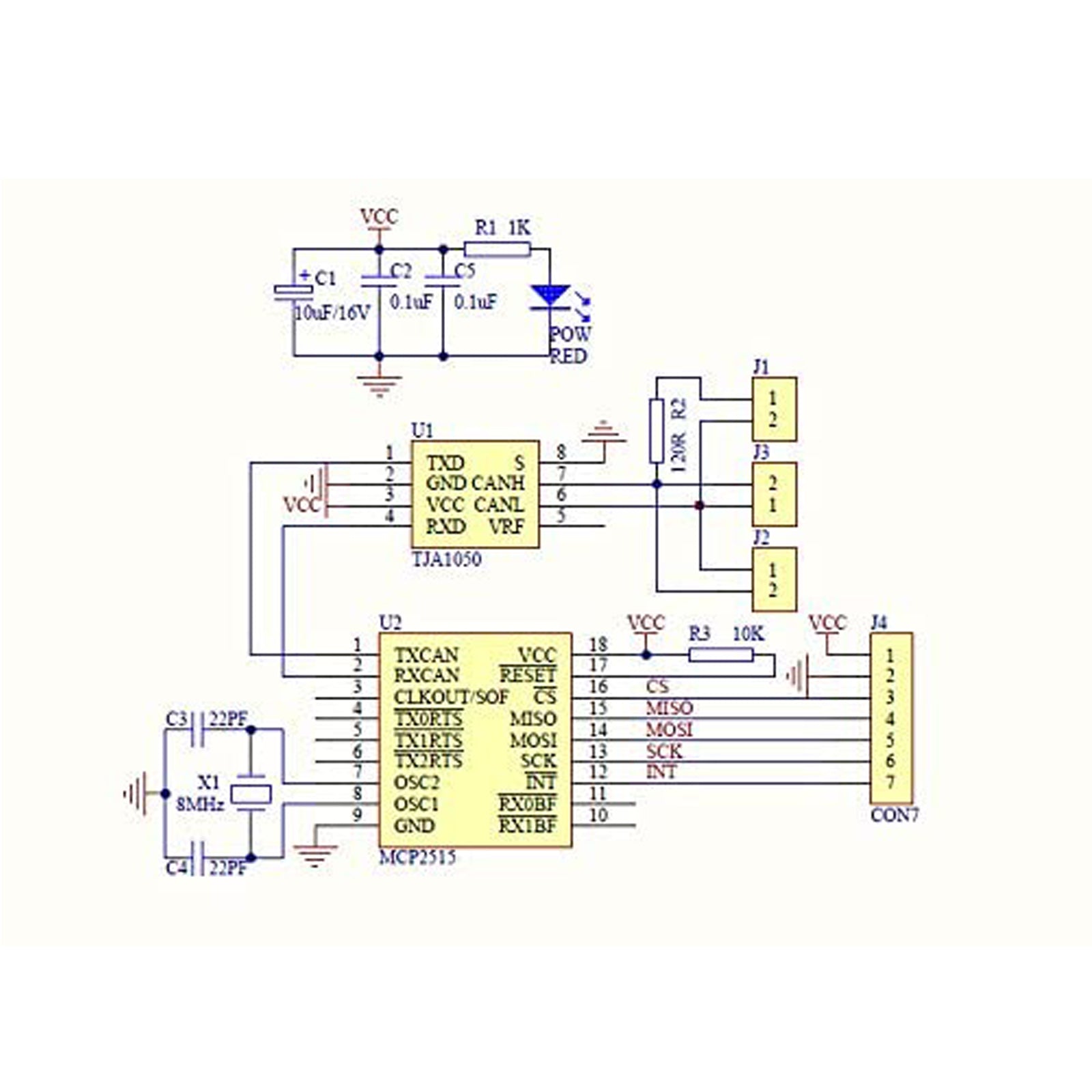

CAN controller chip: Microchip MCP2515, high-speed CAN transceiver chip: NXP TJA1050
Package Inculded:

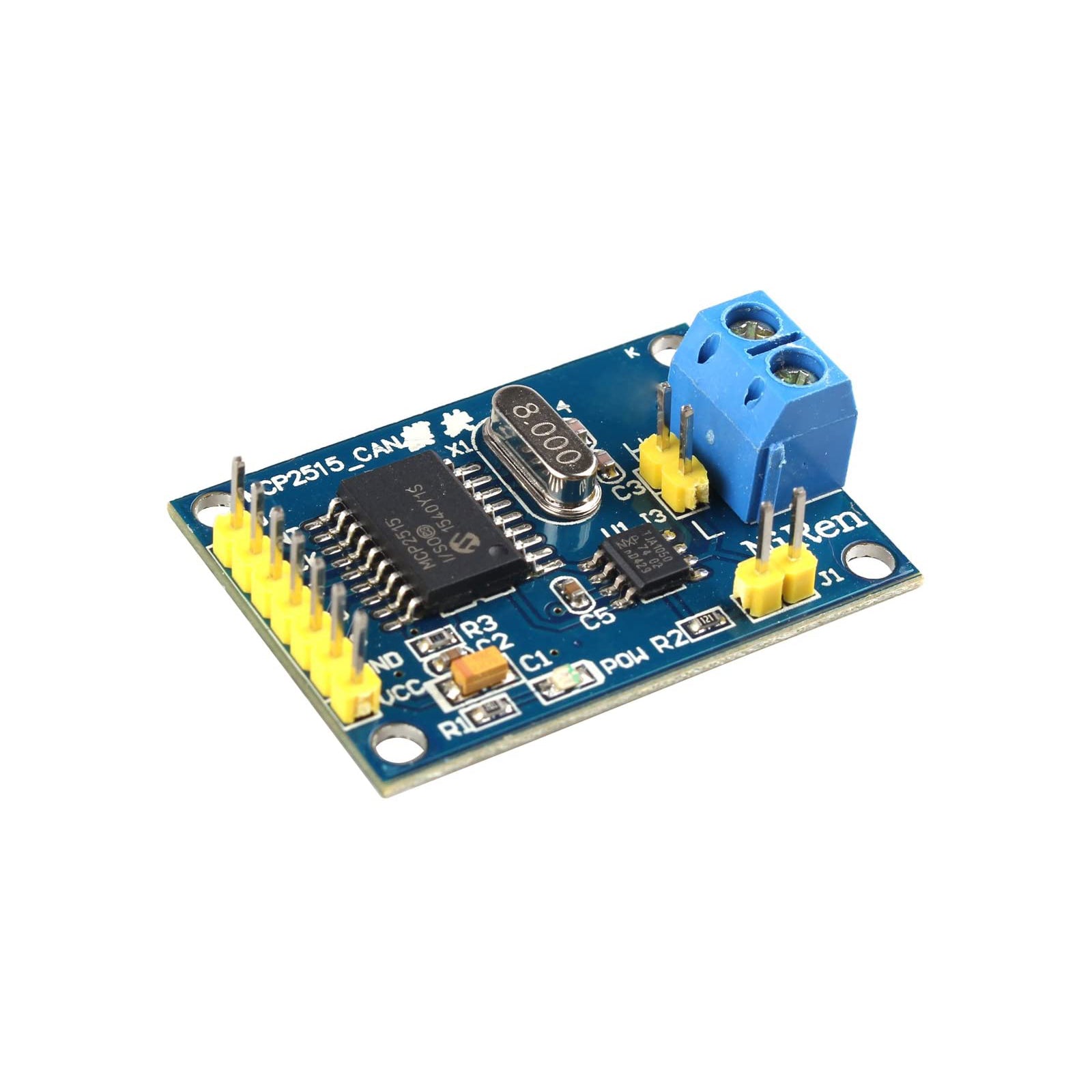

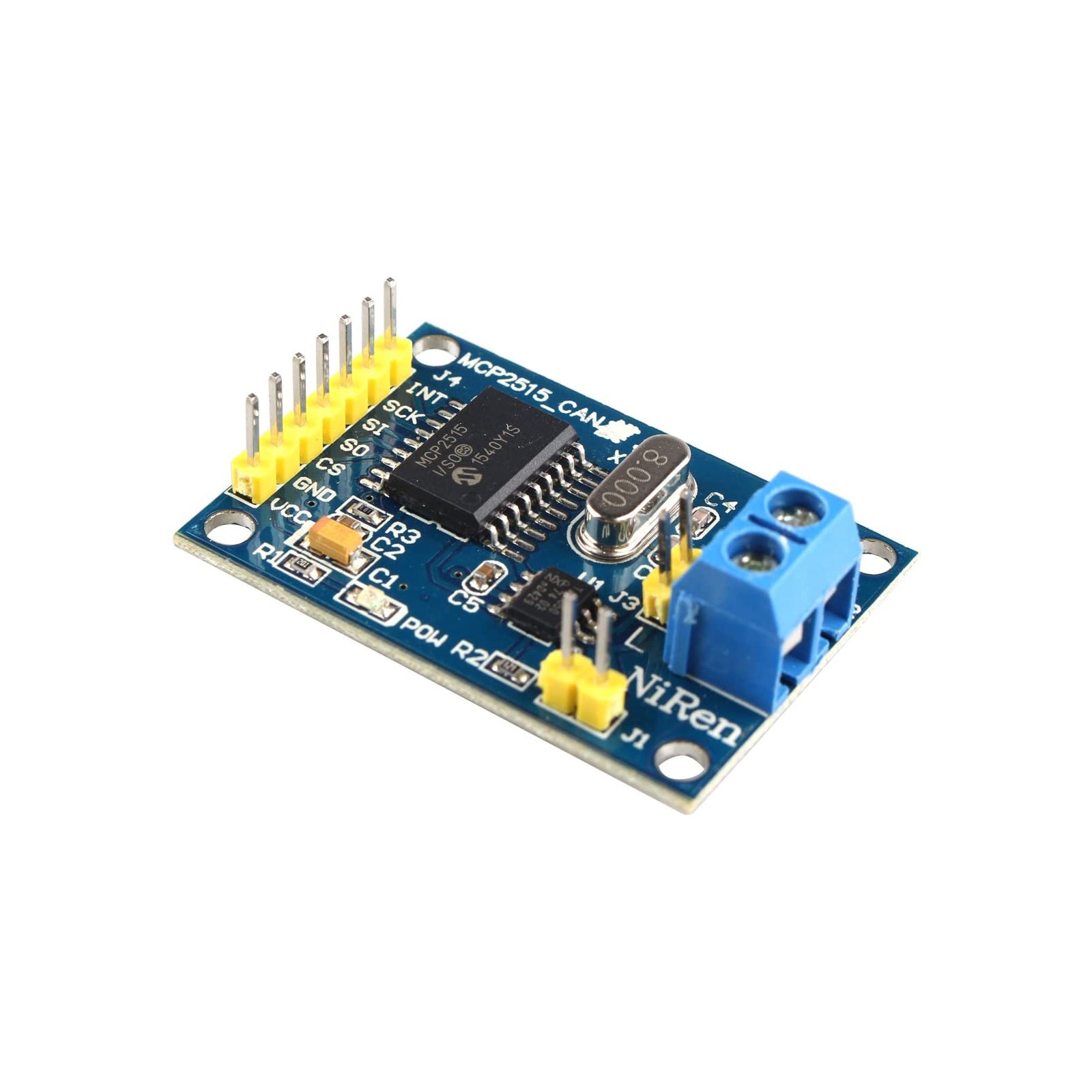

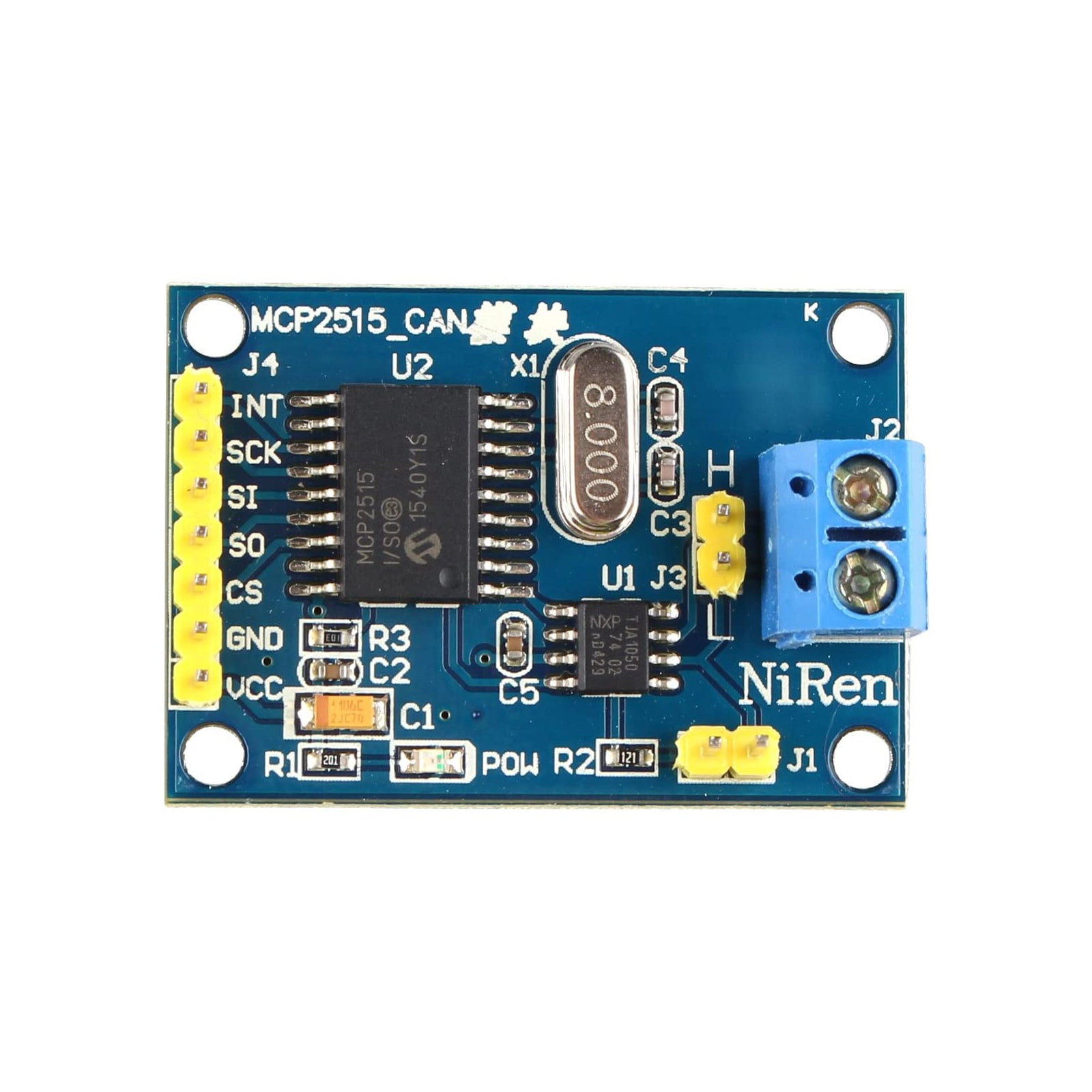

1 x MCP2515 CAN Bus Module
