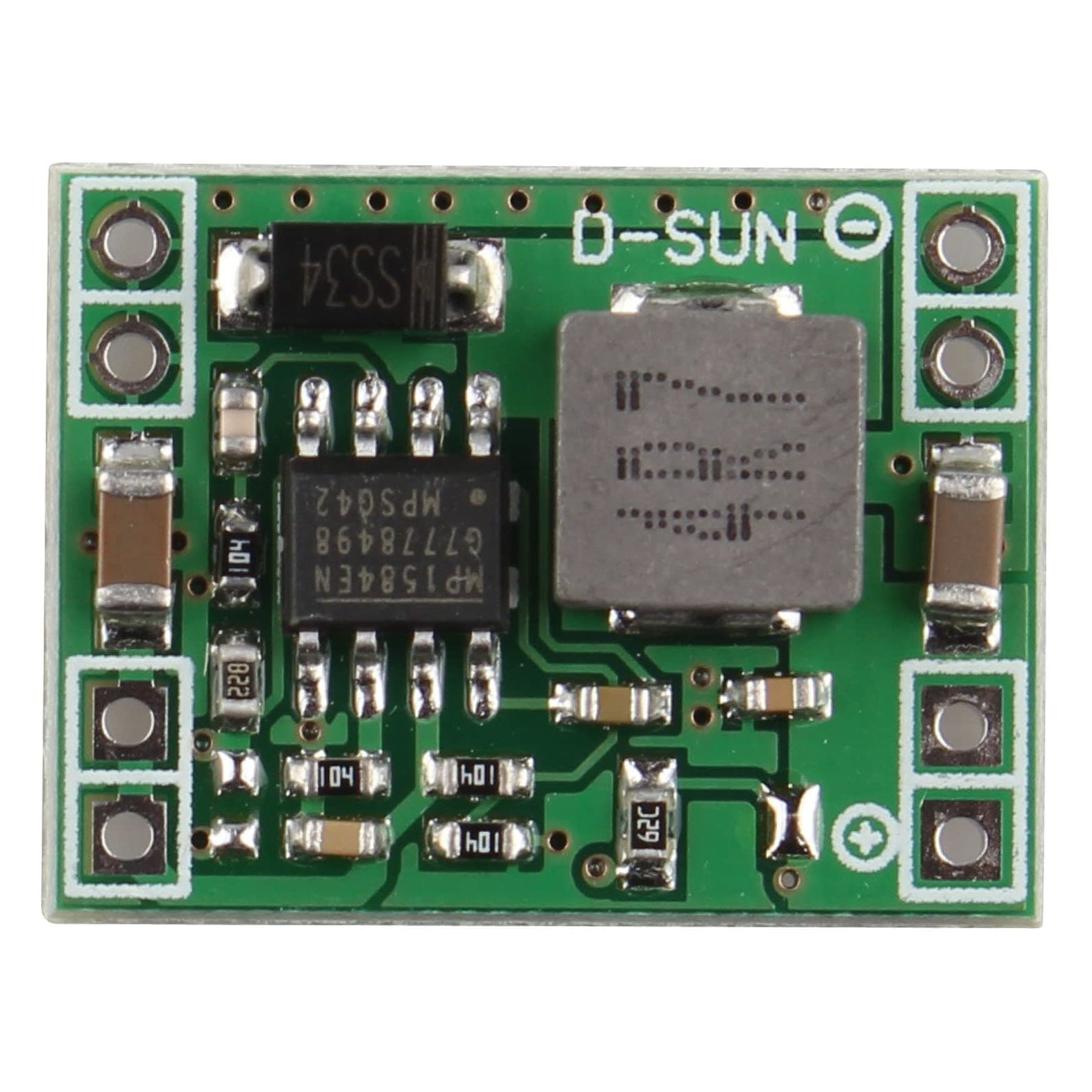

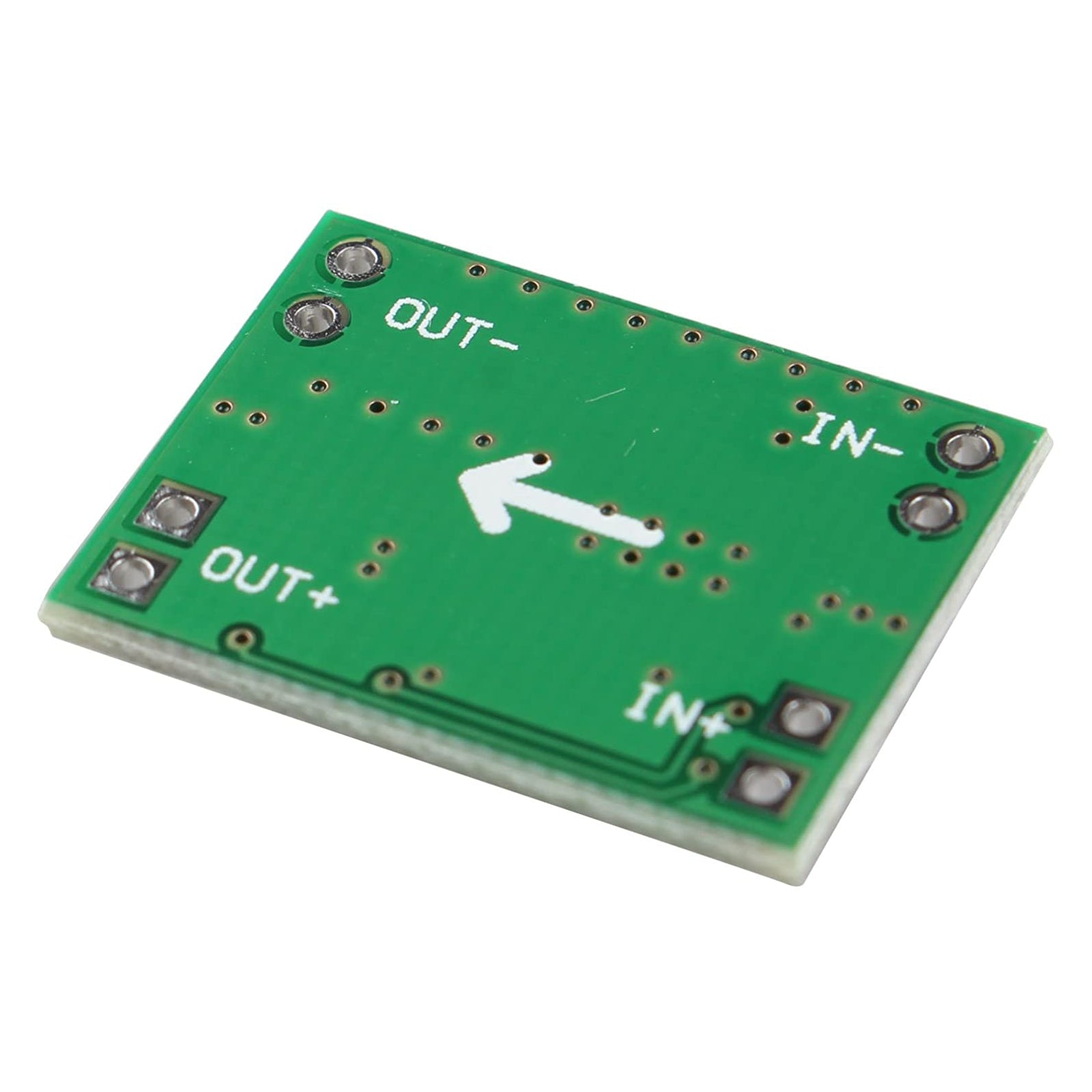

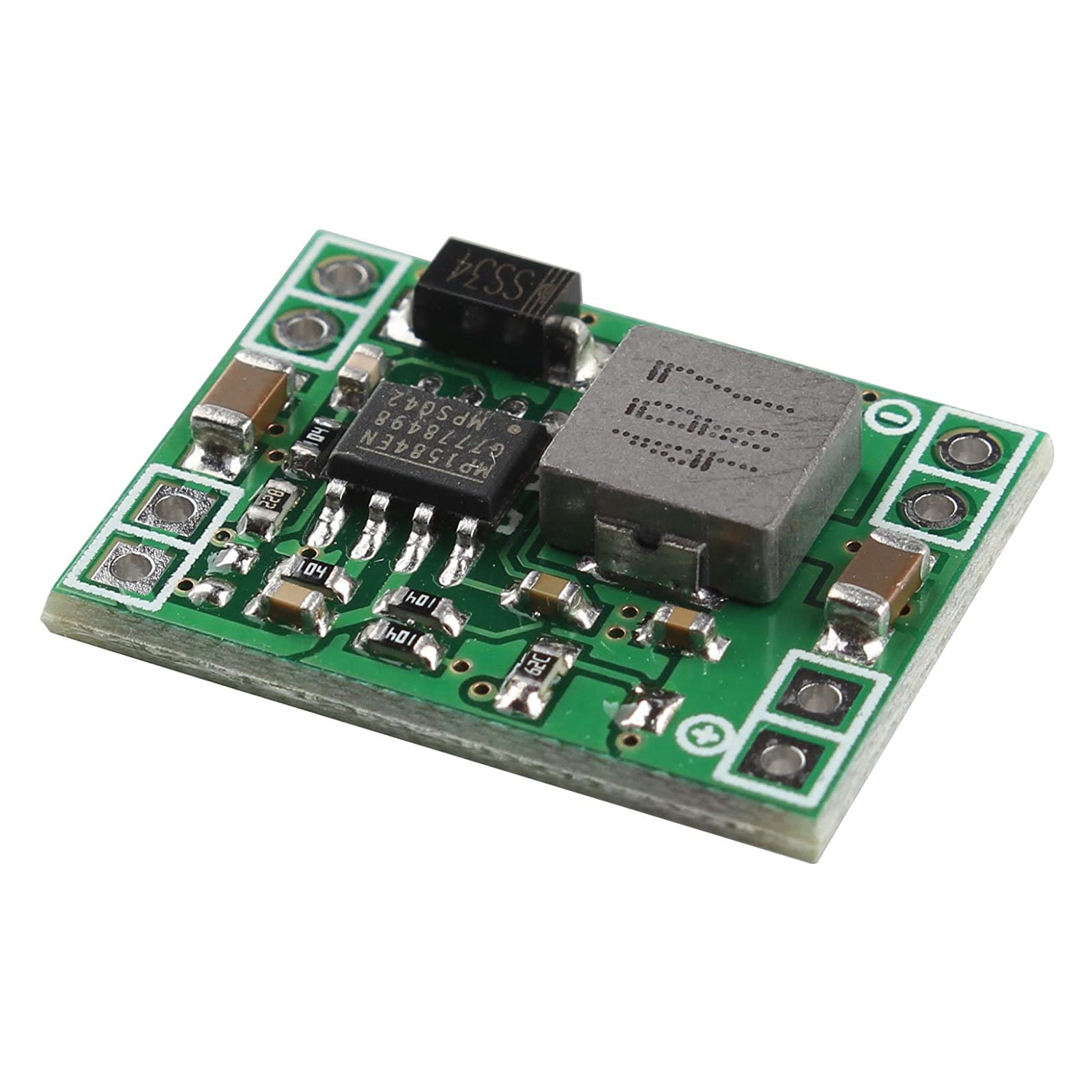

This is a mini DC-DC buck power module based on MP1584 and it output fixed 5V. It is small size, light weight, especially for model airplanes, smart car, Arduino DIY and other items.
Features:
- Module type: Non-isolated module (buck);
- Pins package: Both SMD and 2.54mm pin headers are available;
- Input voltage: 7-28VDC
- Output voltage: 5VDC¡À1%
- No load current: small, 1mA;
- Output Current: 3A(MAX)
- Continuous current: 1A(MAX)
- Conversion efficiency: 96%(MAX)
