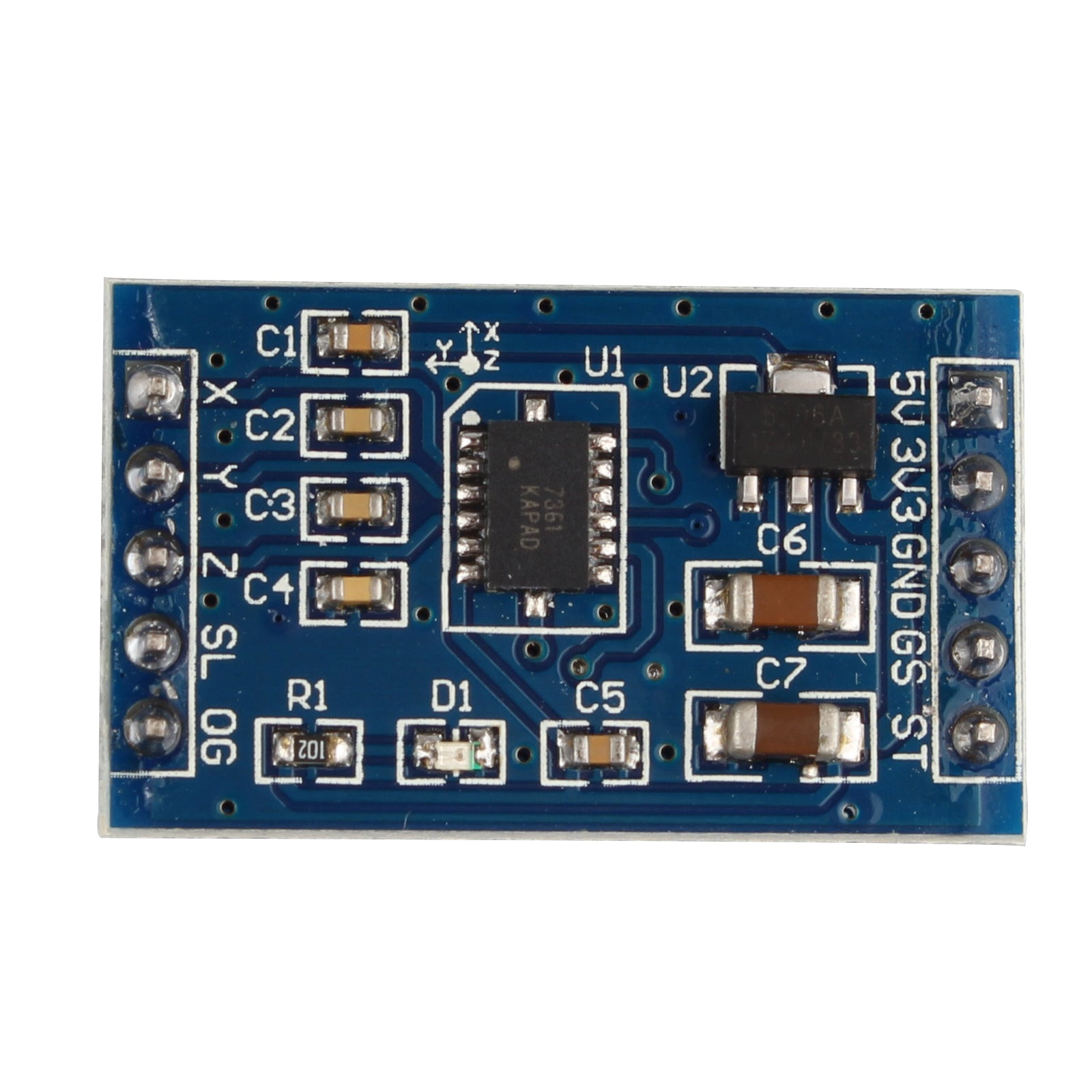

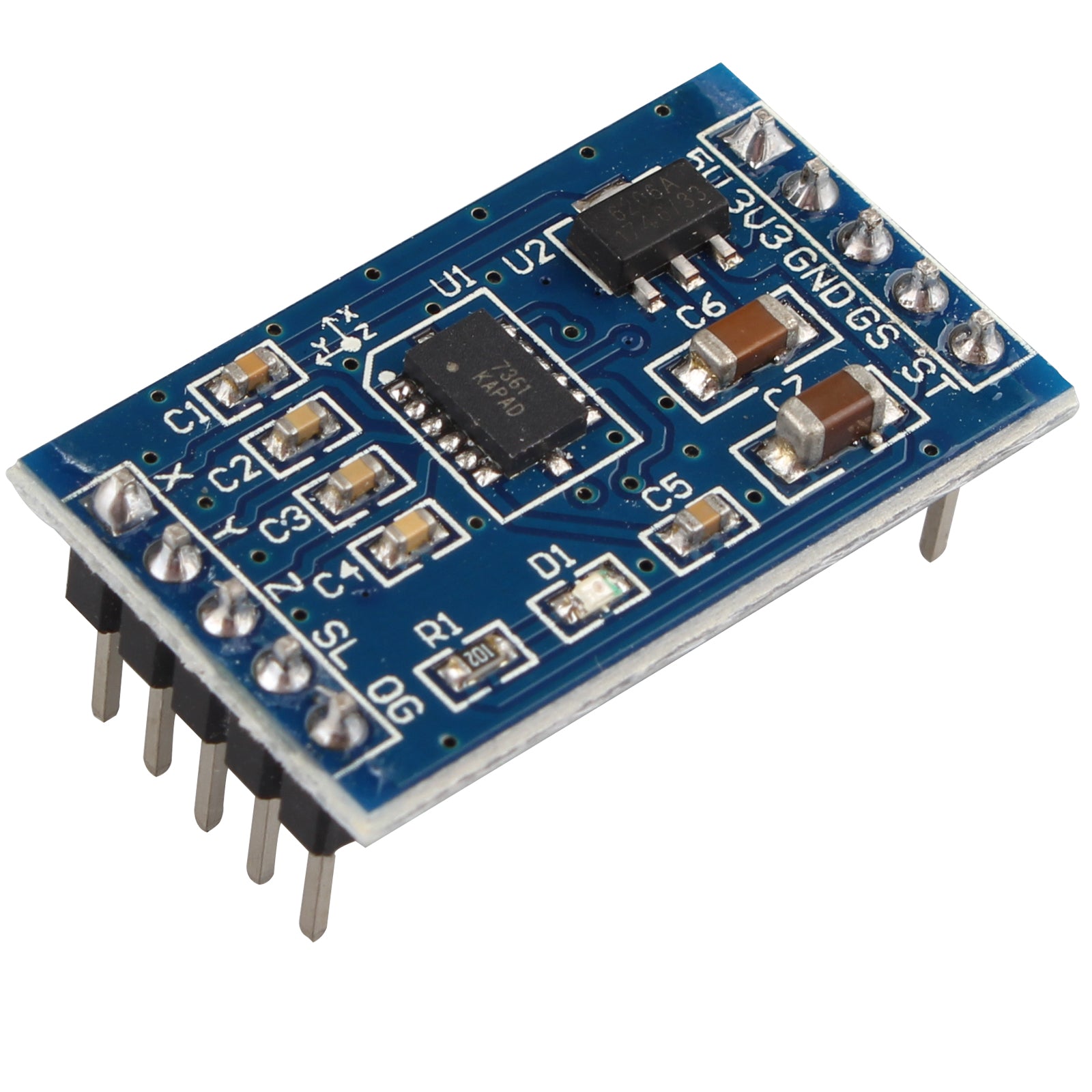

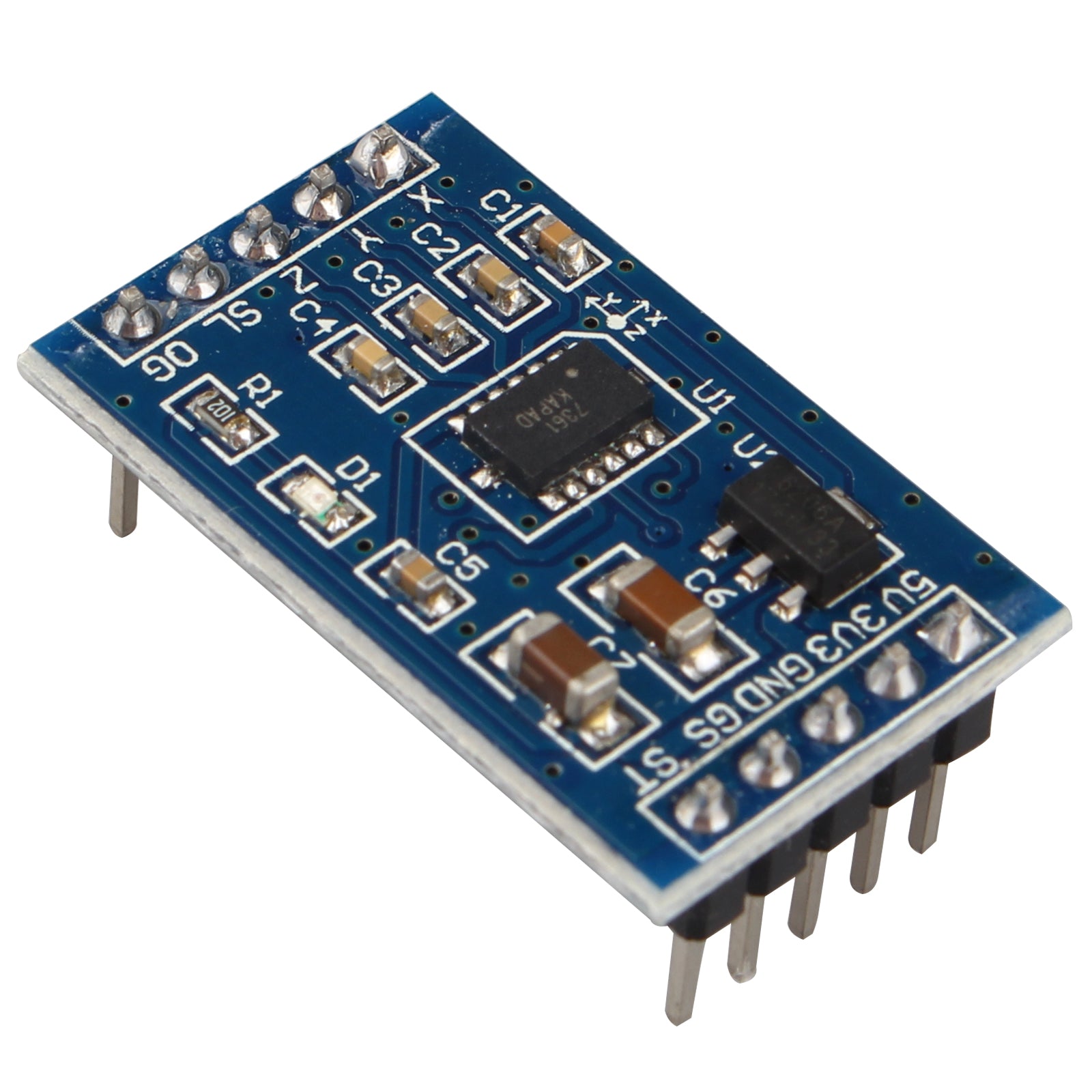

- Onboard MMA7361 (replaces MMA7260) is the low-cost miniature capacitive accelerometer.
- Support 5V/3.3V voltage input, onboard RT9161, lower voltage drop than 1117, faster load corresponding speed, very suitable for high noise power environment.
- Commonly used pins have been taken out, the pins are standard 100mil (2.54mm), which is convenient for the dot matrix board.
- The range is selected by the MCU IO, and the resistor can also be selected.
- The PCB board is double-sided gold-plated for better connection performance, longer lasting and more beautiful.
Feature:
Product Name : Angle Sensor Module
Chip : MMA7361
Working Voltage : 3.3-5V

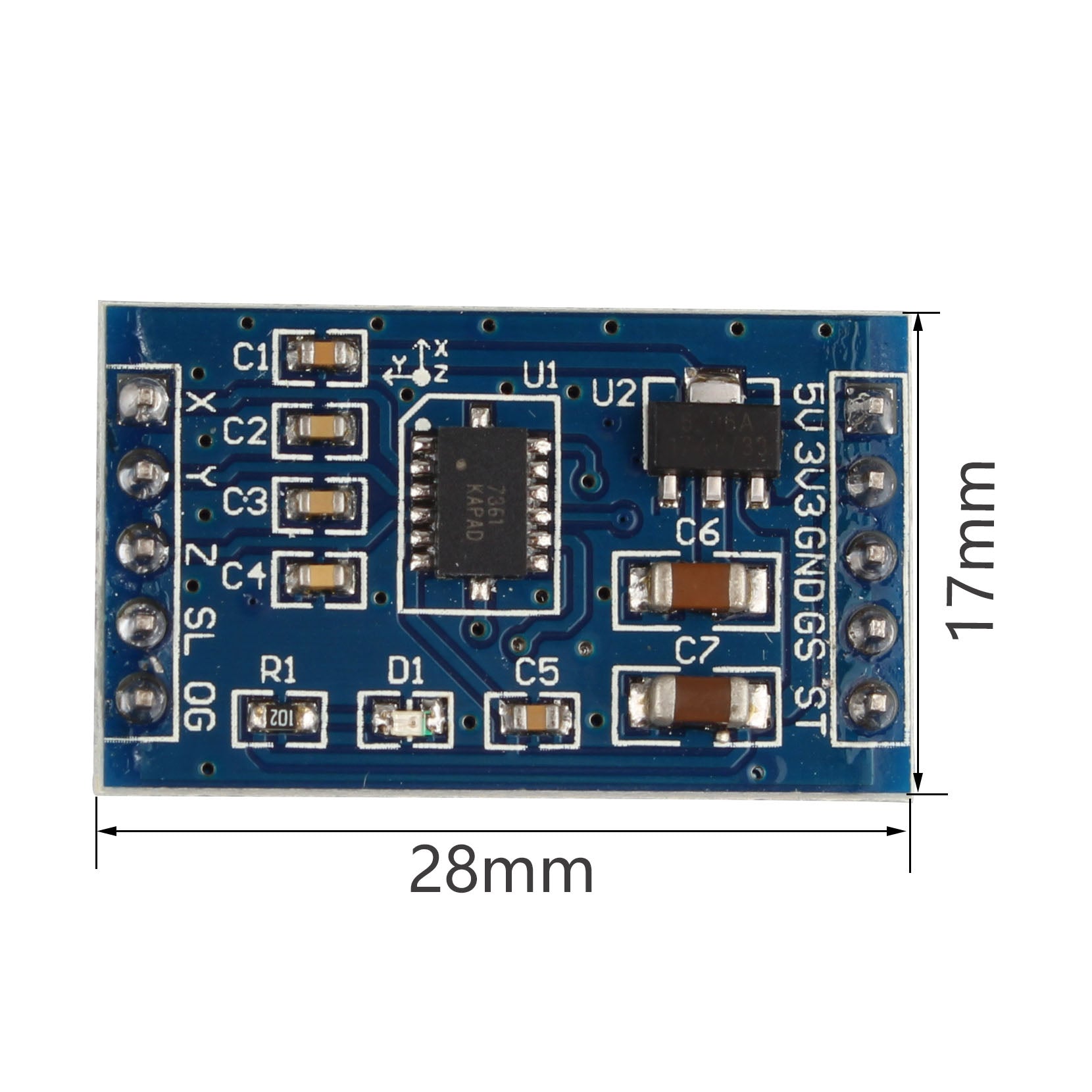

PCB Board Size : 28 x 17 x 11mm
Net Weight : 2.5g
Material : Electric Part
Note:
1.Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Packing List:
1 x Angle Sensor Module
