Features:

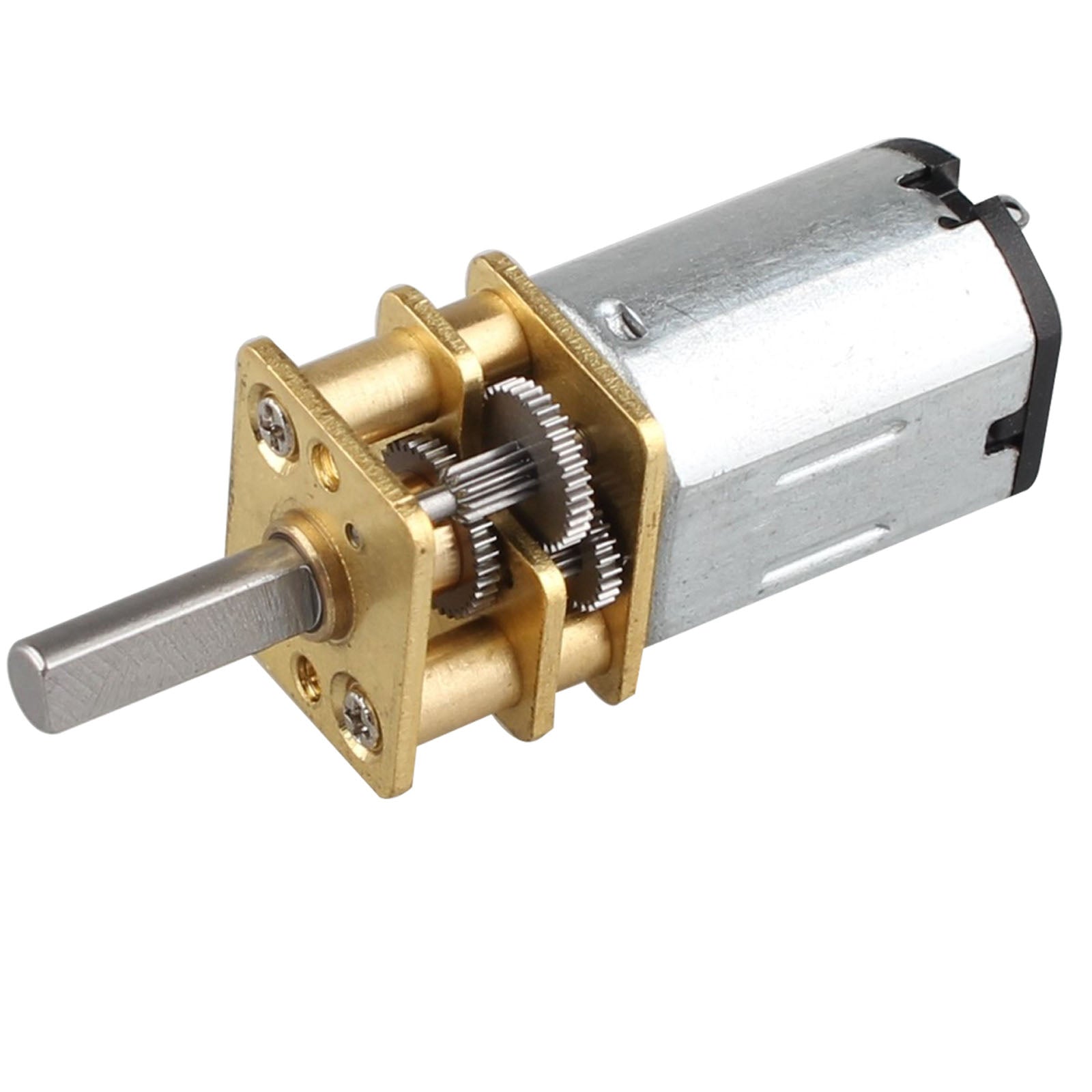

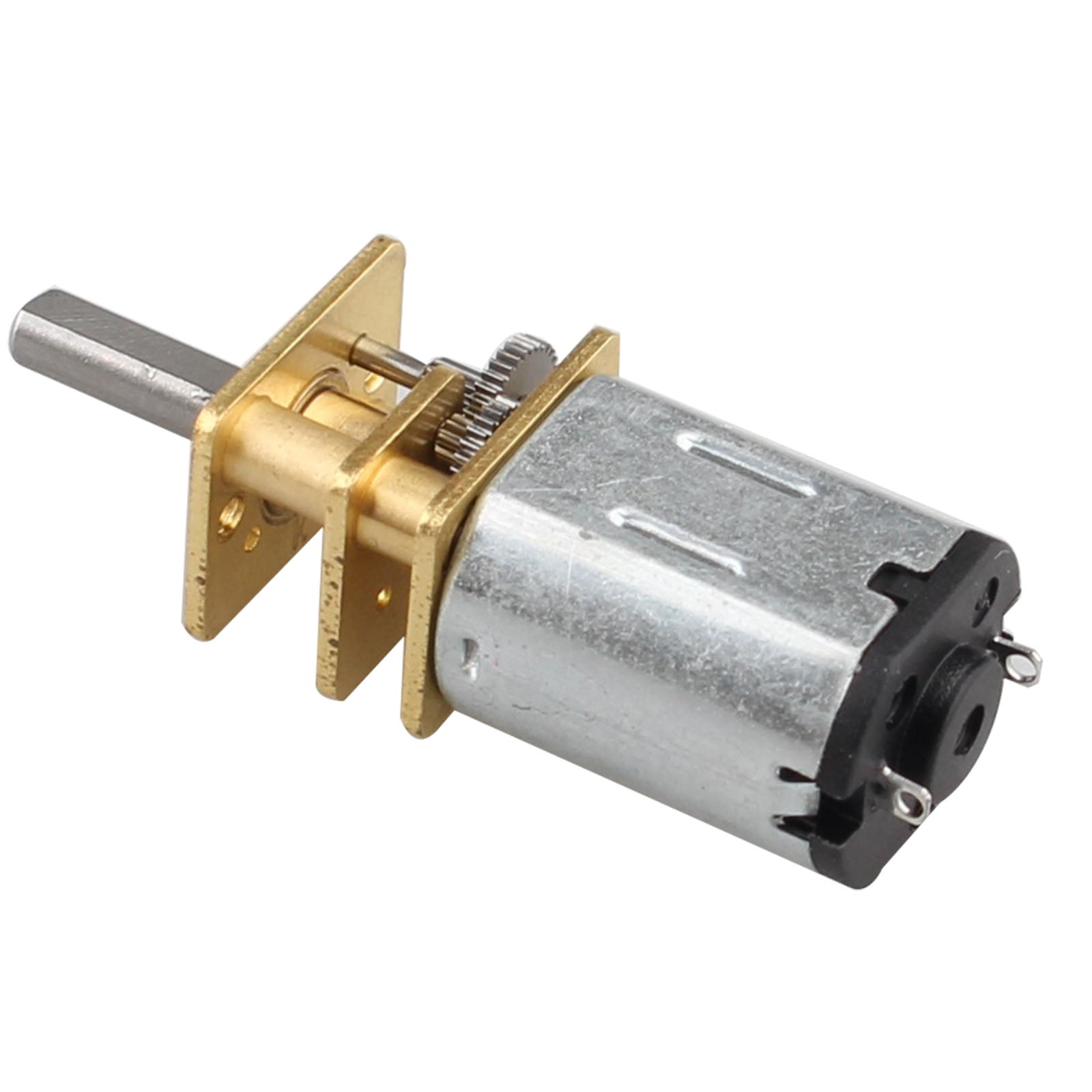

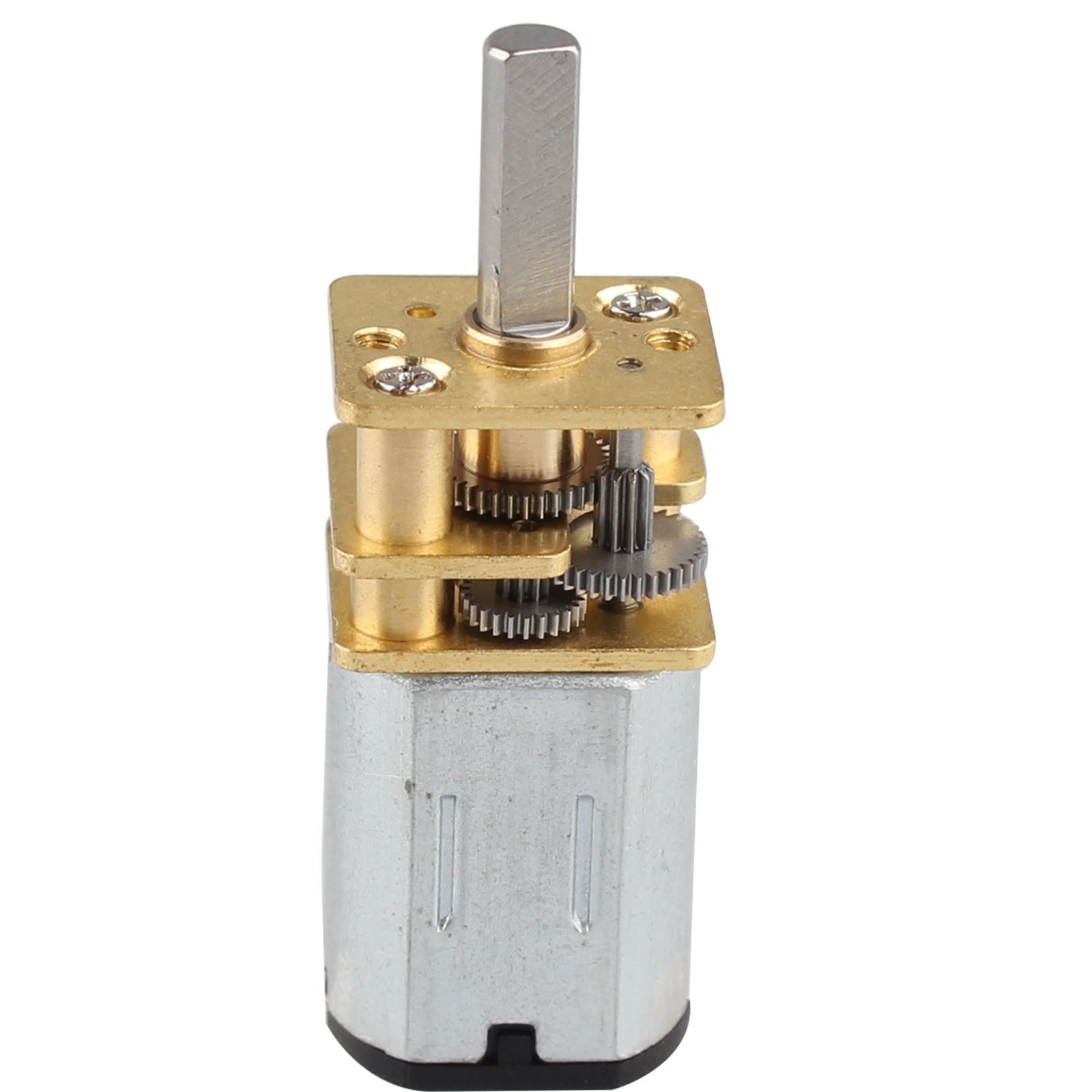

Reducer motor, all-metal structure, copper gearbox, all-steel precision micro-gear, suitable for making various precision robot models and technology models.
All gears adopt metal gears, which are stable in transmission, wear-resistant and have large transmission torque.
Micro motor suits for DIY RC Hobby, vehicles, drones, planes and more. Mainly used for electronic locks, smart cars, robots, cameras, etc.
Product Specifications:
Product Name : DC Micro Motor
Voltage: DC 12V
No-load speed: 300 RPM/min
Load speed: 240 RPM/min
Rated torque: 0.50kg/cm
Rated current: 300mA
Stalling torque: 4.00kg/cm
Stall current: 300mA
Reduction ratio (1:00): 100
Color: Silver Tone

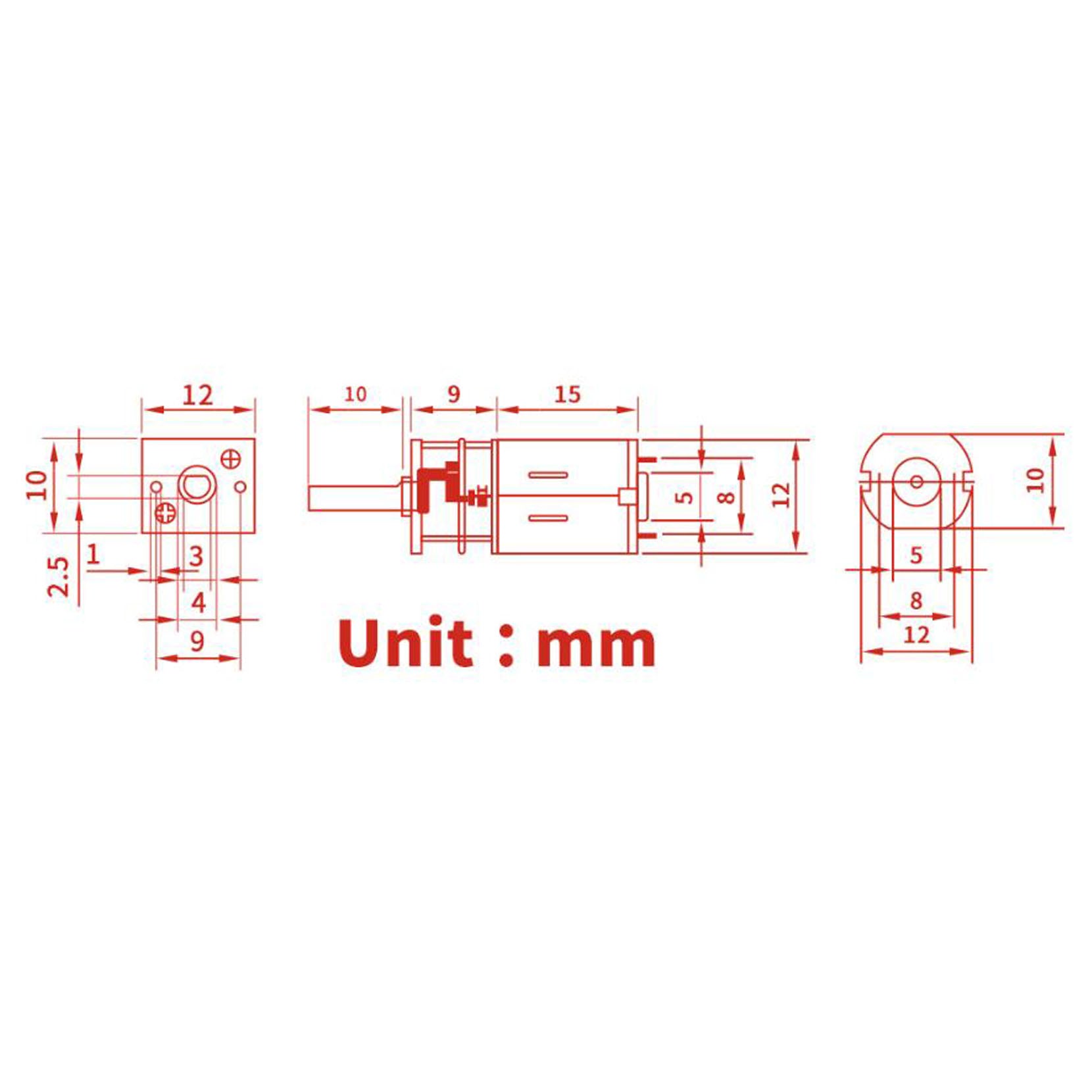

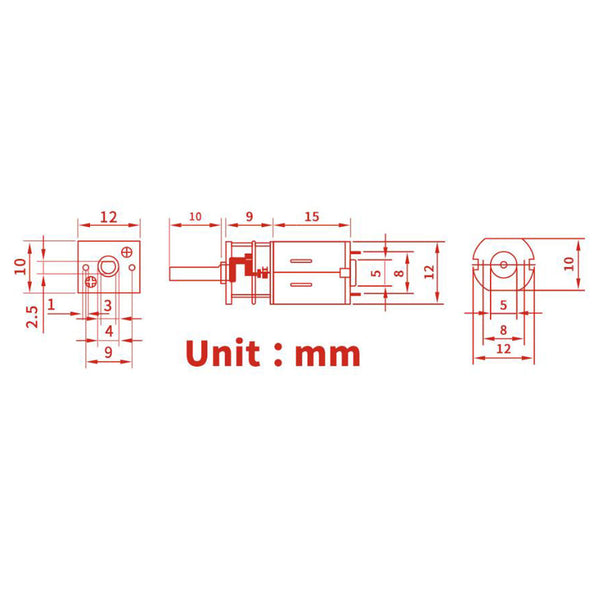

Motor Body Size: 12 x 15mm (D*H)
Total Length(Included Pin): 36mm
Shaft Diameter: 3mm
Shaft Type: D Shape
Weight: 9.4g
Packing List:
1 x Micro Motor
