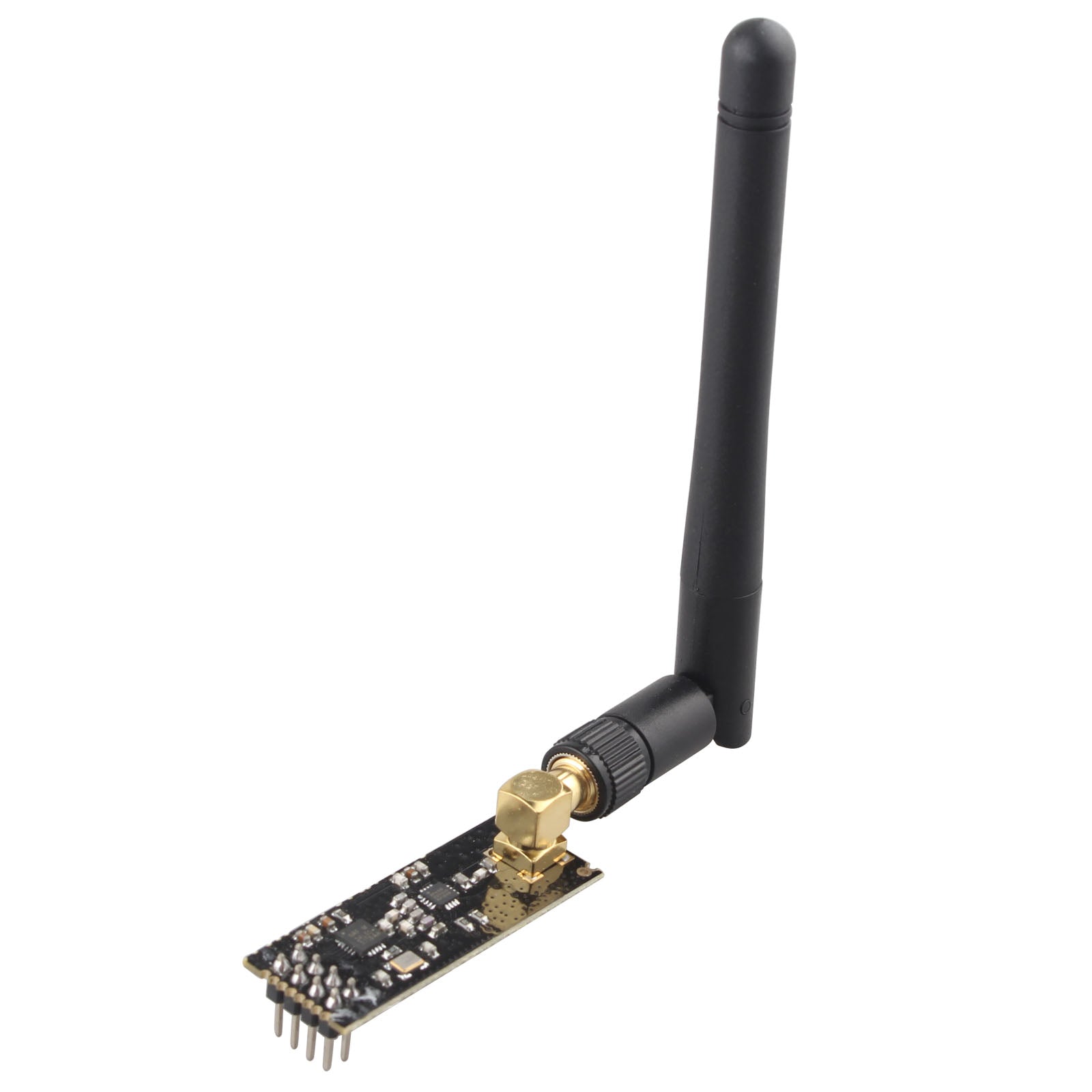

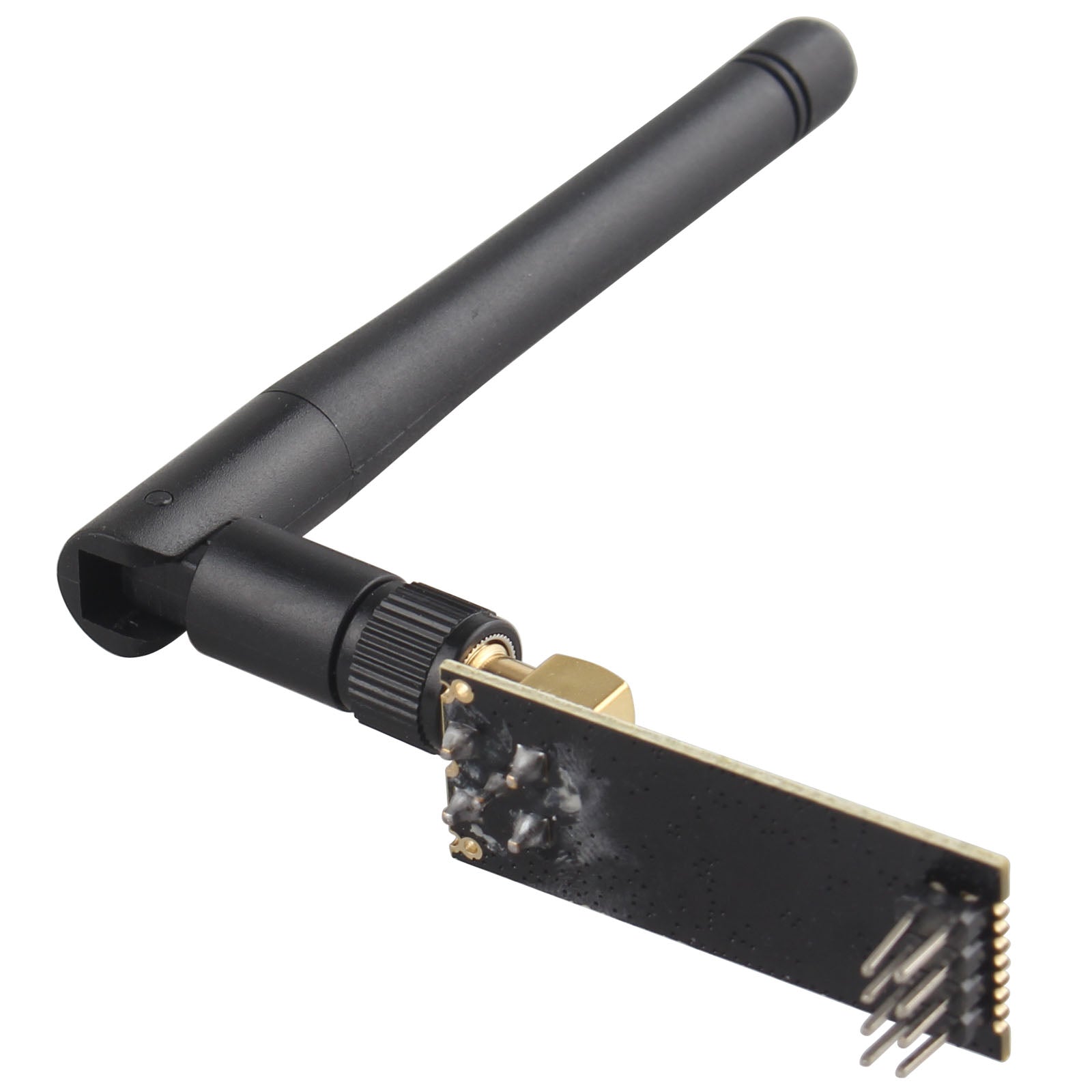

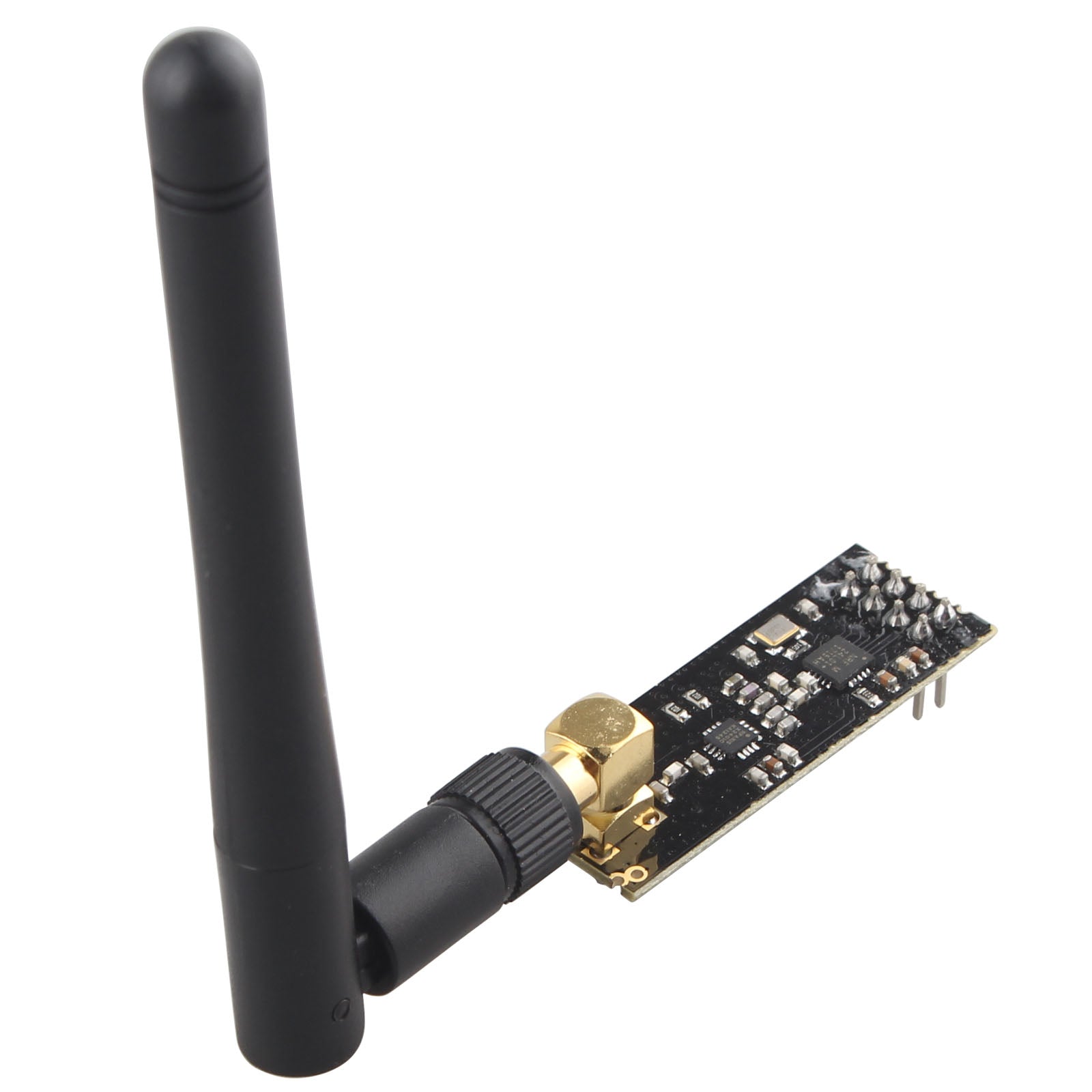

HALJIA NRF24L01 + PA + LNA Wireless Module 2.4G RF Transceiver With Antenna 1100m Compatible with Arduino

Regular price $5.99

Shipping calculated at checkout.
  • Working Voltage: 3.0~3.6V, (recommended 3.3V)
  • Maximum power: 20dBm
  • Transmit mode operating current (peak): 115mA
  • Operating current receive mode (peak): 45mA
  • Power-down mode current: 4.2uA

Product description

Under the rate of 250K, in the open area the distance up to 1100 meters;
Under the rate of 1M, in the open area the distance up to 750 meters;
Under the rate of 2M, in the open area the distance up to 520 meters;
Focus on the development and application of wireless transmission, has many experienced R & D engineers,
can provide wireless data transmission NRF24L01P + PA + LNA is a Division I for ultra-long-distance data transmission
specially developed high-power and high sensitivity wireless module;
NRF24L01P + PA + LNA wireless module operates in the license-free 2.4G ISM band can point applications
can also be composed of a star network; NRF24L01P + PA + LNA wireless module is the core of the Norwegian company's latest high-performance wireless NORDIC;
Data transmission chip NRF24L01 +, with the department's professional design, increasing the power PA and LNA chip,
RF switch, band-pass filter composed of a professional full-duplex RF power amplifier, making effective communication distance has been greatly expanded;
In the RF section, the Division has done a lot of debugging optimized matching, making the highest emission efficiency,
harmonic minimum; Makes NRF24L01P + PA + LNA wireless module RF interference of external devices to achieve the lowest,
while not susceptible to interference from other devices, greatly raise high operating stability;
In any space-constrained products, customers can add an MCU through the SPI port control NRF24L01P + PA + LNA;
Wireless module to complete the ultra-long-range wireless data transmission system design completely eliminates the need for the RF part of the R & D

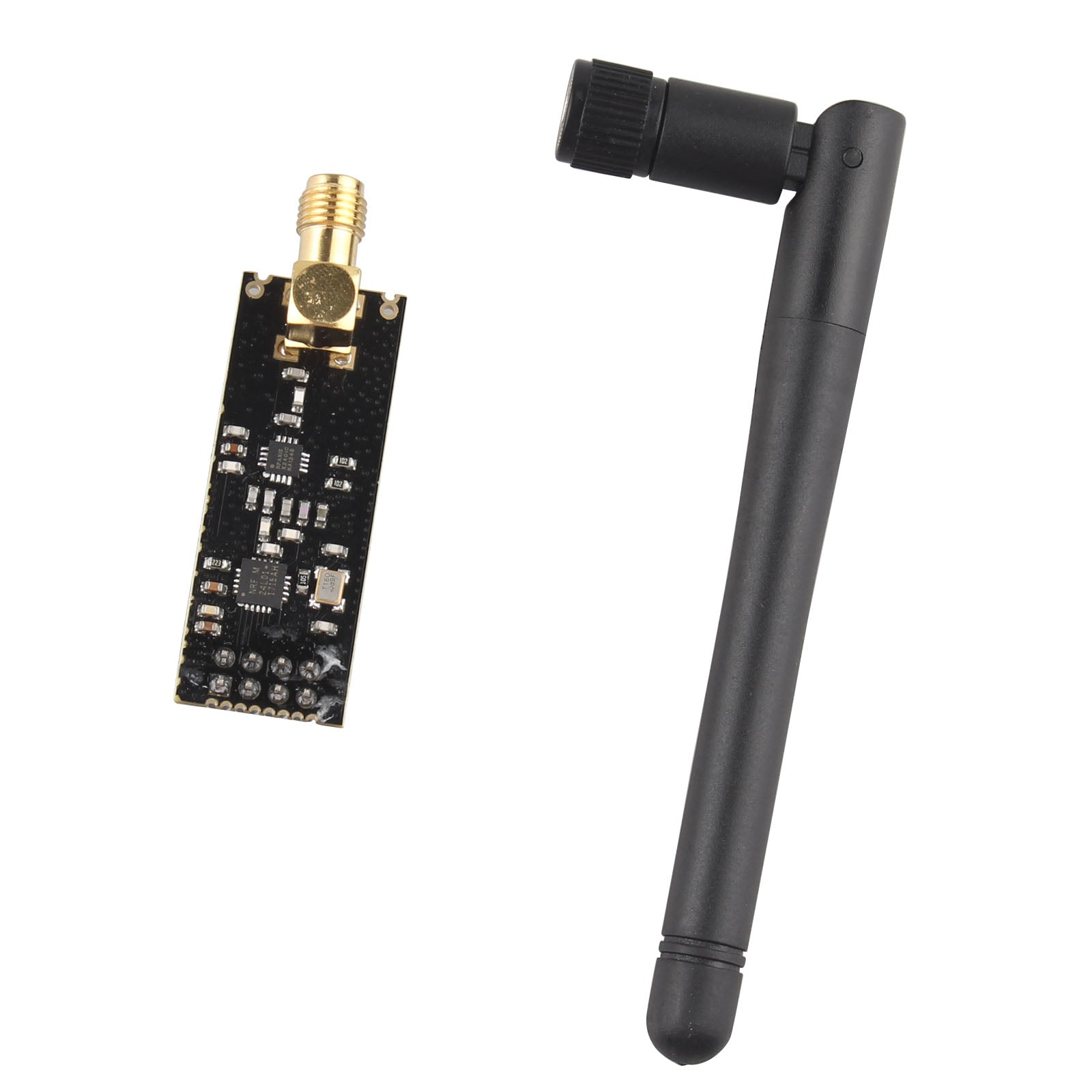

Packing List:
1 x Wireless module
1 x Antenna
