- Passive PoE means that input and output voltage are equal.
- Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.

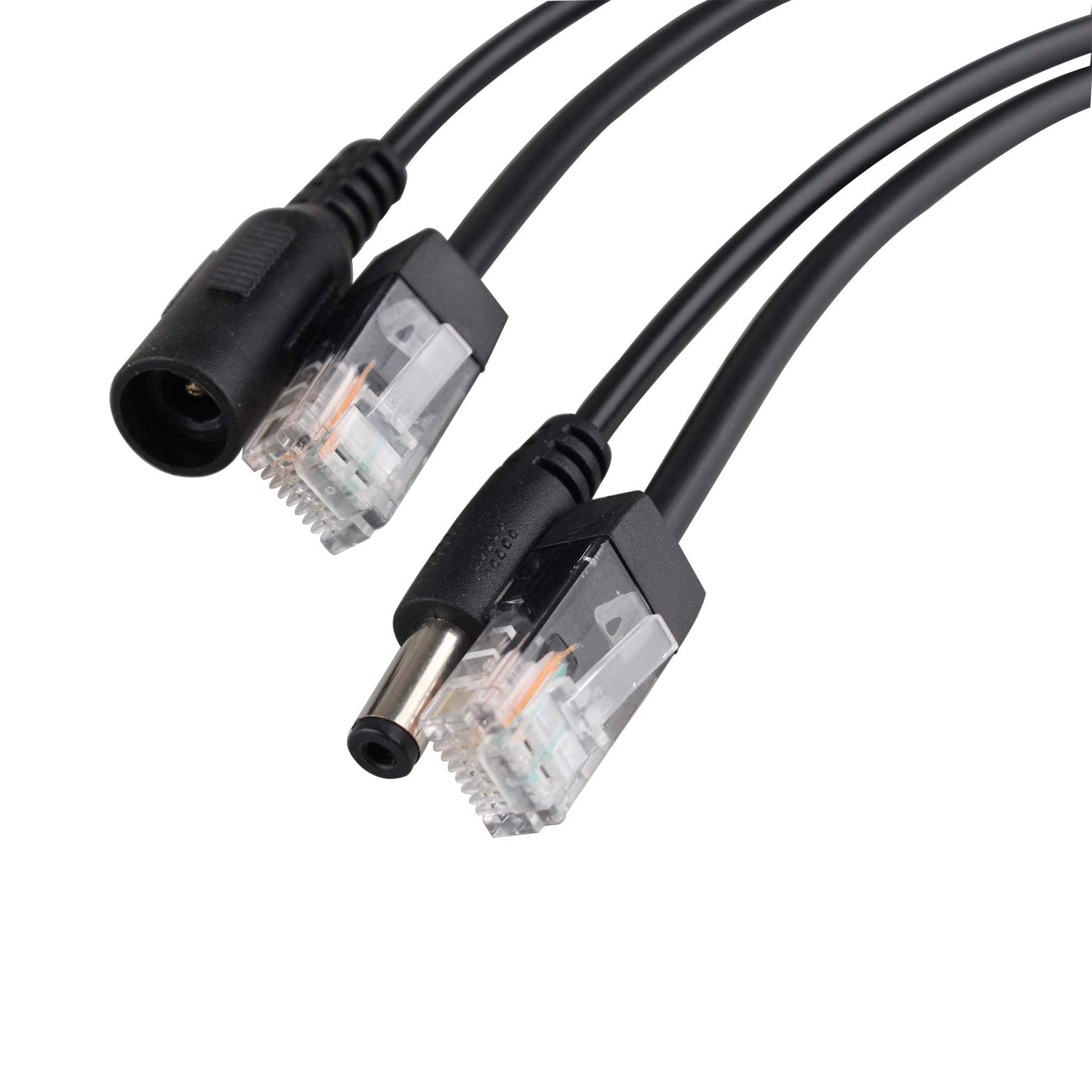

- PoE injector and splitter kit with 5.5 * 2.1 mm DC jack / plug.
- Transforms Non PoE devices to PoE enabled. Supports DC 12V-48V.
- Use with IP security camera, wireless access point and other devices Use with IP security camera, wireless access point and other devices Can work up to 30-100 m(depending on the quality of the cable and the power draw of the device).

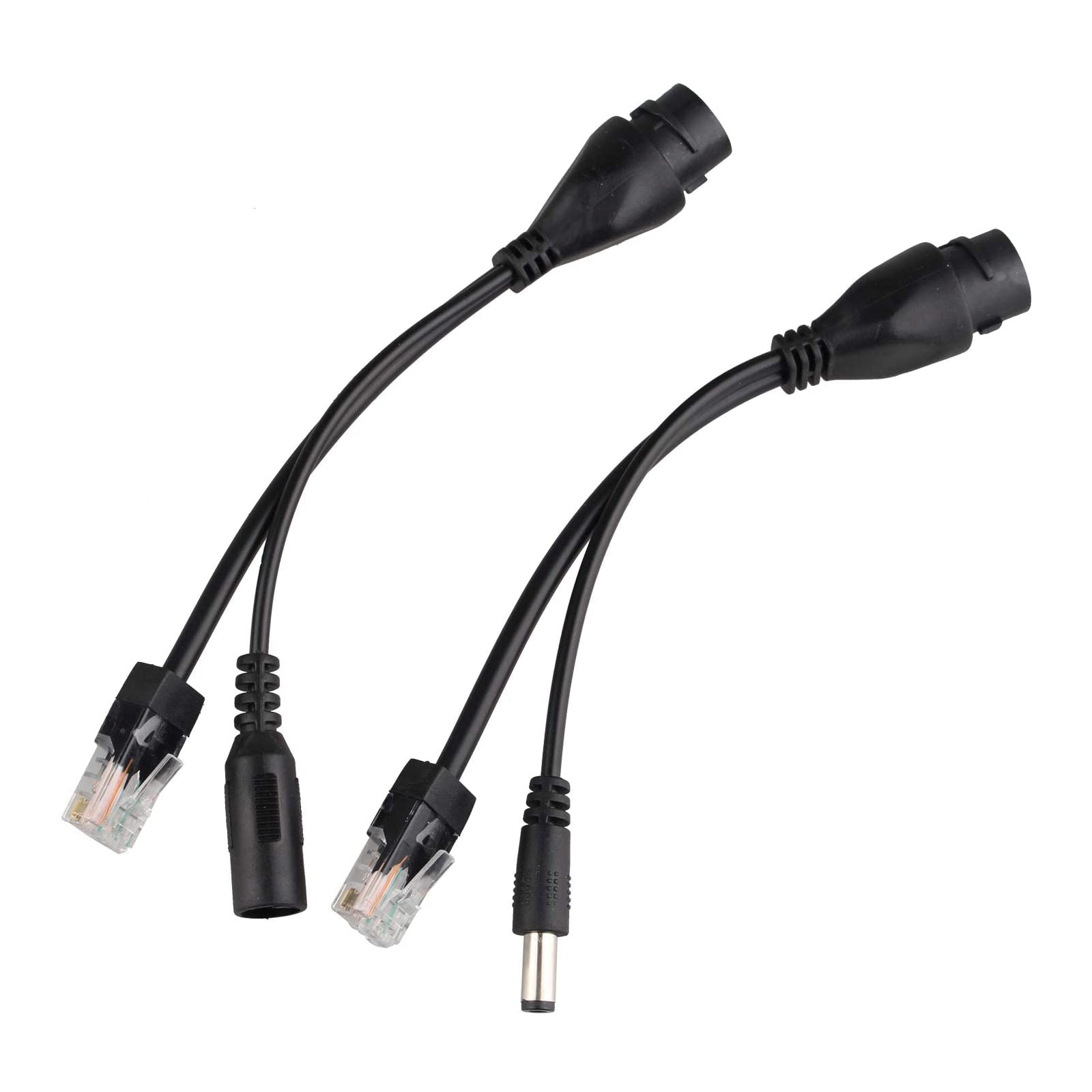

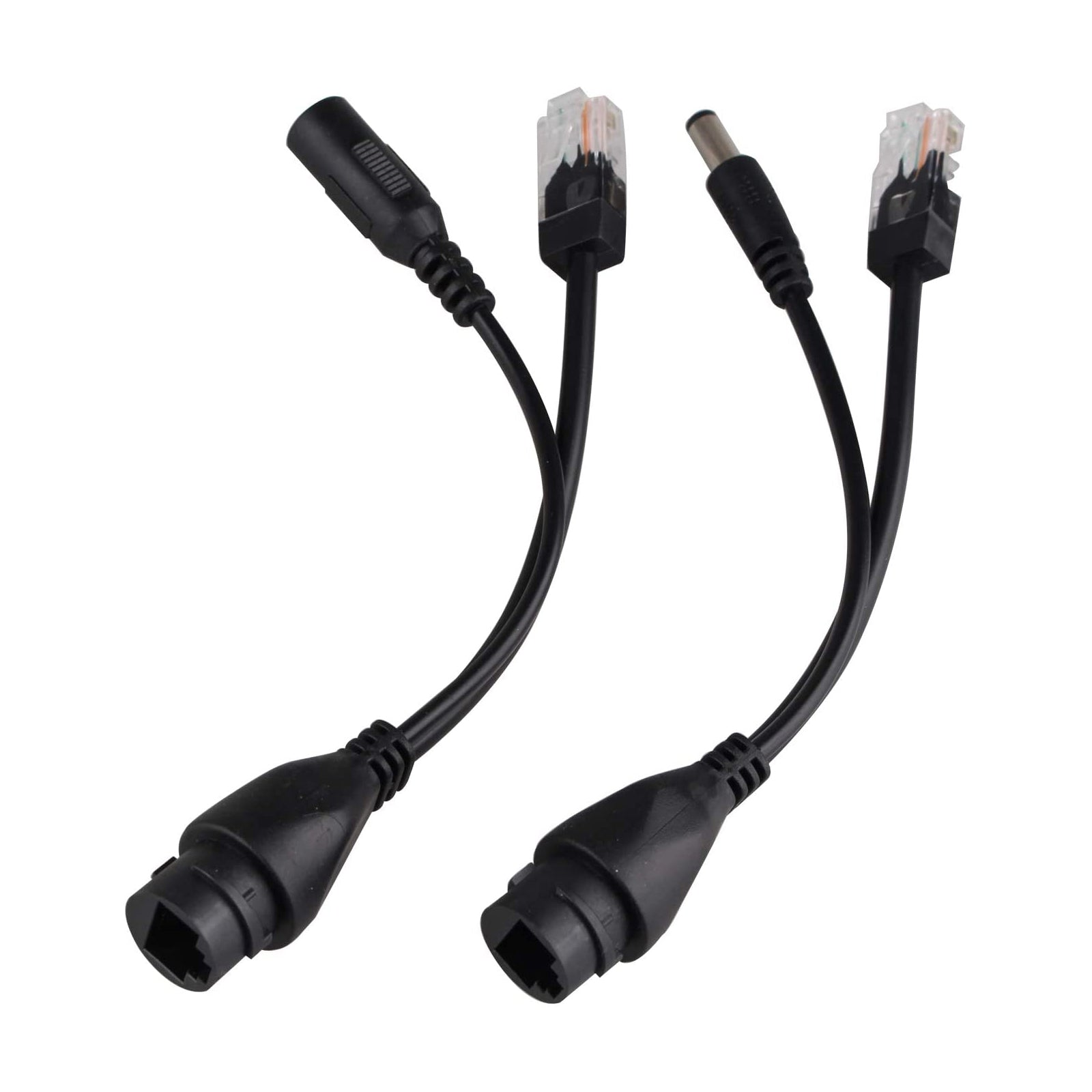

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER.
It is suitable for using with products IP camera are with the smaller size power jack.

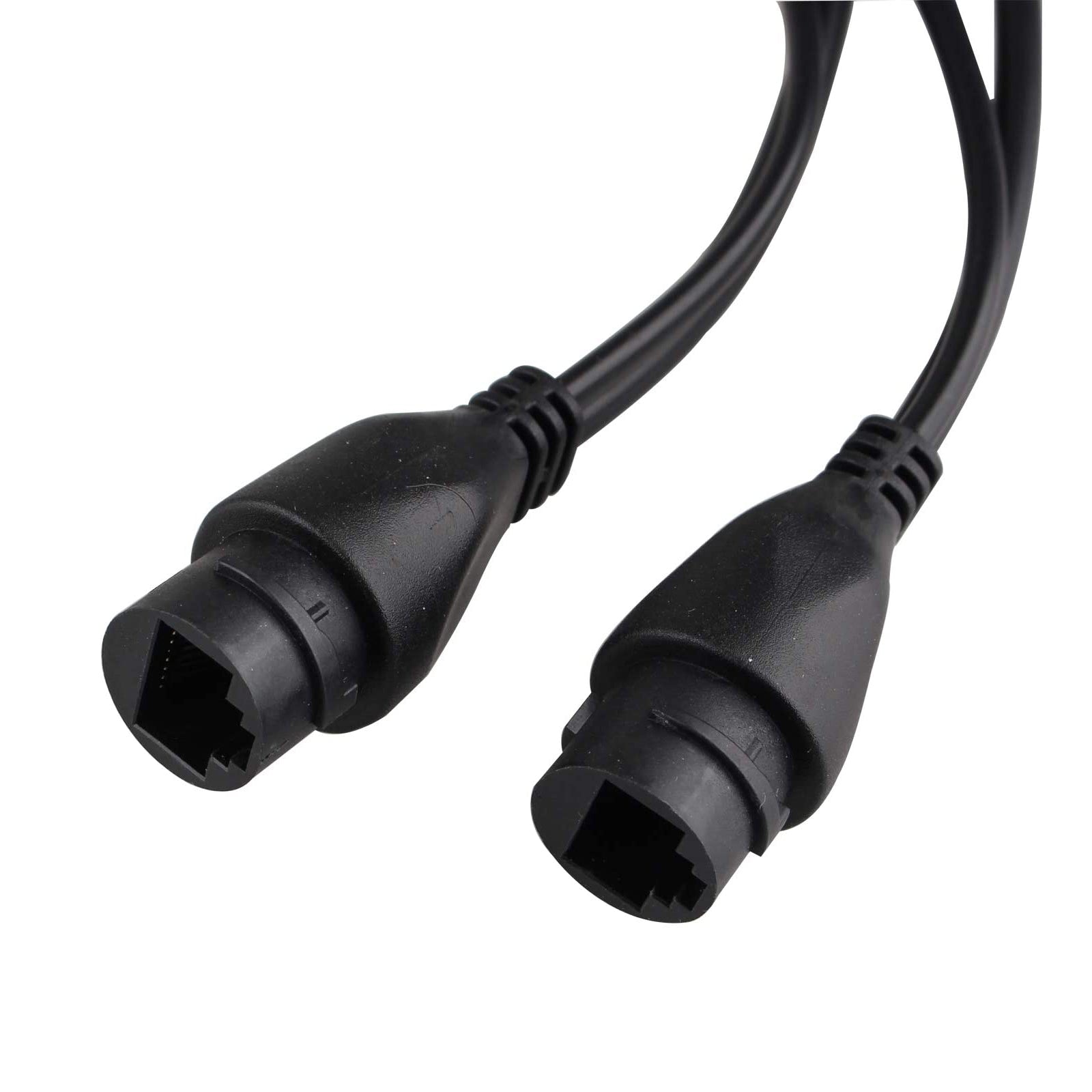

Injector: RJ45 Male + Power In to RJ45 Female
Splitter: RJ45 Female to RJ45 Male + Power Out
Supports: DC 12V-48V
Power plug / jack: 2.1 * 5.5mm / 0.9 * 2.2in
Power Pins: 4,5 + and 7,8
Transmission distance: 30-100 m,If your transmission distance is more than 100 m, please use adjustable QS brand centralized power supply.
Use pair of this with QS brand adjustable centralized power supply,the transmission distance is about 80 m.
Use non-adjustable 12V power supply,the transmission distance is 50-80 m.
(Note: according to the voltage of the power supply voltage, line quality.)
Please try to use the oxygen-free copper pure copper wire. Use better power to reduce the instability.
Note: Use 12V-15V SPOE switch output , please confirm the output is 12V ,not 48V.
This section does not with voltage transformer function.
Use the switch with output 12V, power to 90W-110W, transmission distance is about 100 m.
Use the switch with output 15V, power more than 90W, transmission distance could up to 100 m.
Application: WLAN, routers, switches, internet telephony, security monitoring etc
Product size: 16 * 2 * 2cm
1 * PoE injector cable
1 * PoE splitter cable
