- Output current stepless adjustable to meet your needs of a variety of applications.
- Automatic half-flow function. Semi-automatic flow switch, easy to use.
- The use of high-speed optical coupling 6N137, ensure high speed without losing step.
- Instructions for the device are printed on the back panel. Used to increase the heat sink, good heat dissipation.
- Using TB6600HG chip, with low voltage shutdown, overtemperature shutdown and overcurrent protection circuit, and compared to TB6560 increased short circuit protection.
Technical Parameters:
1) Operating voltage: 10V-45V DC. DC32V switching power supply is recommended.
2) Optical high-speed coupling 6N137, ensures high speed without losing step.
3) High current, high voltage TB6600HG original chip, with low pressure shutdown, overheating shutdown and overcurrent protection, short circuit protection compared to TB6560.
4) Rated maximum output reached: +/- 4.5A.
5) Suitable for within 4.2A 42,57,86 two-phase / four-phase / four-wire / six-wire stepper motor.
6) Automatic half flow function.
7) Segmentation: full step, half step, 1/4-step, step 1/8, 1/16-step, up to 16 segments.
8) Size: 82 x 50 x 35 (mm)
Product Features:
1) Output current stepless adjustable to meet your various application requirements.
2) Automatic half flow function. Semi-automatic flow switch, easy to use.
3) The use of the 6N137 high-speed optical coupling ensures high speed without losing a step.

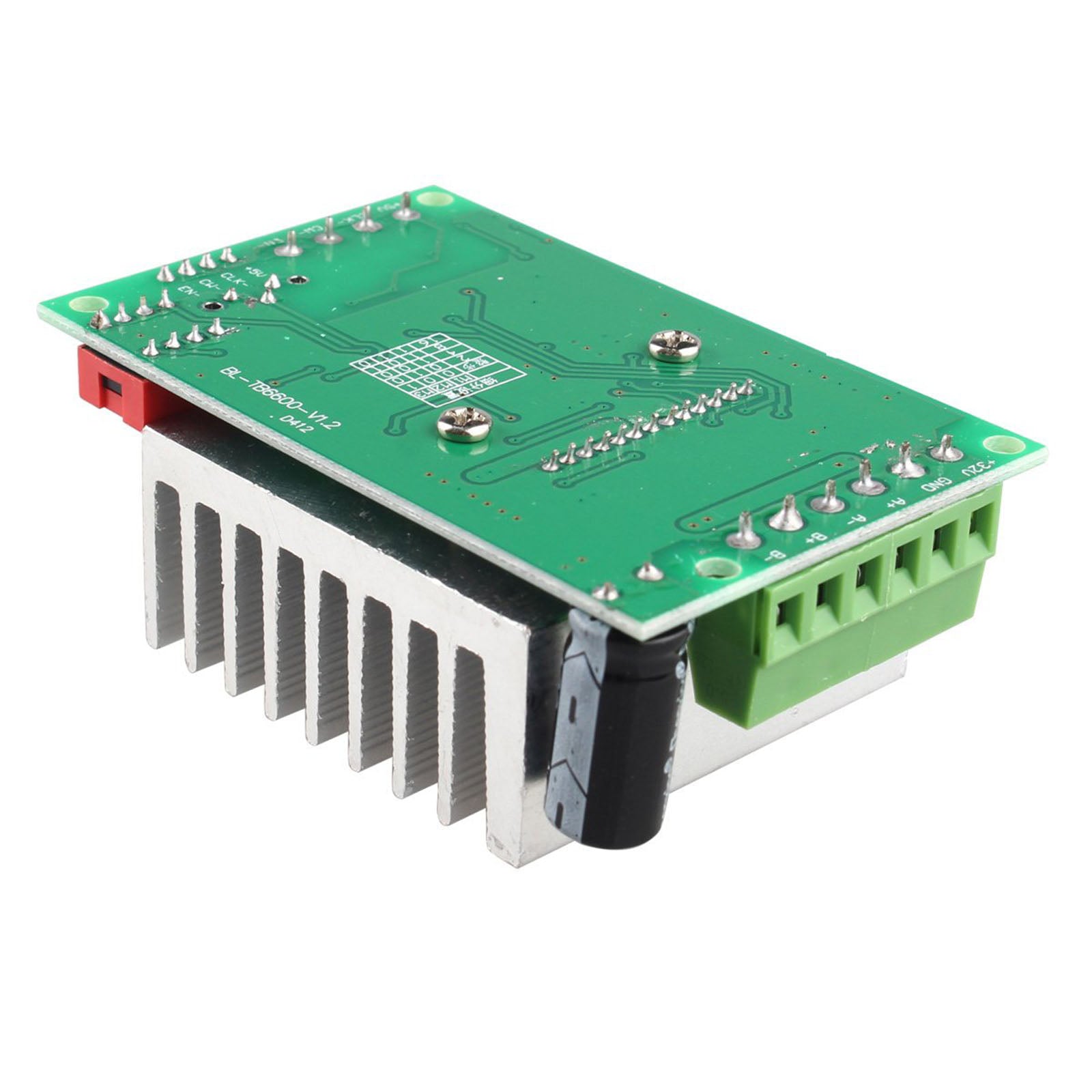

4) Instructions for the device are printed on the back.
5) Used to increase the heat sink, good heat dissipation.
6) With output short circuit protection function.
7) Using common anode input mode, there are two input terminals, wiring more convenient.
Package Included:

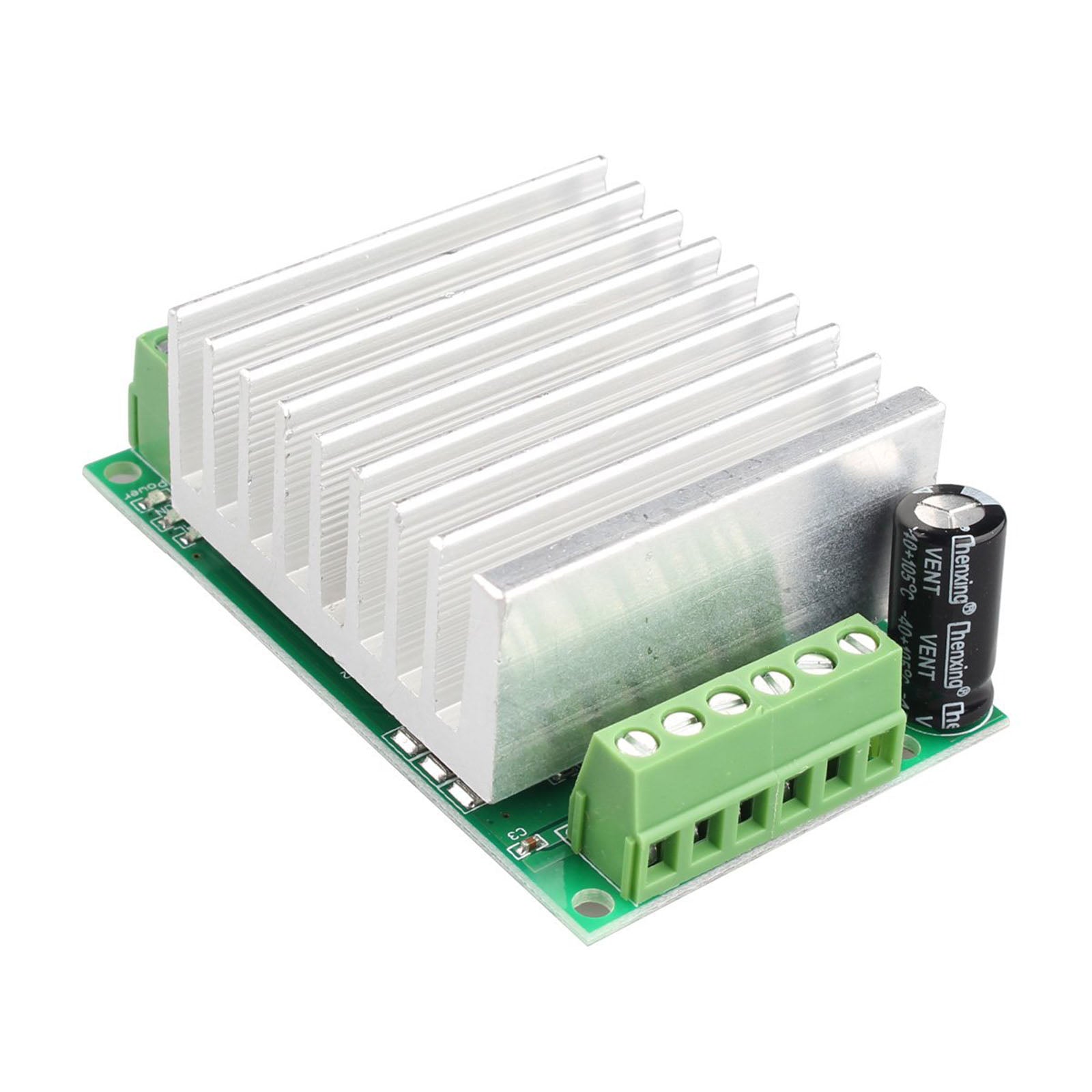

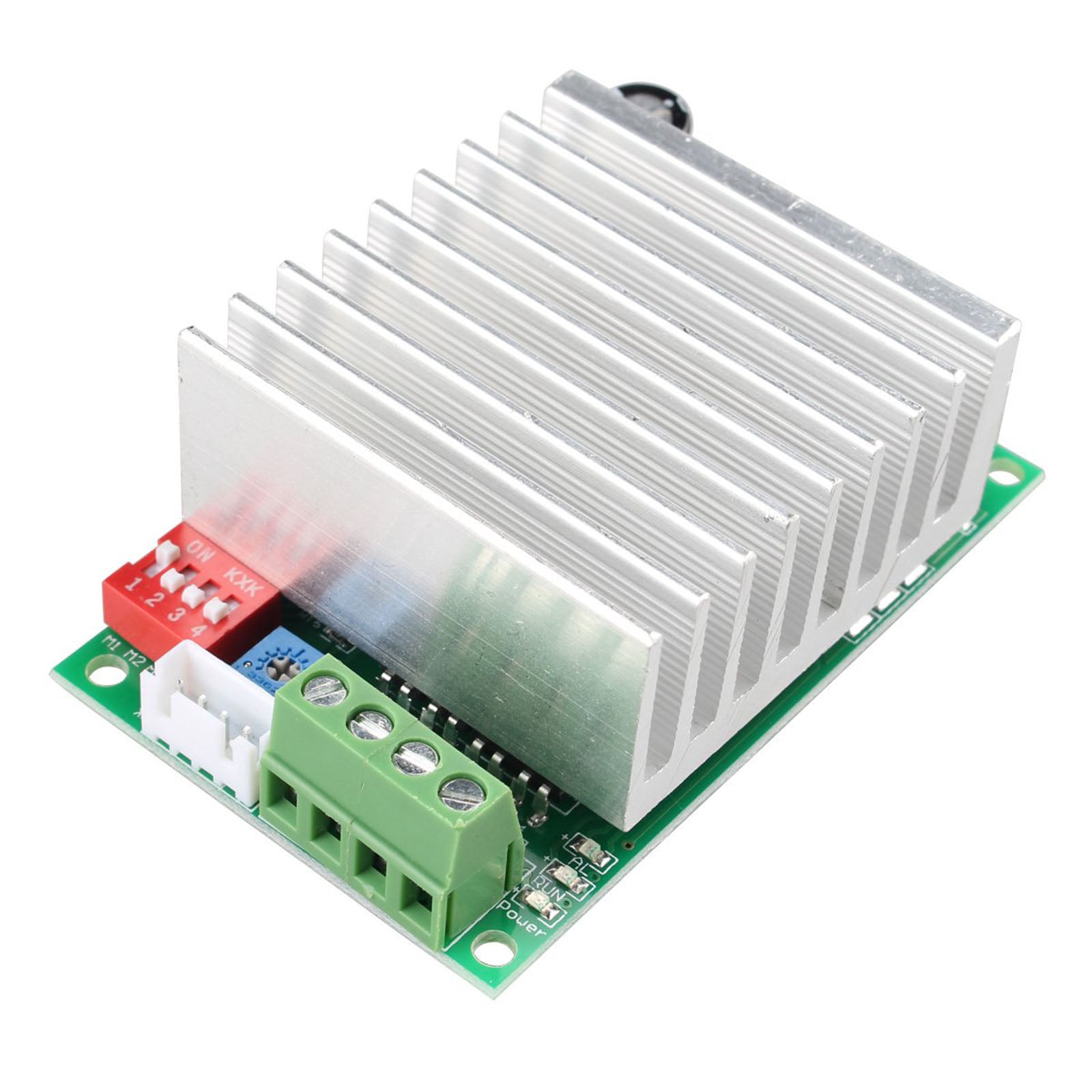

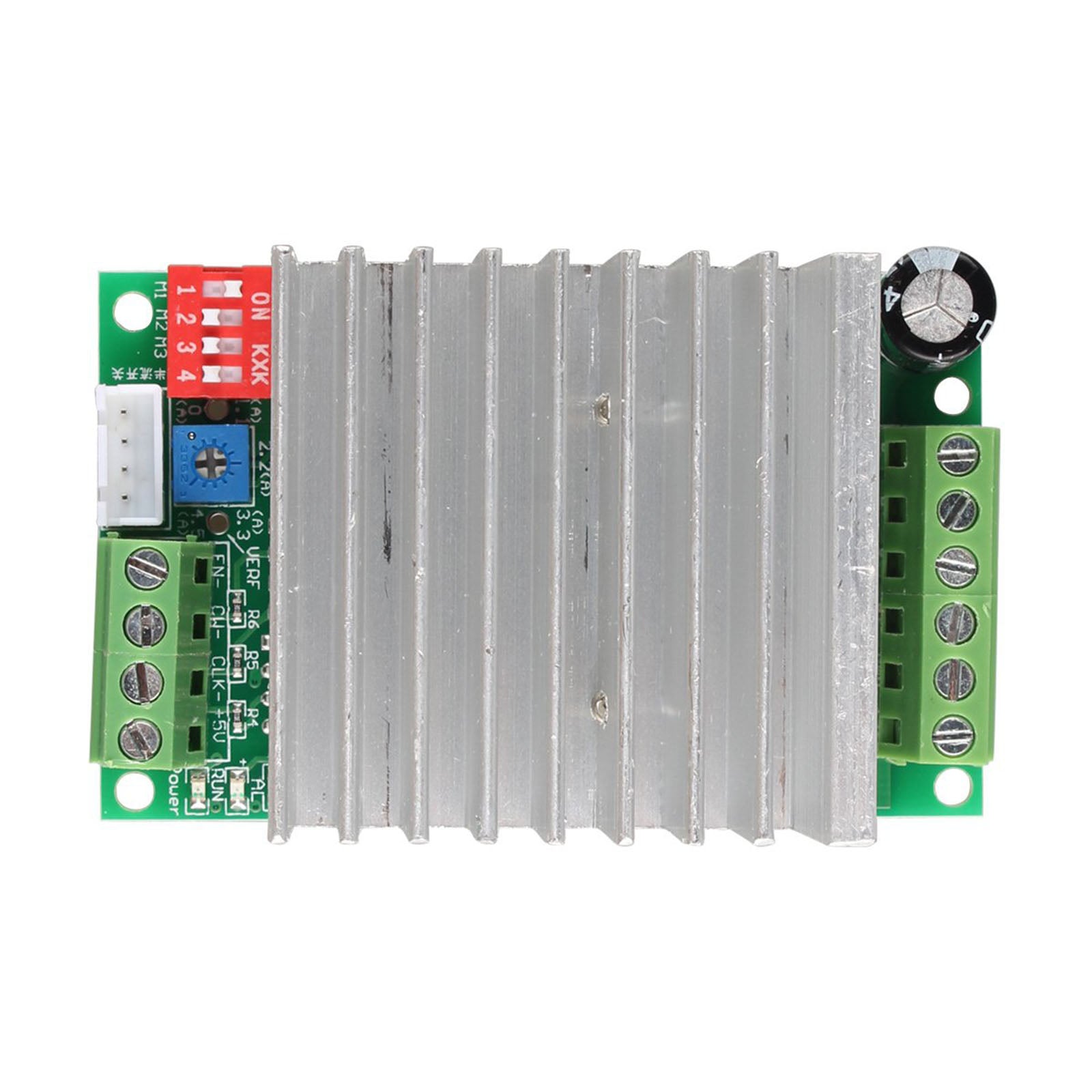

1 x TB6600 Stepper Motor Driver Module
