- TCS3472 devices available in red, green and blue (RGB) and digital Mingguang induction return value. Color sensitive photodiode integrated sheet cutting and localized infrared light blocking filter, minimizing the infrared spectral components of the incident light, so that more accurate color management.
- High sensitivity, wide dynamic range and an infrared light blocking filter makes TCS3472 become ideal lighting conditions change and through color sensitive element attenuating materials under conditions of solution.
- Input Voltage Levels Compatible with VDD or 1.8 V Bus;Register Set and Pin Compatible with the TCS3x71 Series.
- Programmable Upper and Lower Thresholds with Persistence Filter.
- Very High Sensitivity; ideally suited for operation behind dark glass.
Product Parameters:
1. Red, Green, Blue (RGB), and White Light Sensing with IR Blocking Filter
2. Programmable Analog Gain and Integration Time
3. 3,800,000:1 Dynamic Range
4. Very High Sensitivity. Ideally Suited for Operation Behind Dark Glass
5. Maskable Interrupt
6. Programmable Upper and Lower Thresholds with Persistence Filter
7. Power Management
8. Low Power: 2.5-uA Sleep State
9. 65-uA Wait State with Programmable Wait State Time from 2.4 ms to > 7 Seconds
10. I2C Fast Mode Compatible Interface
11. Data Rates up to 400 kbit/s
12. Input Voltage Levels Compatible with VDD or 1.8 V Bus
13. Register Set and Pin Compatible with the TCS3x71 Series

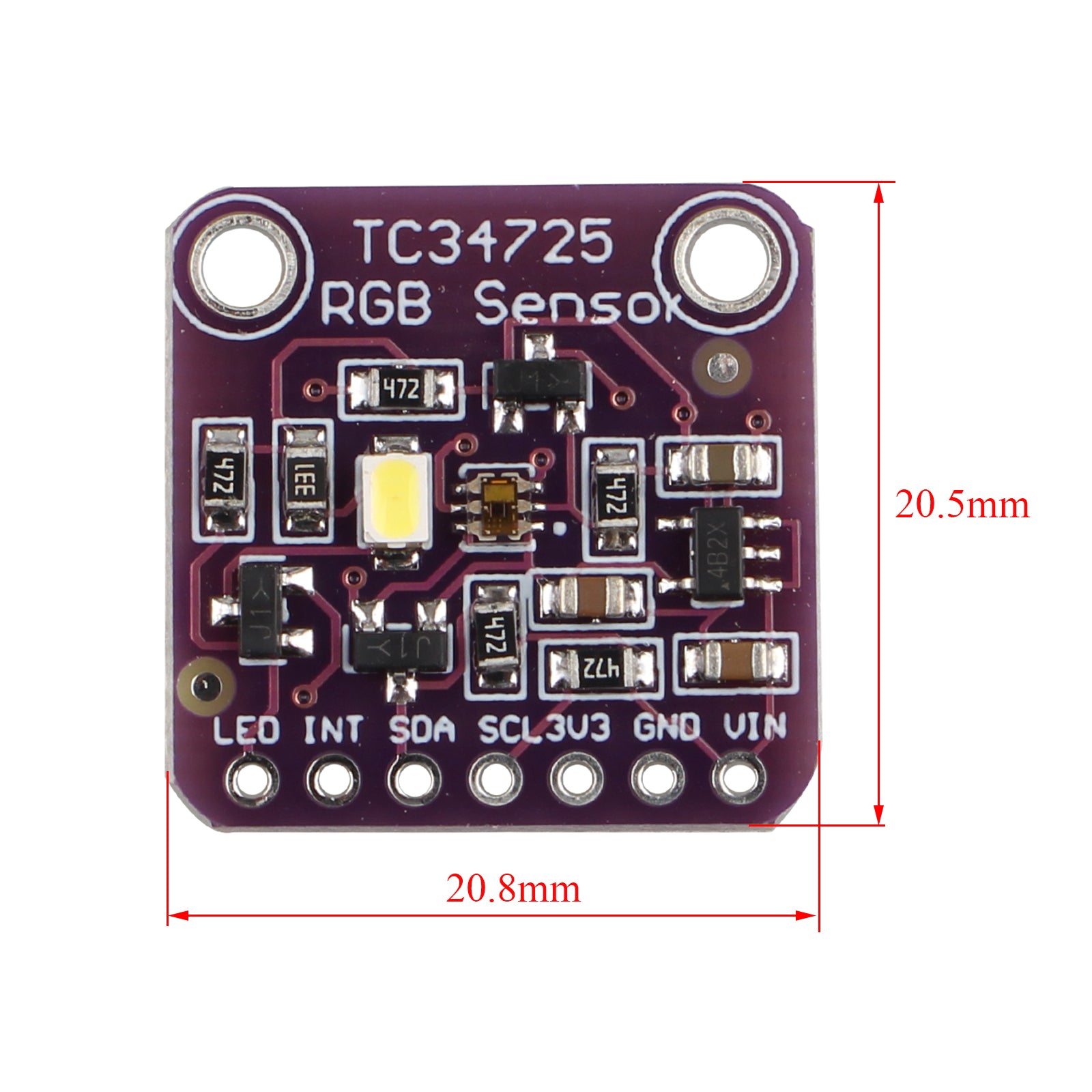

14. Board size: 20.8 × 20.5 mm
15. Weight: 2g
Applications:
1. RGB LED Backlight Control
2. Light Color Temperature Measurement
3. Ambient Light Sensing for Display Backlight Control
4. Fluid and Gas Analysis
5. Product Color Verification and Sorting
Packing List:

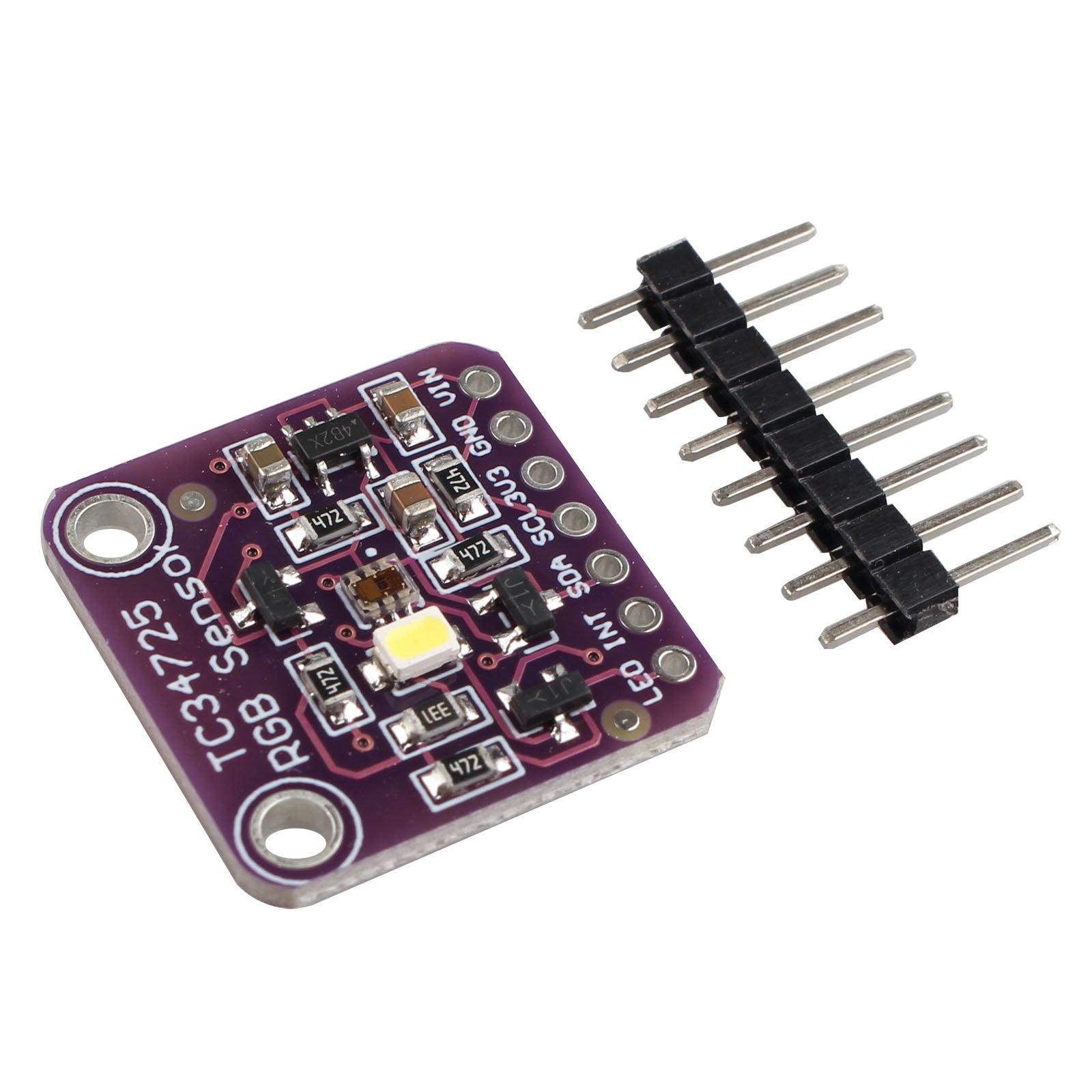

1 × TCS34725 Color Sensor
1 × pin header
