- Perfect for cooling down semiconductor devices.
- Solid state, vibration free, noise-free
- Easy to install and operate
- Reverse the polarity to get device cold in minutes or heat
- Used for many situations from CPU coolers to alternate power sources
Feature:
Overall dimensions: 40 * 40 * 3.5mm
Lead Specifications: Lead length 320 ± 8mm RV standard lead 5mm single tin plated
Maximum temperature difference: △ Tmax (Qc = 0) 67 ℃ above.
Working current: Imax = 9A(when rated voltage starts)
Rated voltage: DC12V (Vmax: 15.2V)
Cooling power: Qcmax 82W
Assembly pressure: 85N / cm2
Working environment: temperature range -55 ℃ ~ 83 ℃ (high temperature will directly affect the cooling efficiency)
Packaging process: around the standard 704 silicone rubber seal
Packaging standards: foam box packaging, storage temperature -10 ℃ ~ 40 ℃
How to operate:
1. Prepare the Refrigeration tablets, radiator,grease,heat insulated pad, power module before working
2. Brush the grease on the heat side and cool side of the refrigeration tablets(cool side is with word,and heat side is without word)
3. Install the refrigeration tablets on the heat sink, put heat insulated pad in the middle
4. Tighten the screw and wire up, then start cooling
Packing List:

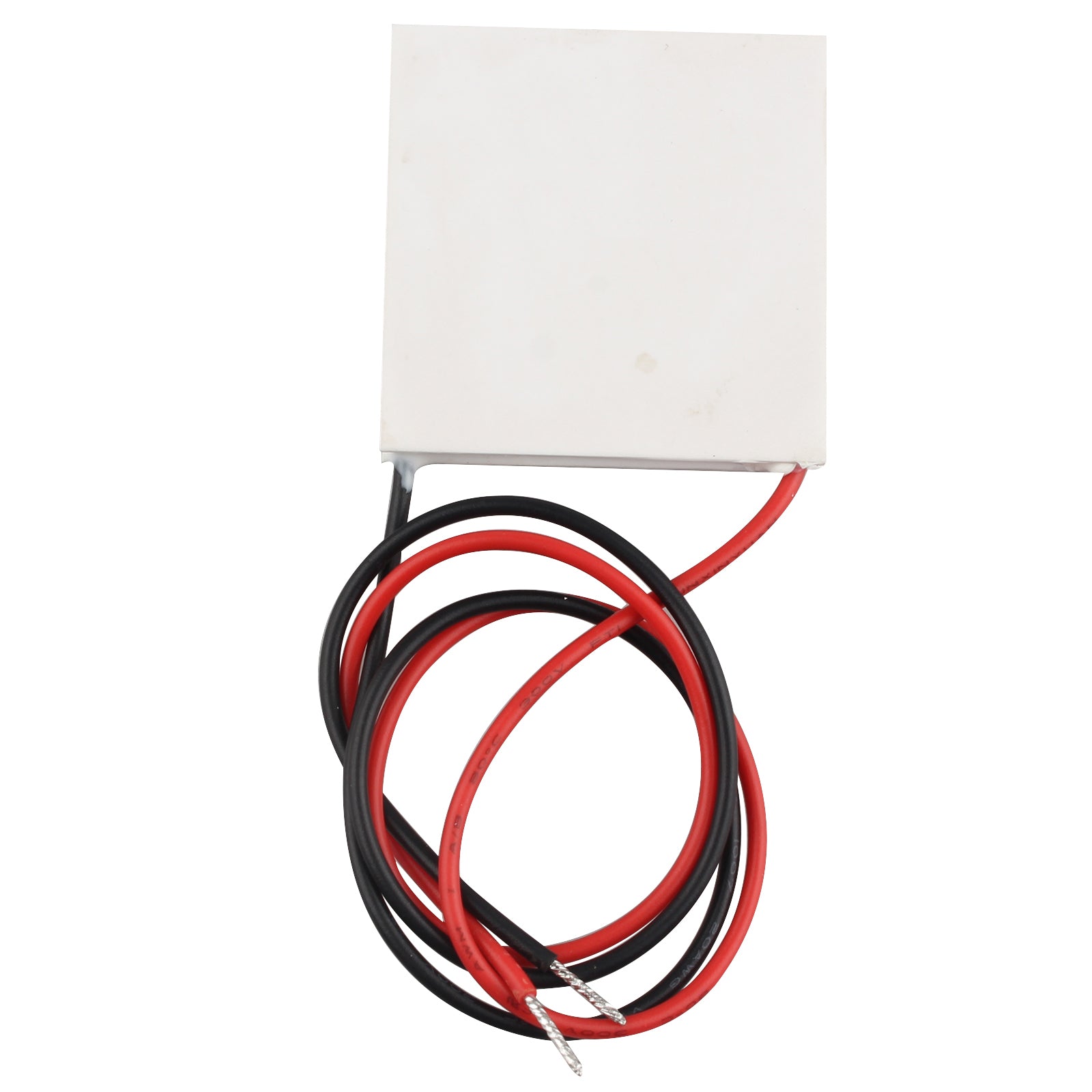

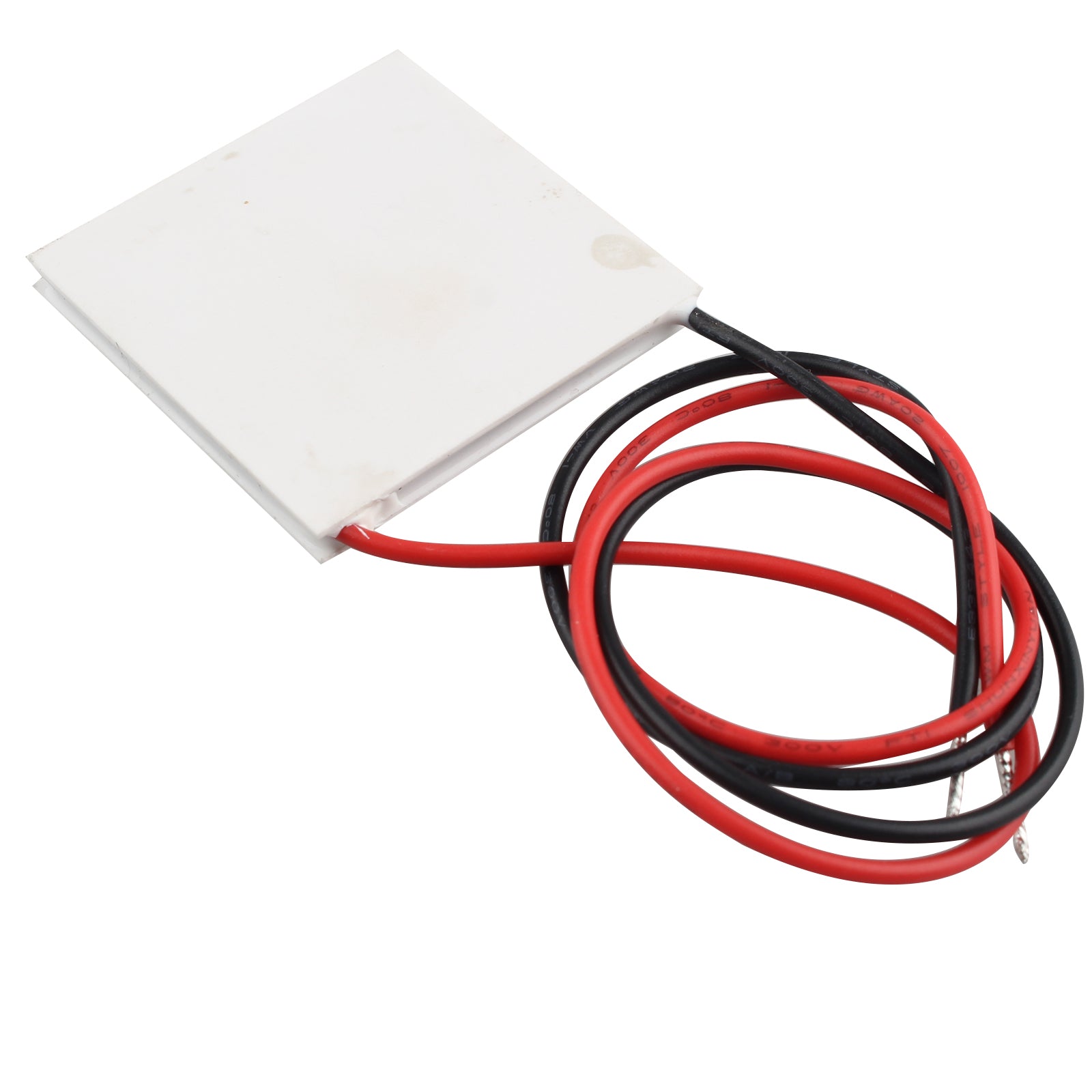

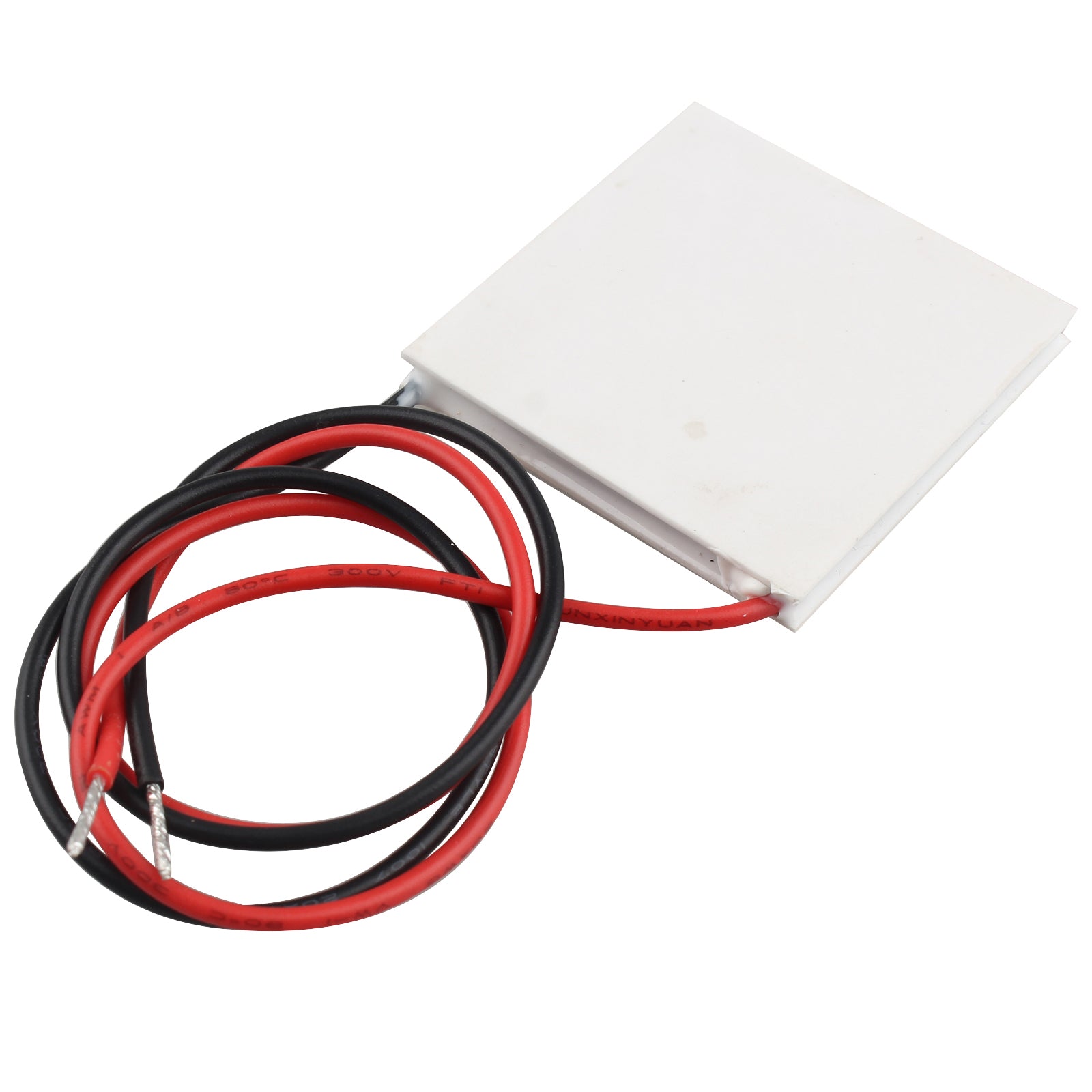

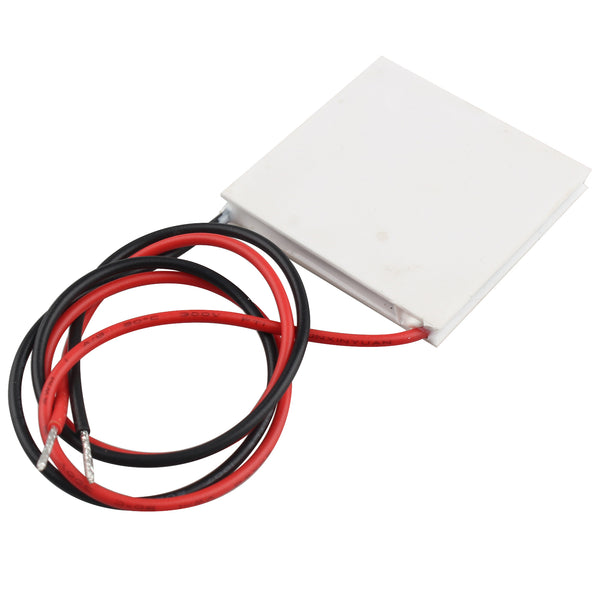

1 x TEC1-12709 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module 12V 82W
