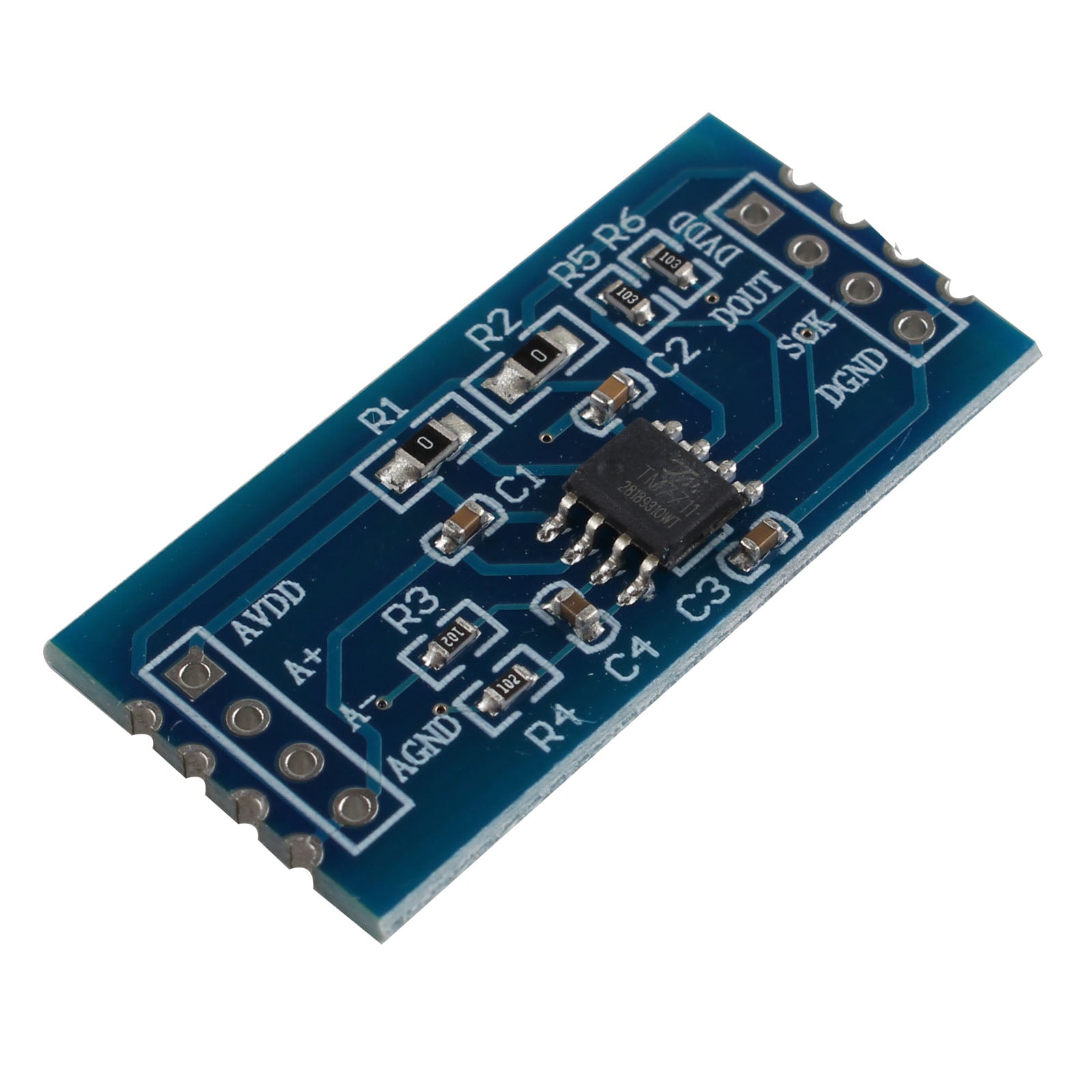

- Model Number:TM7711 module
- This module uses 24-bit high-precision A/D converter chip TM7711, which is a single-channel analog channel input designed for high-precision electronic scales.

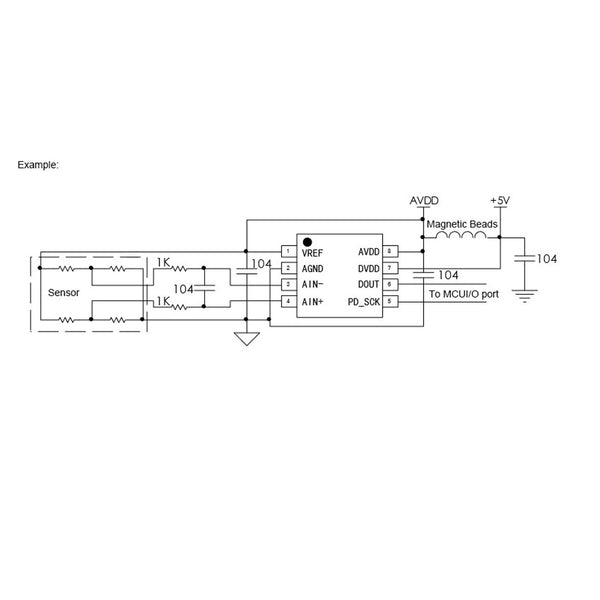

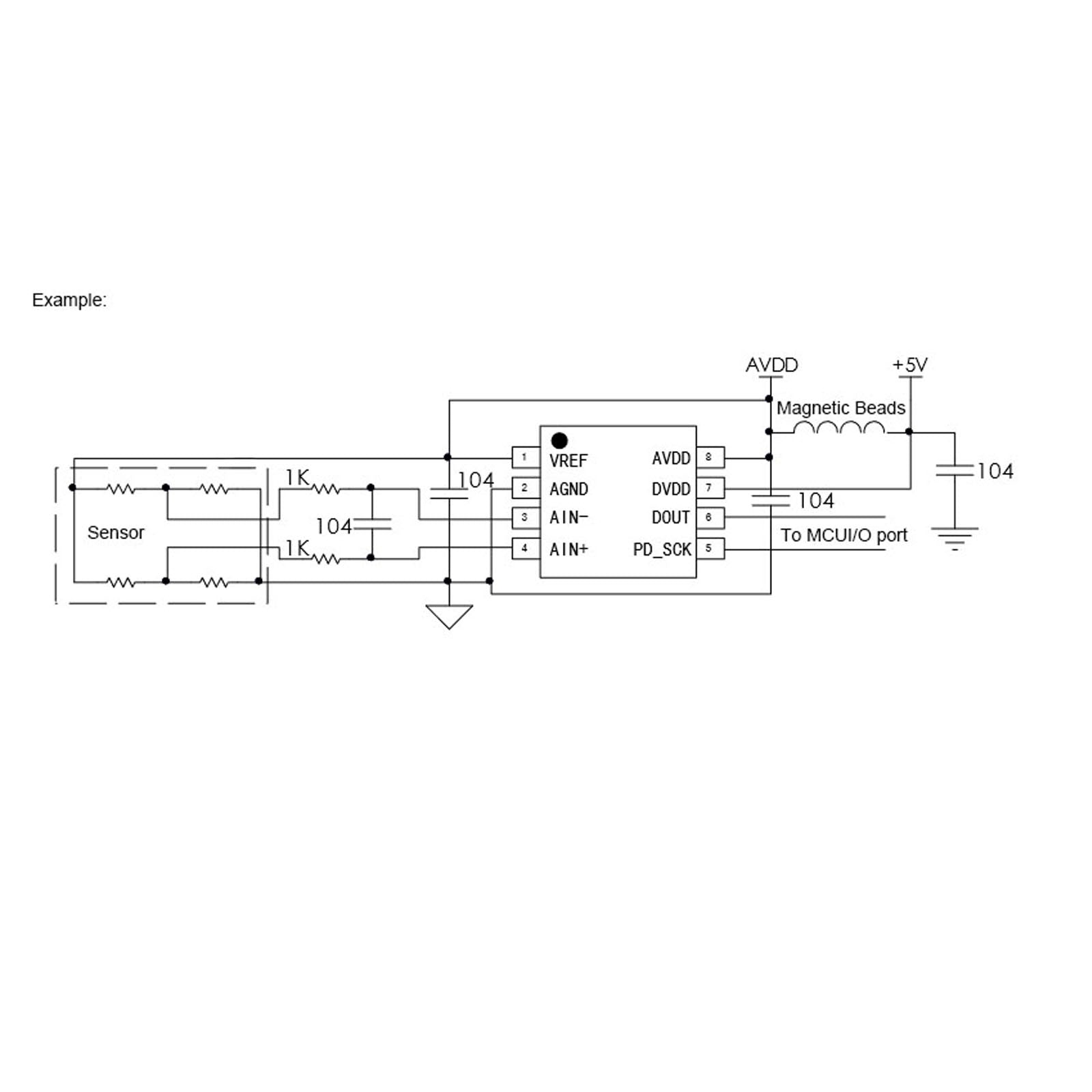

- The input circuit can be configured as a bridge-type (such as pressure, weighing) sensor mode that provides bridge pressure. It is an ideal high-precision, low-cost sampling front-end module.
- Single chip microcomputer weighing AD module-TM7711 and HX710A chip are hardware and software compatible; TM7711 is more cost-effective.
- Made of high-quality materials, durable and strong.
Specification：
Type: Voltage Regulator
Precision：24-bit
Application: Electric Toy
Supply Voltage: standard
Dissipation Power: standard
Operating Temperature: standard
colour: Black + blue
Material: Plastic + metal

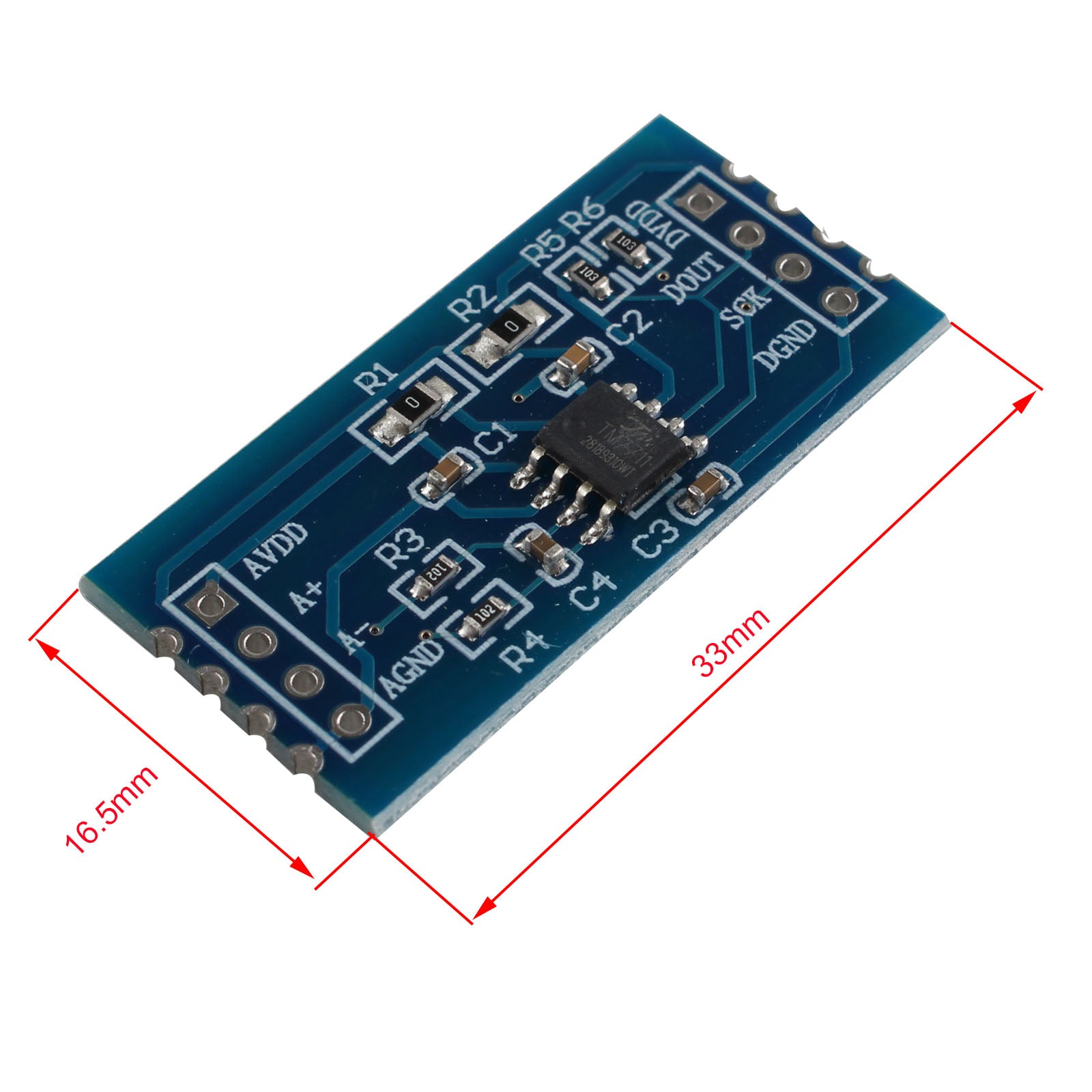

Size：33 × 16.5 × 3.2 mm
Weight：2.1g
Packing List:

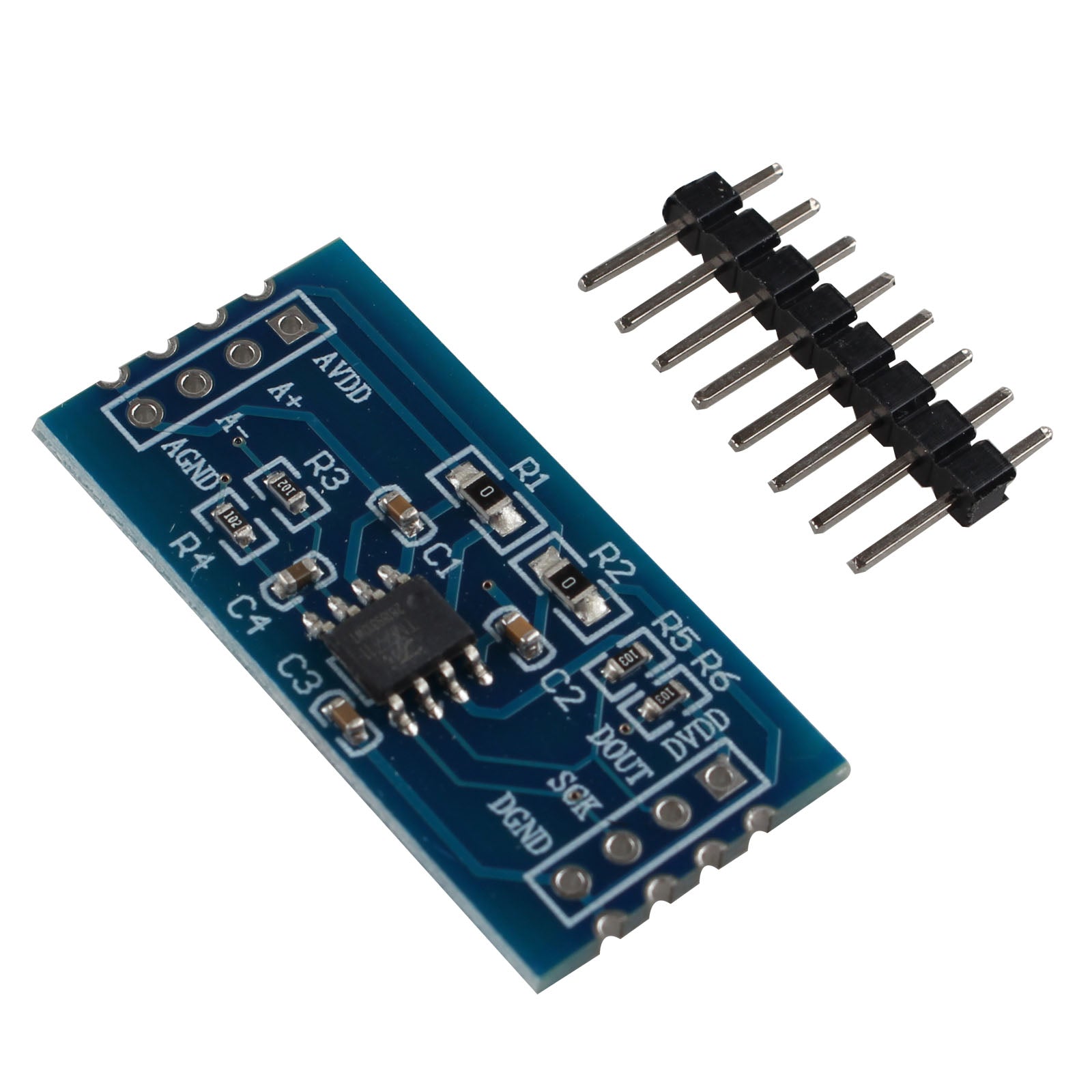

1 × TM7711 Module
