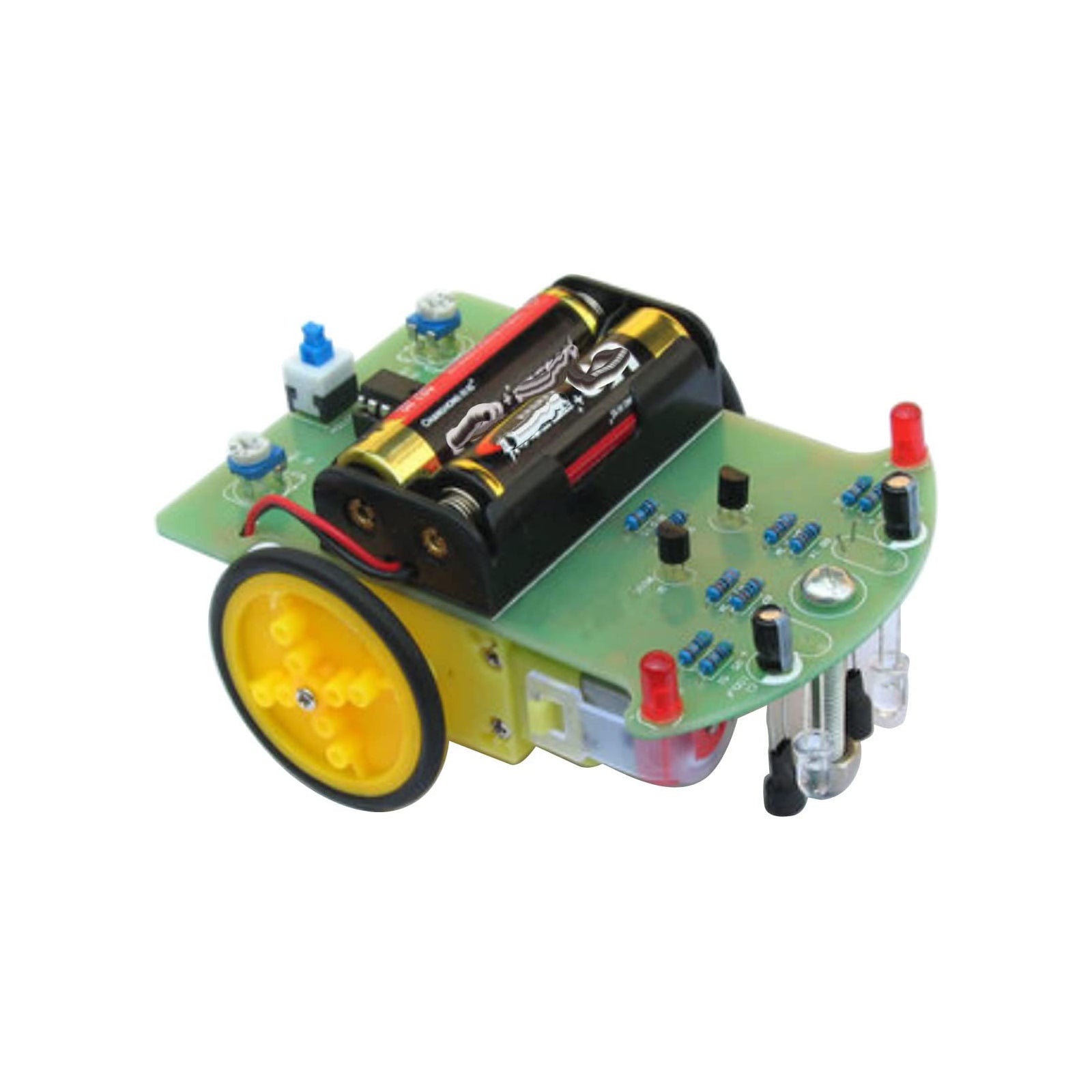

HALJIA Tracking Robot Car Electronic DIY Kit With Gear Motor

Regular price $9.99

Shipping calculated at checkout.

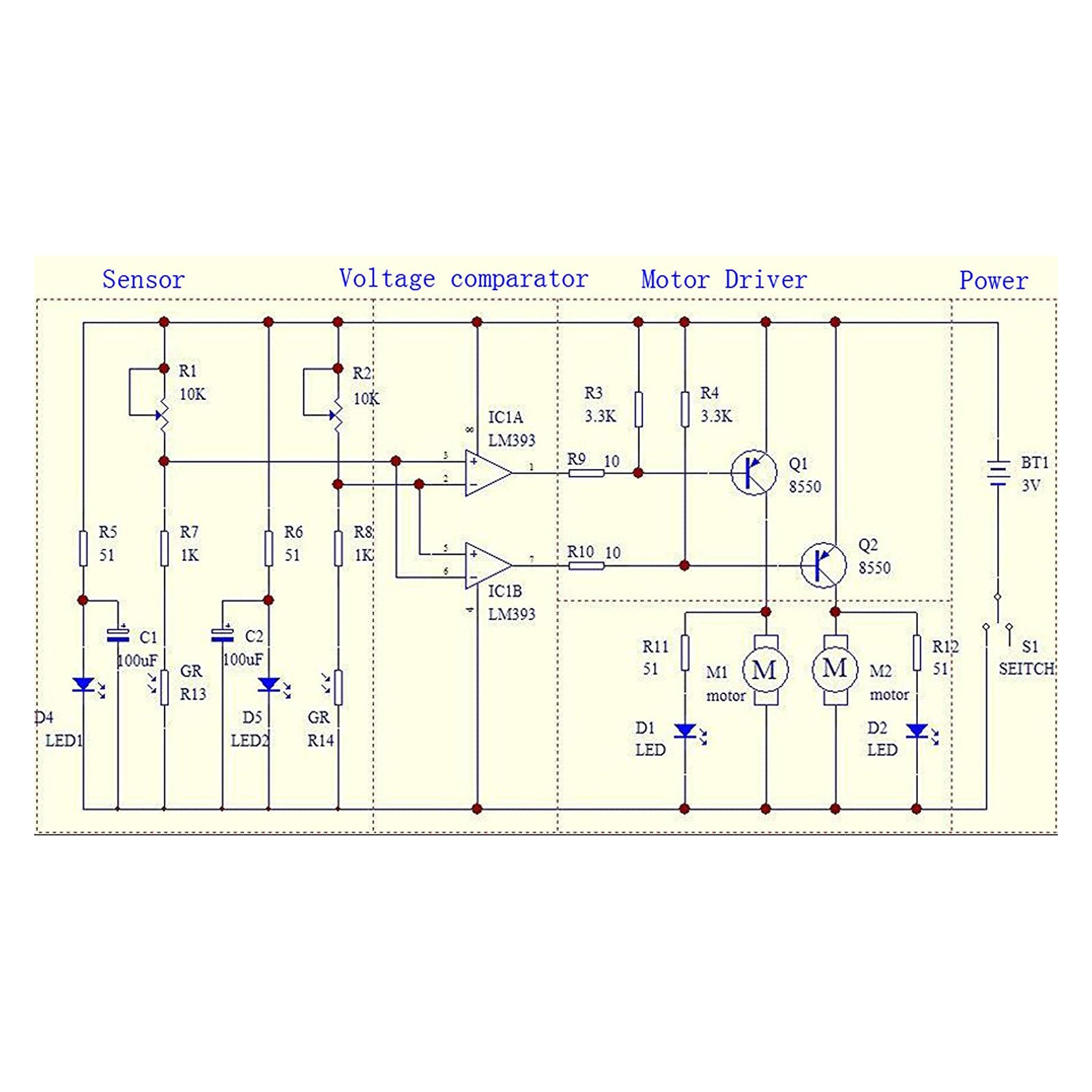

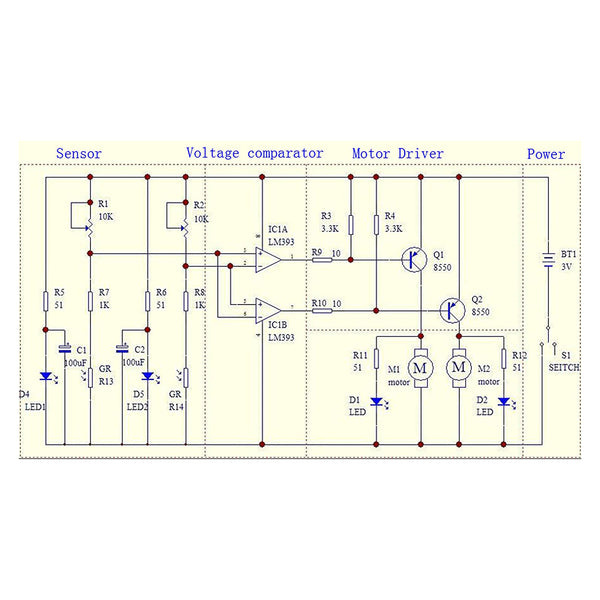

  • This kit are designed to help electronic, enthusiasts, and novices learn about basic electronic basics knowledge including soldering and simple circuits(photoelectric sensor circuit,voltage comparator,motor driving)
  • Set IR obstacle avoidence and line tracking function all in one and controlled by C51 mcu, smarter and more interesting
  • Tracking Line Width: 16mm/0.63inch, Power Supply: AA battery(not included)
  • This is photosensitive resistance, it can detecting the external light intensity, the stronger the outside light photosensitive resistor resistance is small, the outside light weaker resistance bigger when the red LED light projected onto a white and black runway because reflection rate is different, the resistance value of the photosensitive resistance will occur obvious difference for subsequent circuit control
  • LM393 comparator integrated circuit

The assembly steps:
Step 1: Welding circuit
Electric welding part is simpler, welding sequence according to the principle of component level from low to high, the first welding eight resistance, is important to use multimeter to confirm resistance is correct, D4, D5 R13 R14 can temporarily not welding, integrated circuit chips can temporarily not inserted

Step 2: Mechanical assembly
The red line is connected to the 3V positive power supply, the yellow line grounding, excess wire can be used for motor wire.

Step 3: The installation of a photoelectric circuit
Photosensitive resistance and light-emitting diodes (note polarity) is reverse-mounted on the PCB, and the ground distance is about 5 mm, both photosensitive resistance and light-emitting diodes are 5 mm distance. Finally, you can power test.

Step 4: Vehicle debugging
The right direction is along the universal wheel direction, if you press and hold the left photoresistor, the wheels on the right side of the car should be rotated. Press and hold the right photoresistor, the wheels on the left side of the car should be rotated, if the car driving back, can also exchange the wiring of two motors, if the one side normal and the other side back up, as long as you can swap wiring of back side.

For details, please click: http://download.haljia.com/download/Kits/Tracking-car-kit/spec.pdf

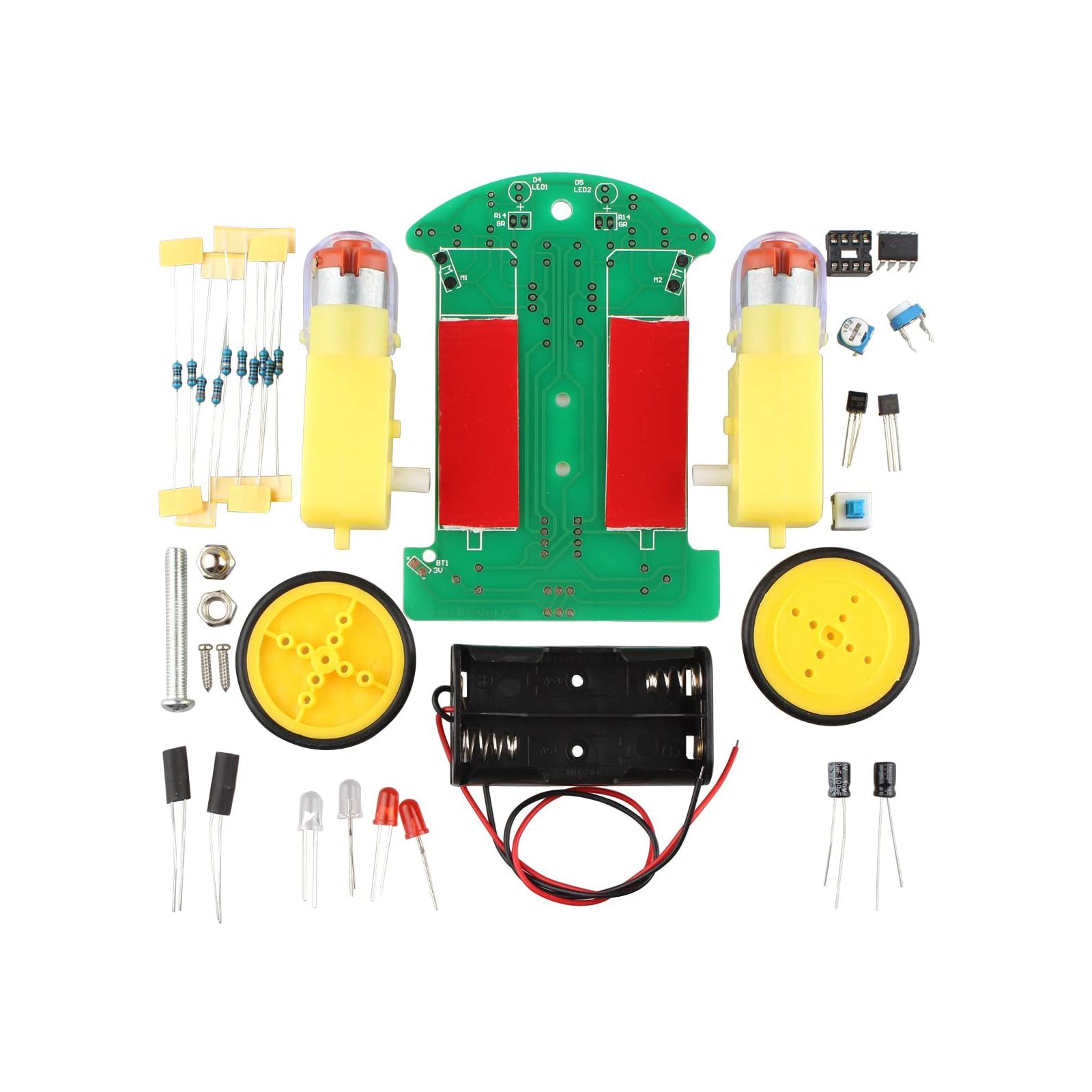

Packing List
1 * LM393 IC
1 * IC socket
1 * Pack of screws
10 * Resistors
2 * 10K Adjustable resistors
2 * Capacitors
1 * Switch
2 * S8050 NPNs
2 * Photoresistances
2 * White LEDs
2 * Red LED

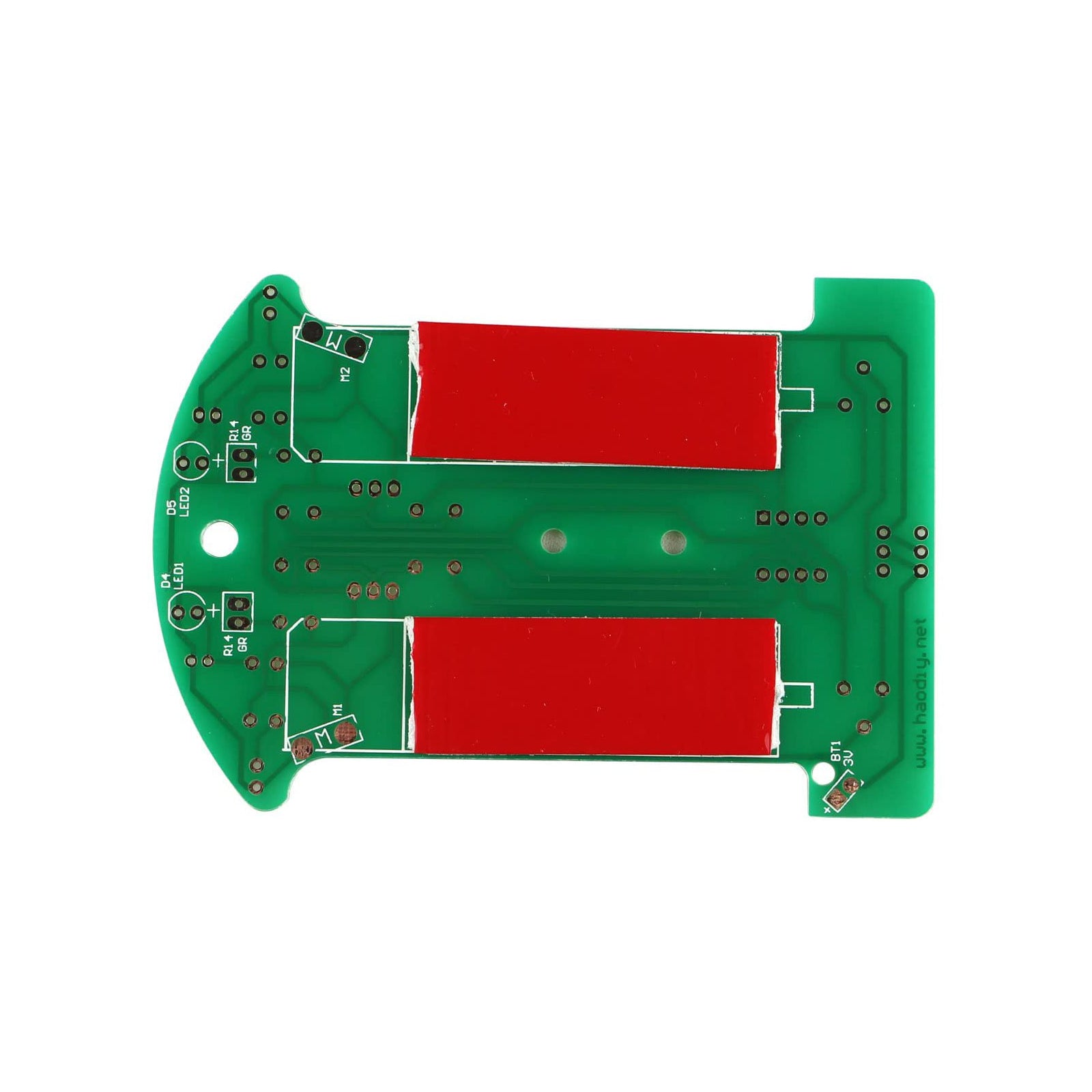

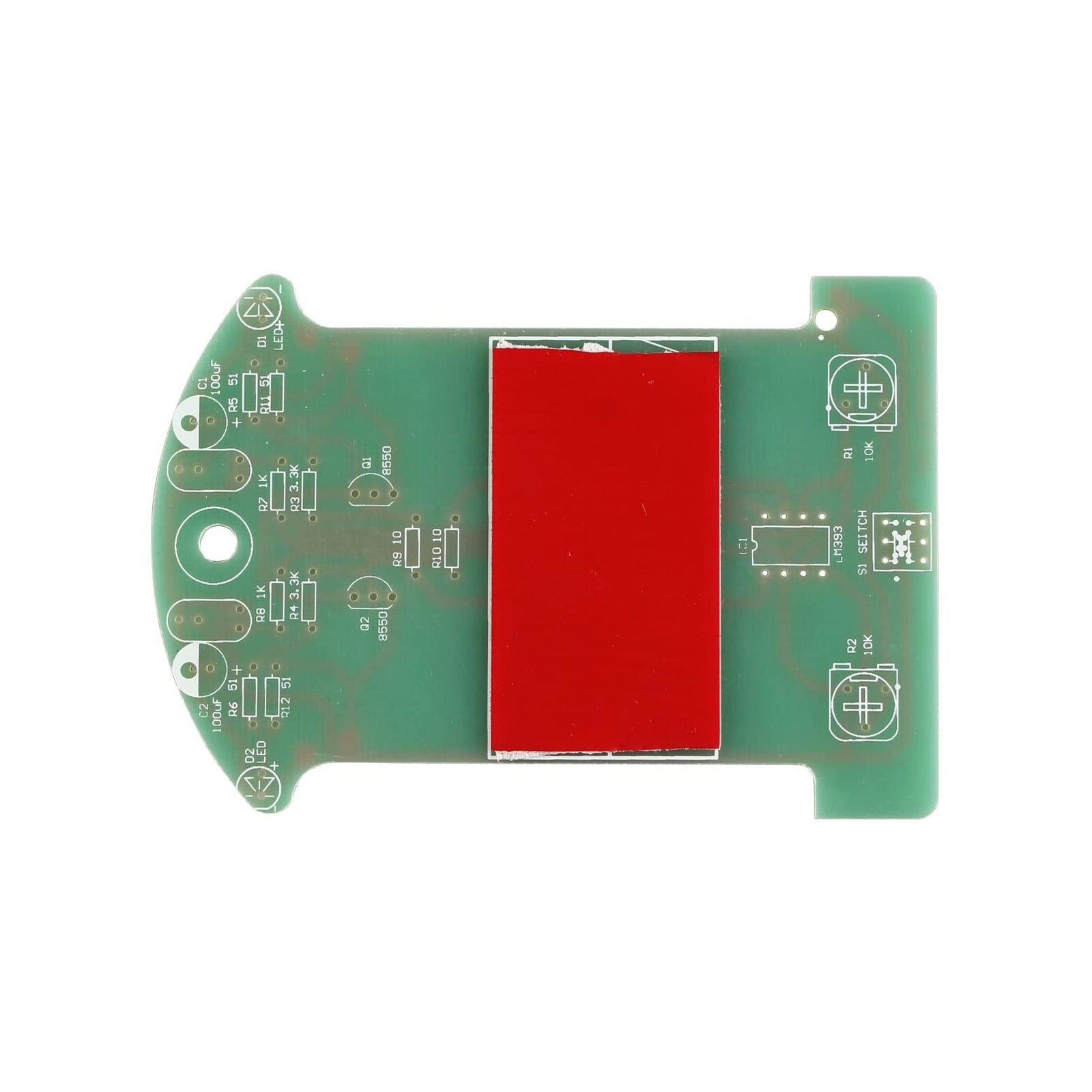

1 * PCB

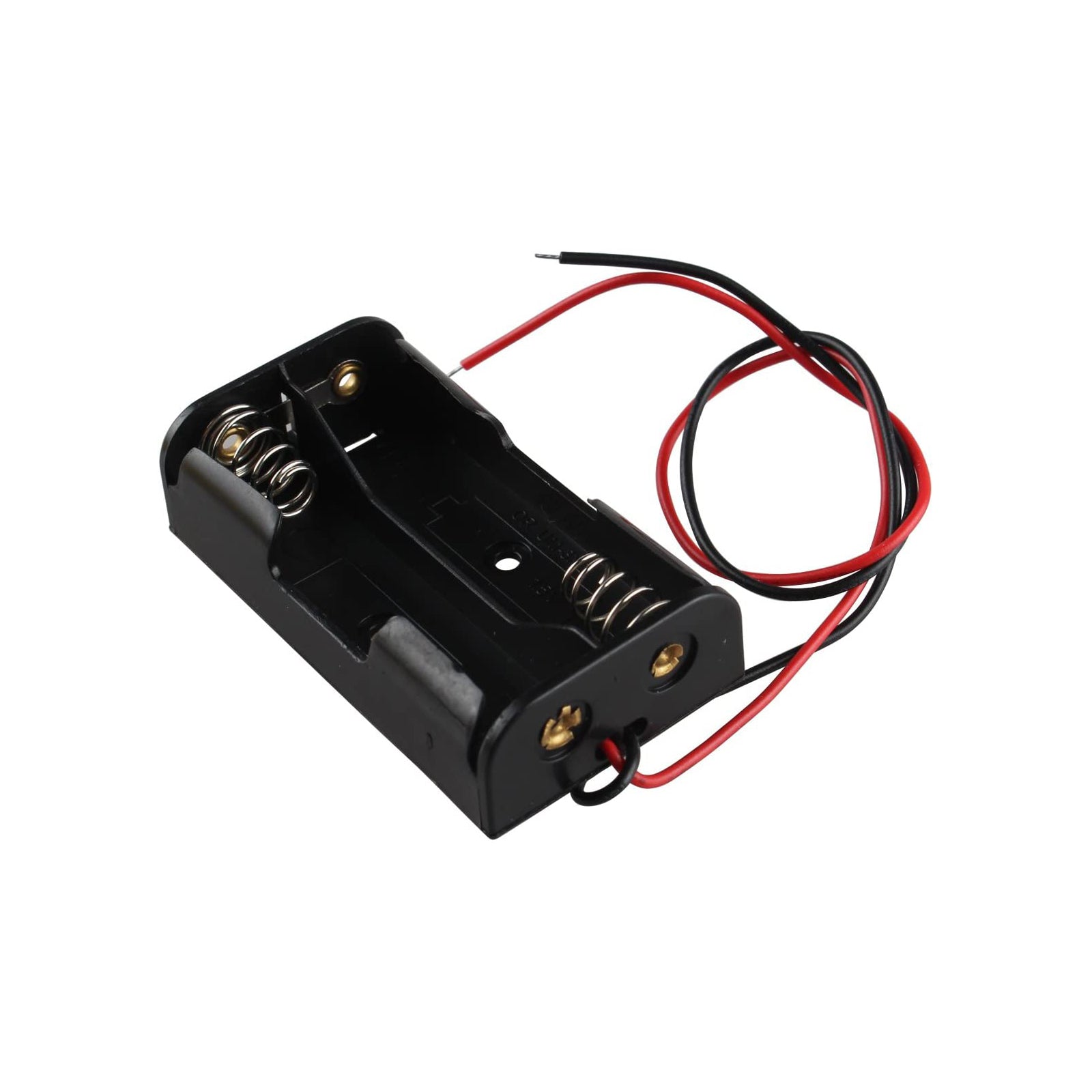

1 * Battery box (batteries are not included)

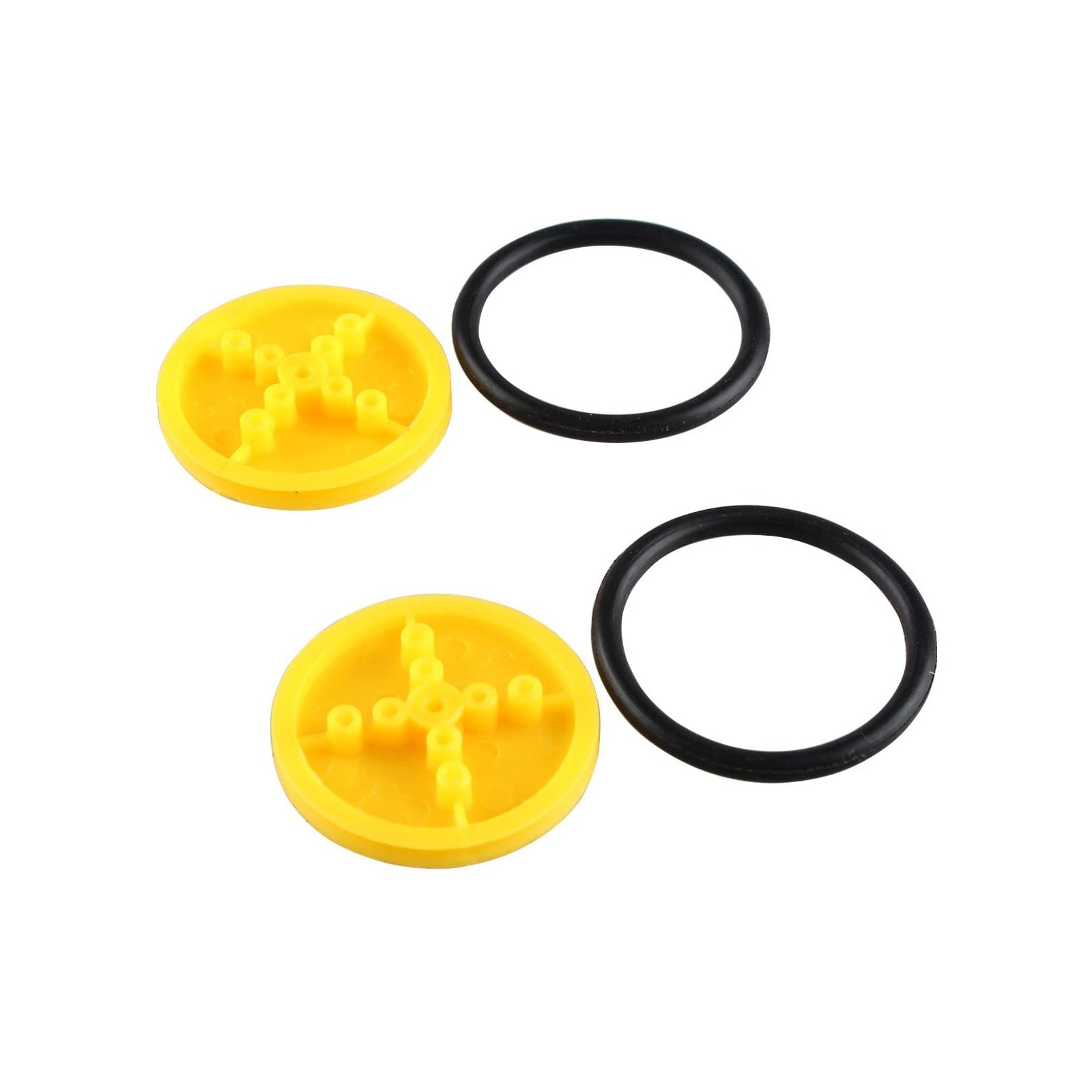

2 * Car tires

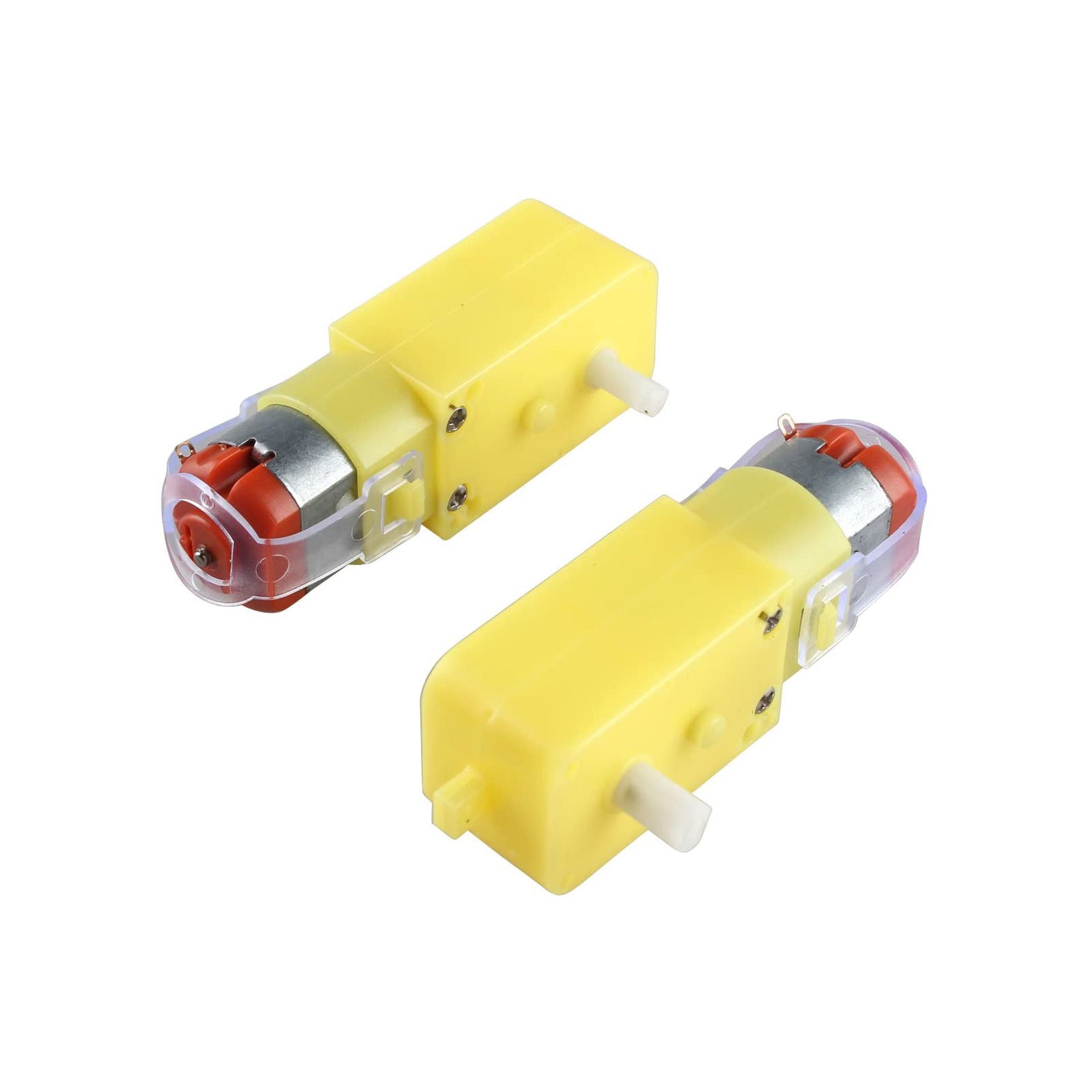

2 * Gear motors
