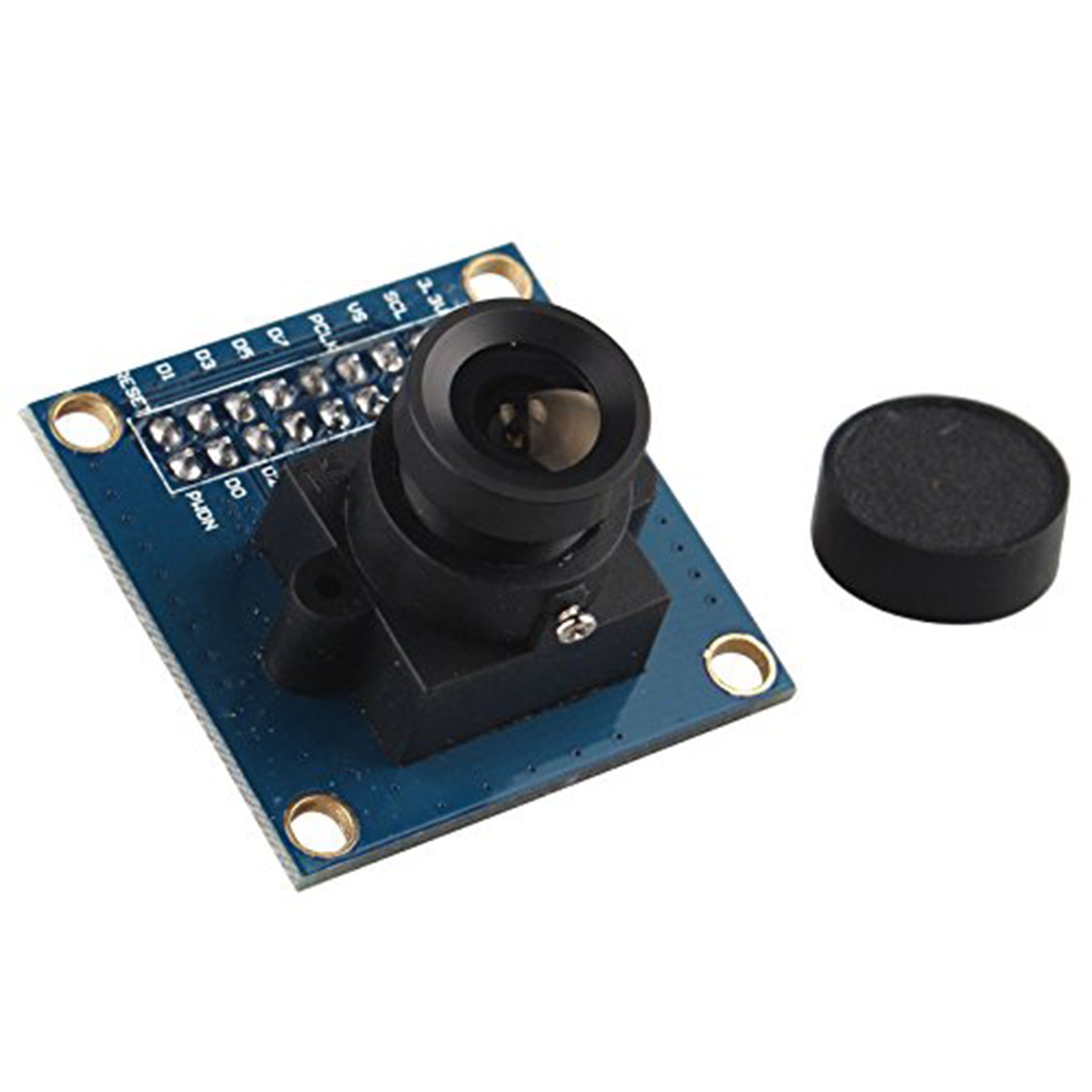

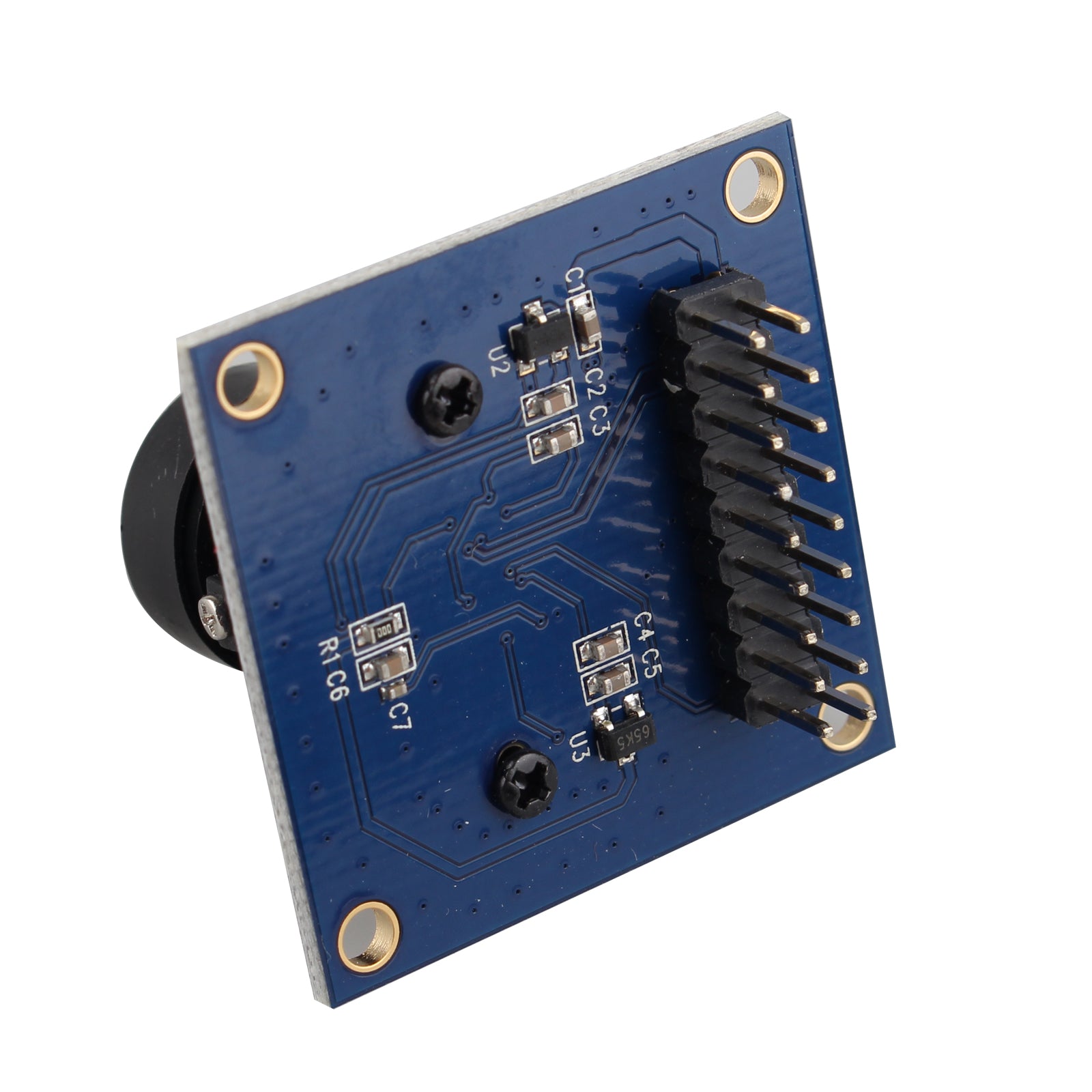

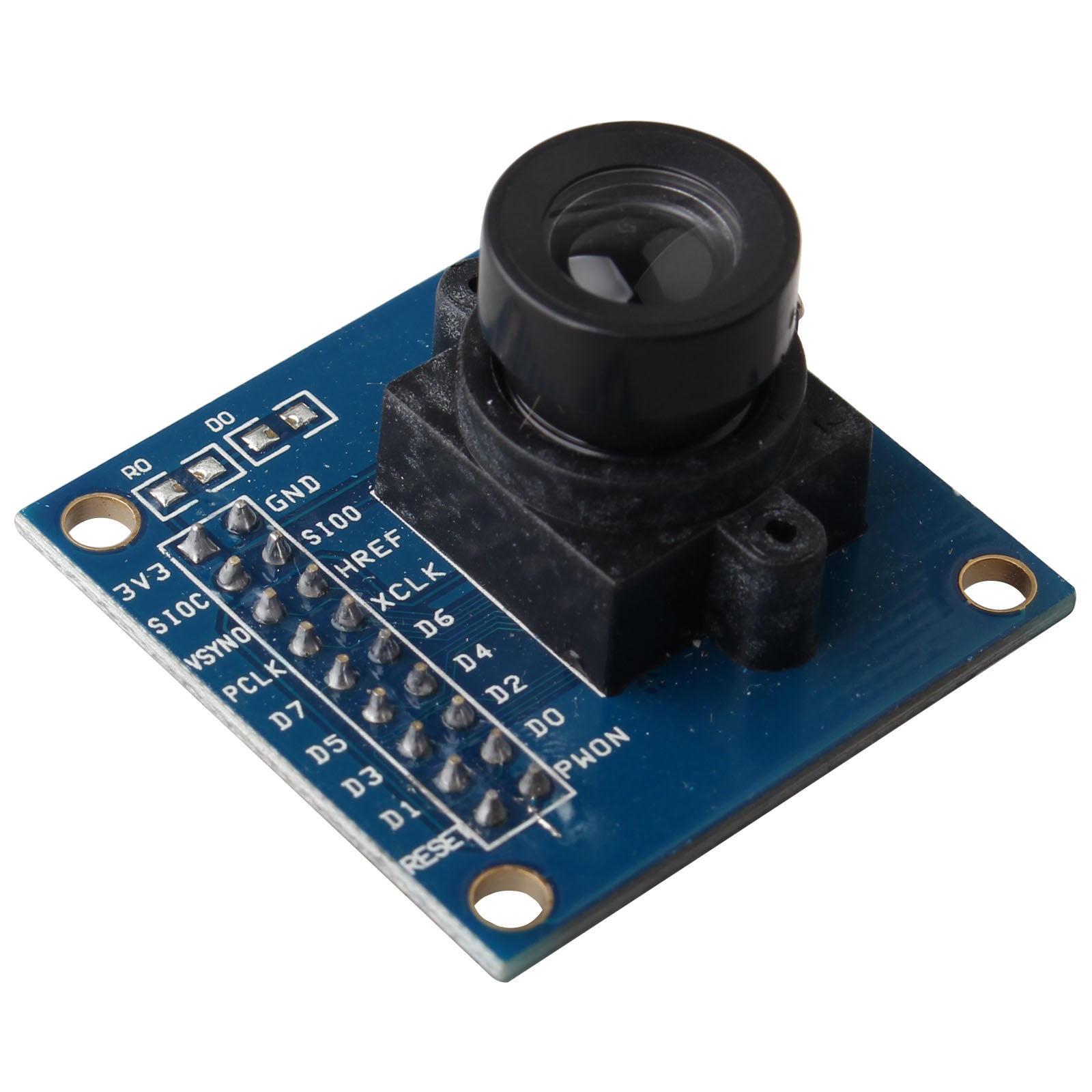

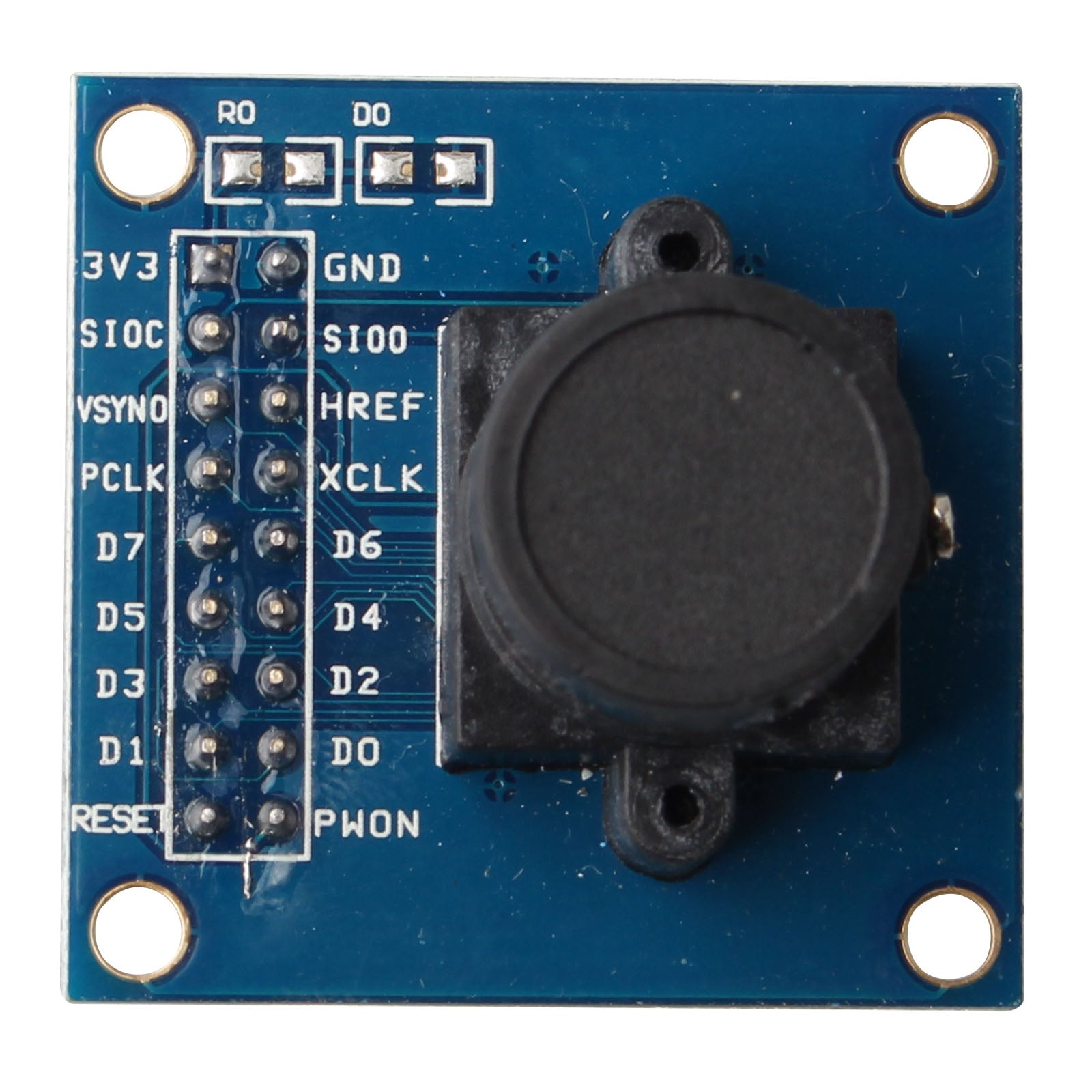

HALJIA VGA OV7670 300KP 0.3 Megapixels CMOS Sensor Camera Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface Compatible with Arduino

Regular price $5.99

Shipping calculated at checkout.
  • Low operating voltage for embedded application;
  • Standard SCCB interface compatible with I2C interface;
  • Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and; YCbCr (4:2:2)output format; Support VGA, CIF and from CIF to 40 x 30 format;
  • Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming;
  • ISP includes noise reduction and defect correction; Lens shading correction; Color saturation level auto adjust; Edge enhancement level auto adjust; De-noise level auto adjust

Product description

Color: Black + blue;
Material: Glass fiber + plastic + iron

Features
Photosensitive Array: 640 x 480;
IO Voltage: 2.5V to 3.0V;
Operating Power: 60mW/15fpsVGAYUV;
Sleeping Mode: <20 uA;
Operating Temperature: -30 to 70 deg C.;
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit);
Lens Size: 1/6";
Vision Angle: 25 degree;
Max. Frame Rate: 30fps VGA;
Sensitivity: 1.3V / (Lux-sec);
Signal to Noise Ratio: 46 dB;
Dynamic Range: 52 dB;
Browse Mode: By row;
Electronic Exposure: 1 to 510 row;
Pixel Coverage: 3.6um x 3.6um;
Duck Current: 12 mV/s at 6'C

Applications:
Cellular phones,PDAs,Toys,Other battery-powered products

Packing List:
1 x Camera Module
1 x Cover
