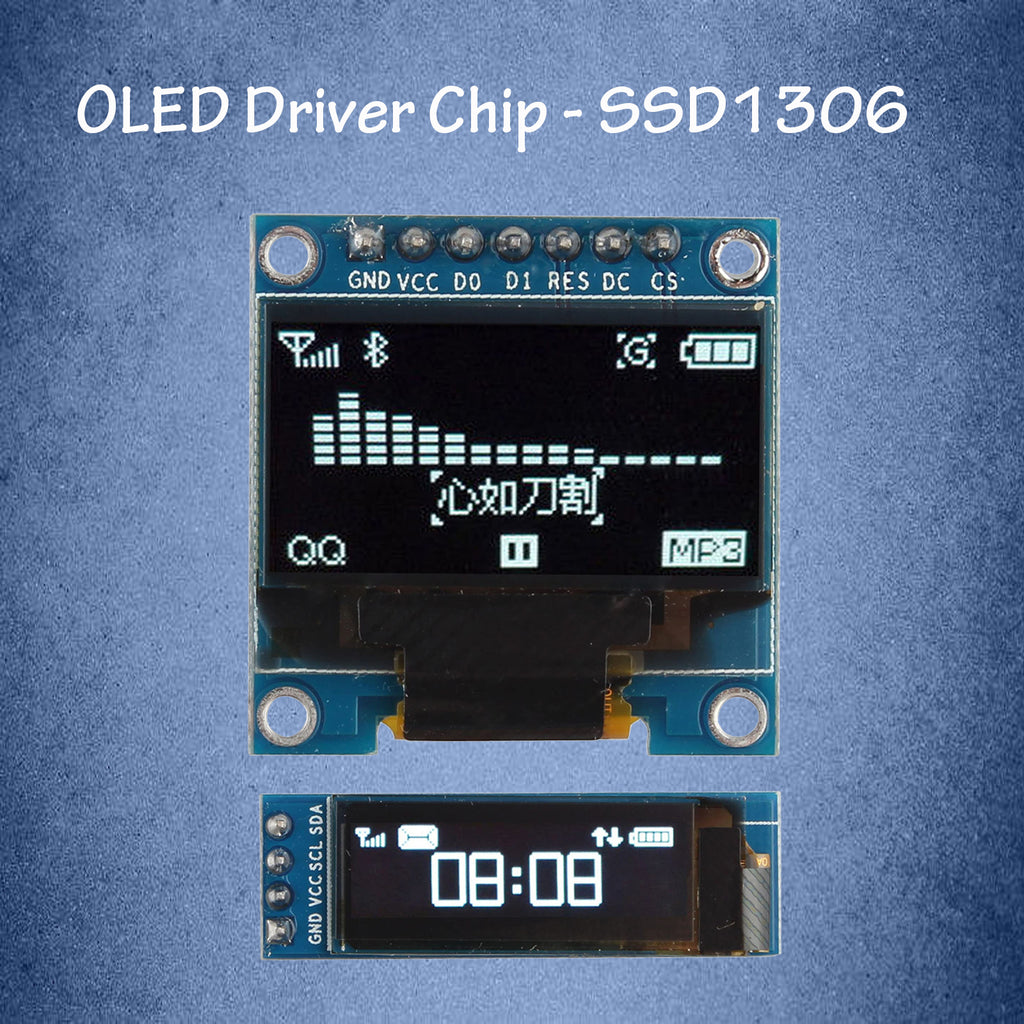

OLED Driver Chip-SSD1306

SSD1306 is a single-chip CMOS OLED/PLED driver and controller for organic/polymer light-emitting diode dot matrix graphic display systems. It consists of 128 segments and 64 commons. This integrated circuit is designed for ordinary cathode type OLED panels. SSD1306 embeds contrast control, display RAM and oscillator, reducing the number of external components and power consumption of the display. It has 256 steps of brightness control. Data/commands are sent through the hardware-optional general-purpose MCU 6800/8000 series compatible parallel interface, I2C interface or serial peripheral interface. It is suitable for many compact portable applications, such as mobile phone sub-displays, MP3 players, calculators, etc....
